Bunnings Montgomery Parts Drawer inserts
Print Profile(8)
Description
19th Jan 2025
Added two new designs - the first two print profiles.
Improvements:

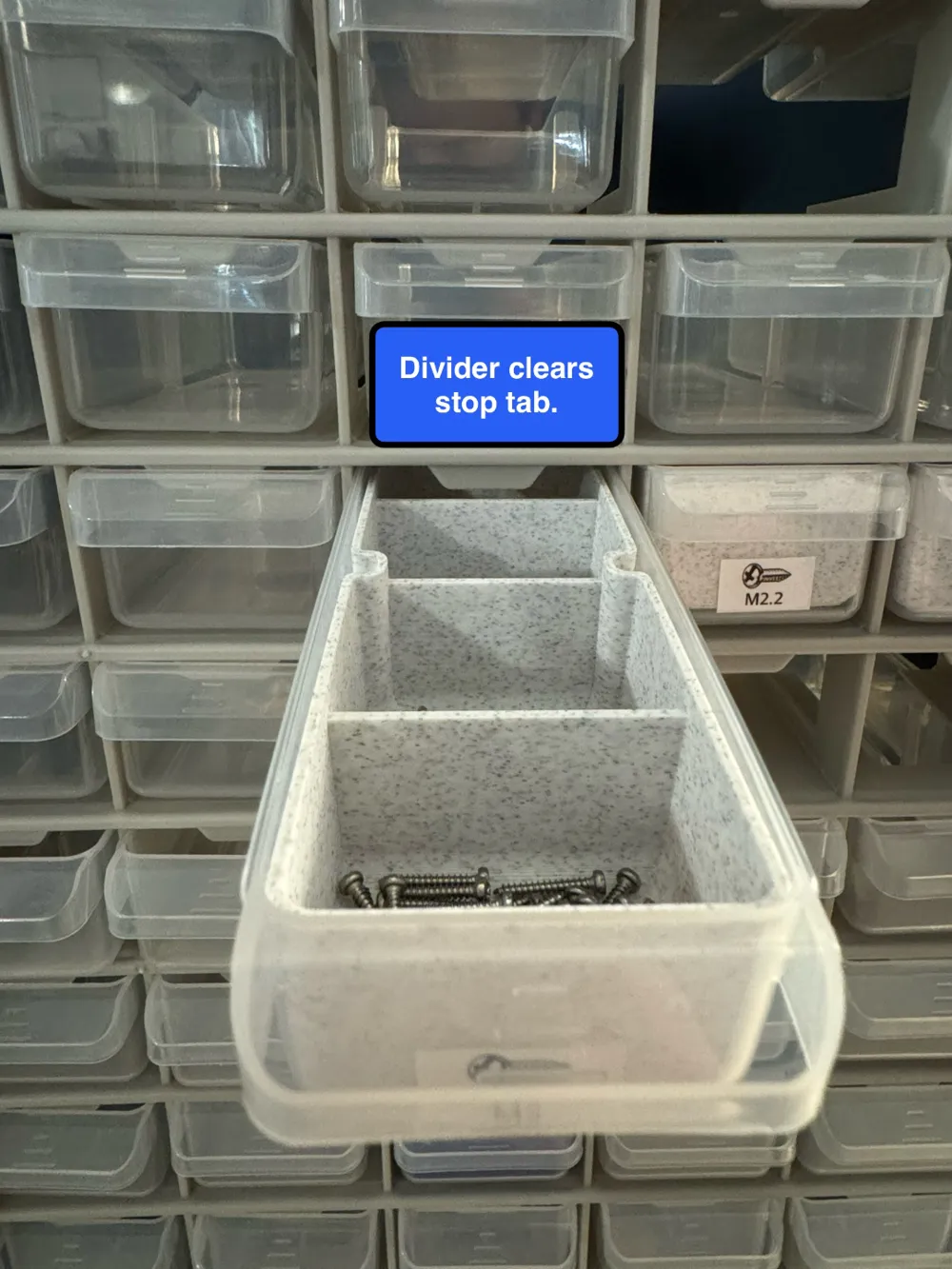

- Increased height of divider but also added cut-out for draw stop to pass through.
- Reduced width by 1mm - clear drawer less likely to squeeze draw divider upwards.
Reduced bottom fillet diameter
**********

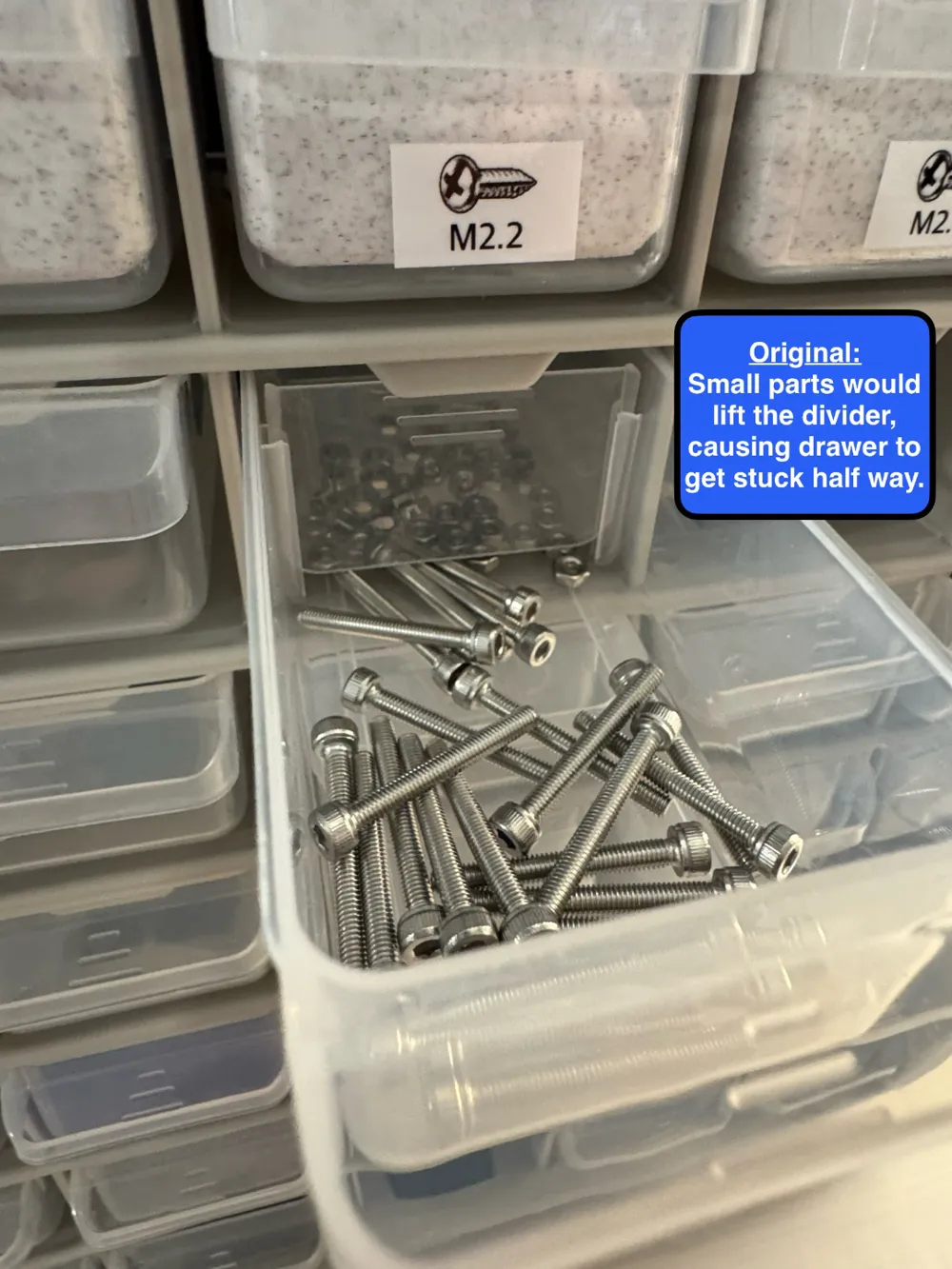

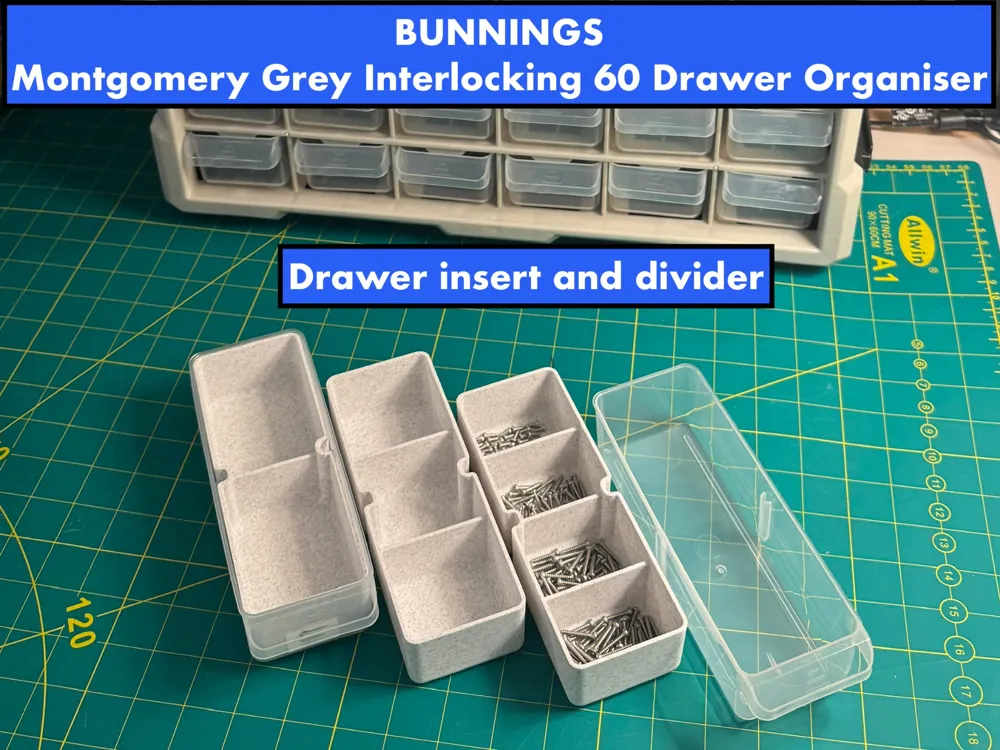

Here I’ve designed some 2, 3, & 4 bay drawer inserts for the Montgomery 60 drawer organiser. I found the original slide-in divider to be very frustrating. Parts would get wedged underneath and jam up the drawer.
- I’ve include 3 wall thicknesses: 1.6mm, 1.2mm and 0.8mm - I used Bambu Marble PLA at 1.6mm as I like them strong. You can probably go thinner with PETG.
No supports, 0.28 layer height, 0.4mm nozzle.
- Files for PETG-HF and PLA Tough.
Only tested on the Bunnings version of this organiser.
FYI, for those not in Australia, Bunnings is our biggest hardware store in the country.
It looks like this these may fit many other 60 drawer organisers such as the ones in the following links:

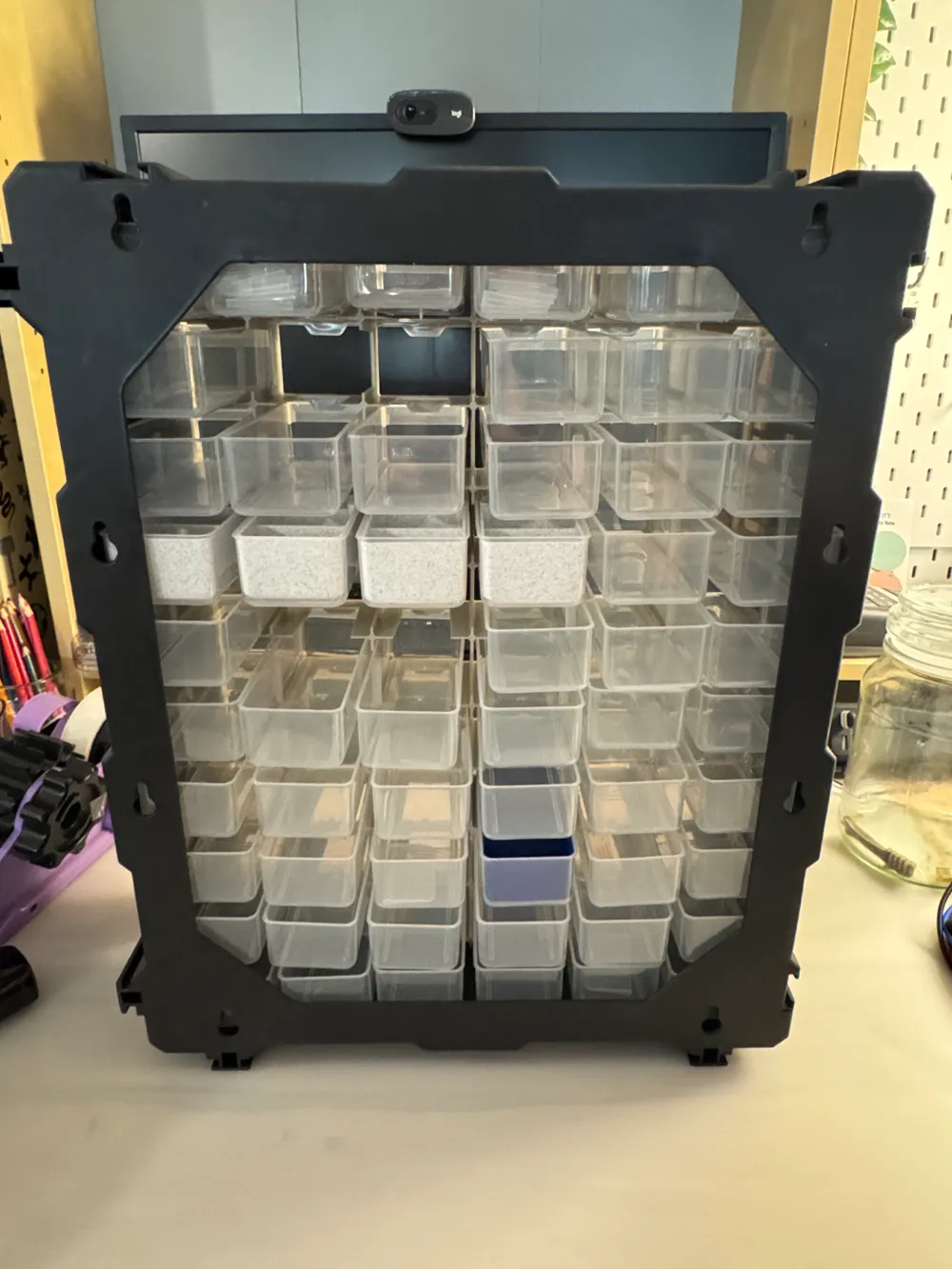

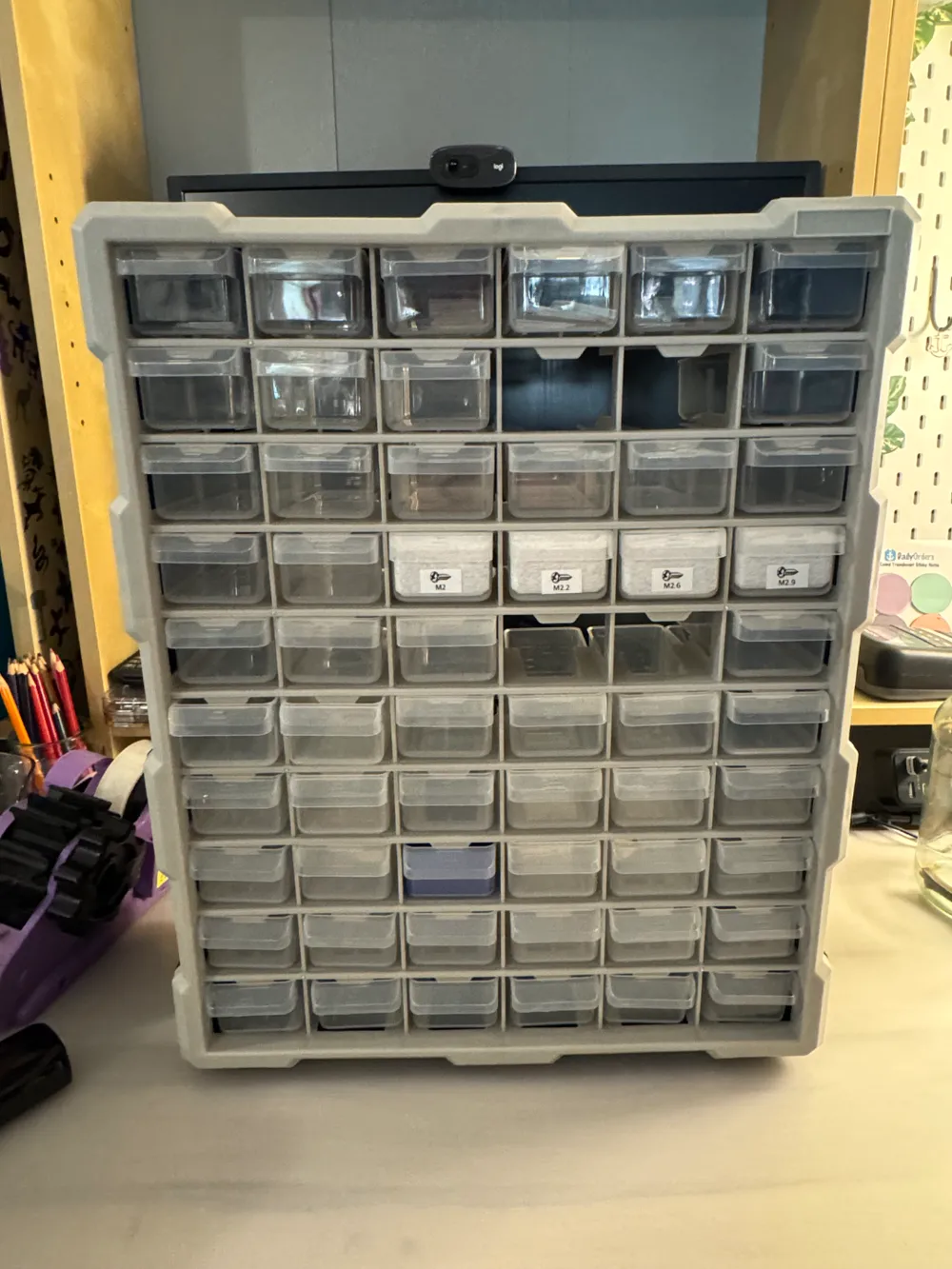

Bunnings Montgomery 60 drawer organiser
Kmart ANKO 60 drawer organiser
Spotlight - Crafters Choice 60 drawer
