Description

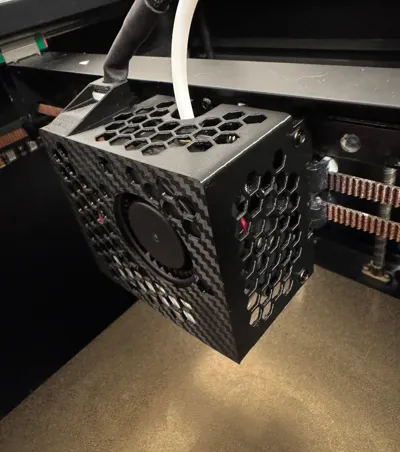

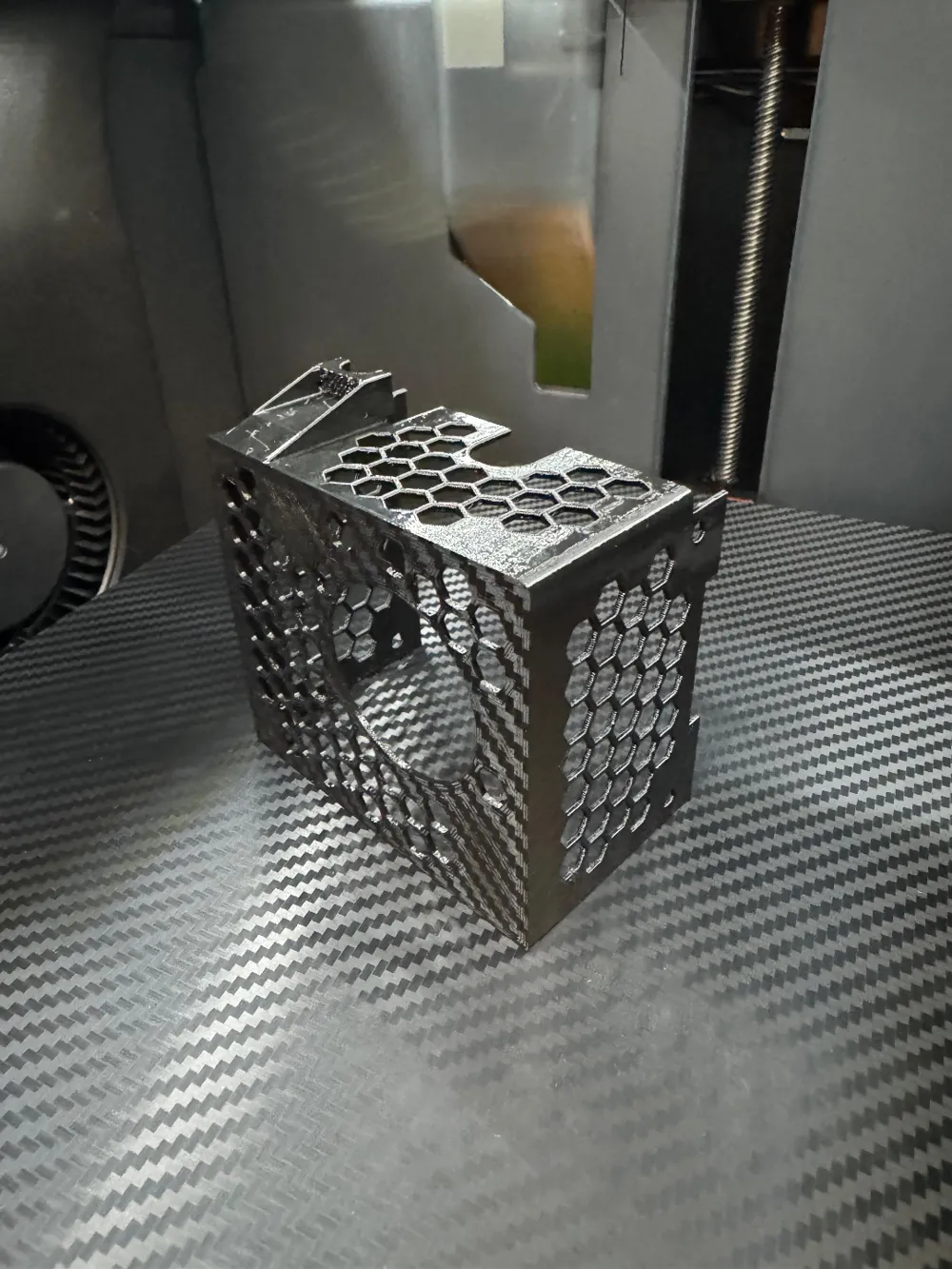

Extruder Cover for KLP1 230 Version

I had issues when printing ABS because the Printhead Board overheated,

so i designed a weight reduced version with better airflow.

Key features:

-Original screws can be reused.

-Improved airflow for MKS_THR Board .

-Reduced mass of only ~11grams (original ~40grams)

-Original Fan and Duct fits like before.

-Extruder clamping screw stays reachable.
