80mm hose universal magnetic connection
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
6.4 h
6 plates
Open in Bambu Studio
Boost
26
75
2
2
66
19
Released
Description
Content has been automatically translated.
Boost Me (for free)

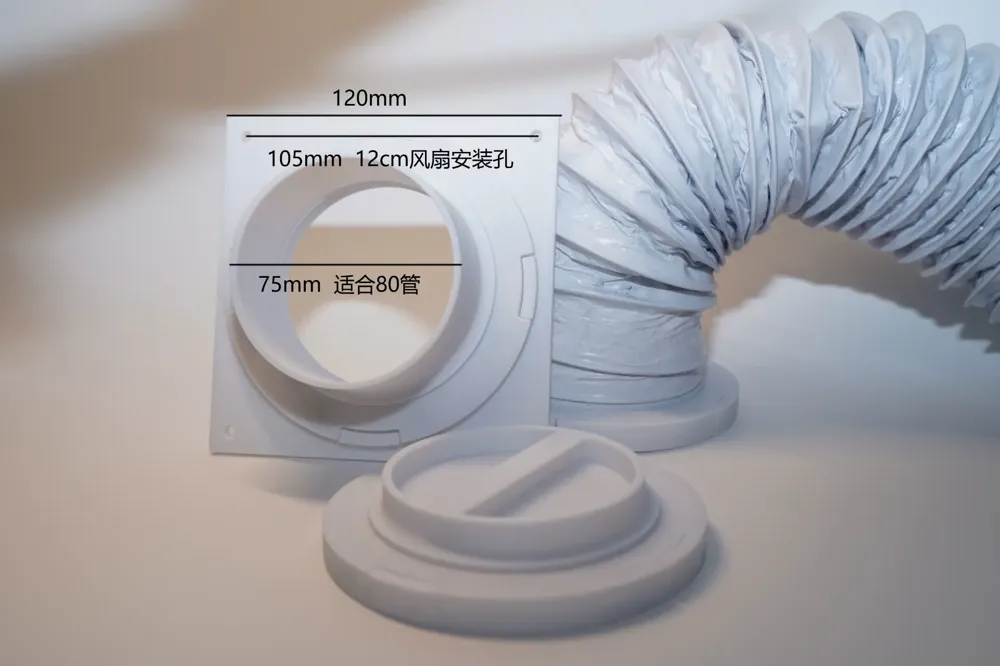

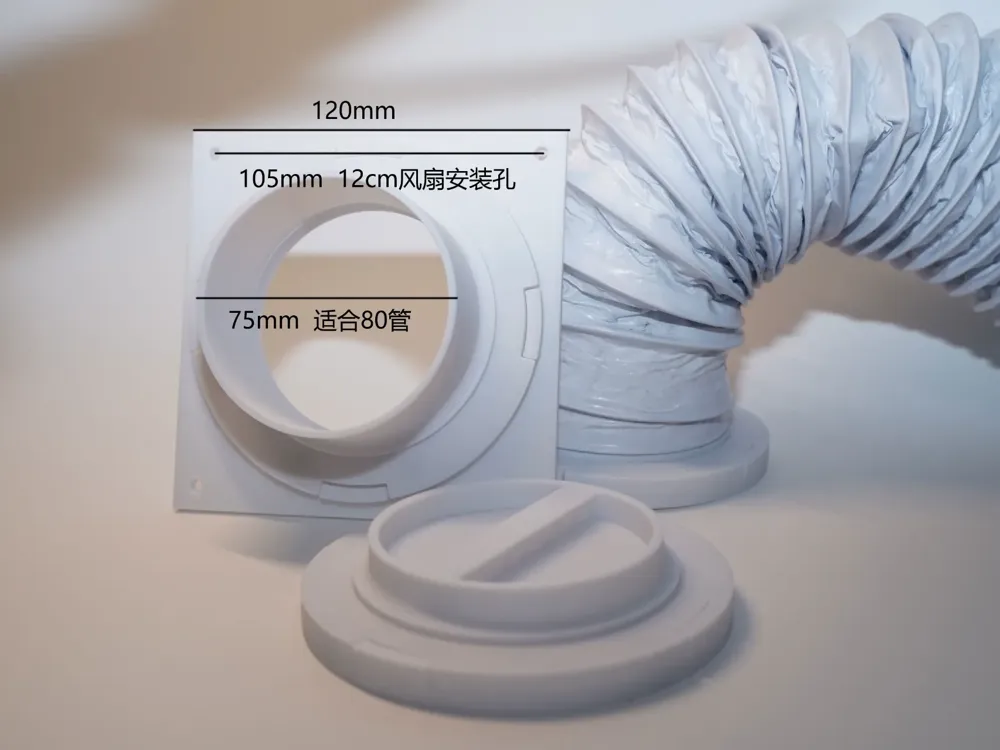

The original model has been scaled up, with the aperture increased to 75mm and the pipe connection length extended for easier connection to 80mm hoses.
A base for securing a 12cm fan has been added, allowing for improved ventilation with a 12cm fan.

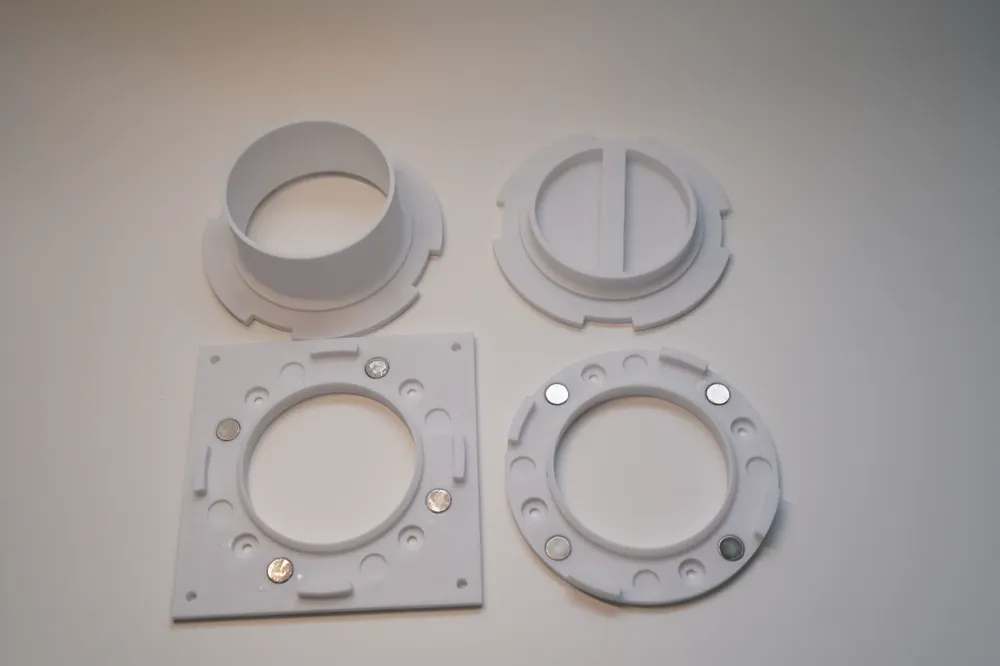

The magnet hole has been enlarged to 10.7mm for better glue adhesion. Magnets with a diameter less than 10mm and a thickness of 1.5-2mm can be installed; pay attention to the orientation.
Attention!!! Due to the scaling up, this is not compatible with other P1S ventilation models from the original author. Please modify the base accordingly.
