Ultimate French Cleat Wall Tool Clip

IP Report

Print Profile(1)

All
X1 Carbon
P1S
P1P
X1
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill
0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill
Designer
3.7 h
1 plate

Open in Bambu Studio
Boost
17
67
0
0
45
17
Released

Description

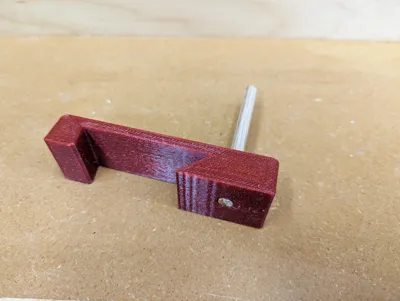

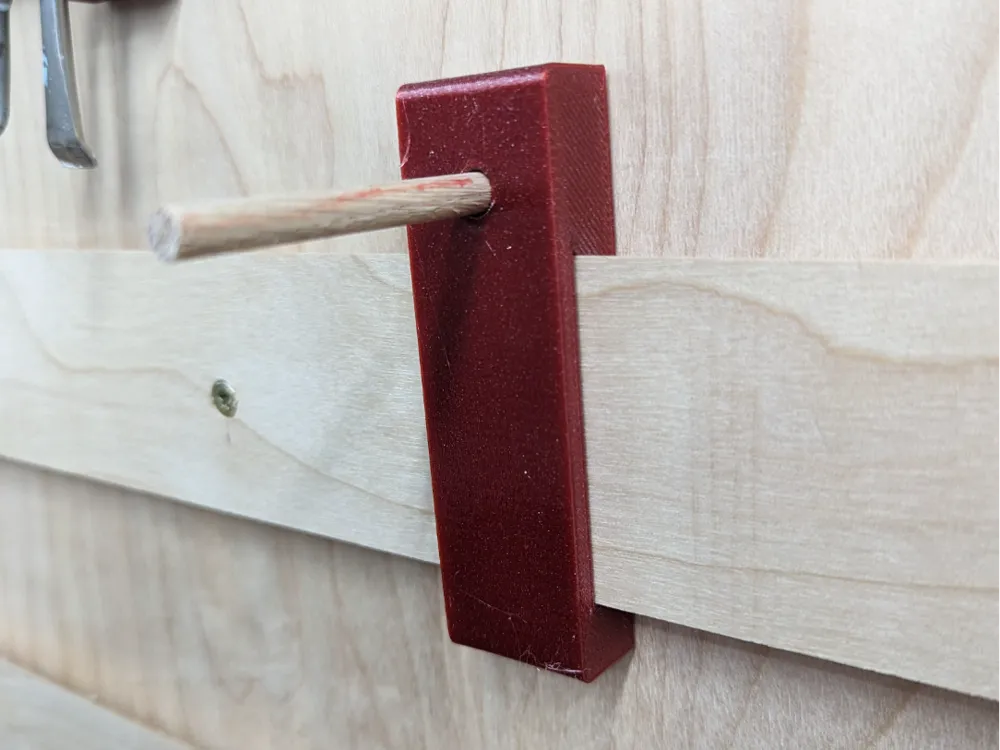

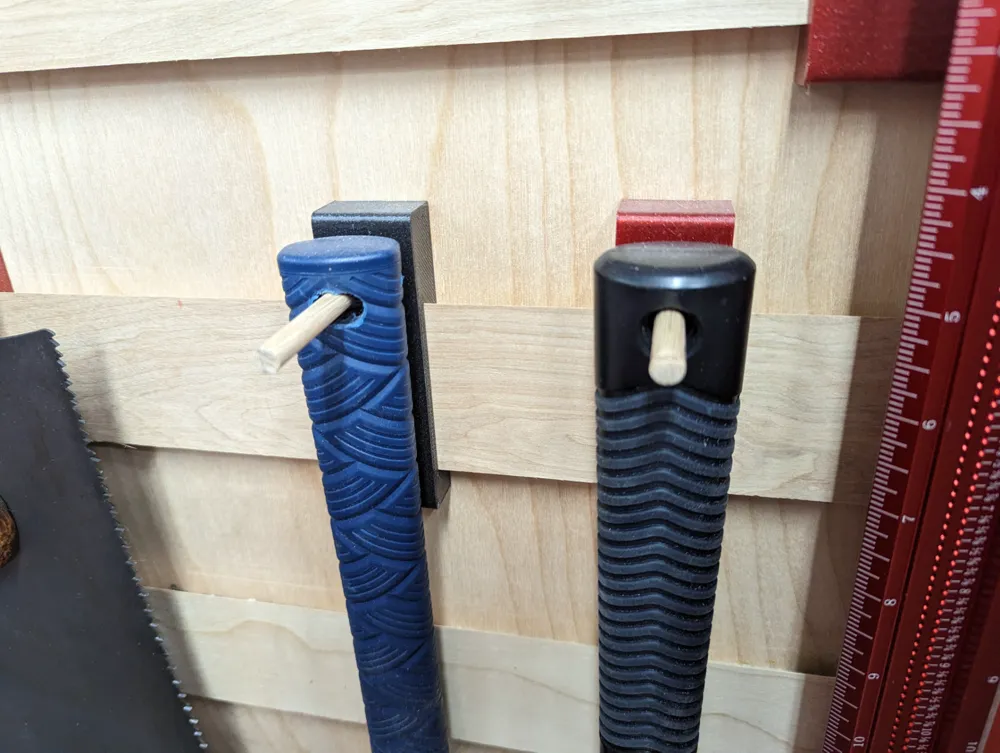

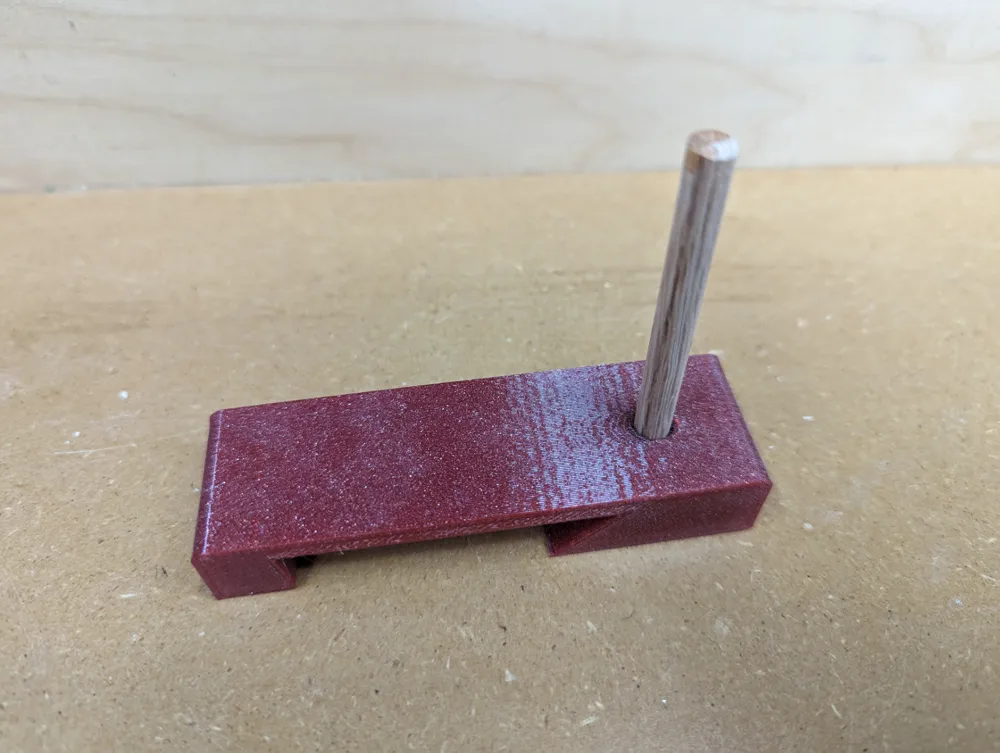

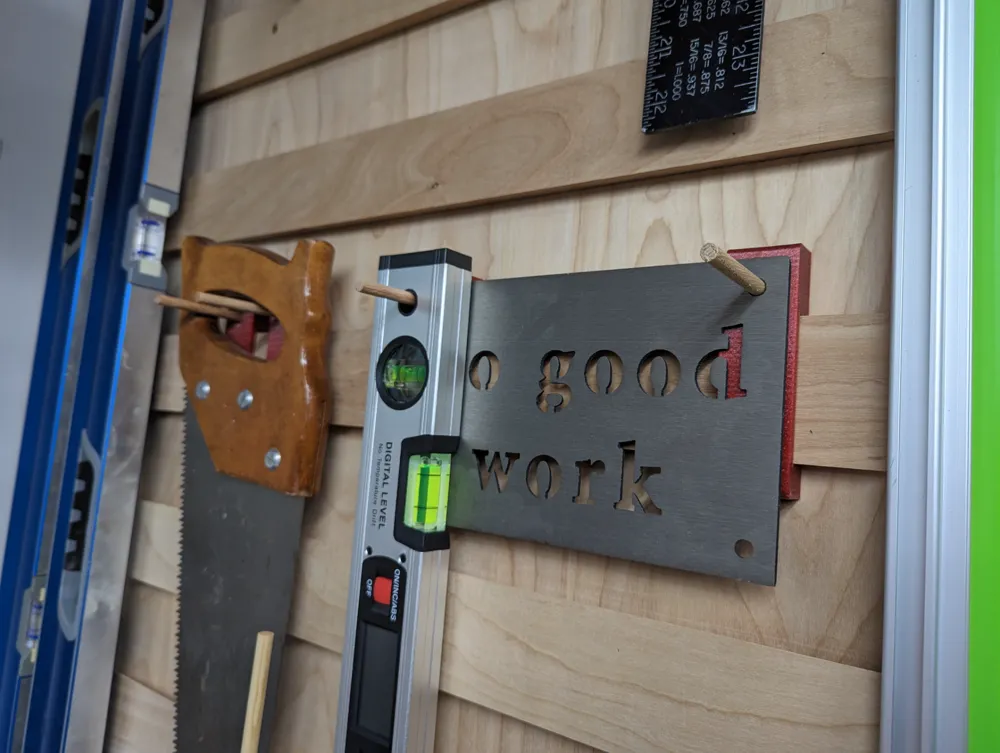

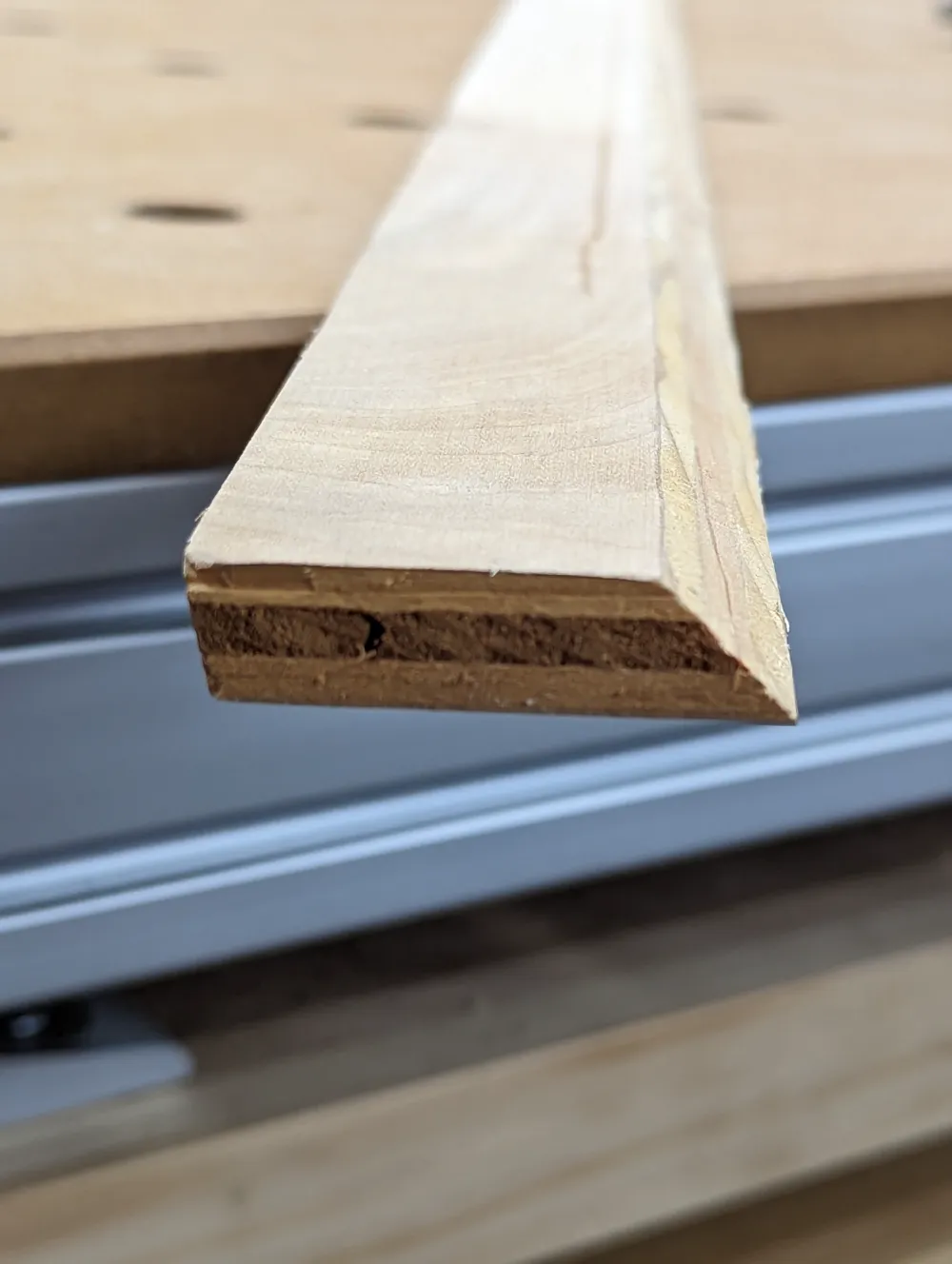

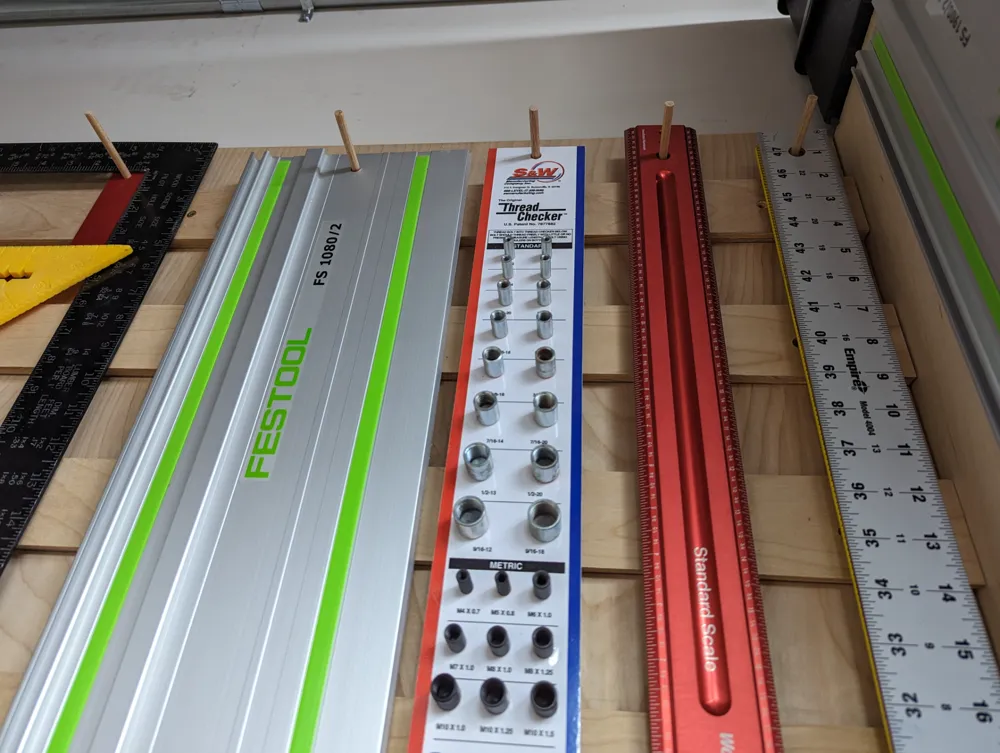

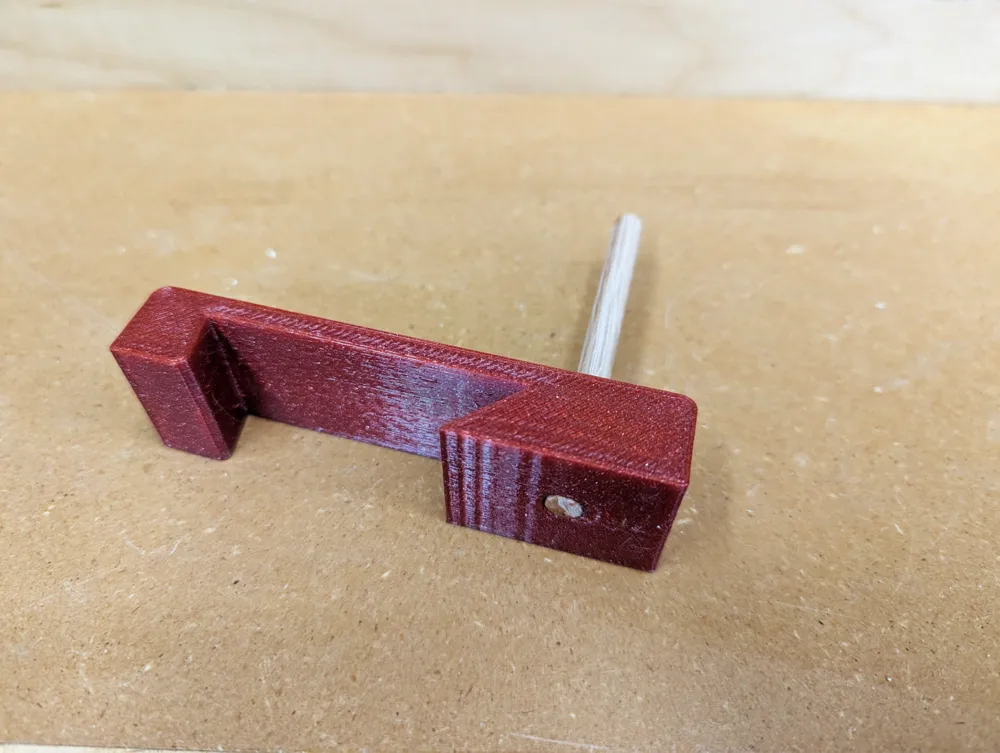

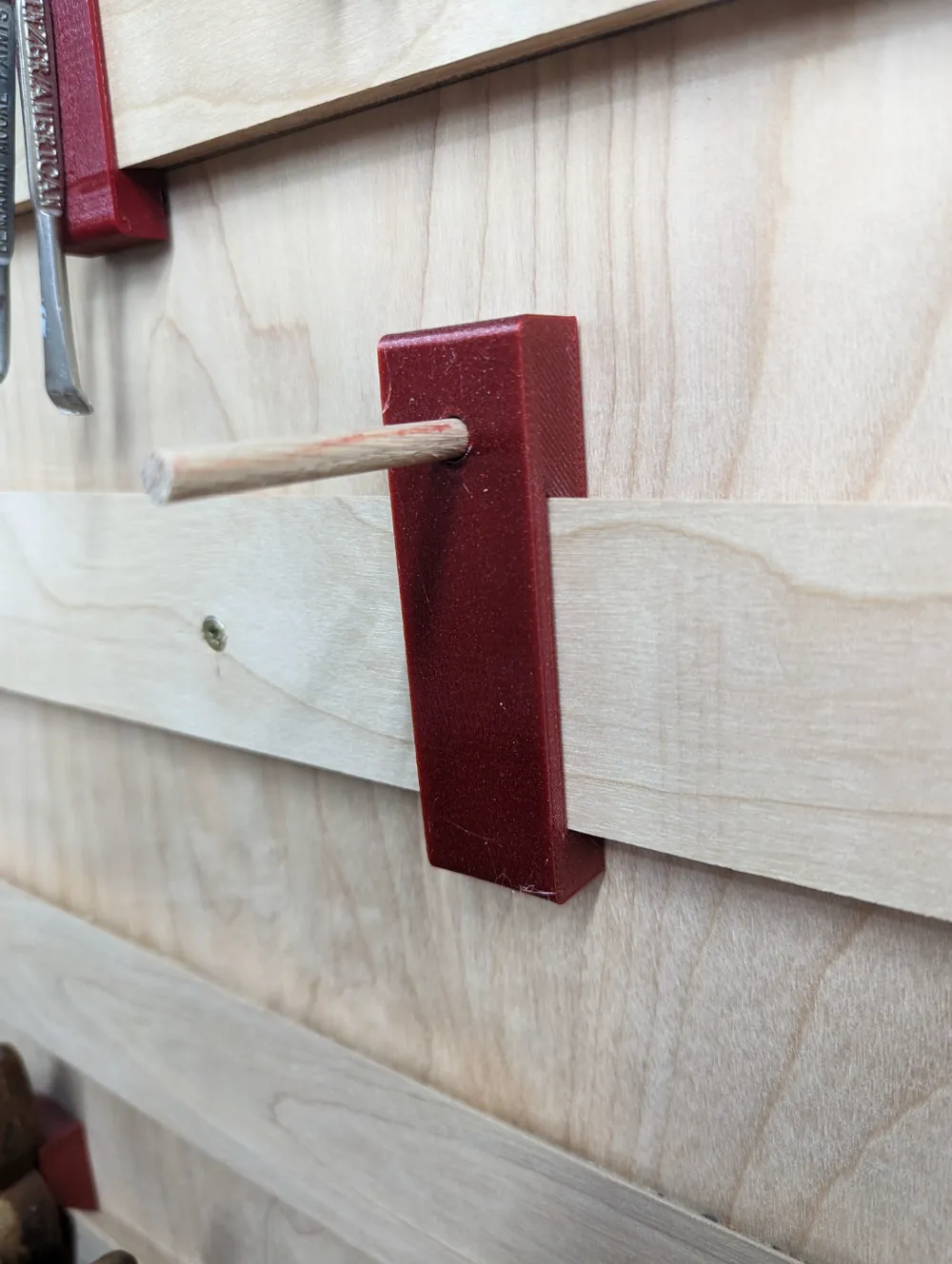

Don't you hate it when you remove a tool from your cleat wall and the holder falls off? I got tired of this issue and came up with a solution that works great. I created 3d printed clips for a French Cleat wall that is designed to keep the clips/hooks in place. The cleat strips should be made from 2 ¼" strips of 12mm or ½" plywood with a 45 degree cut on the top edge and a 10 degree cut on the bottom. This allows the 3d printed clips to “snap” onto the cleat and not come off every time you remove a tool. The hole in the model accepts a 1/4" dowel. I usually print these in PETG and they work great but PLA works well also but is less flexible so you need to hit them with a soft hammer to snap them in place.
