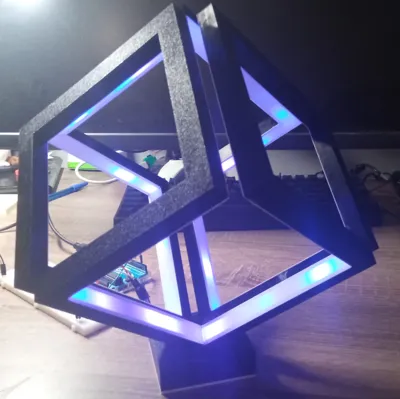

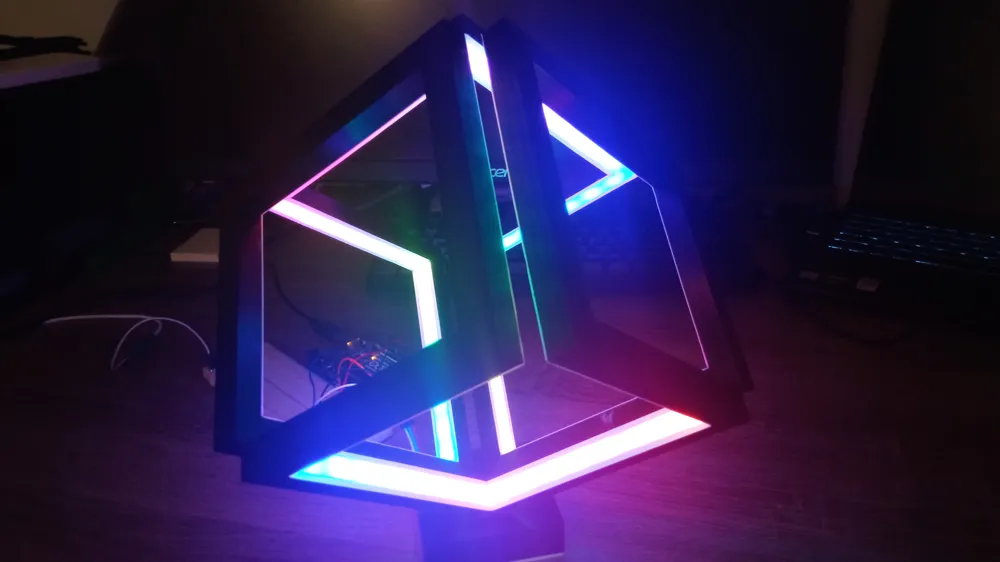

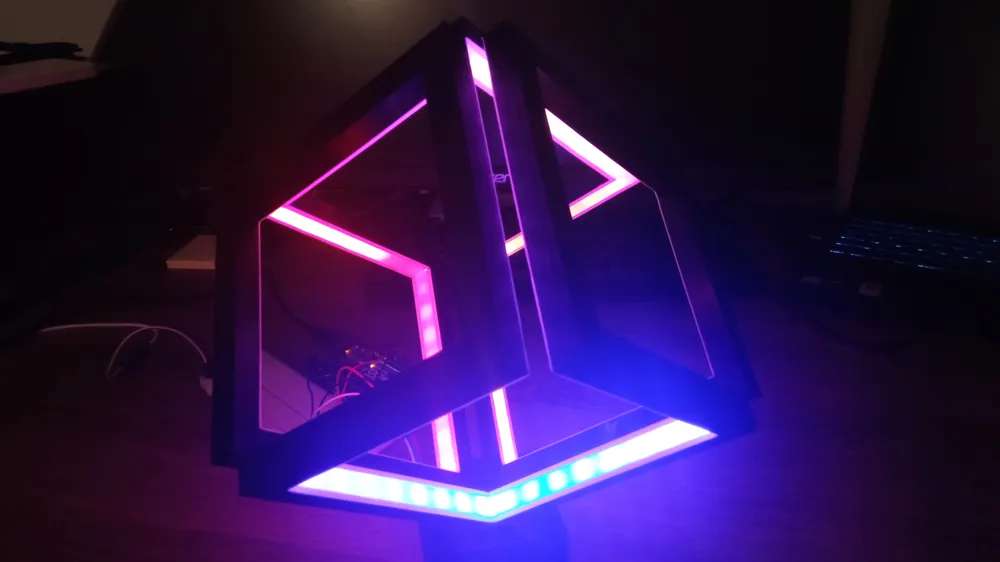

LED CUBE | INFINITY LED CUBE
Print instructions:
- 1x Part_1.stl - 0,3mm layer - (black)
- 1x Part_2.stl - 0,3mm layer - (black)
- 1x Part_3.stl - 0,3mm layer - (black)
- 3x ALL DIFFUSERS - 0,2mm layer - (WHITE)
- 1x base.stl - 0,3mm layer - (black)
- 1x nano_bottom.stl - 0,3mm layer - (black) (adapted for arduino nano and USB-C port link: https://pl.aliexpress.com/item/1005005772294768.html?spm=a2g0o.order_list.order_list_main.41.78281c248KExZM&gatewayAdapt=glo2pol )
- 1x button_cover.stl - 0,3mm layer - (white or black)
- OPTIONAL 1x base_bottom.stl - 0,3mm layer - (white or black) (for very small controllers)

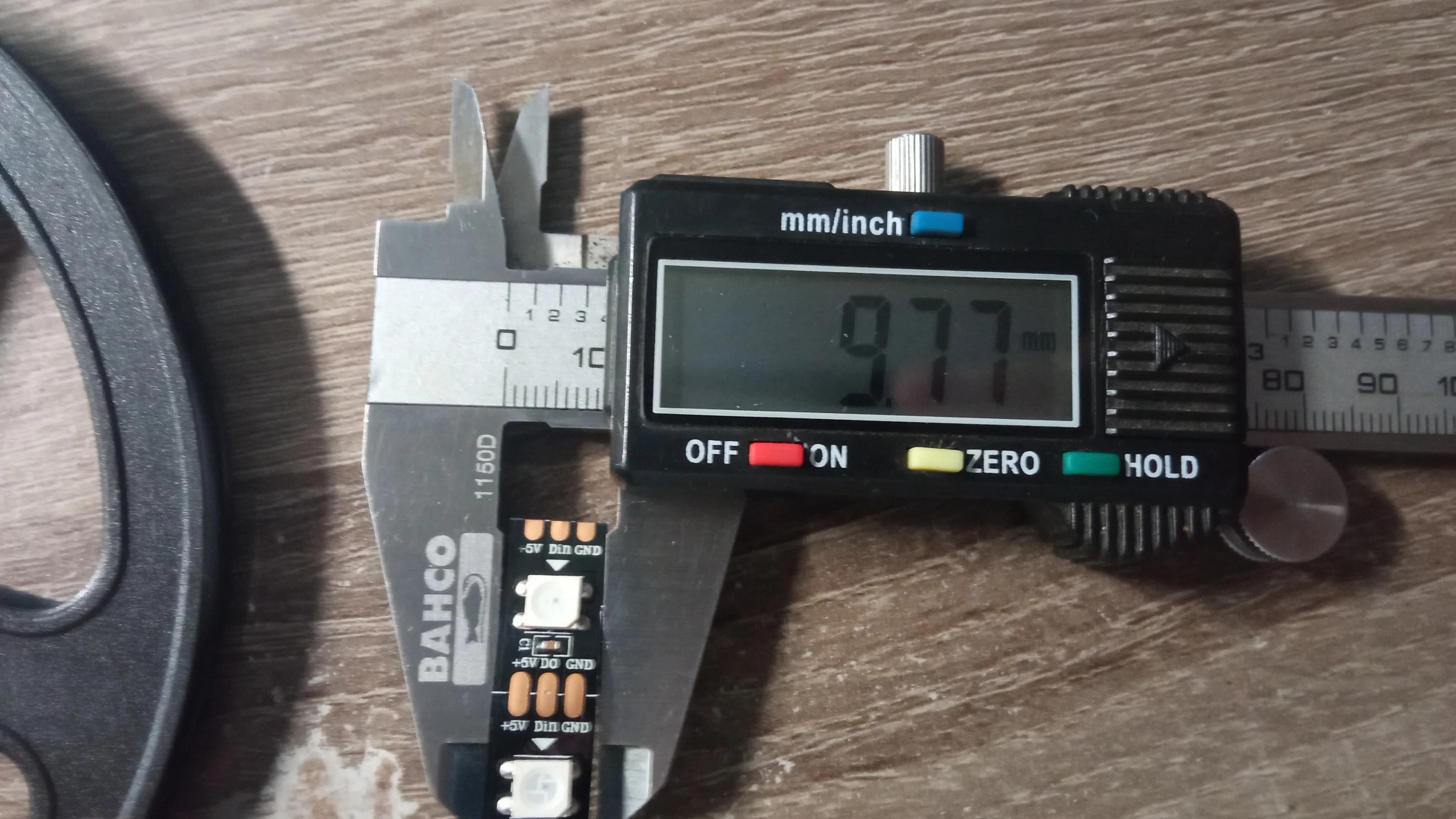

Use max 10mm wide, 60 LED-s per meter RGB addressed led strip.
This project requires soldering on the bends. Make sure you buy LED strip that can be cut.
Make sure that you place correctly cube to the base. Base have hole for cables.

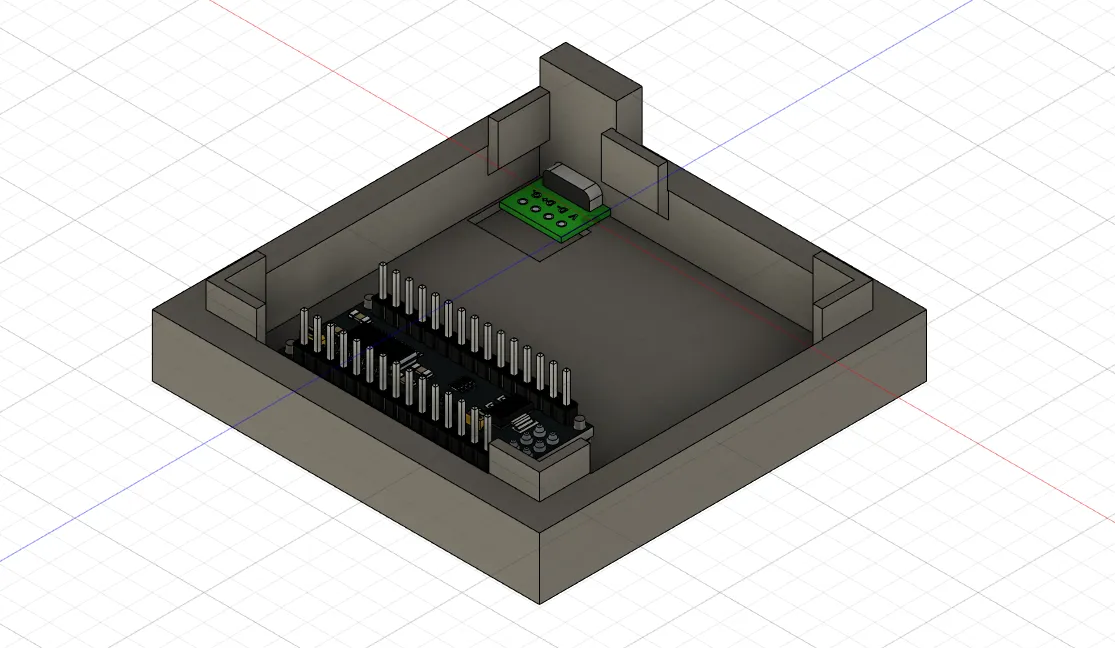

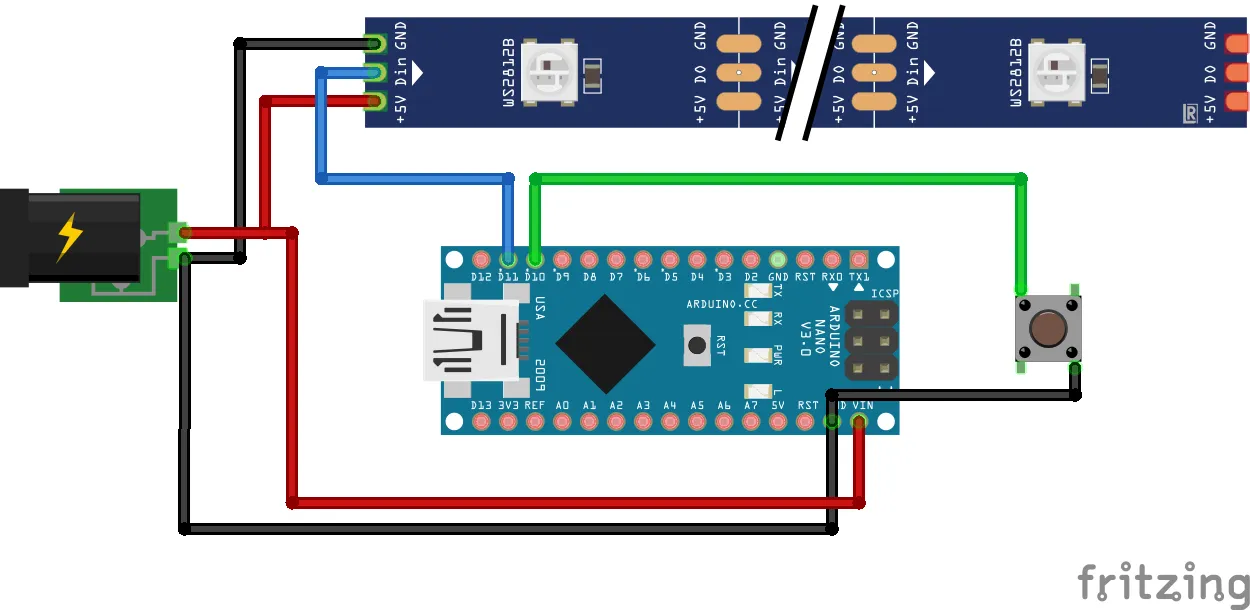

Nano_bottom assembling and connection:
