Legendary Mk2 Pineapple Grenade with Flying Handle

Summary

This is a life-size replica of the legendary WWII Mk2 frag grenade that has a spring-loaded flying handle, just like the real thing.

Spring options (for flying handle)

1. Metal Spring (recommended) – if you have a metal spring, even a pen spring will usually work, then print the metal spring profile.
   1. Bambu Store's 0.5x7x12mm spring is what this model is designed to work with.
   2. Pen springs work as well though, many different types have been tested and work fine.
      1. You can often cut pen springs in half and get two grenade springs since this model only needs a 12mm long spring and pen springs tend to be about 24mm.
2. Plastic Spring – if you don't have a metal spring, but still want the handle to fly off, then print the plastic spring profile.
   1. If the spring eventually wears out, just print a new one and pop it in.
   2. Don't leave the spring under tension when not using it as it will wear out much faster.
   3. Avoid Matte and Silk filament for the spring itself, Basic and Metal work better.
3. No Flying Handle - if you don't want the handle to fly off and just want a grenade model, simply print either version and don't put in a spring.

Bambu Filaments used

• Matte Yellow
• Silk+ Silver
• Matte Black
• Overture Silk Copper (Amazon link)
• Polymaker Army Green (Amazon link)

[v2] Metal Spring Assembly

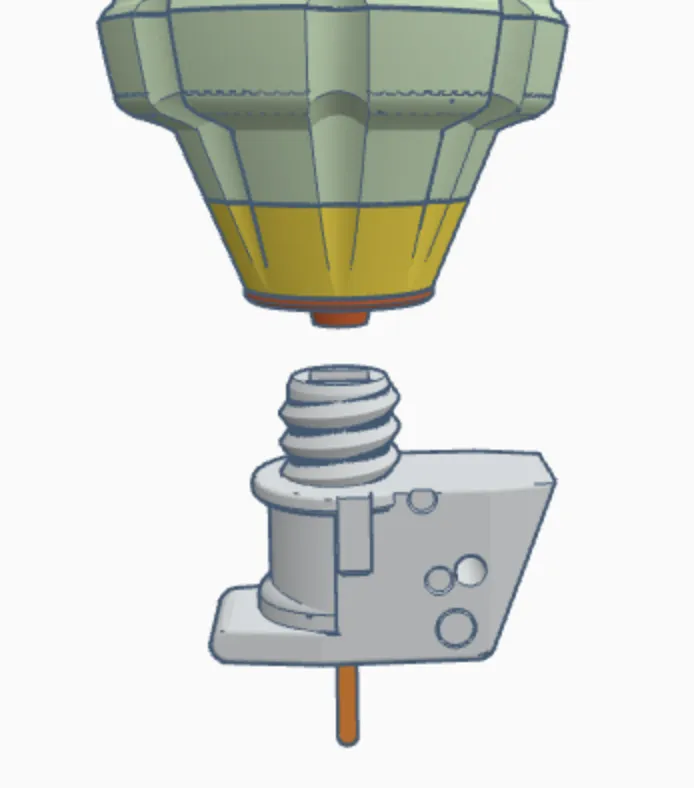

1. Insert the peg into the topper, as you see below.  Make sure it comes out the bottom, if not, rotate 90 degrees.

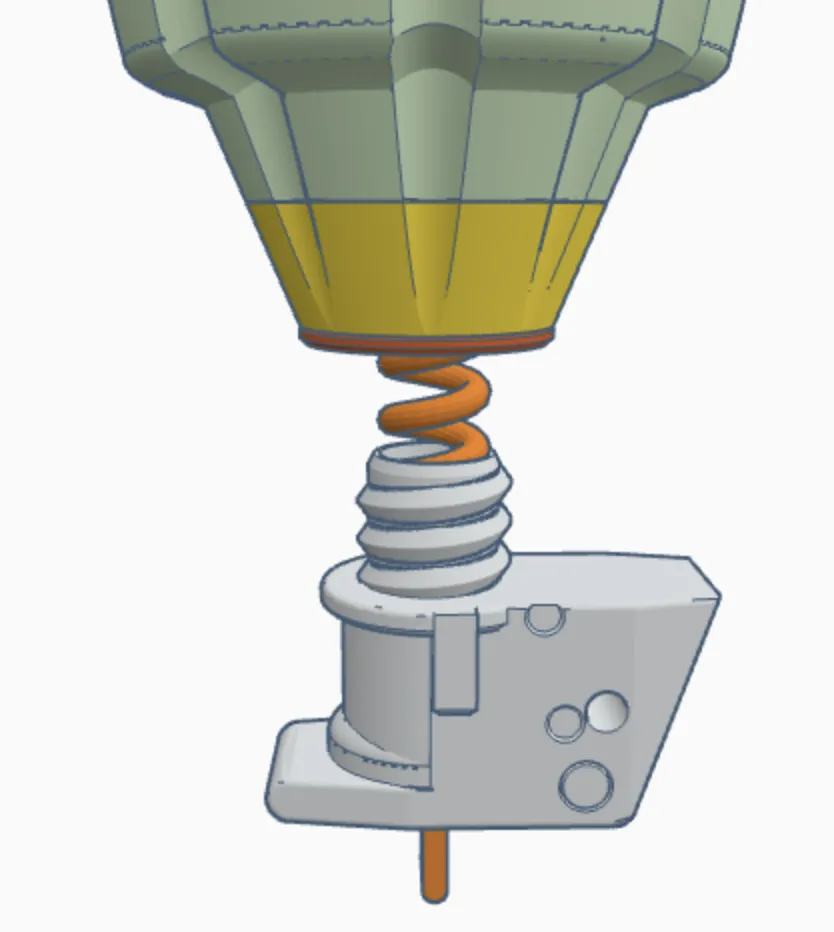

2. Then insert the metal spring where you previously inserted the peg, as you see below.

3. Lastly, screw the top onto the grenade – doing this upside down ensures that the spring doesn't fall out of the top.

[v2] Plastic Spring Assembly

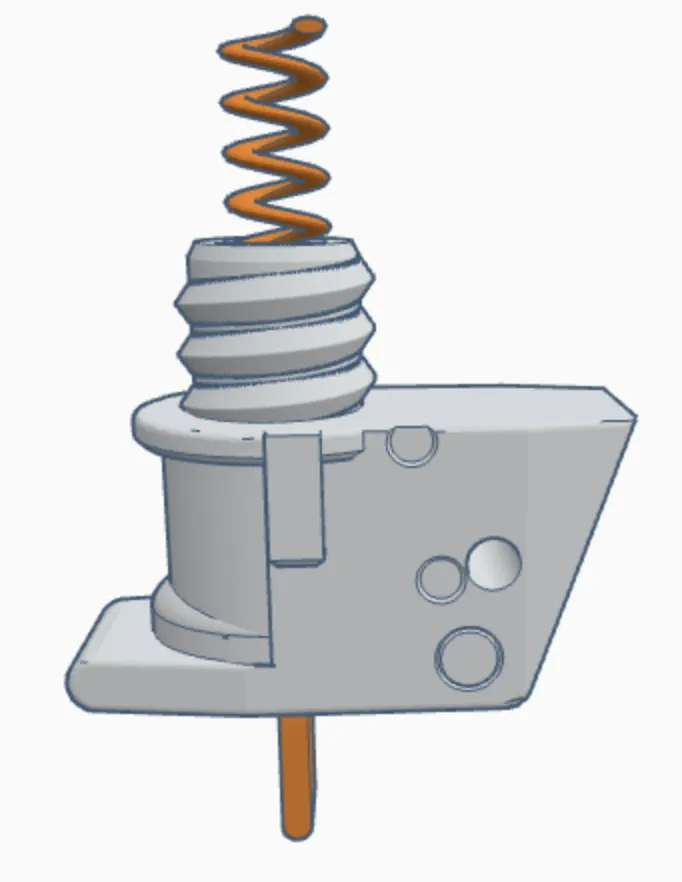

1. Insert the plastic spring into the topper.  Make sure it is coming out of the topper, if not, rotate the spring until it does.

2. Lastly, screw the top onto the grenade – this is much easier to do upside down.

[Old v1] Metal Spring Assembly

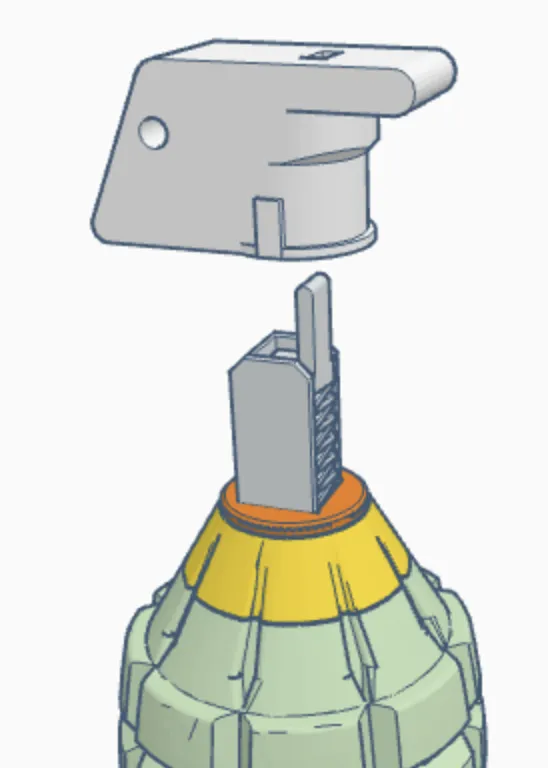

The above image is from the flashbang, but the installation is the same, hold the grenade upside down and insert the peg, that way the spring doesn't fall out.

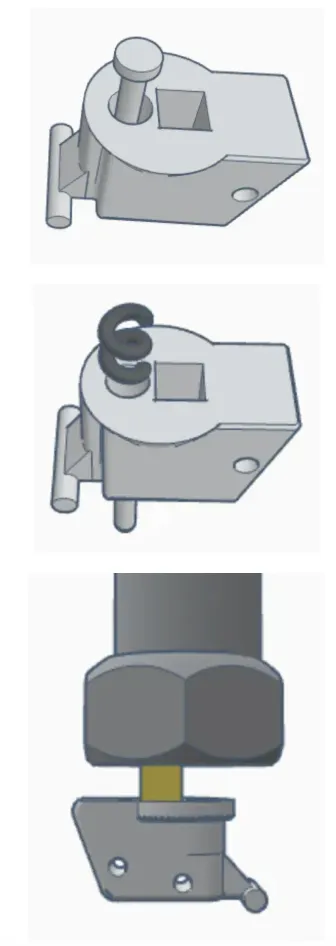

[Old v1] Plastic Spring Assembly
