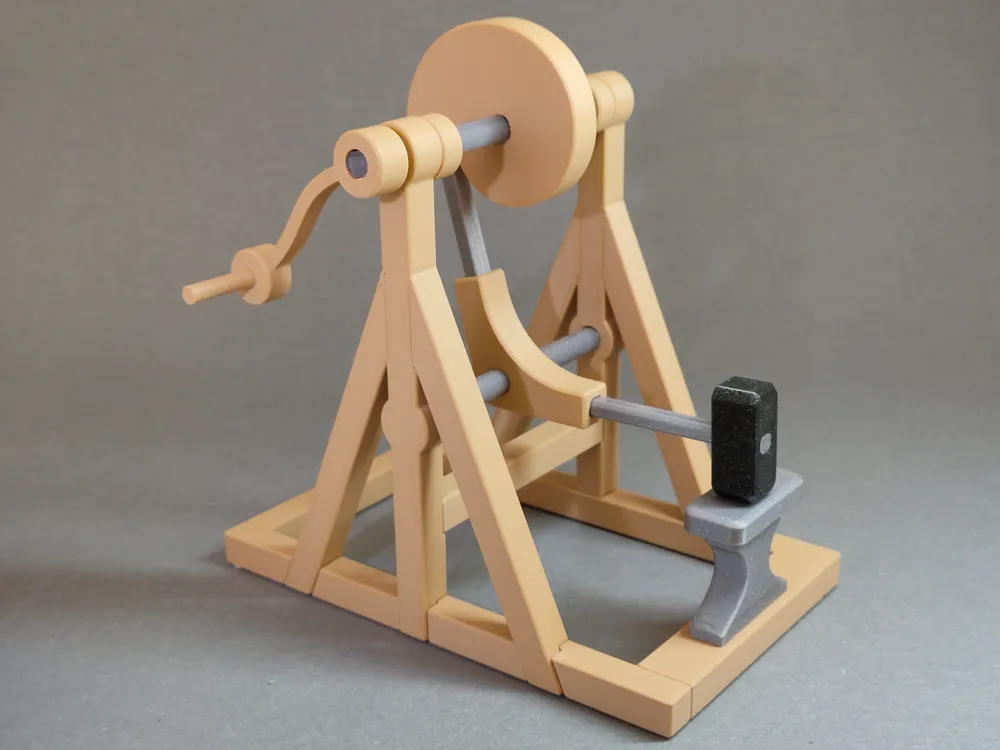

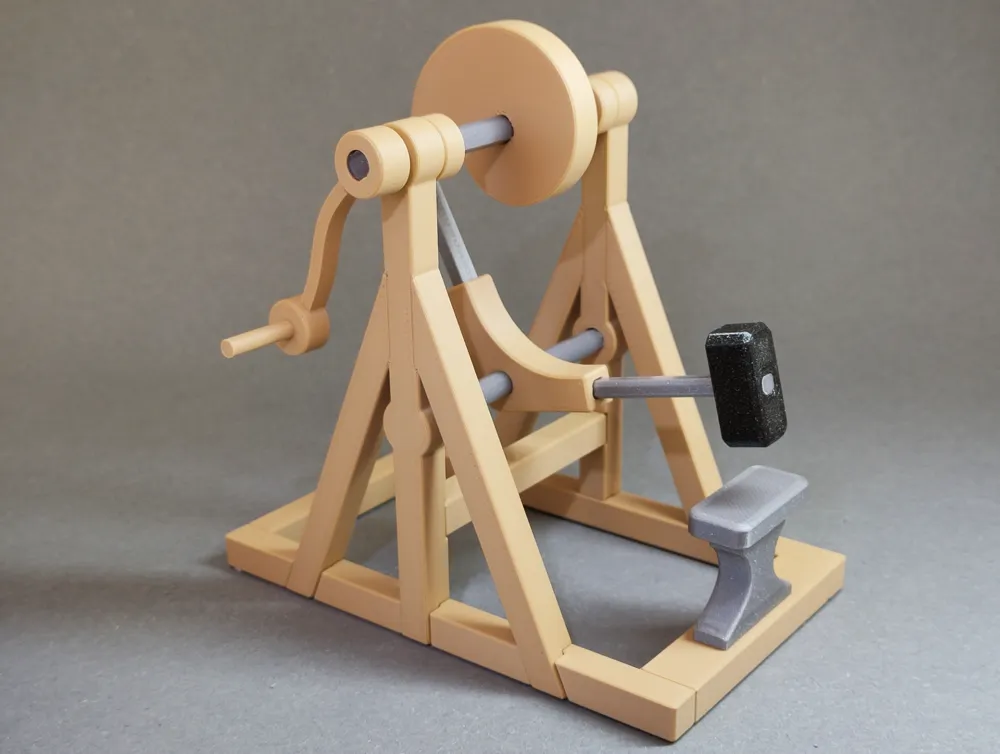

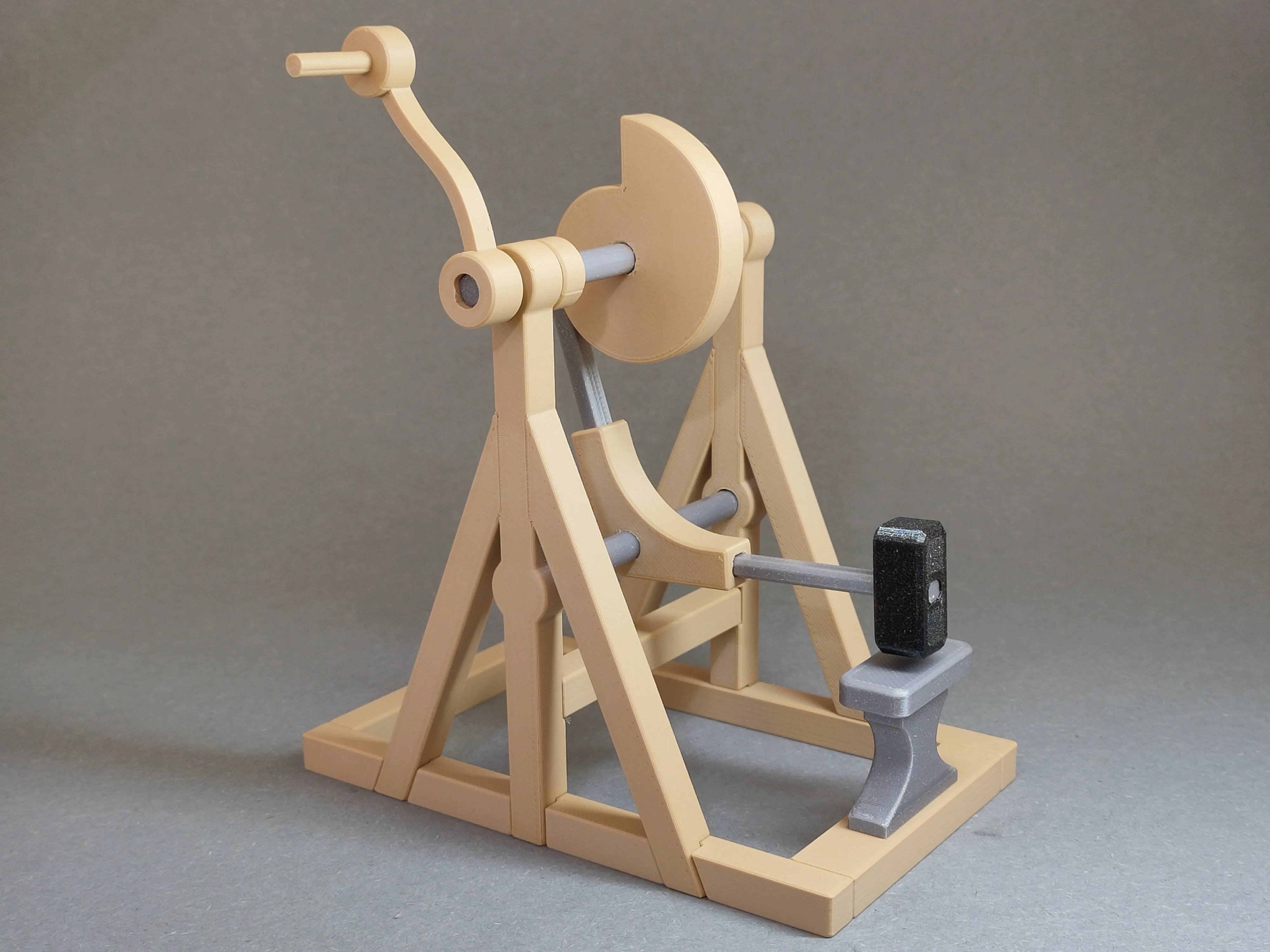

Leonardo DaVinci cam power hammer
This time I went back a bit to history, I like mechanical models and I was interested in this one. It can serve as an illustration of an invention from the past created by one of the greatest inventors - Leonardo DaVinci
I also really like the shape of the golden spiral and that it is used in this invention
It will serve as a physical model- example of movement and use of the golden spiral

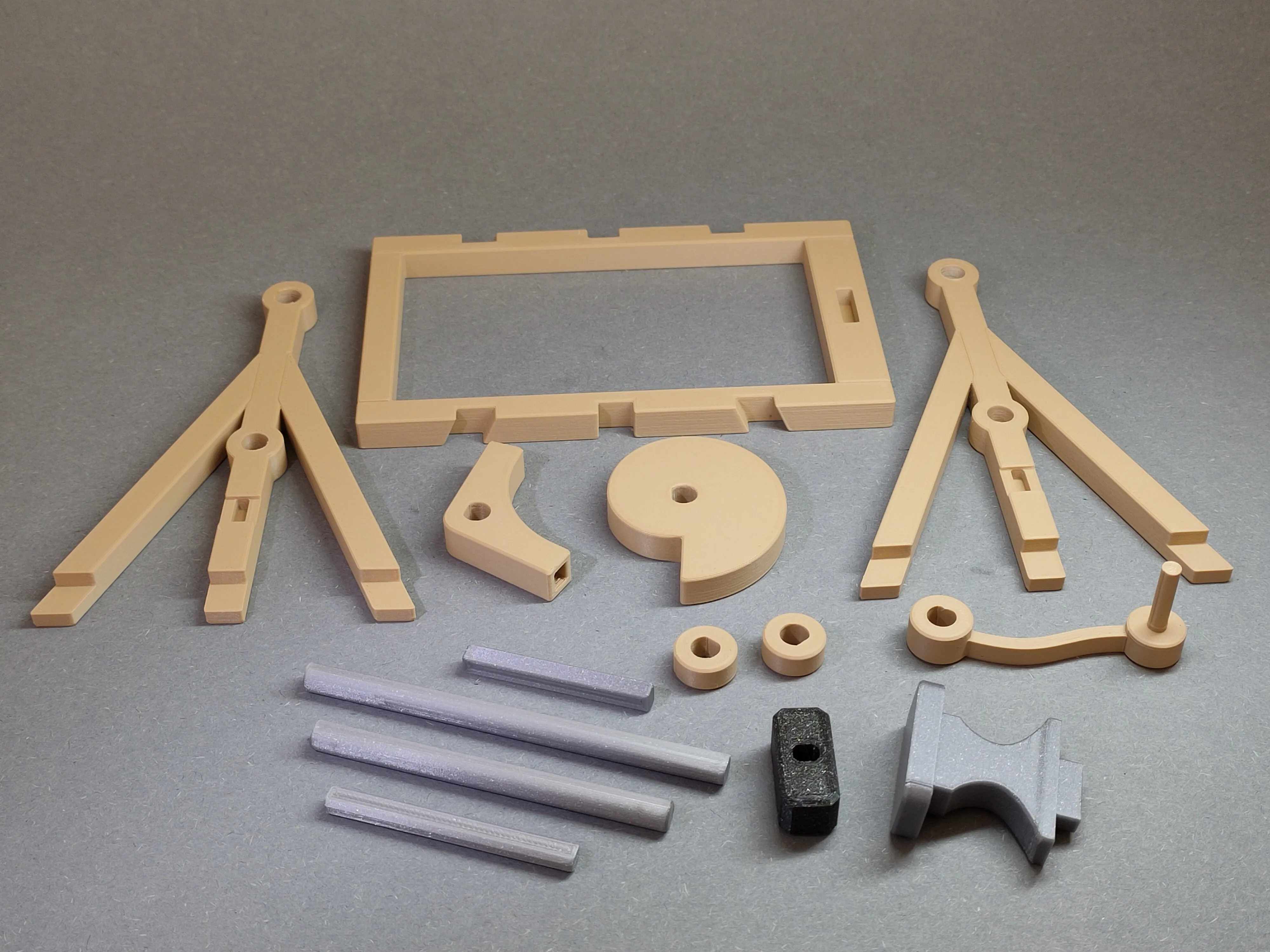

Print the parts, I used Polymaker Polyterra Peanut filament for the wooden parts and Prusament Galaxy silver for the metal parts.

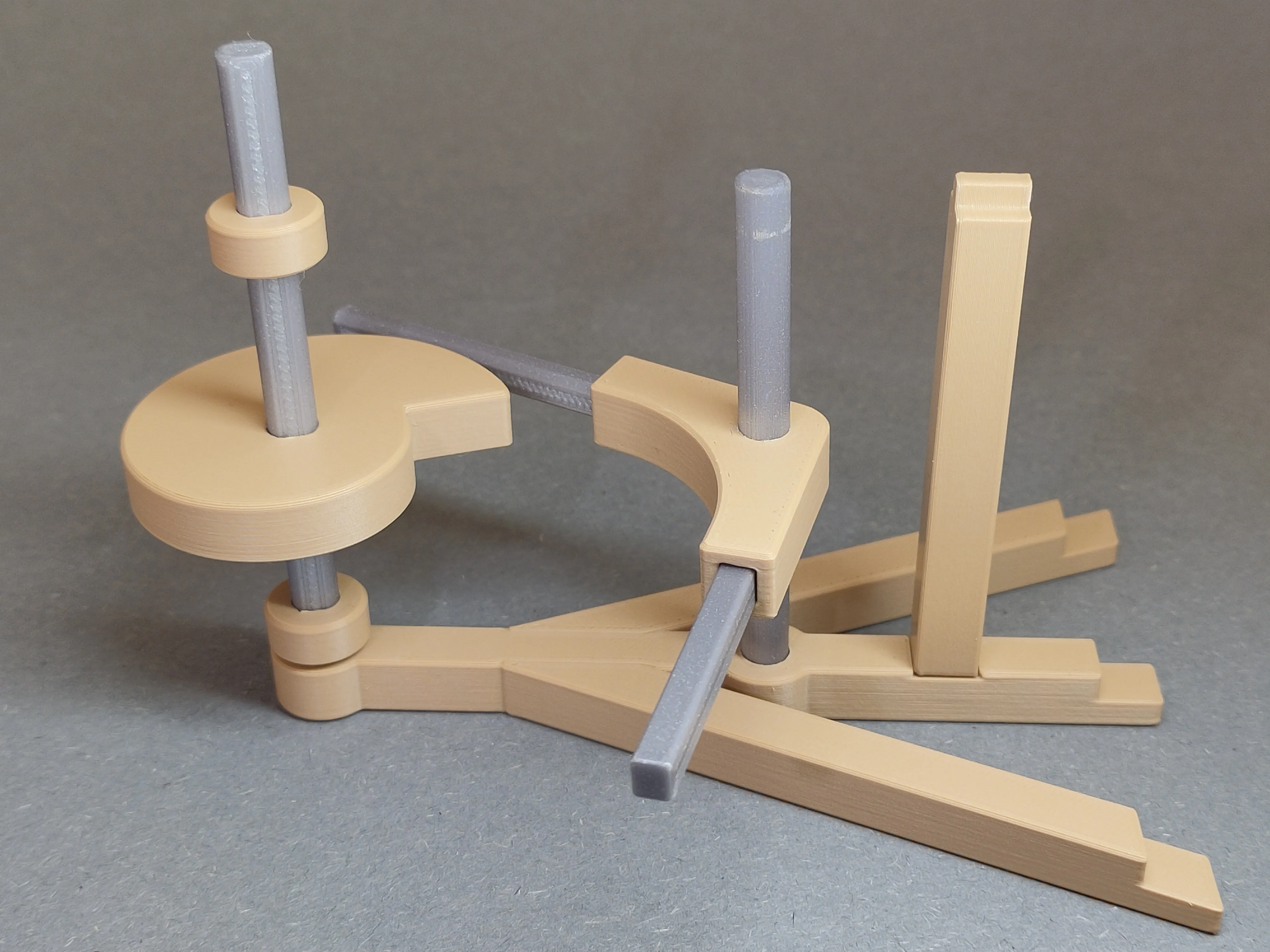

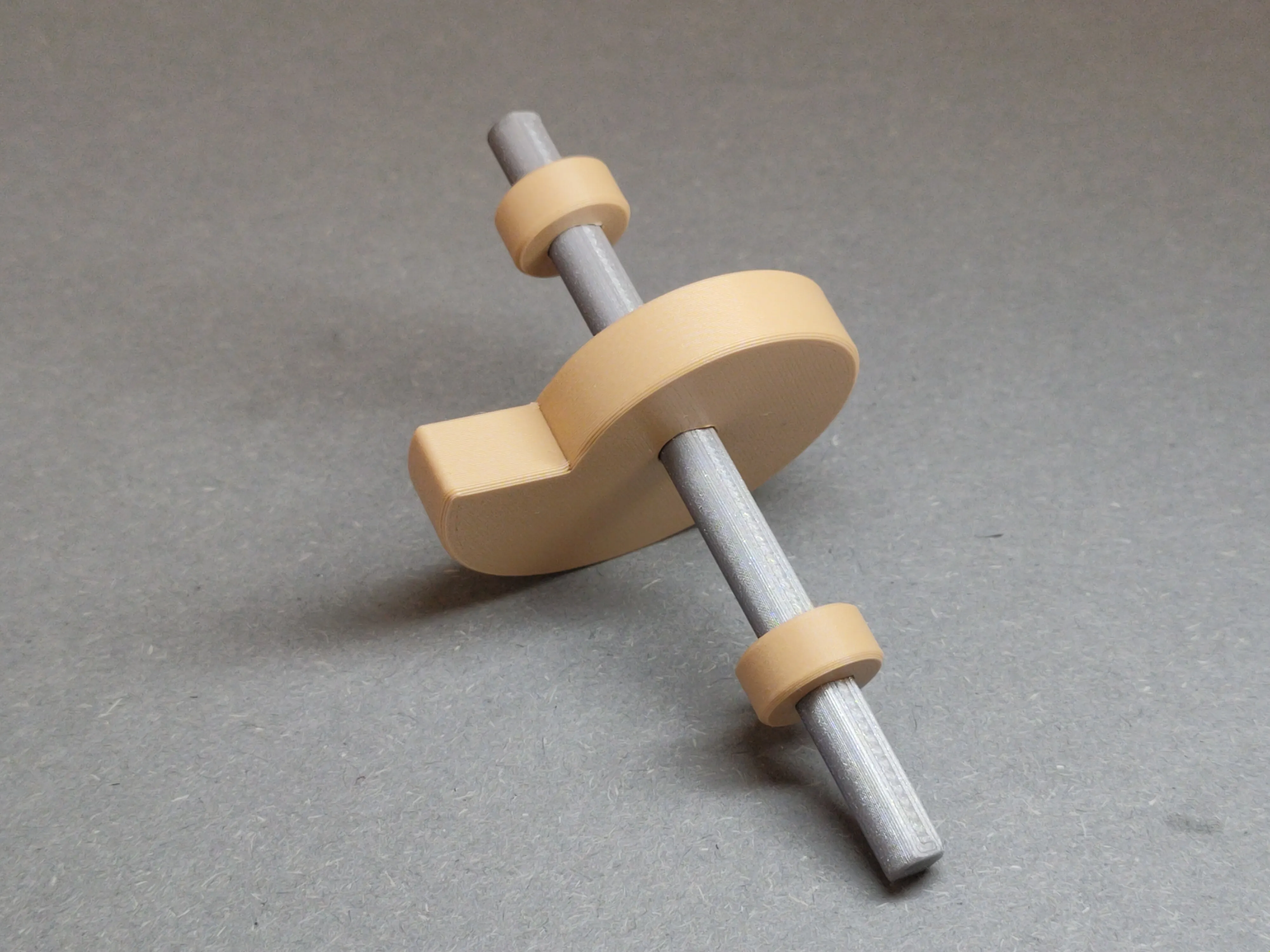

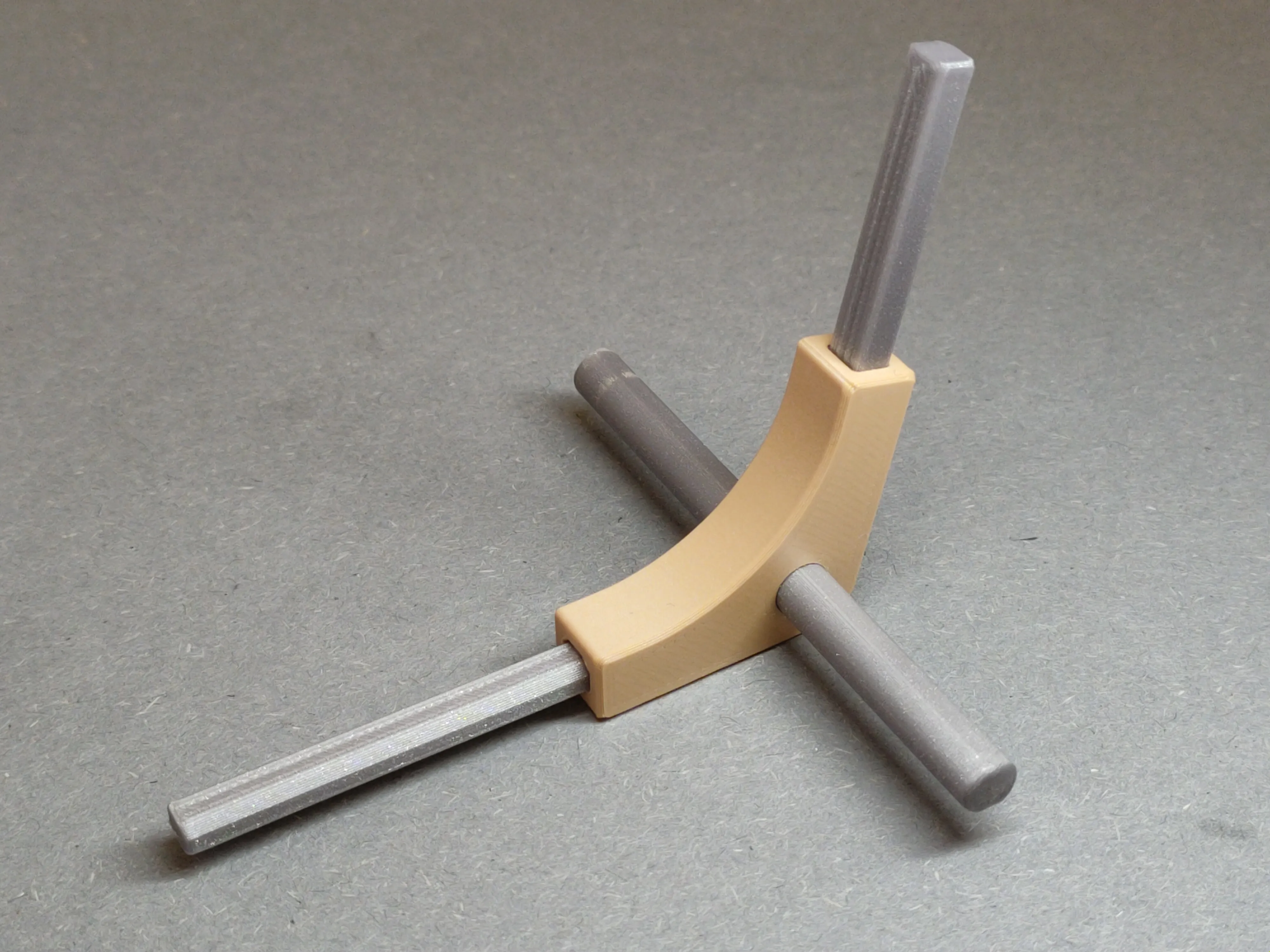

It is not difficult to put them together, the important thing is that the axes in the side parts rotate freely. On the contrary, the Spiral, Lock rings and Coupler parts should go rigid so that they do not come loose. If necessary, drill the holes in the side part with a 6.5 mm drill bit.
Only the side parts with the Middle beam and the Base need to be glued.
I wish you a lot of fun with your new toy!

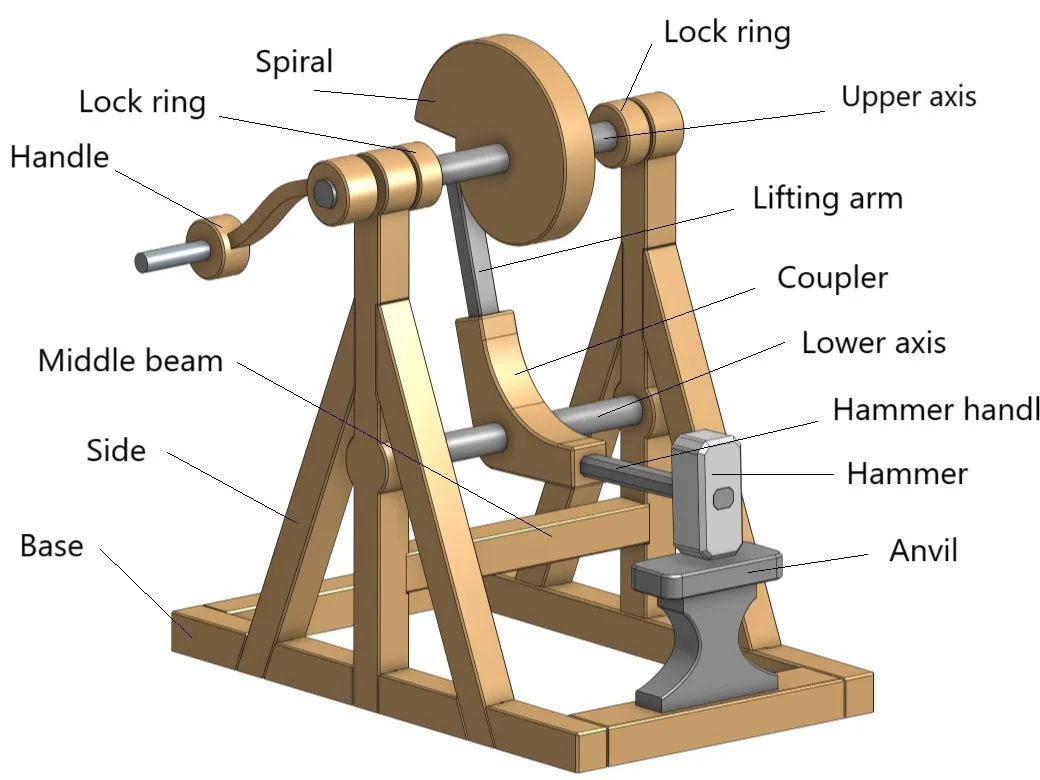

Model parts diagram :
