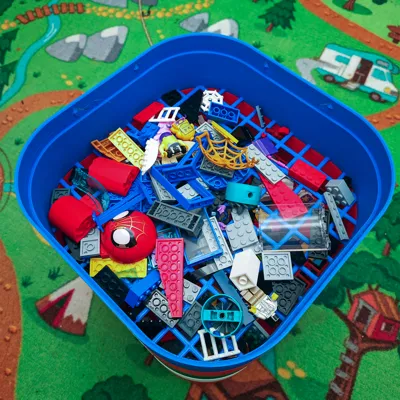

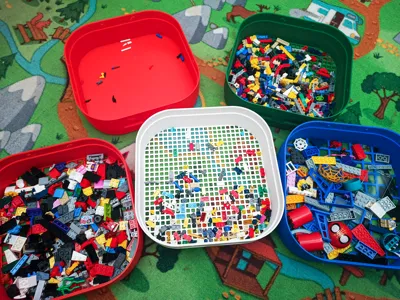

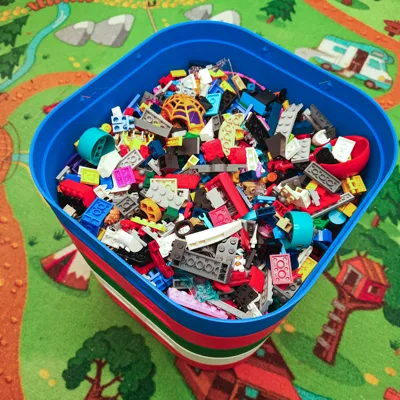

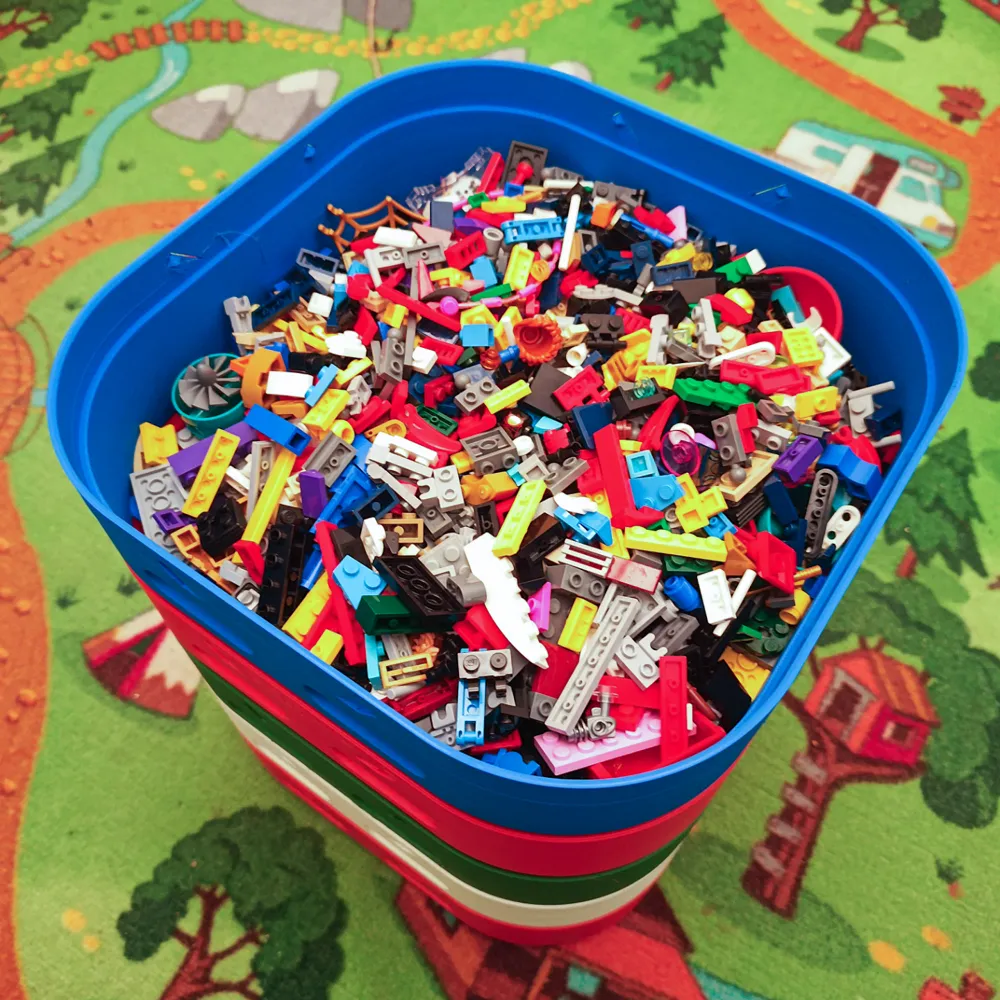

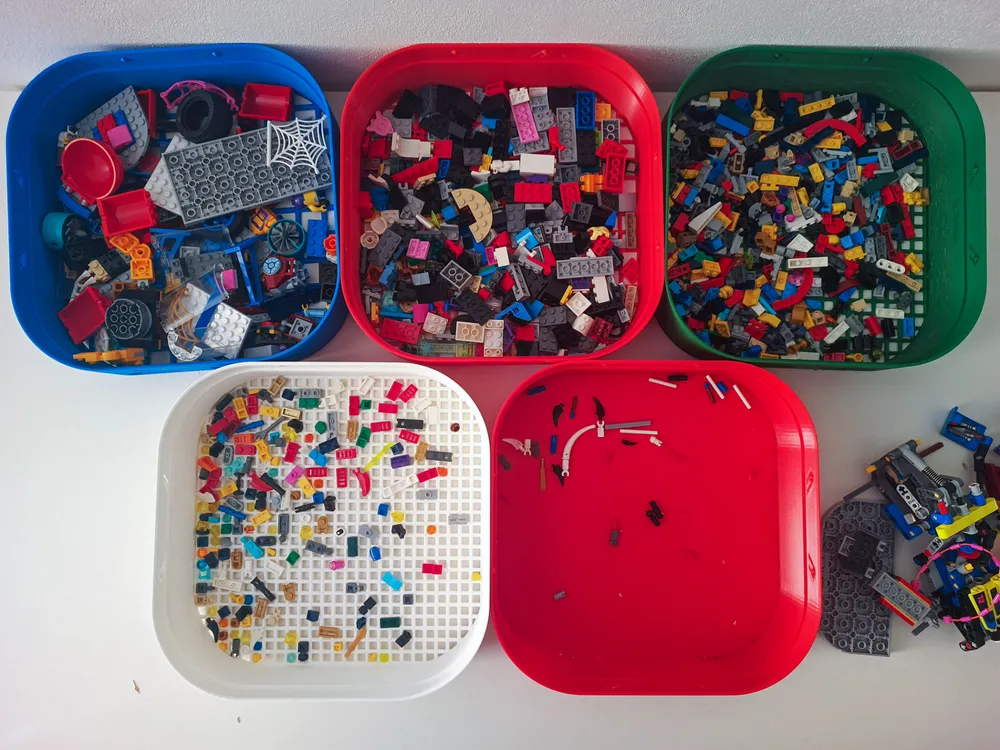

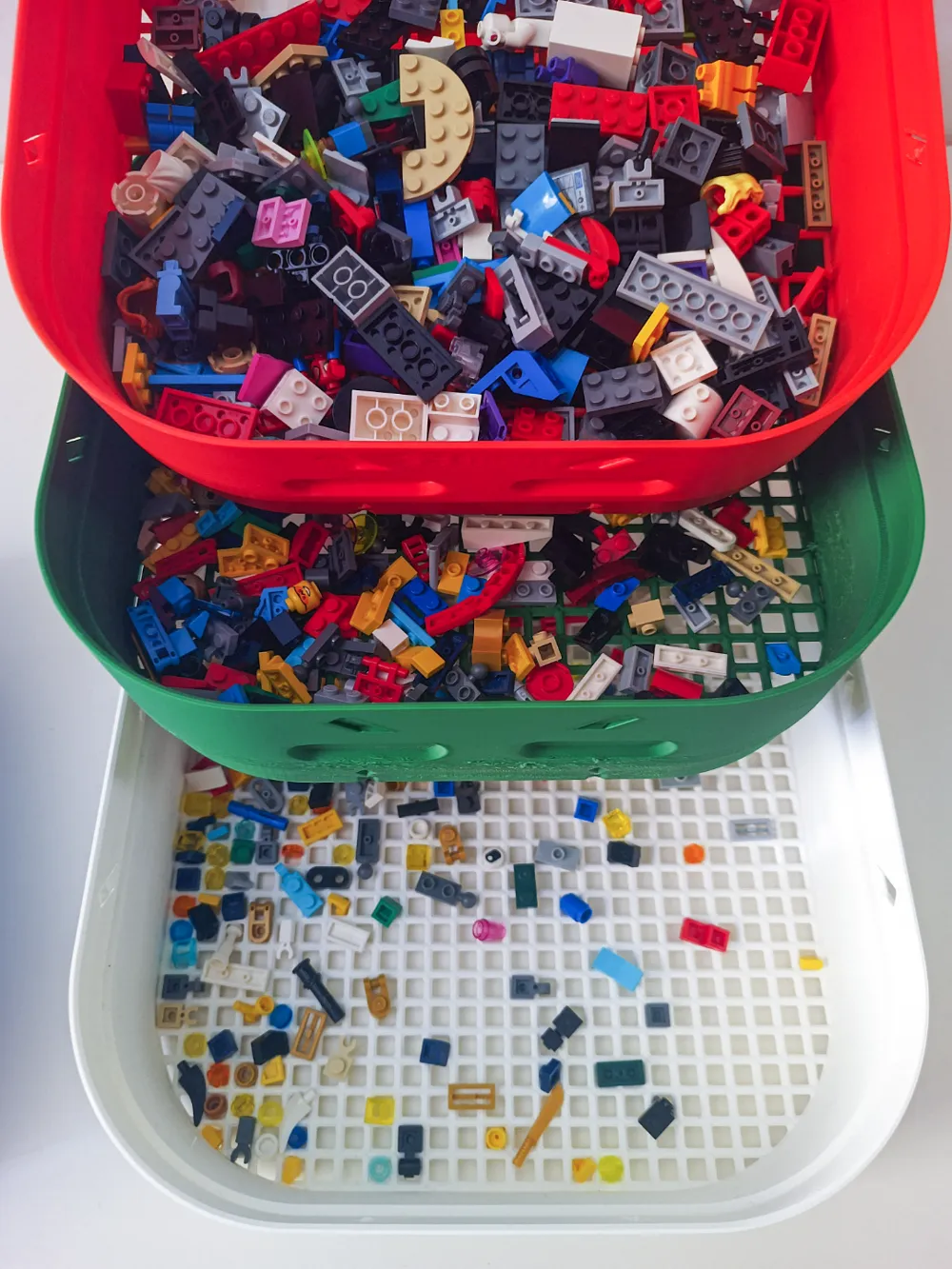

Bins for sorting toy bricks (like LEG0) by size.

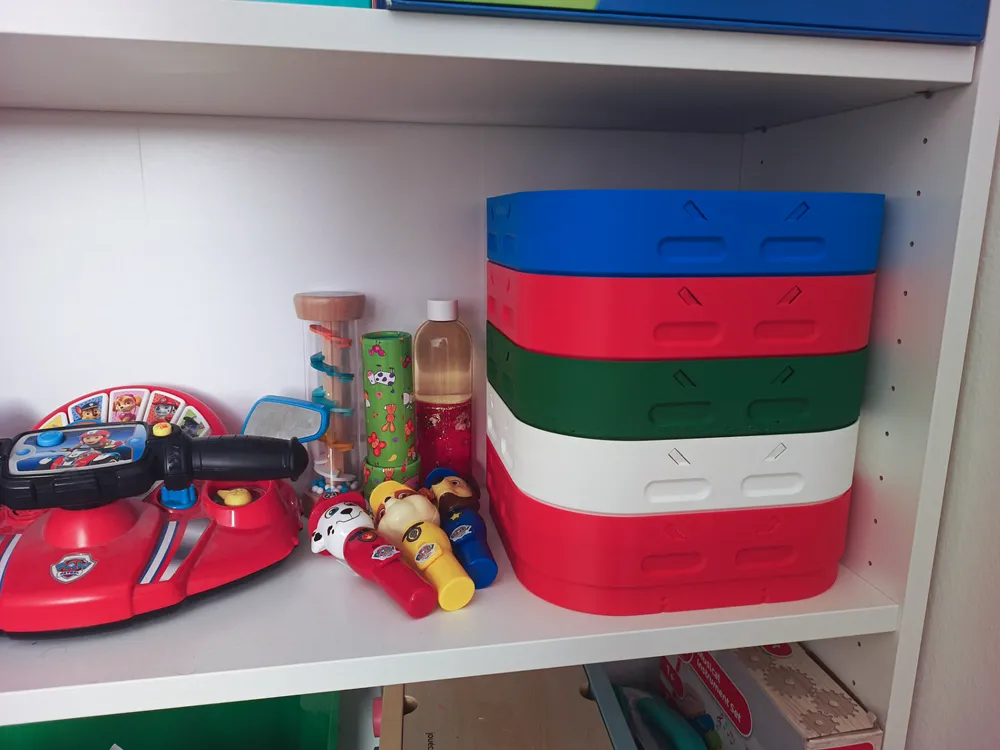

It's made to fit IKEA BILLY while using full plate of A1/P1/X1 printers.
I made 3 versions of this sorter:
250x250mm original, compatible with PLA:
https://makerworld.com/en/models/914354
250x250mm updated for PETG only with a stronger lock:
https://makerworld.com/en/models/923255
180x180mm, compatible with A1 mini:
https://makerworld.com/en/models/923070
Top lid:
https://makerworld.com/en/models/933513

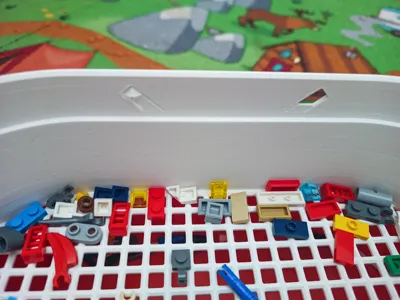

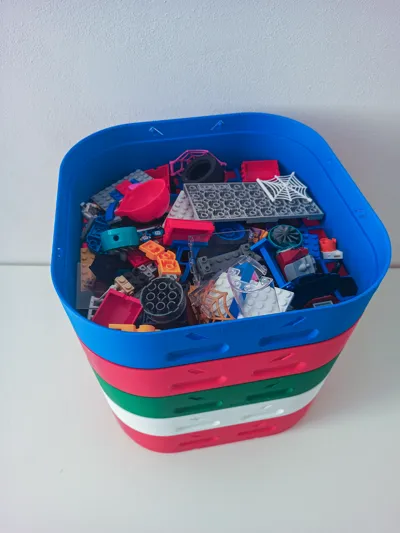

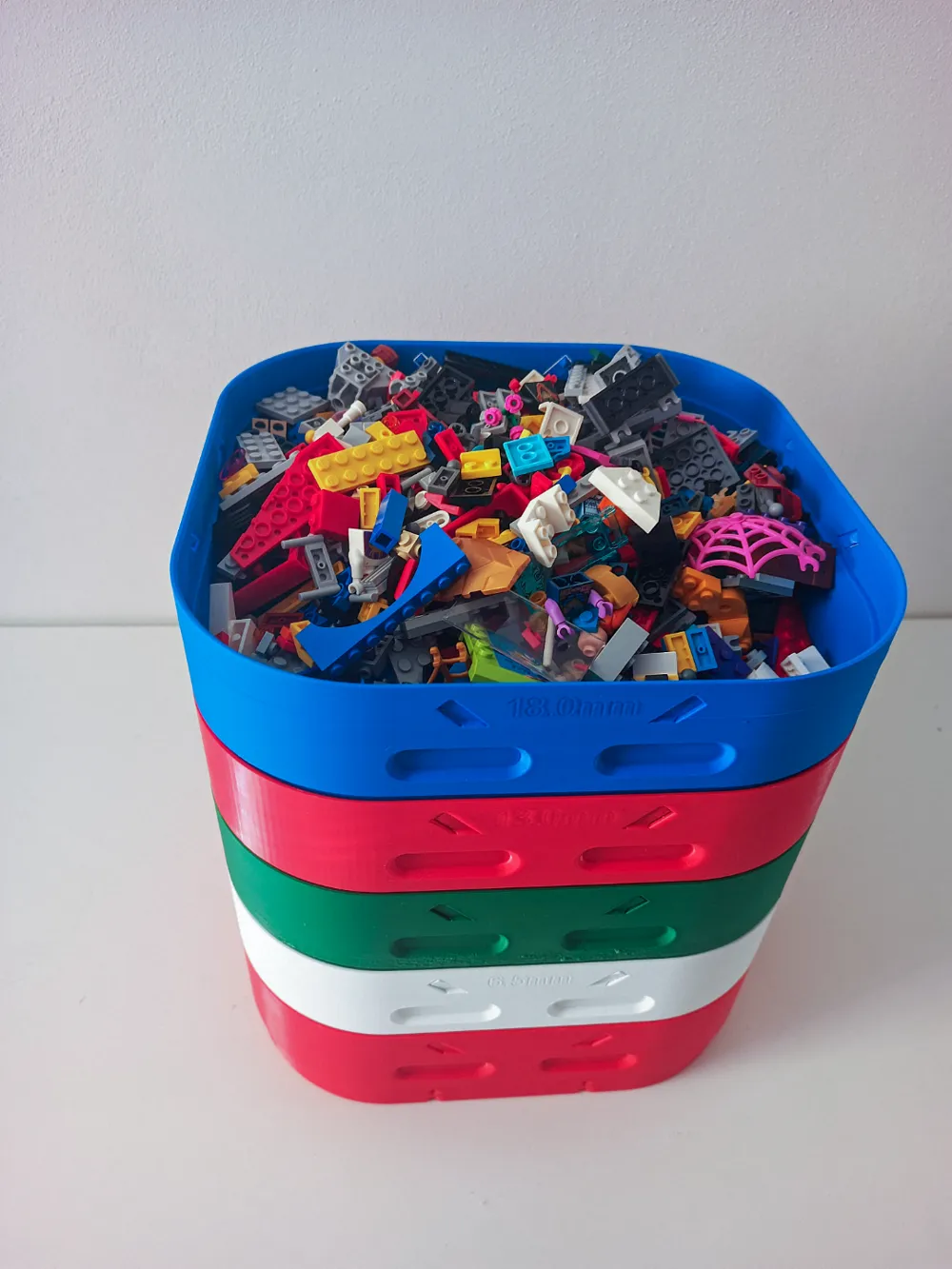

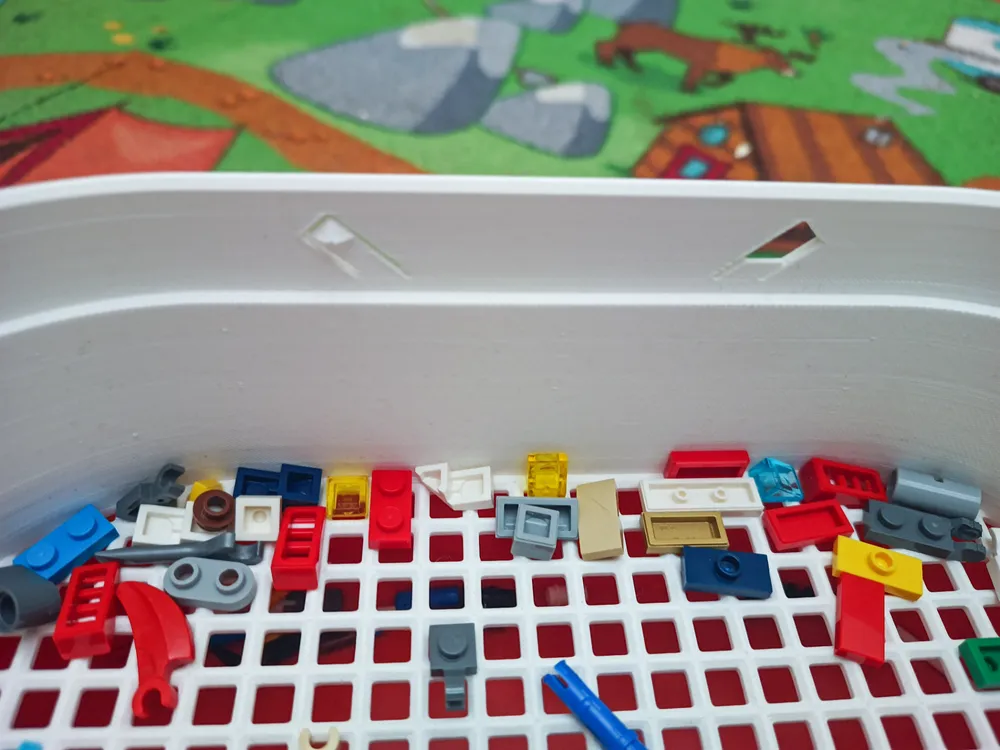

Part of the model is a compliant locking mechanism that helps bins to stay together while sorting/shaking. Depending on your material it should be strong enough to hold together without brinks inside.
I tried 4 different PLA and run into an issue where one (white) was too brittle and the locks broke off, but the other three are working perfectly.
I also tried like 10 versions of the snap design and best way to improve is to use PETG and the PETG version (already published - see above). It's hard to find a design that won't snap with PLA, would be strong enough to be any practical and also soft enough so a kid can use it. But I'm open to and I welcome any tips you might have.
