RC-Speedboat Water-Propeller
Print Profile(4)
Description
These are highly engineered speed boat propellers to achieve incredible speed and efficiency.
Characteristics:
- Extremely high pitch → incredible speed
- Increasing Pitch towards the trailing edge → more efficiency
- higher blade angle → less propeller slip → better force directory and acceleration
Technical details:
- Max Pitch: 70mm, average 55mm (distance travelled per revolution)
- 30mm diameter
- 2mm and 3mm axle
- Clock & Counter-Clockwise
- works perfectly with my RC-Boat hull (https://makerworld.com/de/models/914857#profileId-876245)
- There you can find the Document to edit: https://cad.onshape.com/documents/43952177e23ee1d5ba066246/w/daebfbdf12c0dc94d2fea4df/e/58fcbb9dc05b2fae851d4a6c
Which to choose?

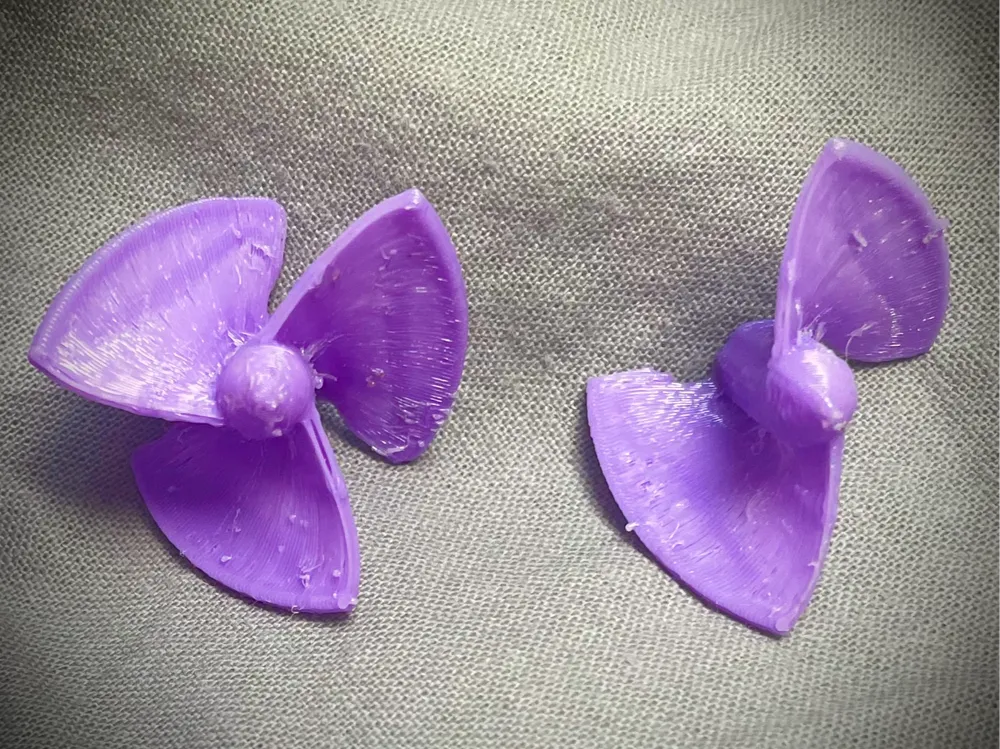

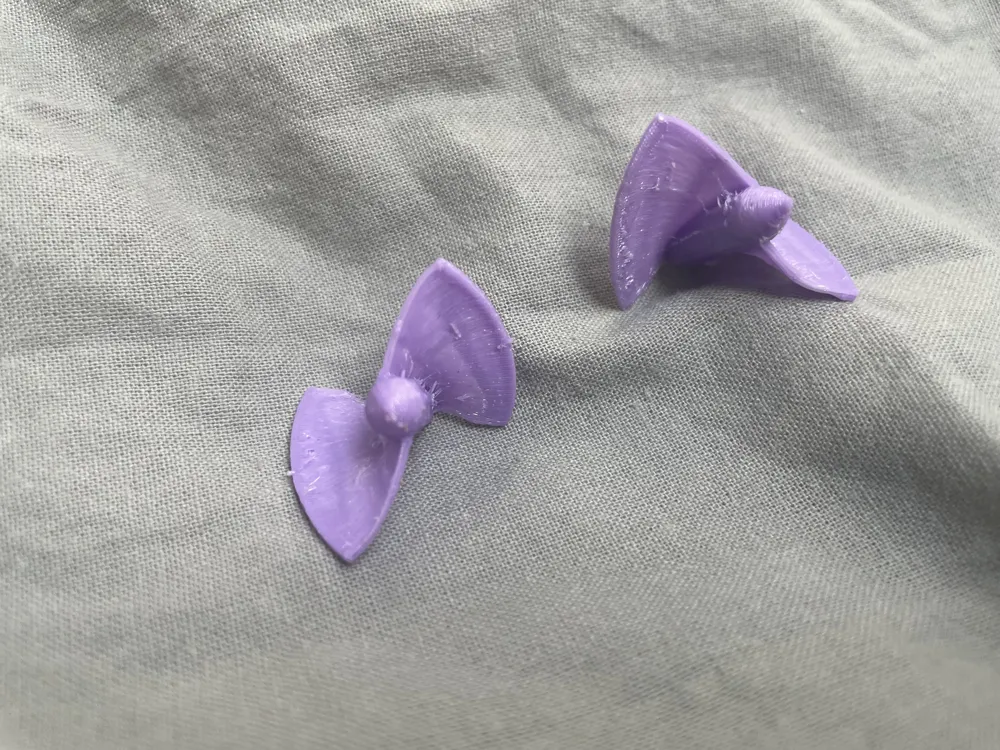

- 2 Bladed Propellers usually deliver the highest speed with best efficiency, but in case you need more pushing force (not speed!) you might choose bigger or

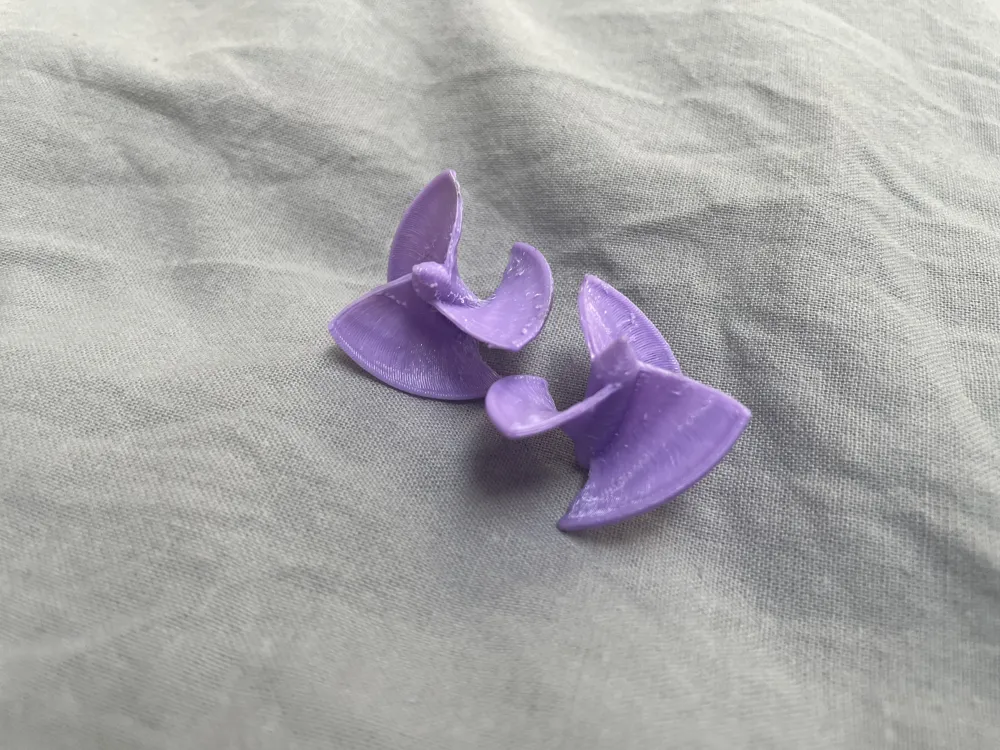

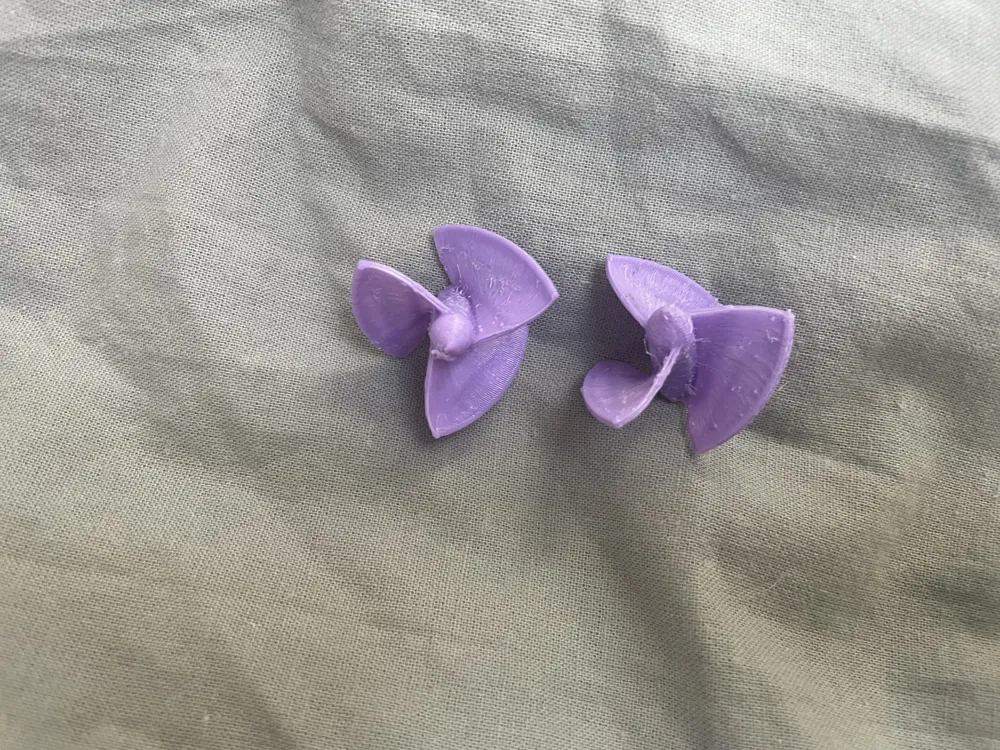

- 3 Bladed Propellers to accelerate a bigger mass faster. Propellers with even more blades lead to worse results in RC use cases.
I wish you a lot of fun and would love to hear from your experiences.
