Filament Spool Shelf for IKEA Bror
IP Report
Print Profile(6)

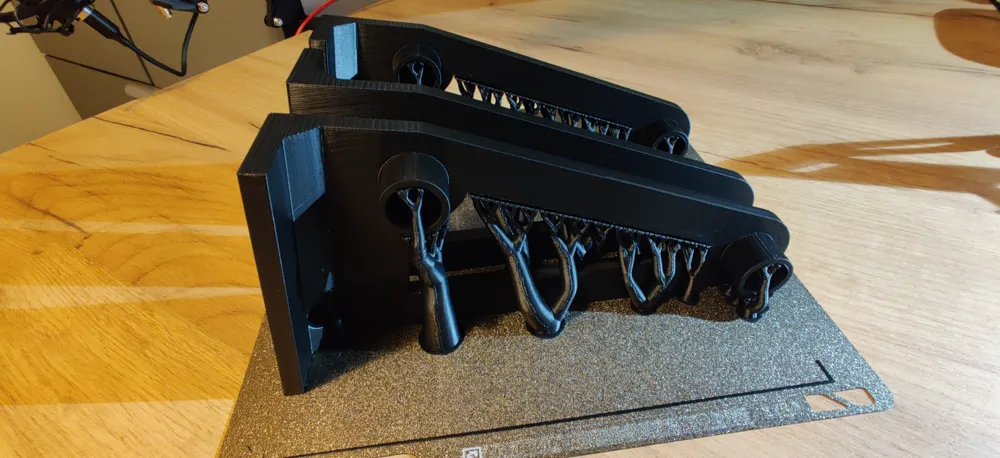

Top Shelves x2 (0.2mm layer, 3 walls, 25% infill)
Designer
12.8 h
1 plate
Top Shelves x2 with recess around screw holes
Designer
12.9 h
1 plate
Bottom Shelves x2 (0.2mm layer, 3 walls, 25% infill)
Designer
13.8 h
1 plate
Bottom Shelves x2 with recess around screw holes
Designer
13.9 h
1 plate
Click to see more
Open in Bambu Studio
Boost
173
624
37
29
231
136
Released
Description

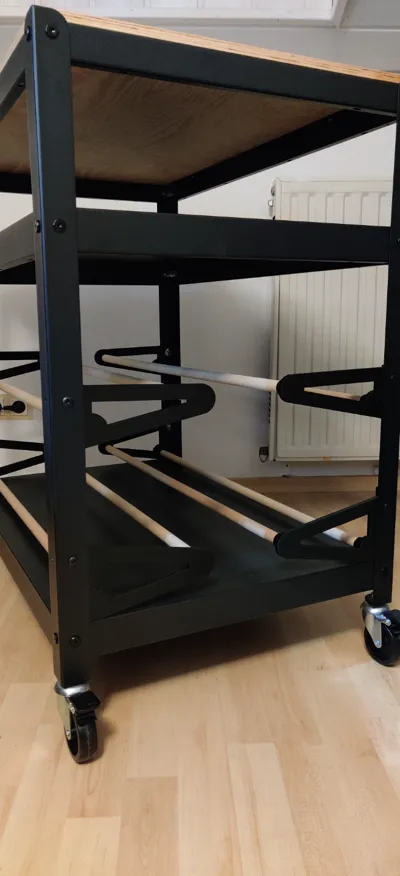

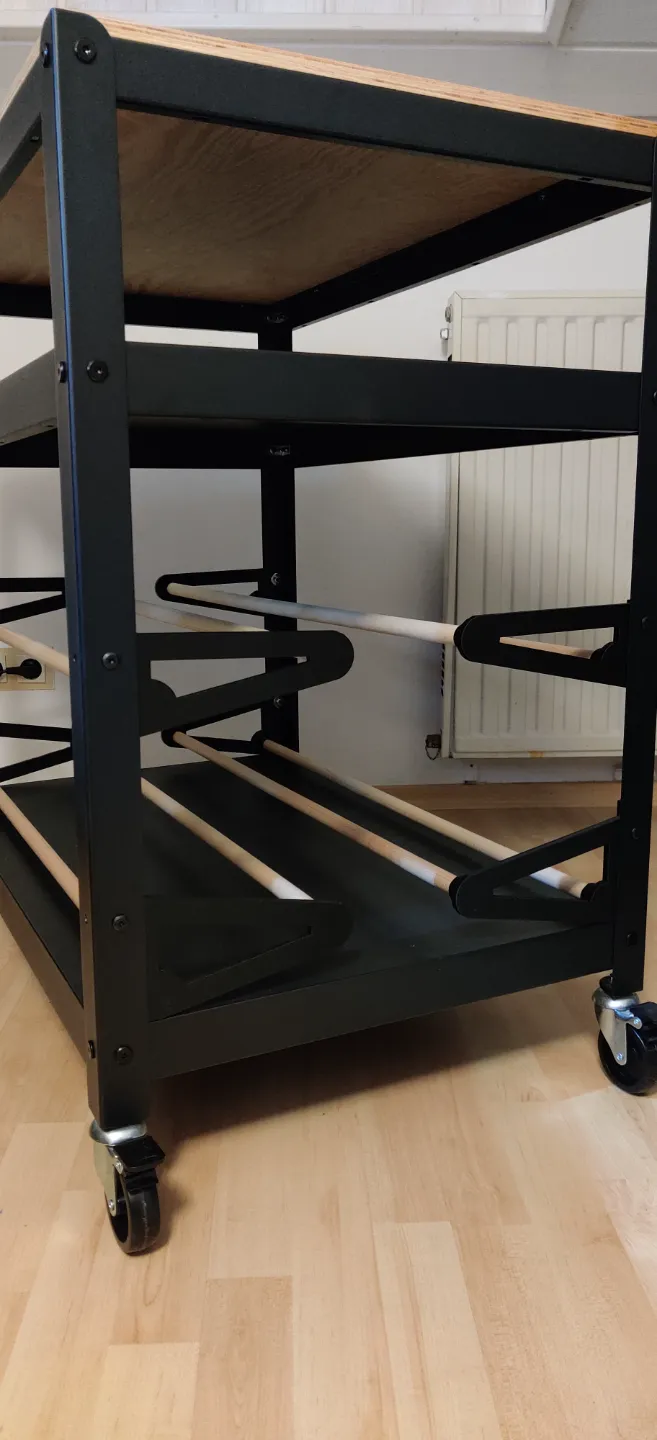

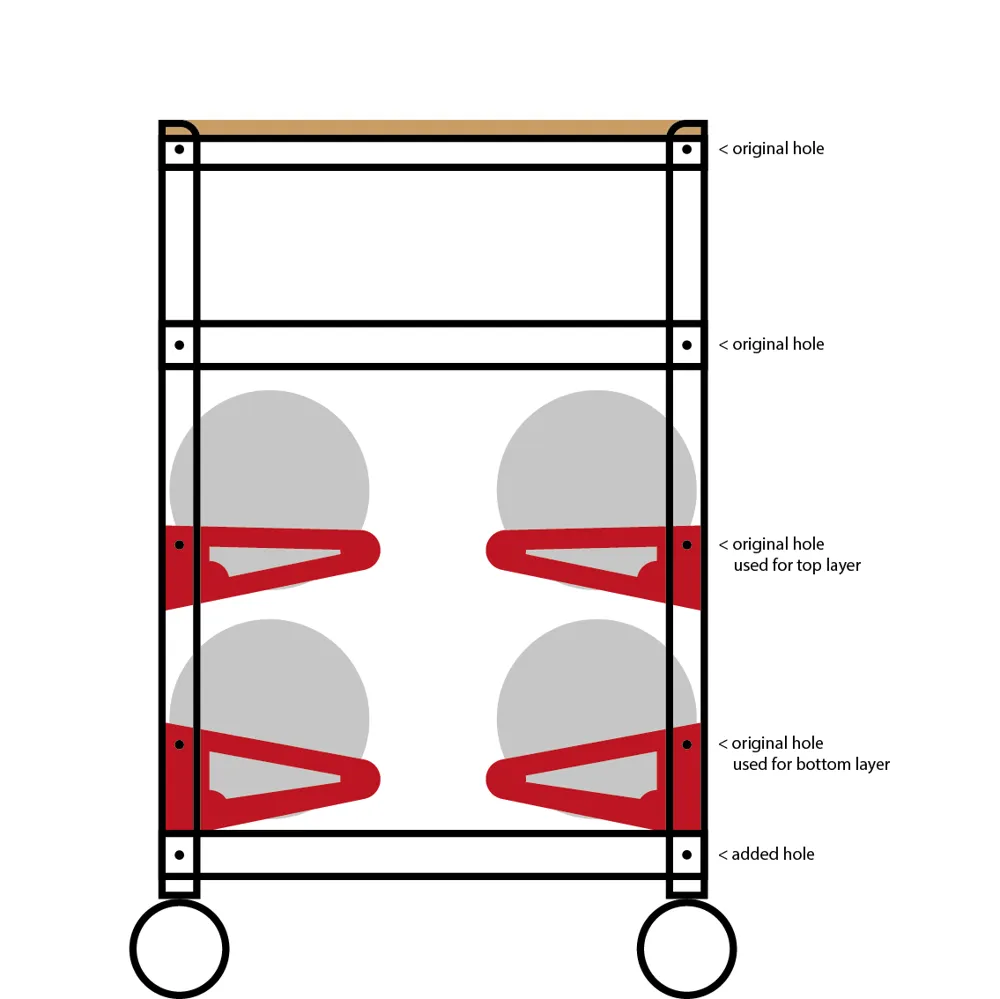

This is a spool shelf designed to be installed on the IKEA Bror Trolley. It uses the extra hole where a Bror shelf could be placed for the top layer, and requires drilling extra holes for the bottom layer.
Alternatively you could just leave out the second Bror shelf, but no idea how that impacts the stability of the trolley. I chose to add new holes below the lowest holes to move the second Bror shelf there.

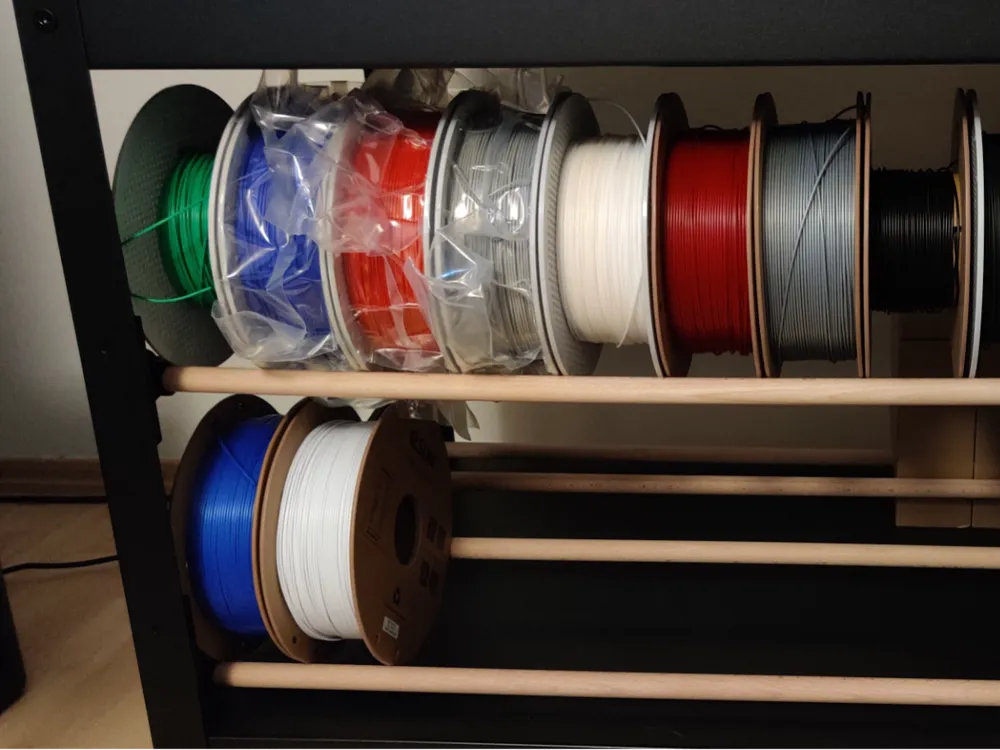

It stores 11-12 1kg spools per layer and side, so 44-48 spools in total.
The spool shelf could also work for the Work Bench and other Bror furniture, but I didn't test it.
Additionally required material
- 4x2 18mm bars, 83,5 cm length
- NEW! Now also for 19mm bars and others, see parametric .step file and print profiles

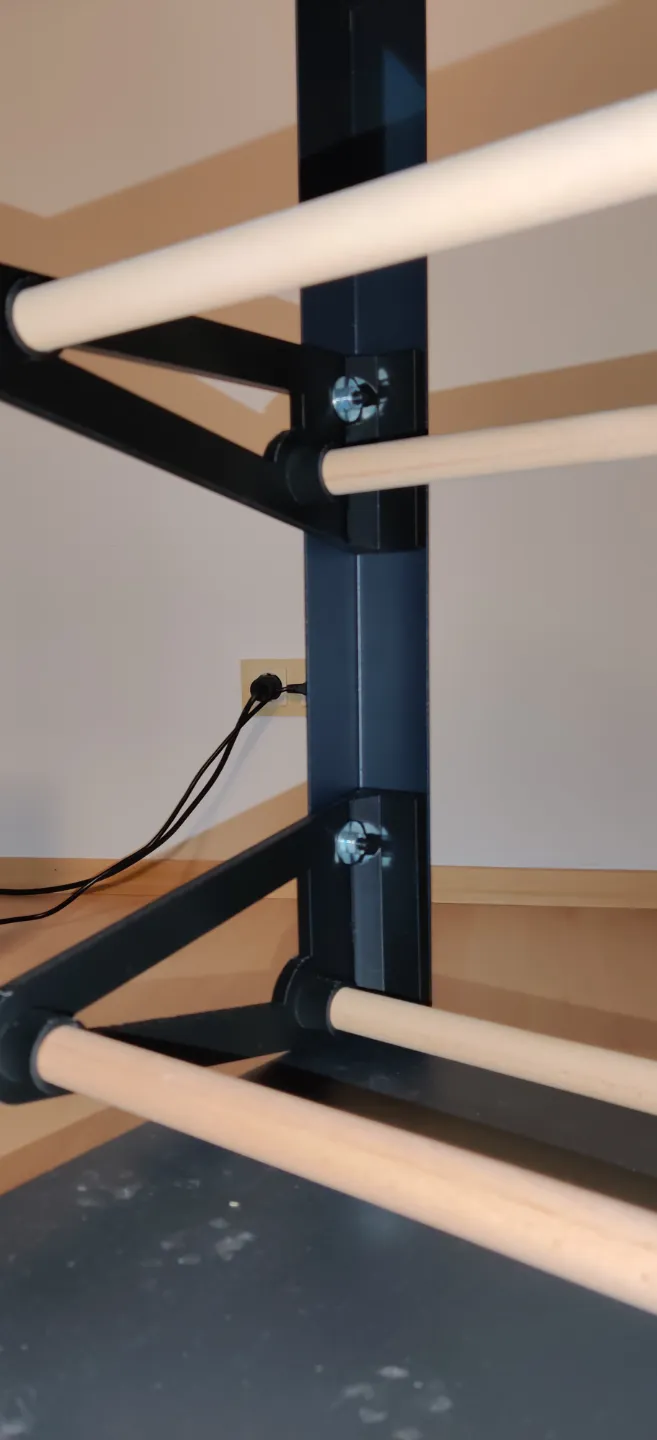

- 8x M6x20 screws + washers + nuts
