Summary

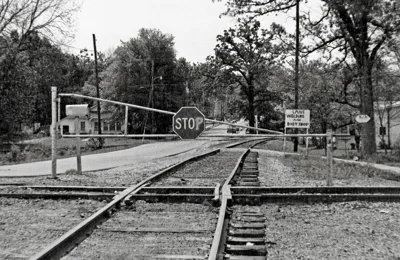

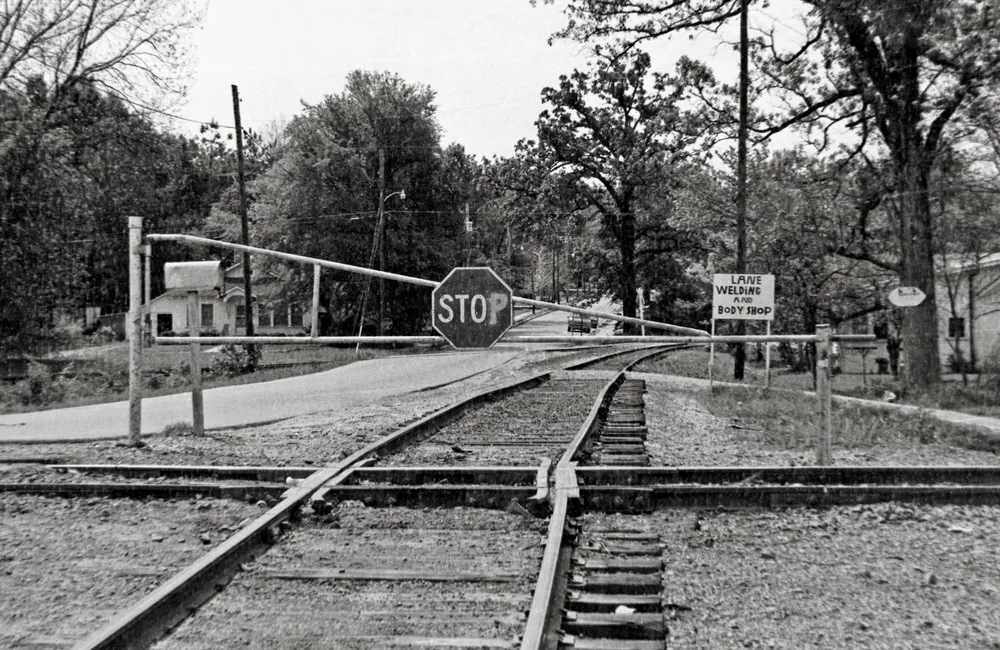

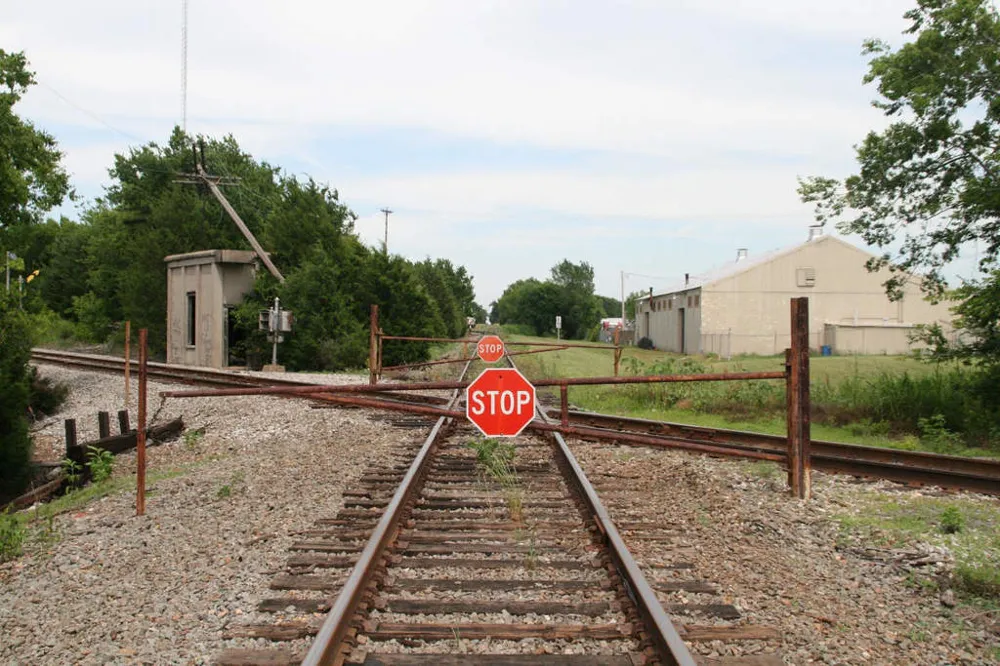

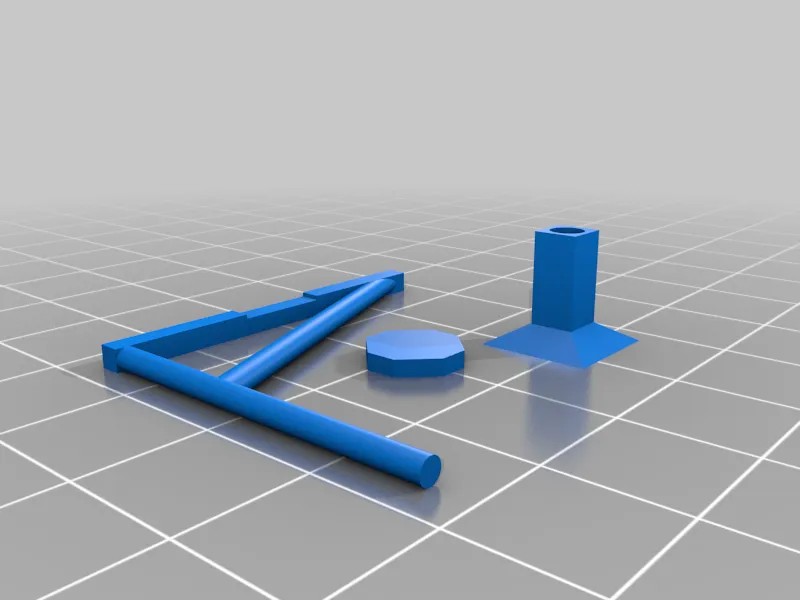

Swing Gate for model railroad crossing. A gate like this would be used when two train tracks cross each other in a diamond. (90-degree crossing)

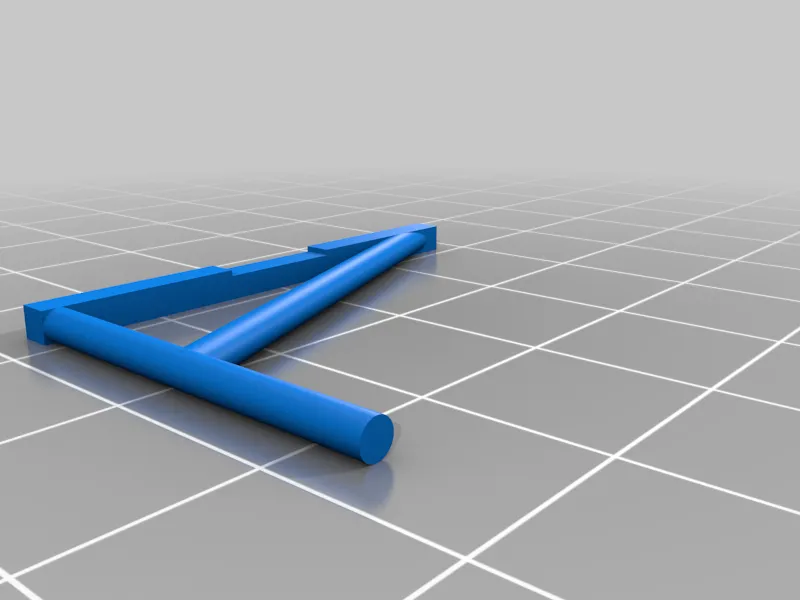

The shorter gate for roads or low tracks.

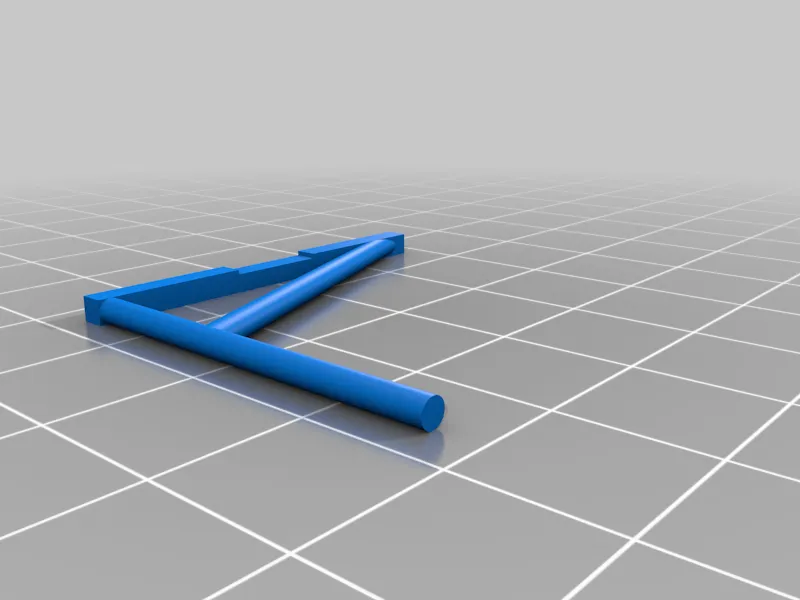

The taller gate is for tracks with tall ballast beneath them.

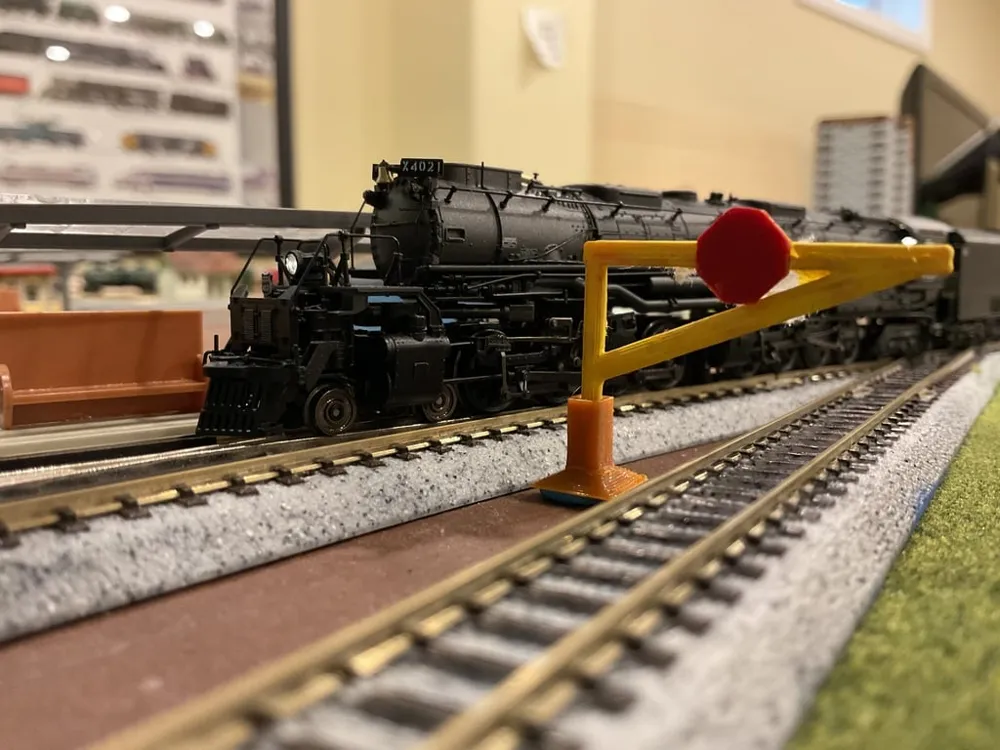

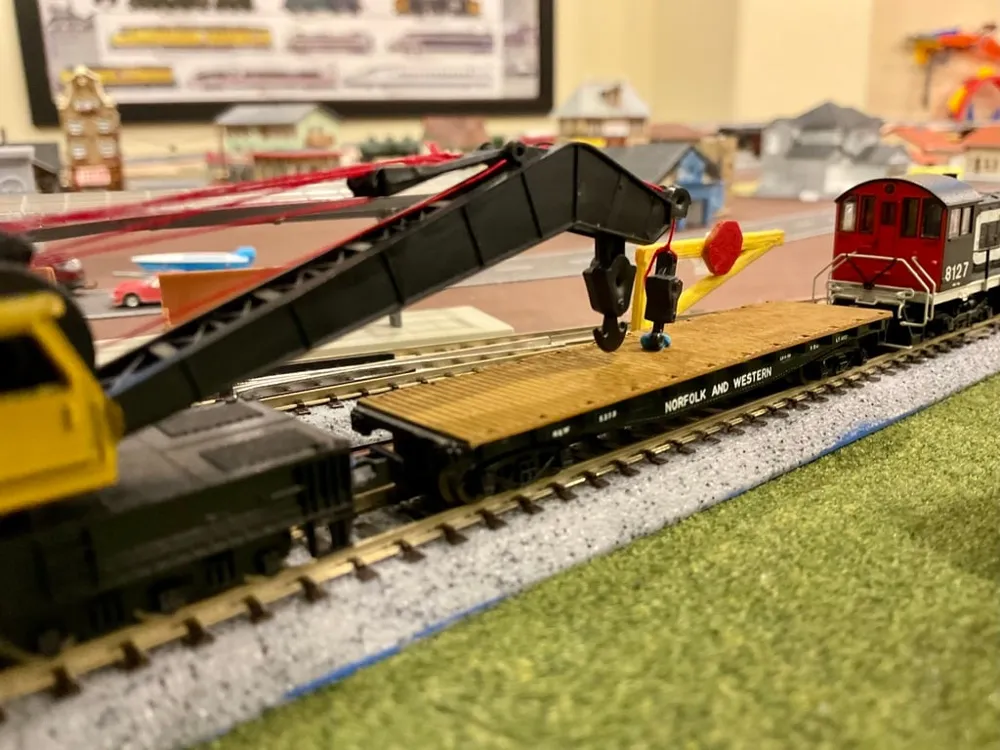

The gate and parts are in N-scale but if you model HO-scale just print it at 200%.

Happy Printing!

Print Settings

Printer Brand:

FlashForge

                                            Printer:
Adventurer 3

Resolution:

0.4

                                            Infill:
100%

Filament: FlashForge PLA
Brown

Post-Printing

Step 1

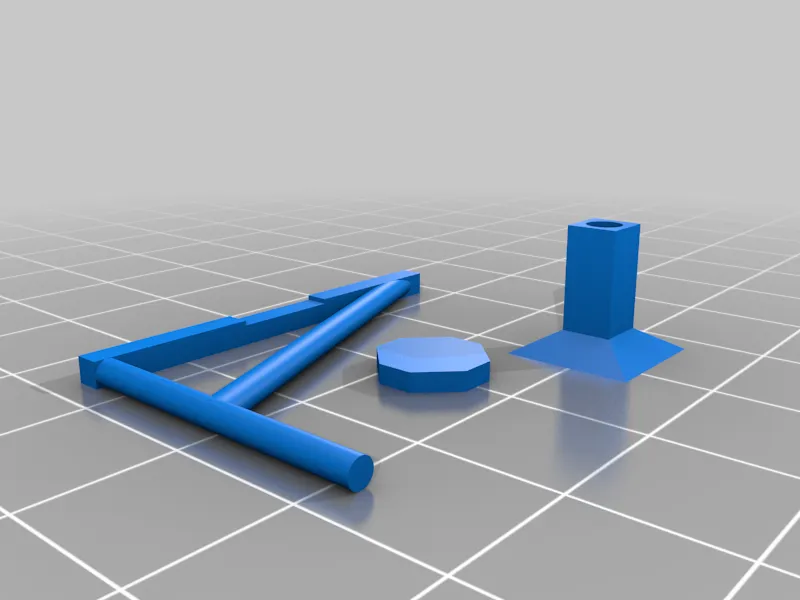

            Glue the Stop Sign to the gate.
            Step 2
            Place the assembled gate into the base, or drill a hole using a 3/32 drill bit, and the put the gate in.
Note: Drilling a hole is sturdier and more stable than the stand.
