Double/Two-Way Speaker Box

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

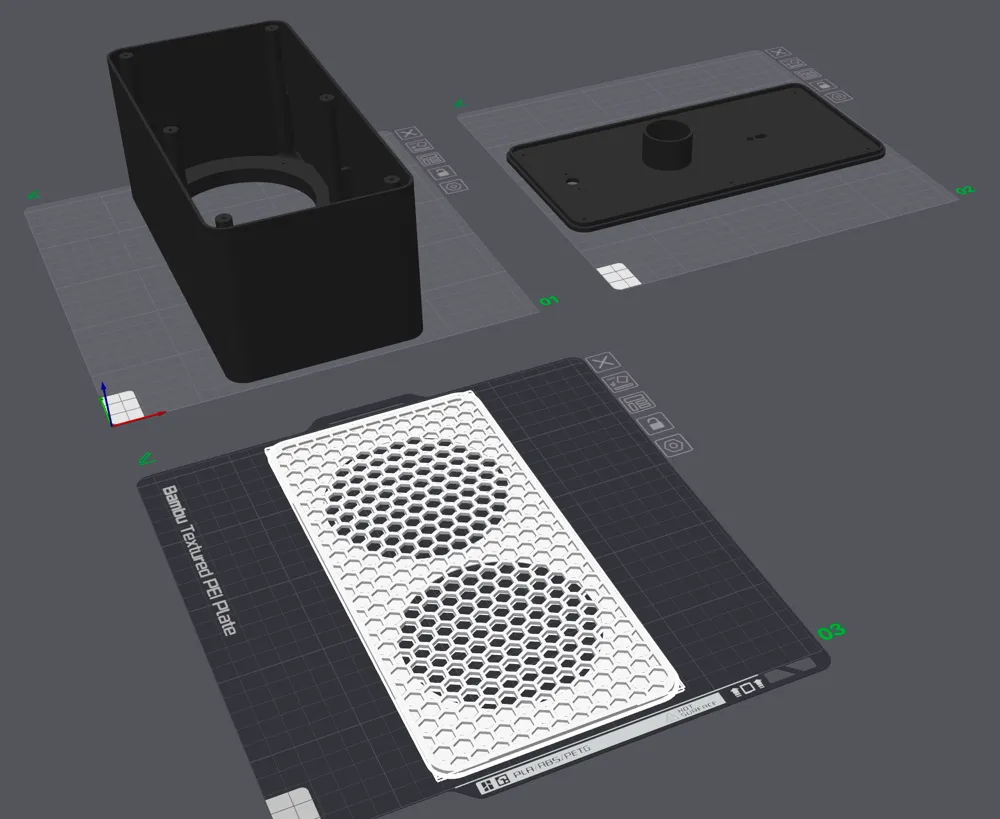

0.2mm layer, 2-6 walls, 15% infill
0.2mm layer, 2-6 walls, 15% infill
Designer
14.4 h
3 plates
4.7(3)

Open in Bambu Studio
Boost
61
140
3
2
114
19
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all

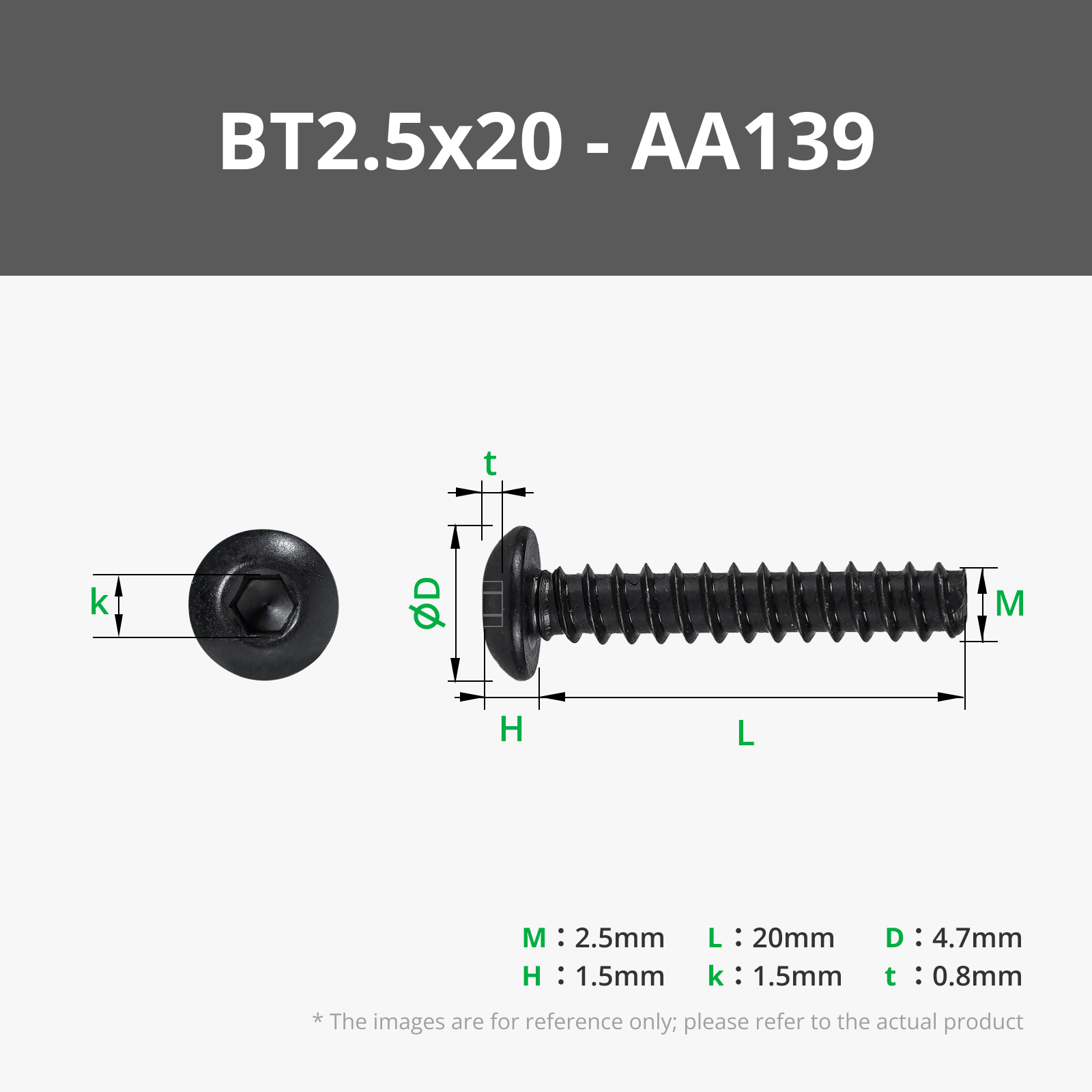

BT2x10 BHCS Self Tapping Screw (20PCS) - AA214
BT2.5x20 BHCS Self Tapping Screw (10PCS) - AA139
M2.5x6 BHCS Machine Screw (20PCS) - AA013
M2.5 Carbon Steel Hex Nut (20PCS) - AB004

Description

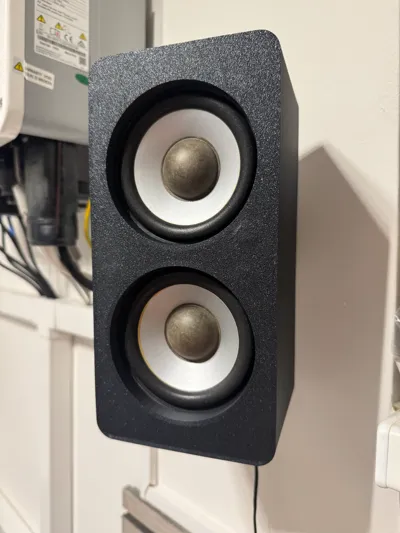

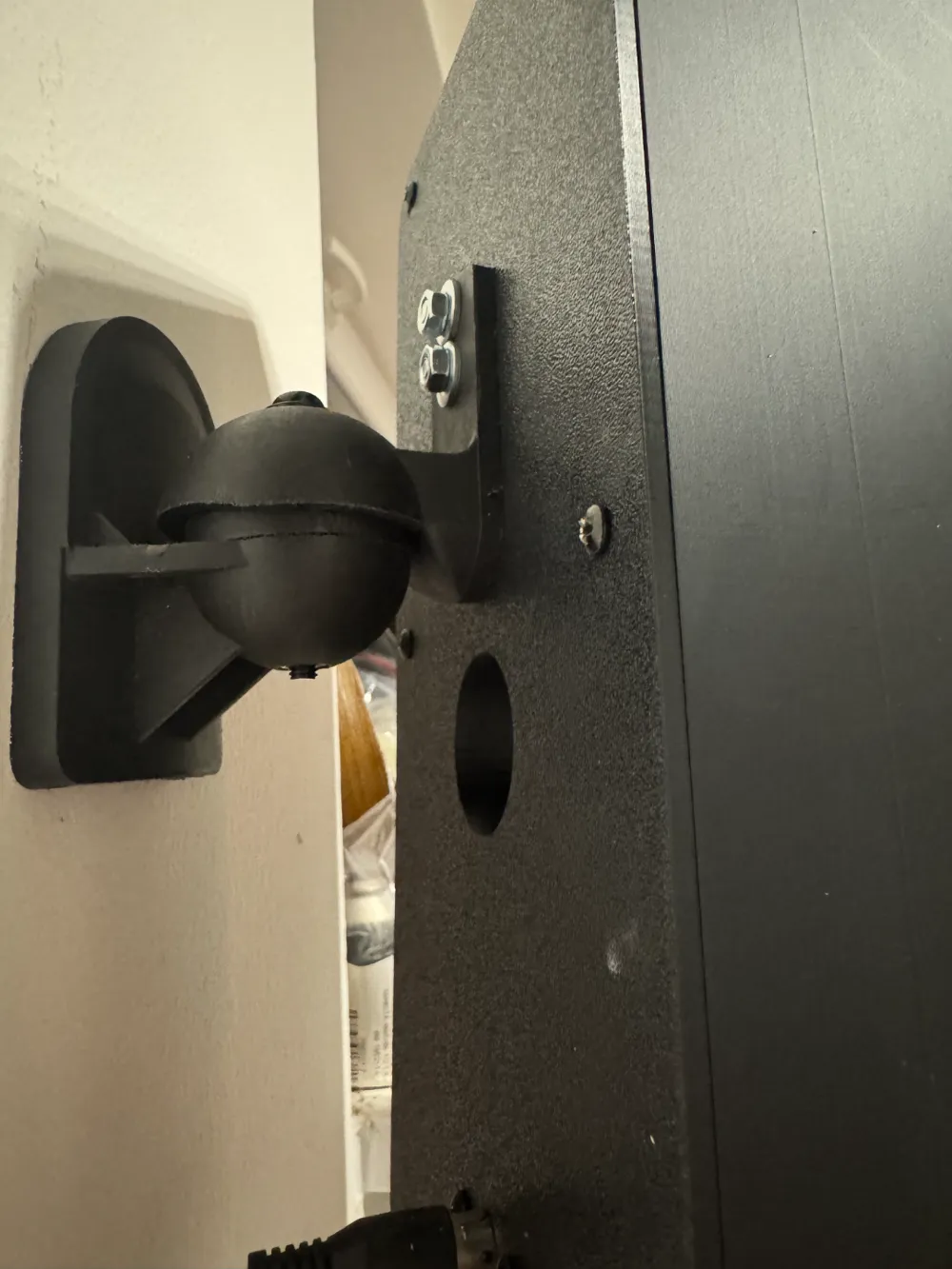

I wanted to get rid of my old Genius dual unit where two speakers membranes were torn. I have come up with a simple design for a double unit speaker box for speakers with 95mm diameter. Sounds surprisingly good as is but you can add some insulation to improve the quality and to remove unwanted resonance. Back has a hole either for cables directly or a cinch female plug. I have also included two mounting holes for a simple speaker mount (see picture).

All you need extra are 8pcs of 2mmx10mm screw and 6 pcs of 2.2mmx20mm screw (or similar sizes) and obviously 95mm speakers.

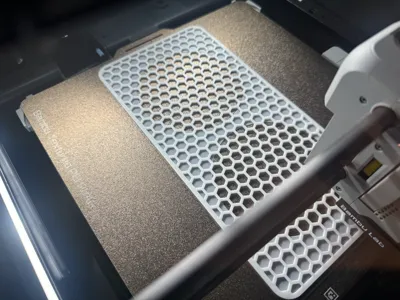

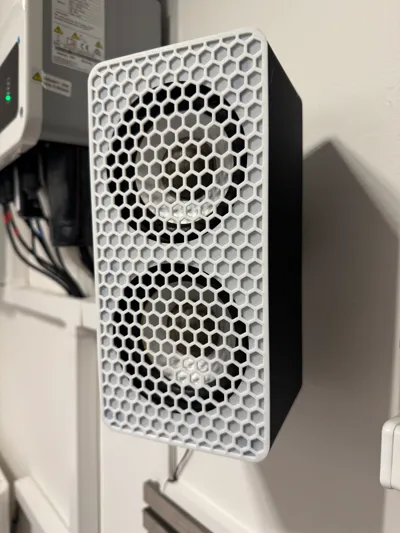

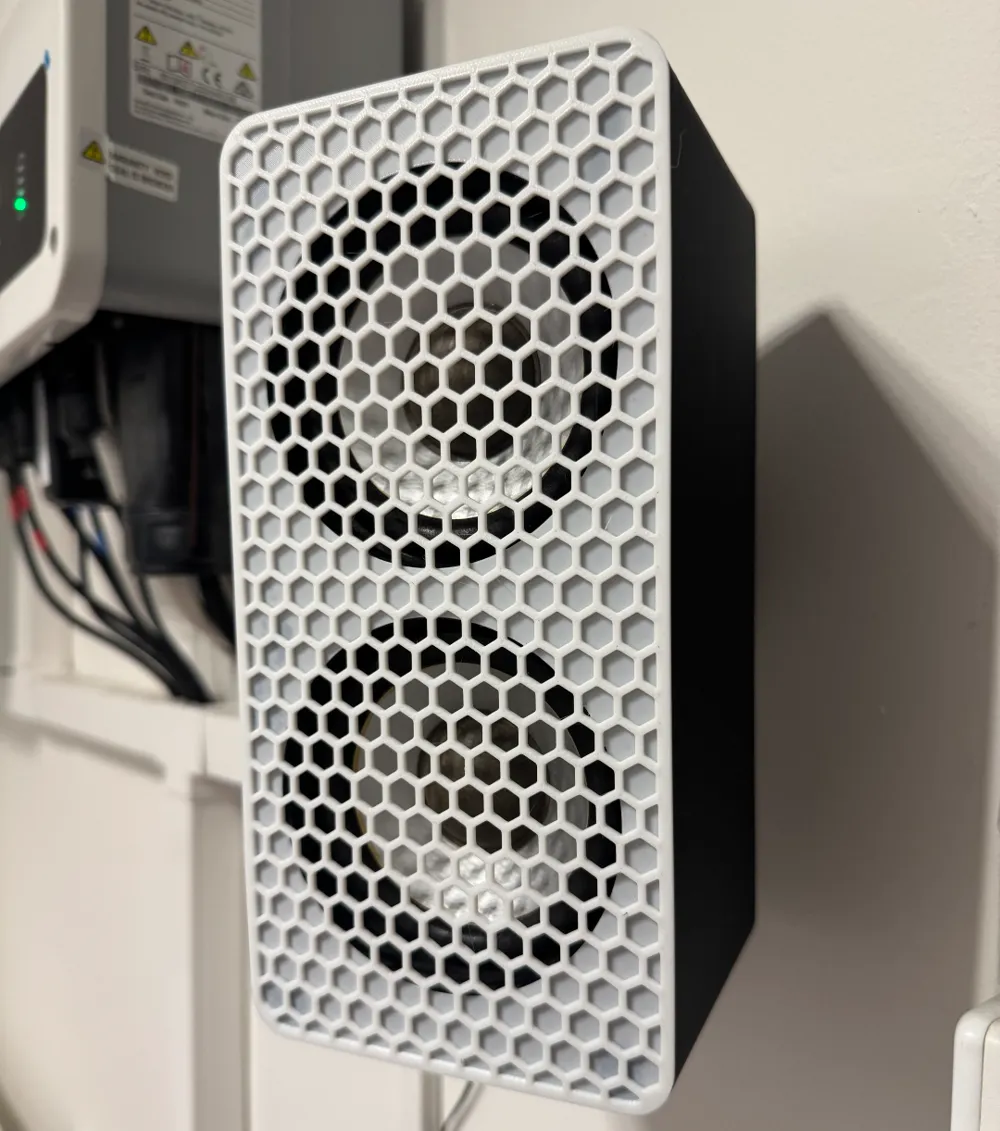

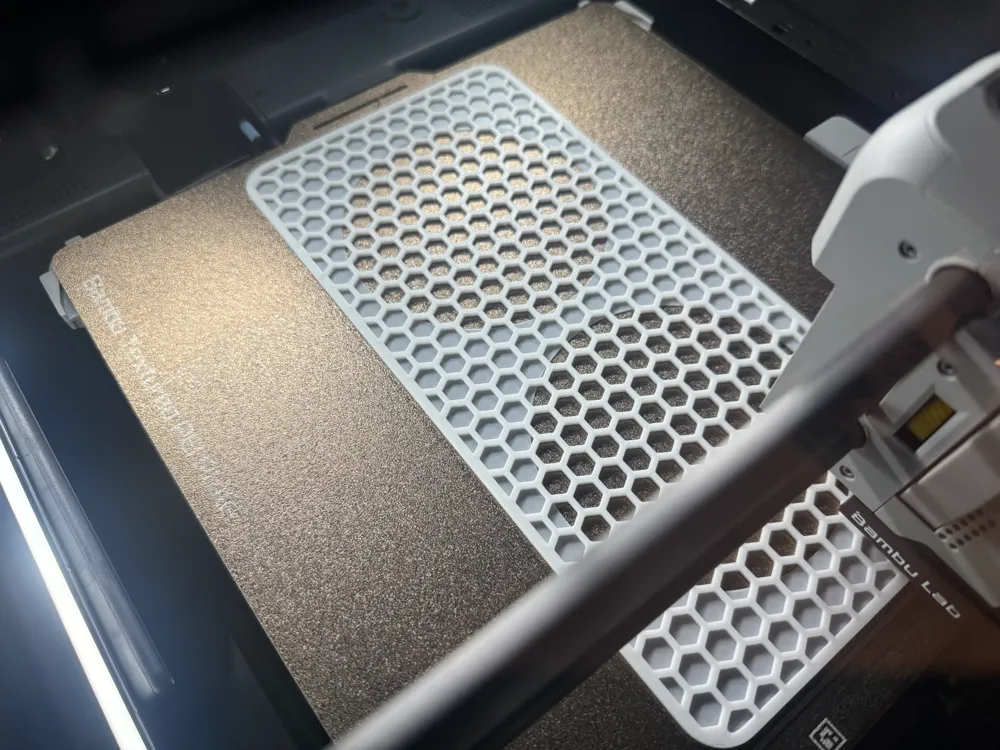

Mesh is optional and I used a super glue to attach it to the fron.
