XL6009 buck boost converter case with lid
Print Profile(1)
Description
Case with lid for a XL6009 buck boost DC-DC converter.
The one I got off eBay is a slightly different size to others that most existing cases are based on.
Board mounting pin spacing is 33.7mm x 16.7mm.

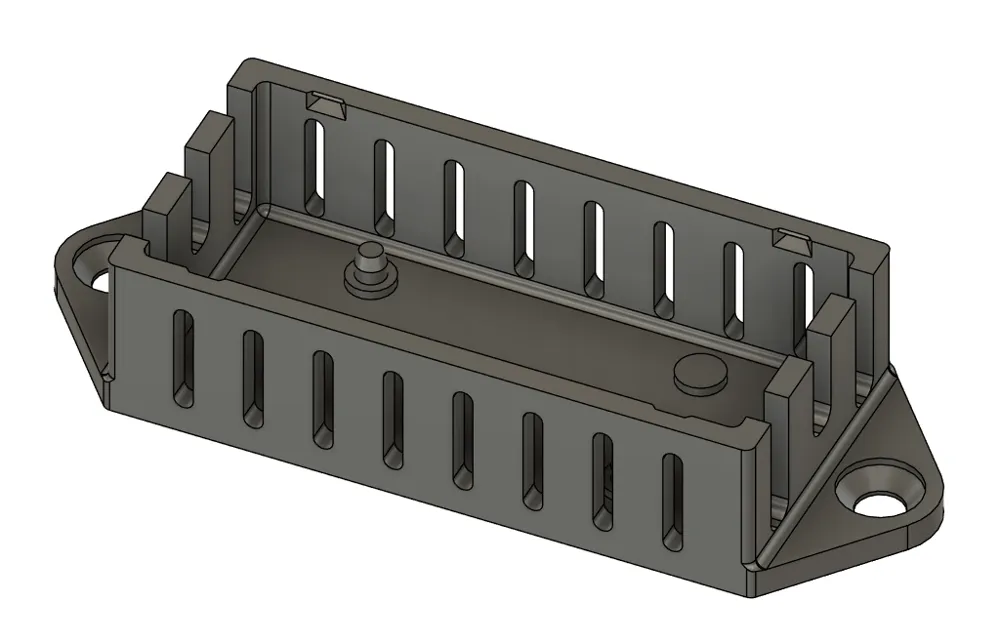

I have added 2 versions of the base for top and side screw mounting.
There is access to screw the variable resistor to adjust the voltage through the lid.

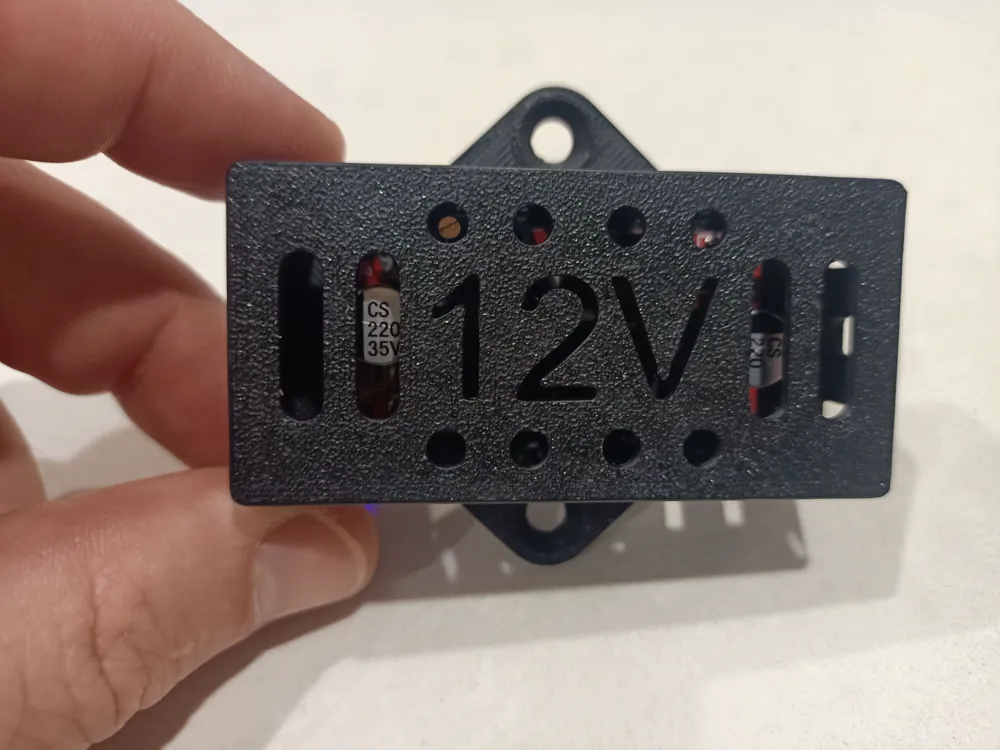

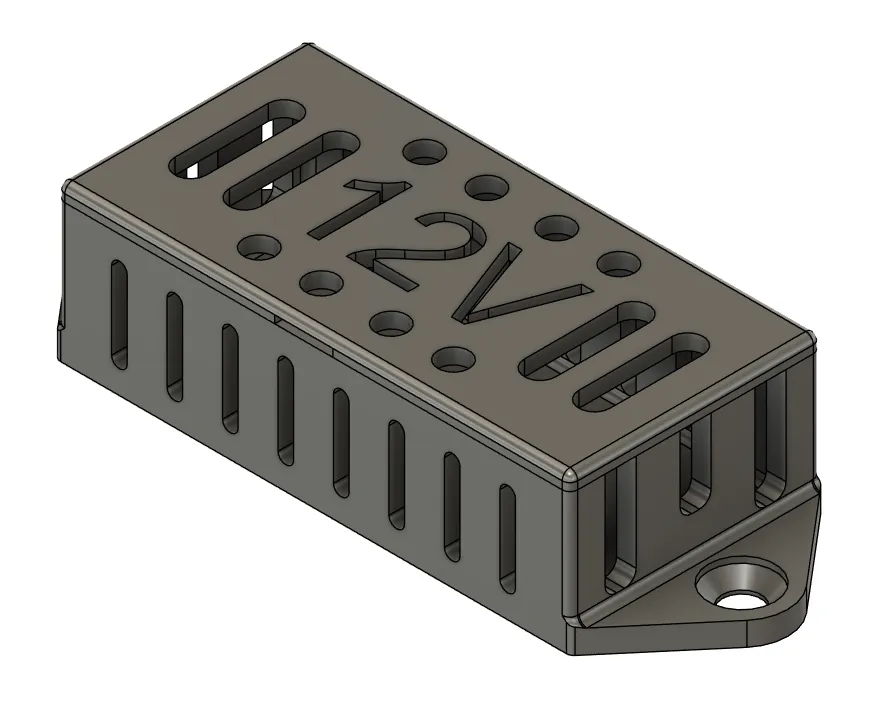

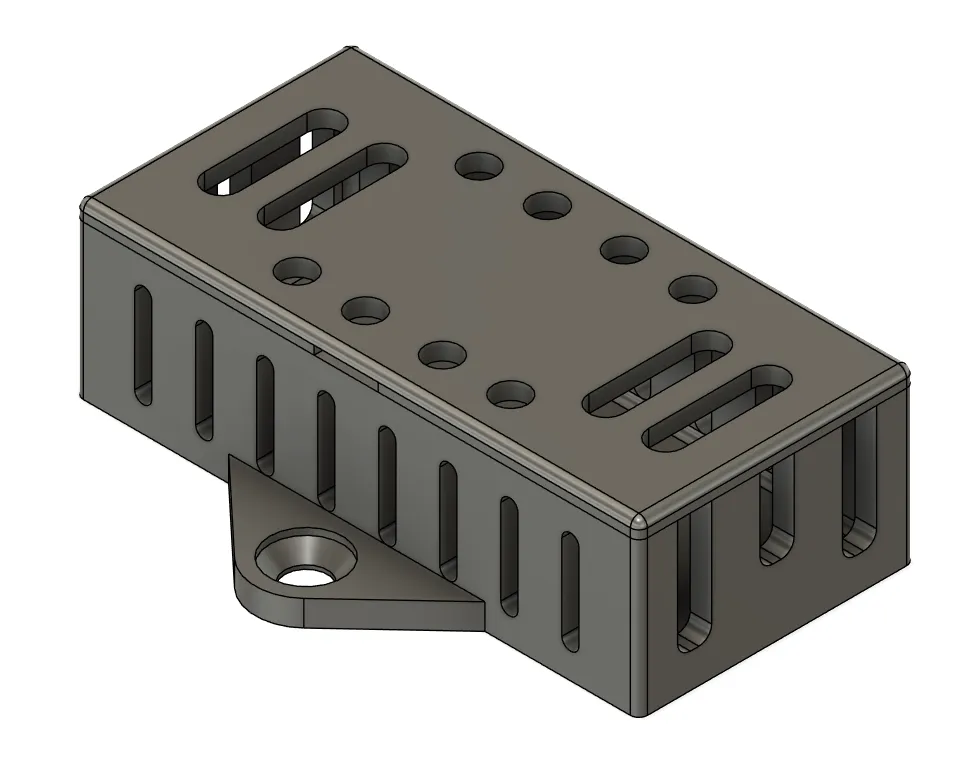

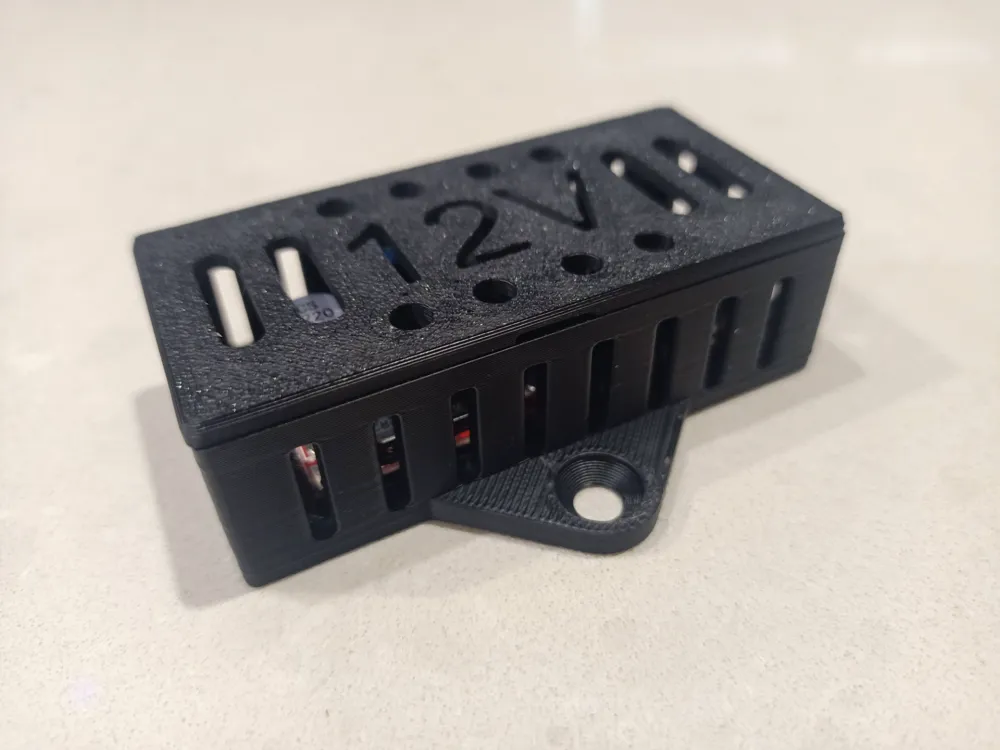

There are 2 versions of the lid, one has 12V marked in it and the other is blank.
If you would like any other lid voltage variants just message me.

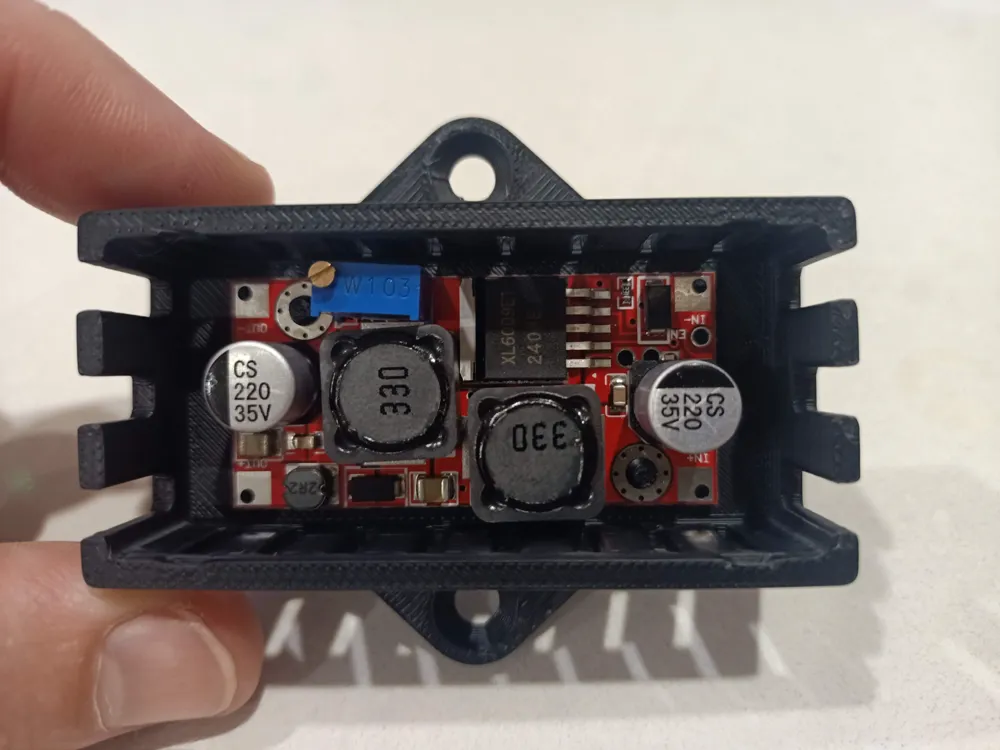

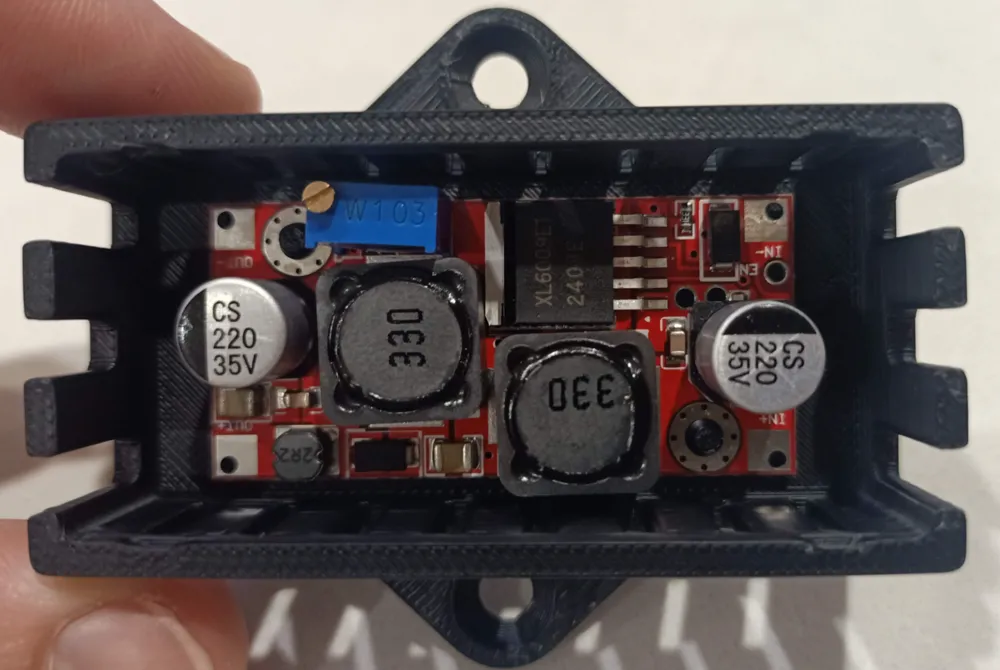

There isn't much room for any clips to secure the board down so it just sits down over the 2 pins.
