Holder for hook tools (Güde 38x38 mm)
IP Report
Print Profile(1)

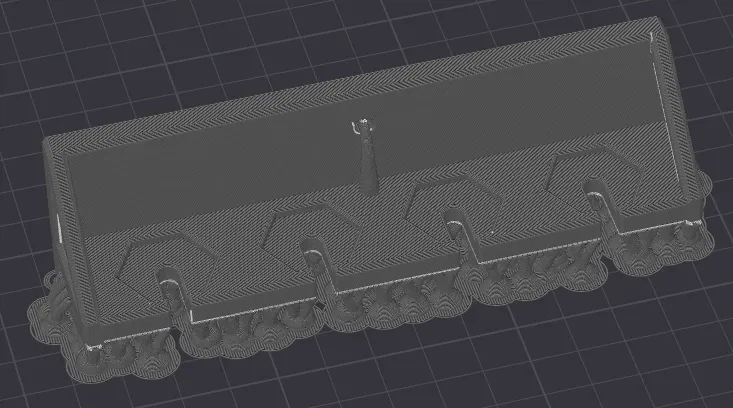

0.2mm layer, 2 walls, 15% infill
Designer
3.9 h
1 plate
Open in Bambu Studio
Boost
37
112
8
5
75
26
Released
Bill of Materials
Bambu Filaments
Select all
List other parts
- Einschmelzmutter x 1: M3
- Senkkopfschraube x 1: DIN7991-M3x15
Description
Content has been automatically translated.

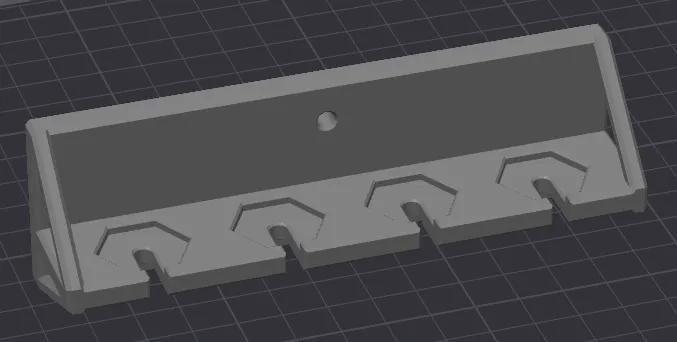

A simple bracket for Güde's square-hole wall system with a hole spacing of 38x38 mm.

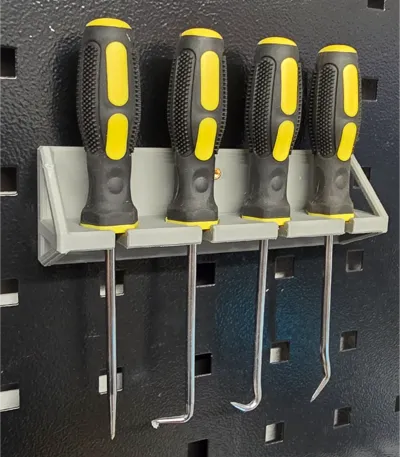

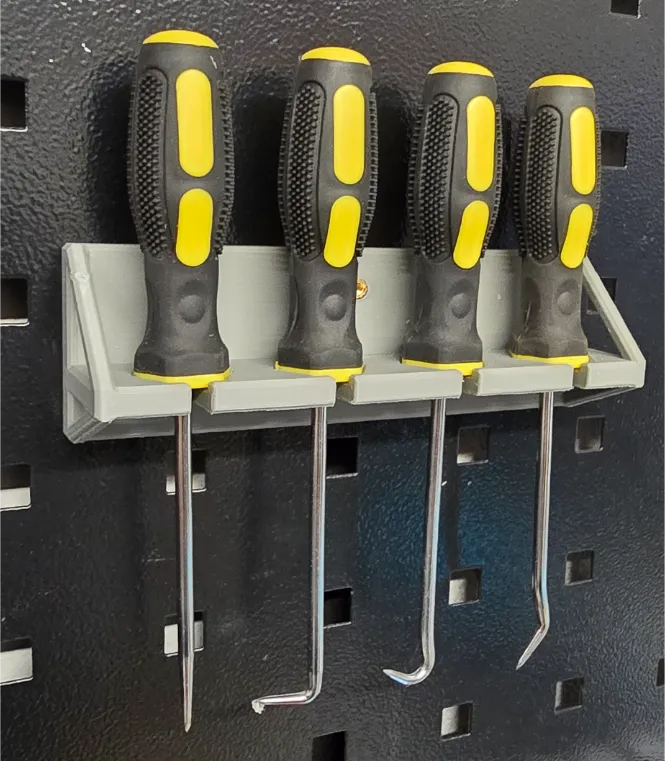

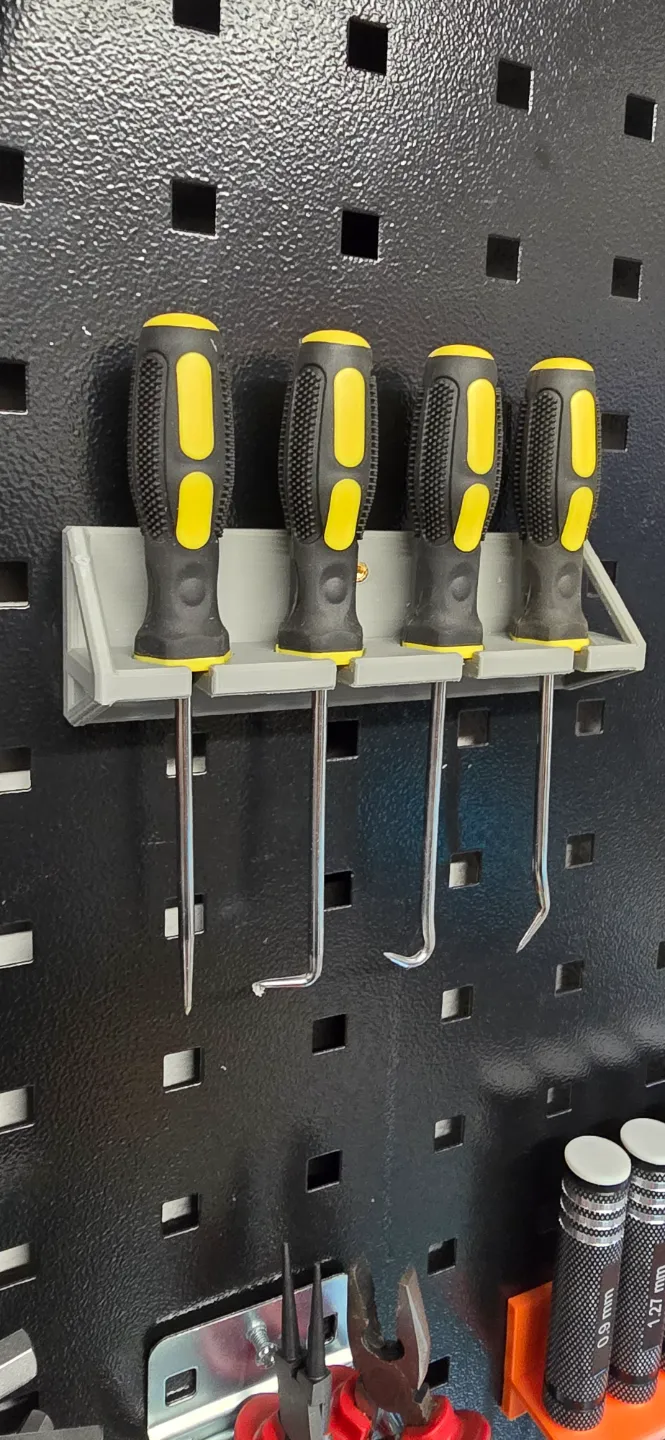

The bracket is designed for four hook tools.

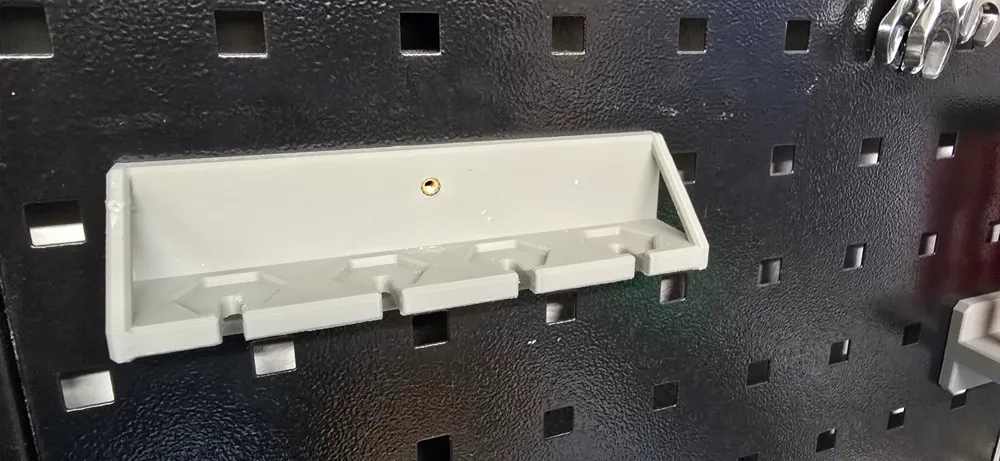

For secure attachment, an M3 insert nut and an M3x15 screw are also required As shown in the image, the screw is located where there is also a hole in the perforated wall, thus preventing the bracket from being dislodged
