Peptide backbone of alpha helix - balls and sticks
Print Profile(0)
Add the first print profile to earn points
Boost
1
8
1
0
2
0
Released
Description

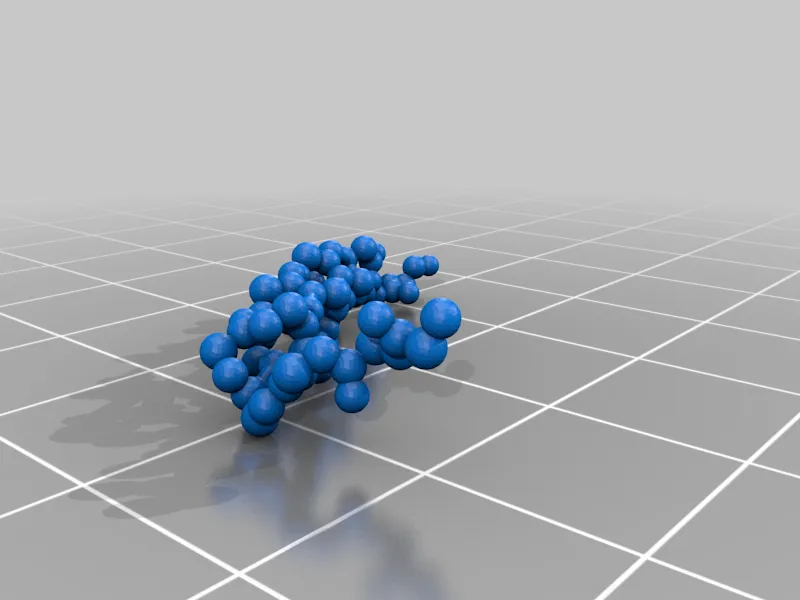

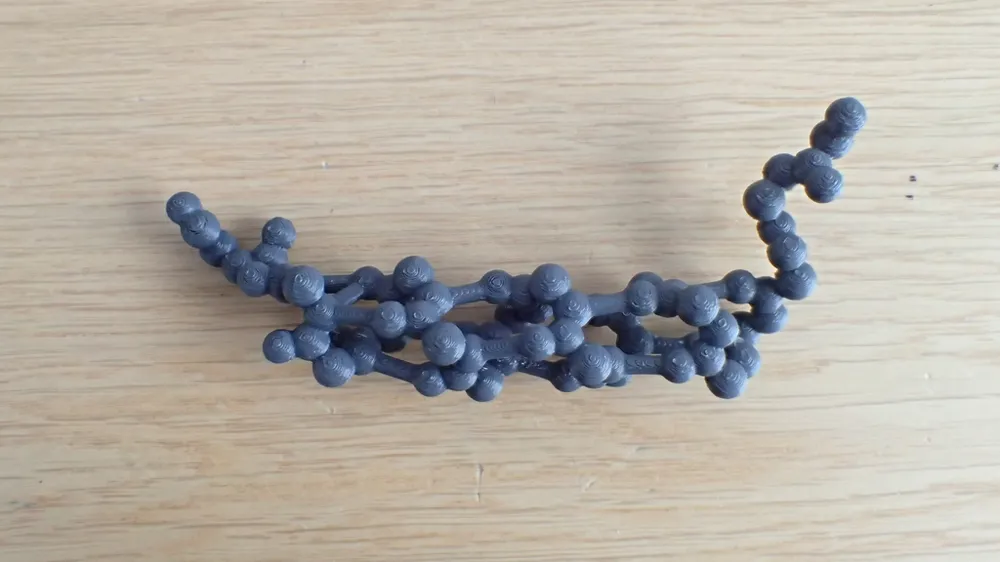

An alpha-helix from 2HHB.pdb containing aminoacids 1VLSPADKTNVKAAWGKVGA19, chain A, visualized as balls and sticks. Stabilizing H-bonds are visible.
I made this to use it for teaching Biochemistry and Structural Biology. The plan is to have a set of secondary structures in different representations, as well as whole proteins.
Protein Data Bank ID: 2HHB
Segmentation Software: Cura 4.5
3D Modeling/CAD Software: Chimera
Model Origin: Molecular data (e.g., crystallography)
Print Settings
Printer Brand:
Creality
Printer:
Ender 5
Doesn't Matter
Supports:
Yes
0.2
Infill:
20
Filament:
generic PLA
Notes:

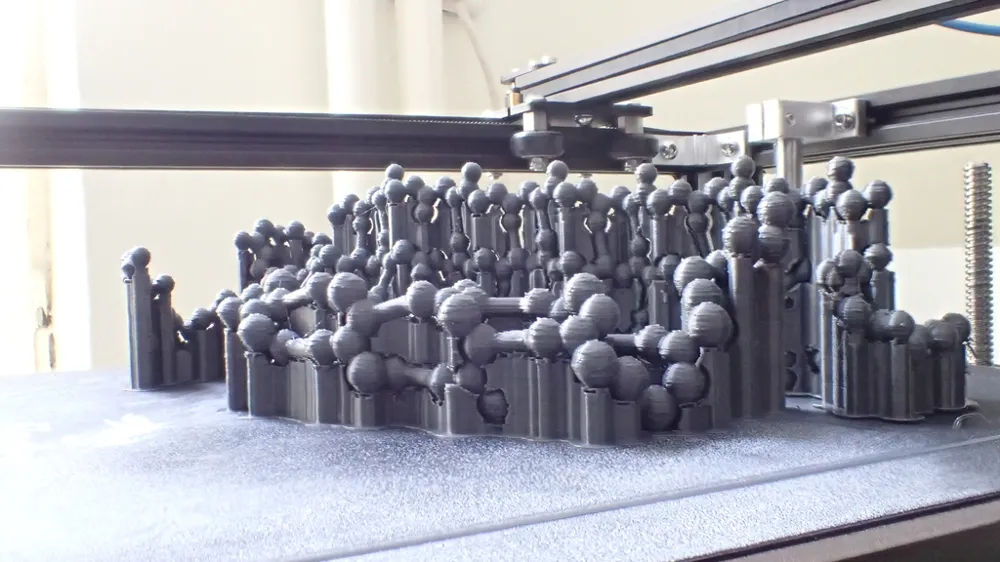

The model was re-orientated using the Auto-orientation plugin in Cura. I have used concentric supports and found to be easier to remove.
License
This user content is licensed under a
Creative Commons Attribution-Share Alike
