Drill bit holder (Güde 38x38 mm)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
3.4 h
1 plate
Open in Bambu Studio
Boost
25
97
4
1
69
27
Released
Bill of Materials
Bambu Filaments
Select all
List other parts
- Einschmelzmutter x 2: M3
- Senkkopfschrauben x 2: DIN7991-M3x15
Description
Content has been automatically translated.
A simple holder for Güde's square-hole wall with a hole spacing of 38x38 mm.

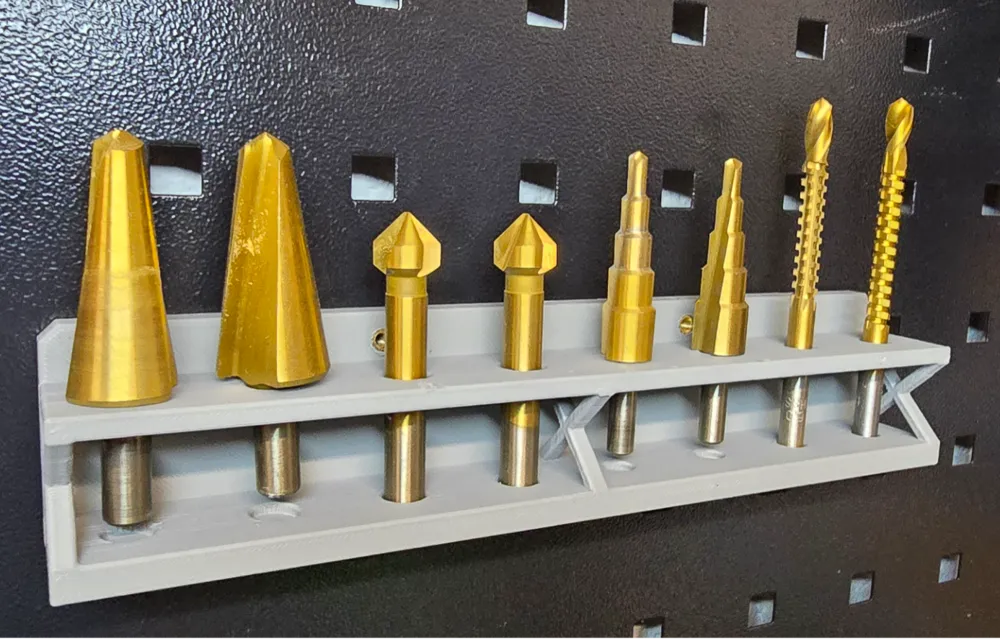

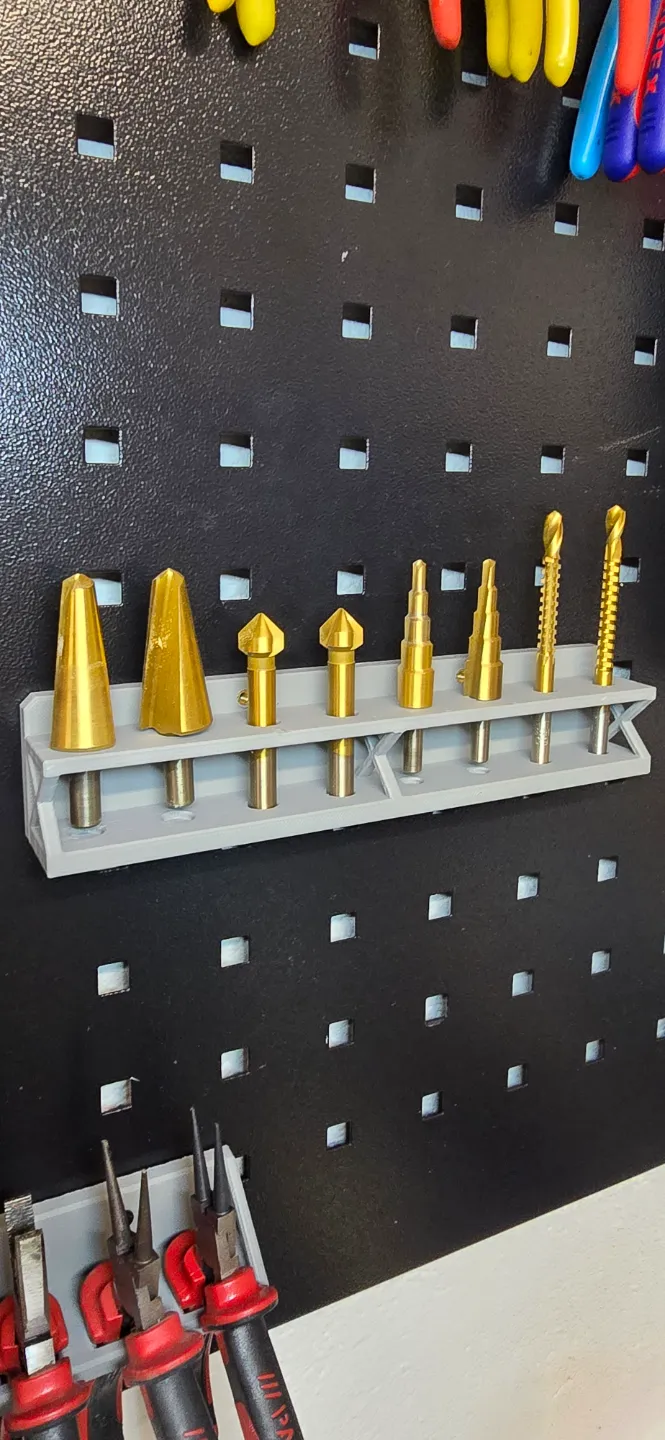

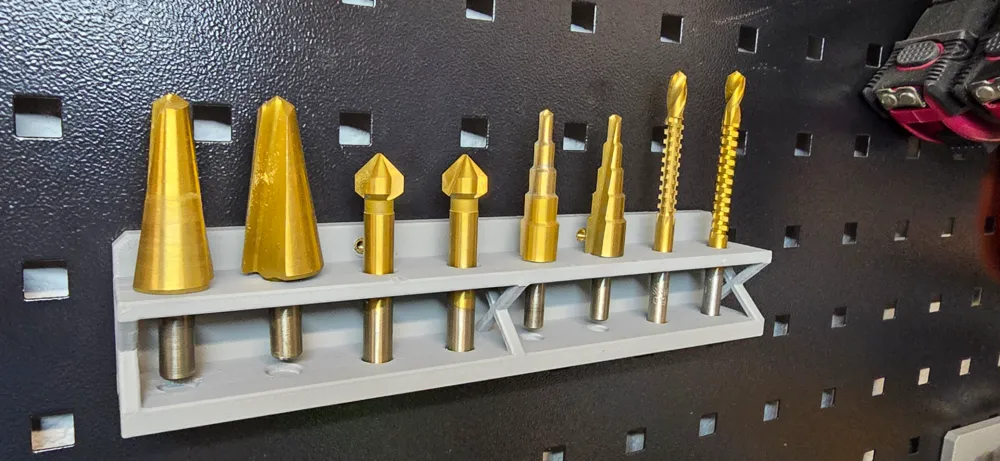

The holder is designed for eight drilling tools.

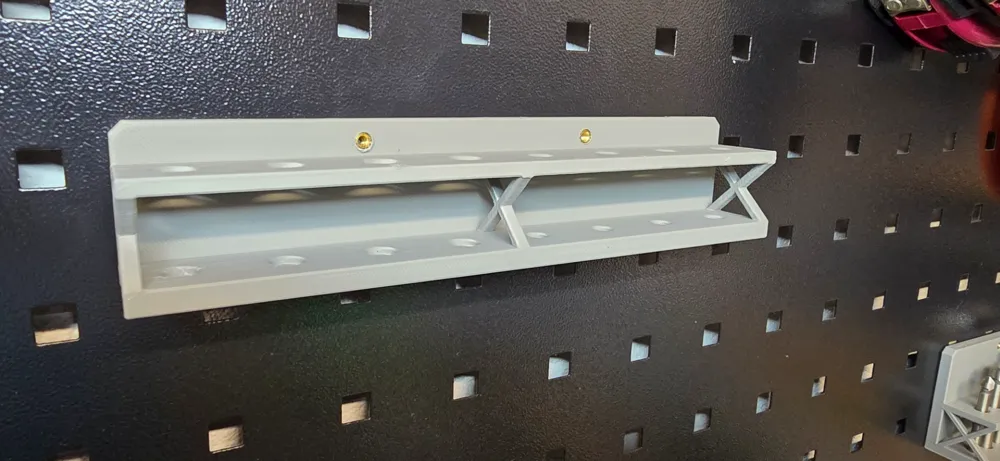

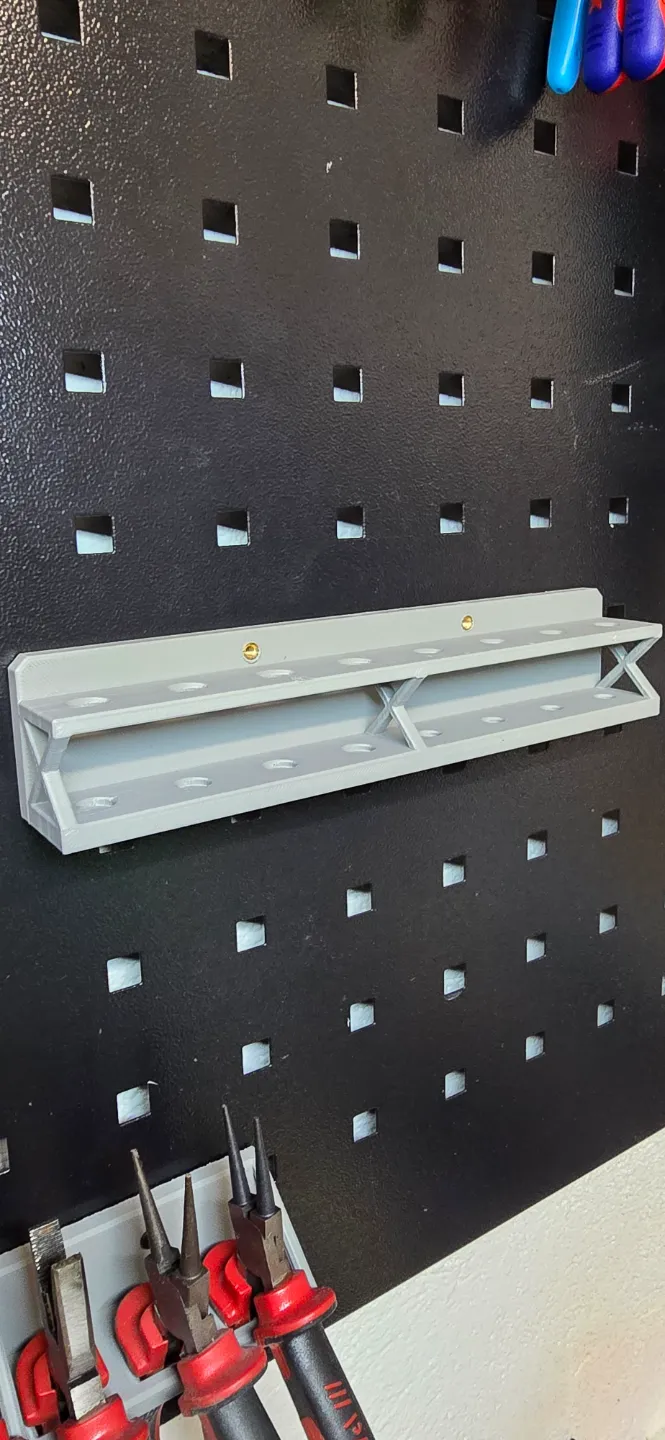

For secure fastening, two M3 embedded nuts and two M3x15 screws are also required As shown in the image, the screw is located where there is also a hole in the perforated wall, thus preventing the holder from being dislodged
