Description

Content has been automatically translated.
Show original

Please note the Version 2 instructions below

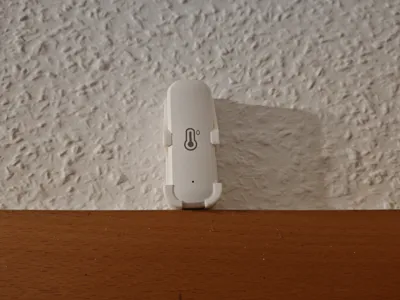

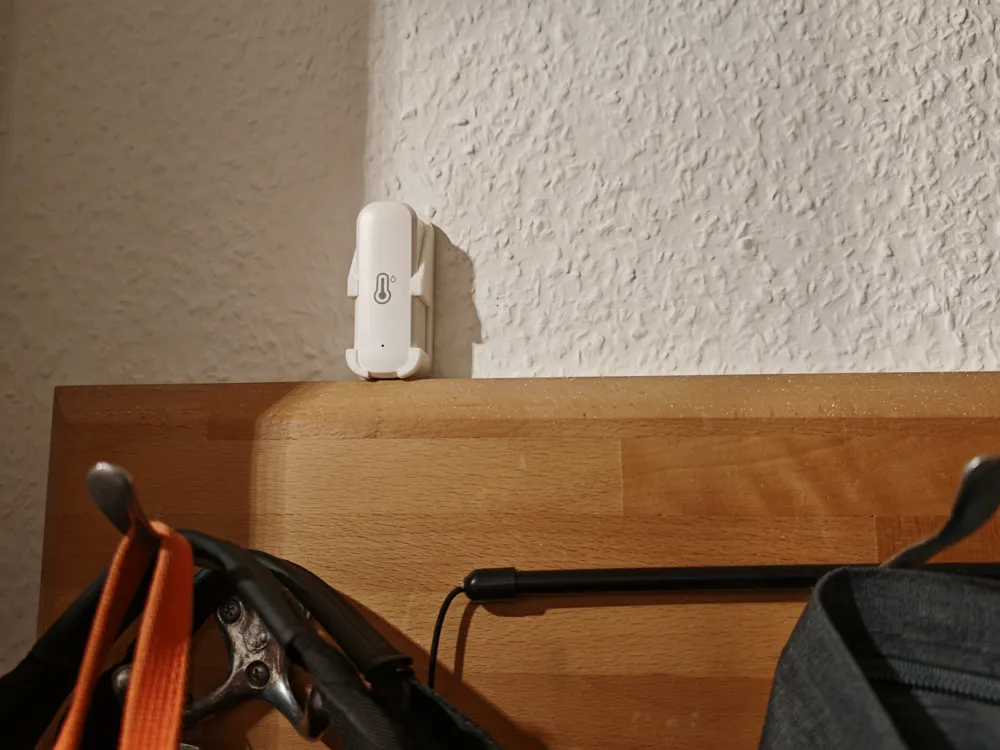

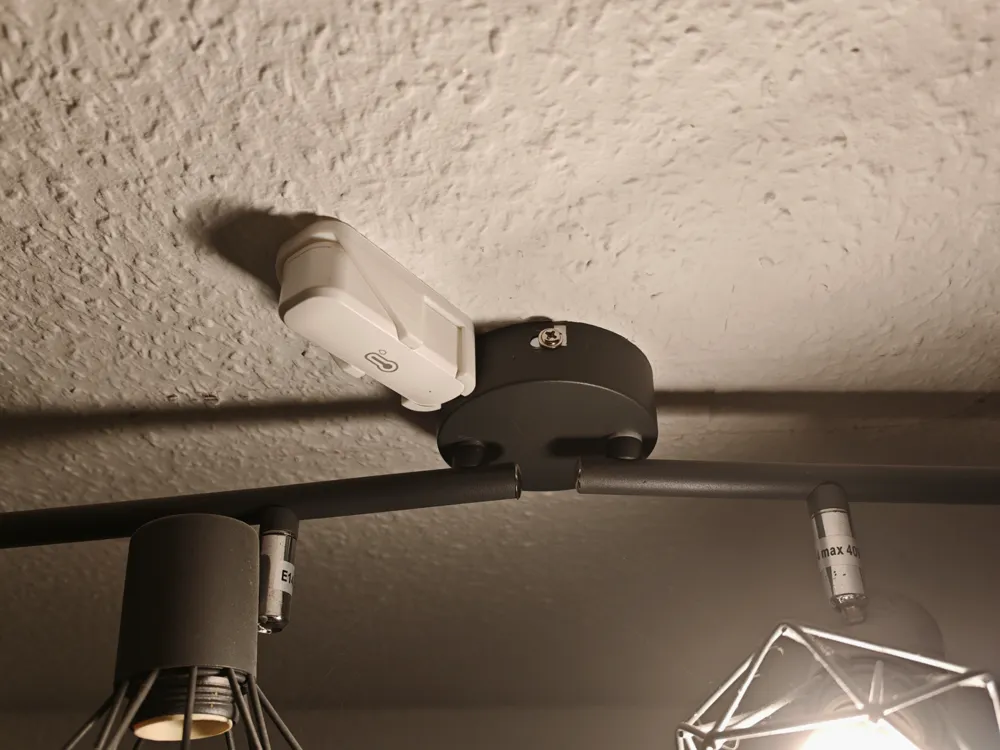

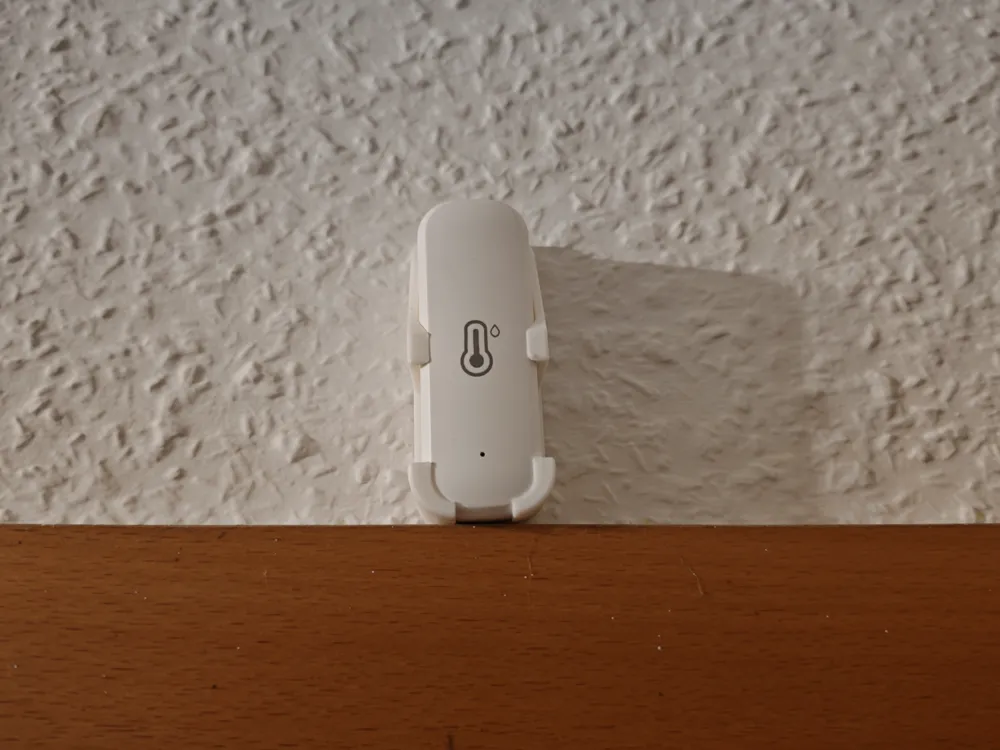

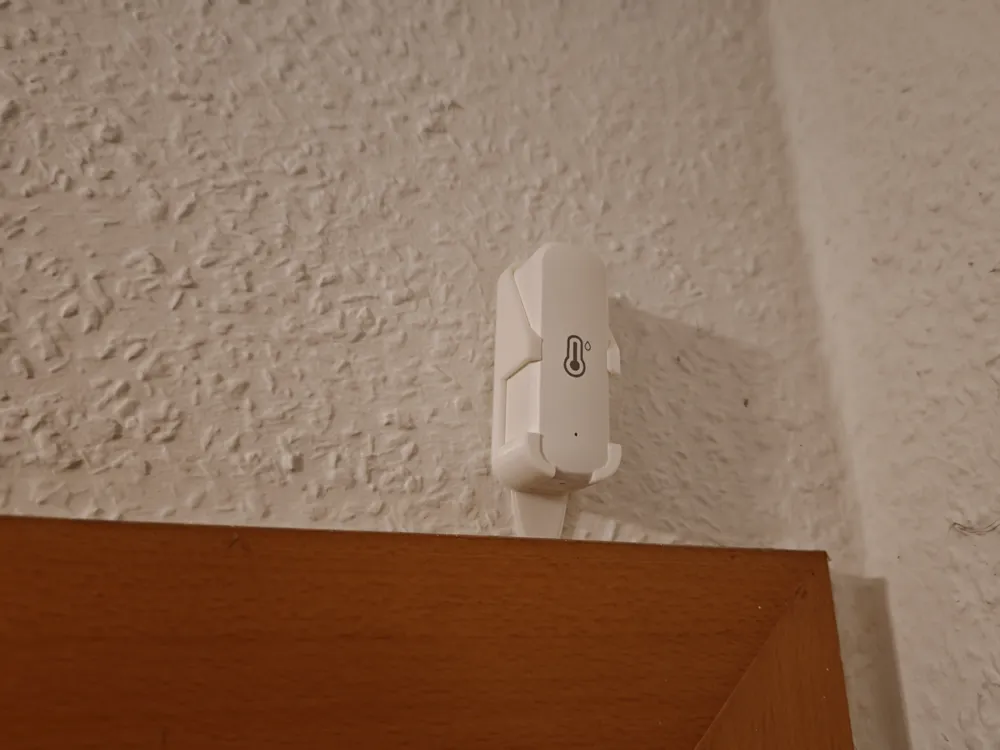

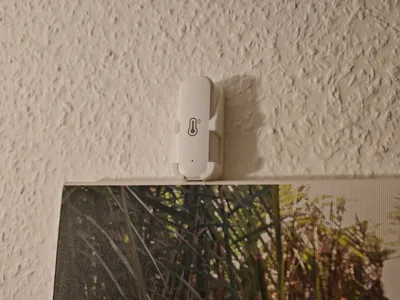

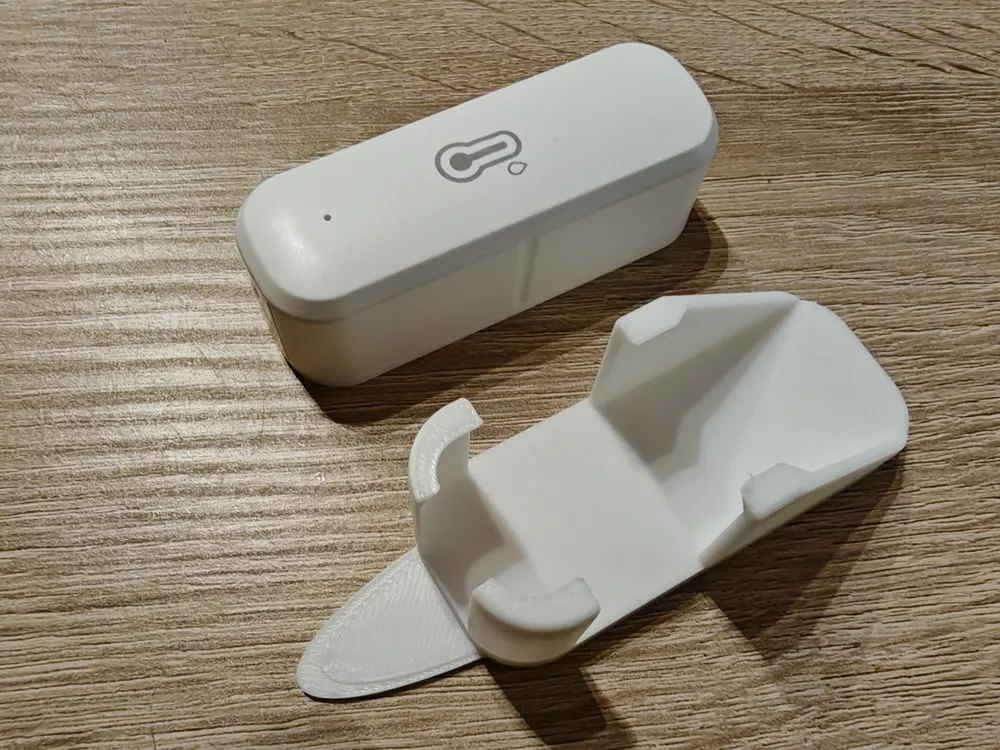

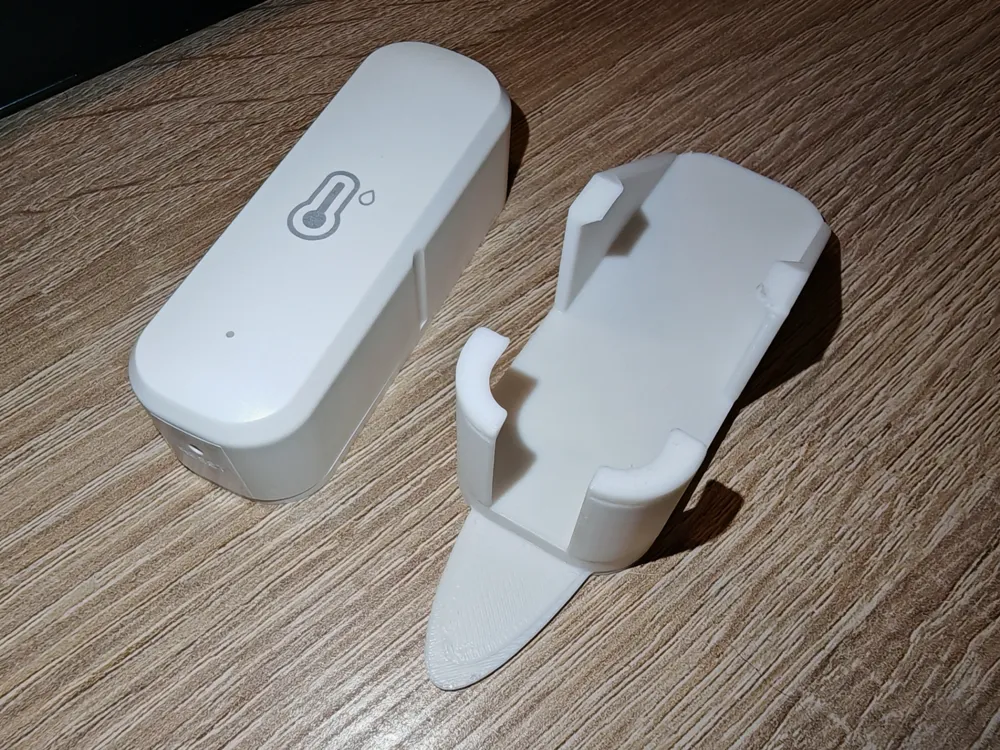

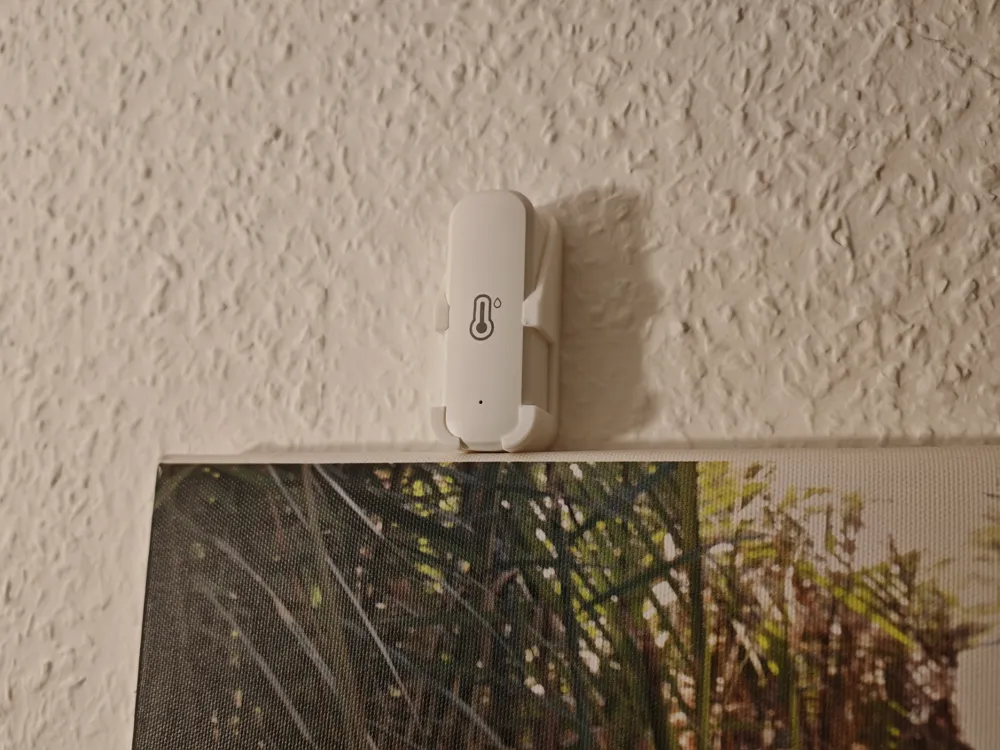

This mount, utilizing a narrow bridge, allows for quick and secure attachment of Tuya temperature sensors. The sensor can be easily affixed to narrow gaps without drilling, for example, above a door, picture, or shelf. The mount ensures a stable hold and unobtrusive placement. It is compatible with various models such as WL-TH02/02Z, ZY-TH02, and others.

Conventional mounting methods for Tuya temperature sensors are often impractical. Screwing requires holes, while loosely placed sensors can easily shift. This mount elegantly solves this problem without additional effort.

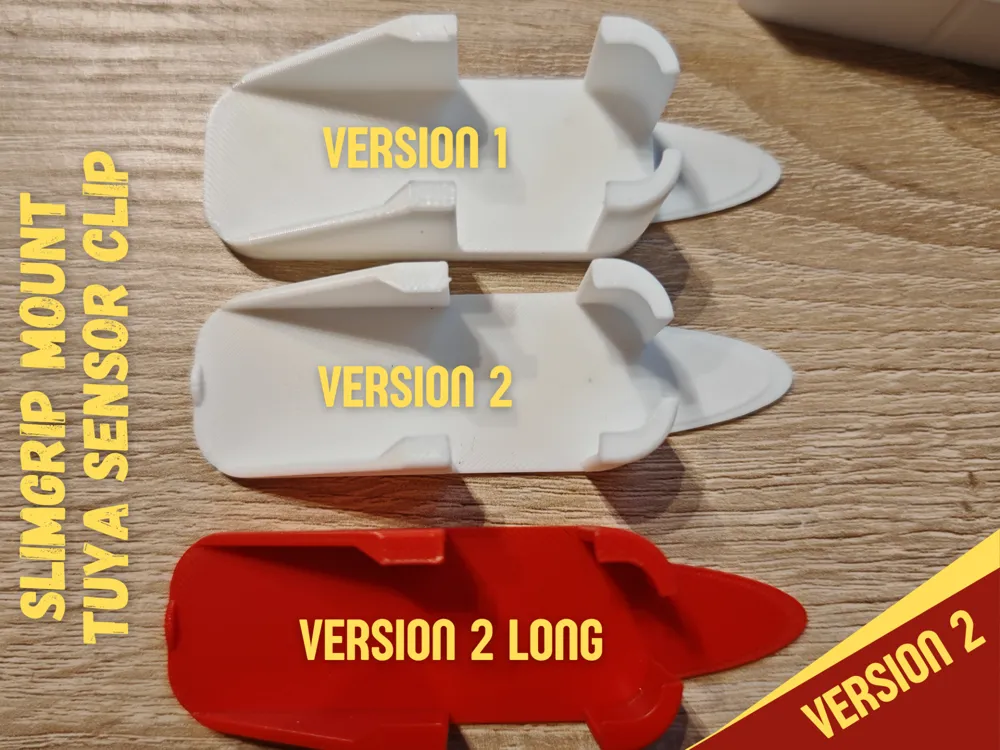

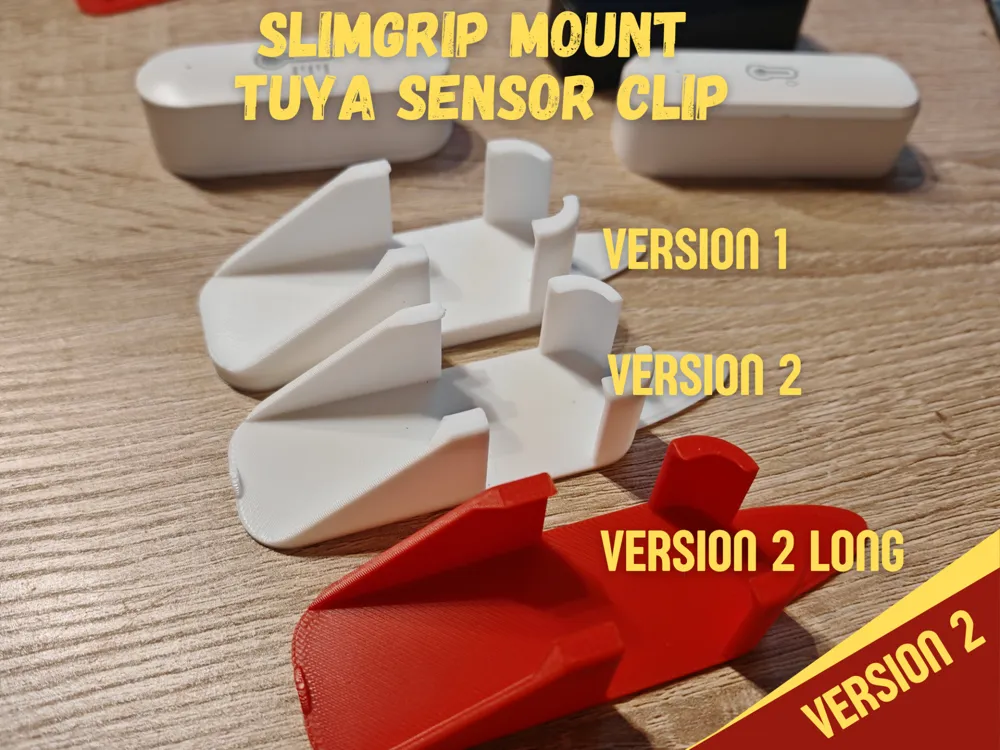

Version 2

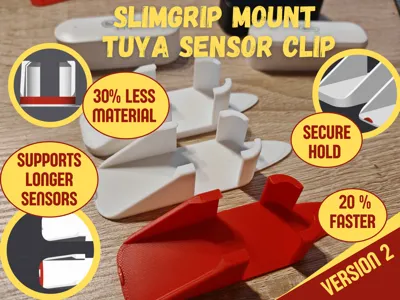

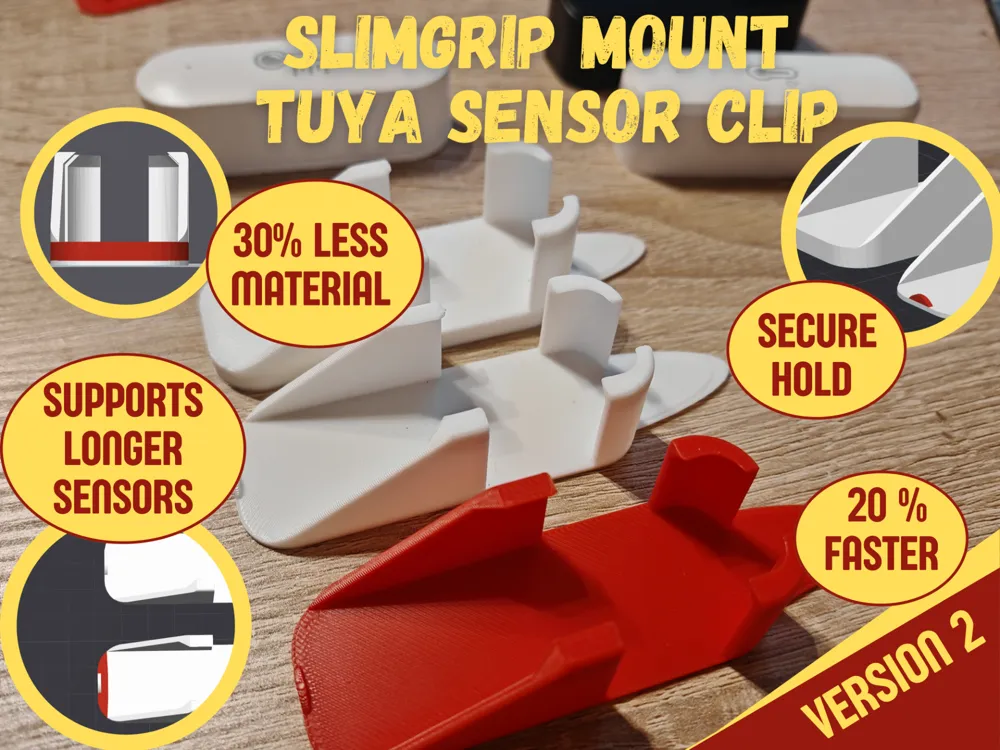

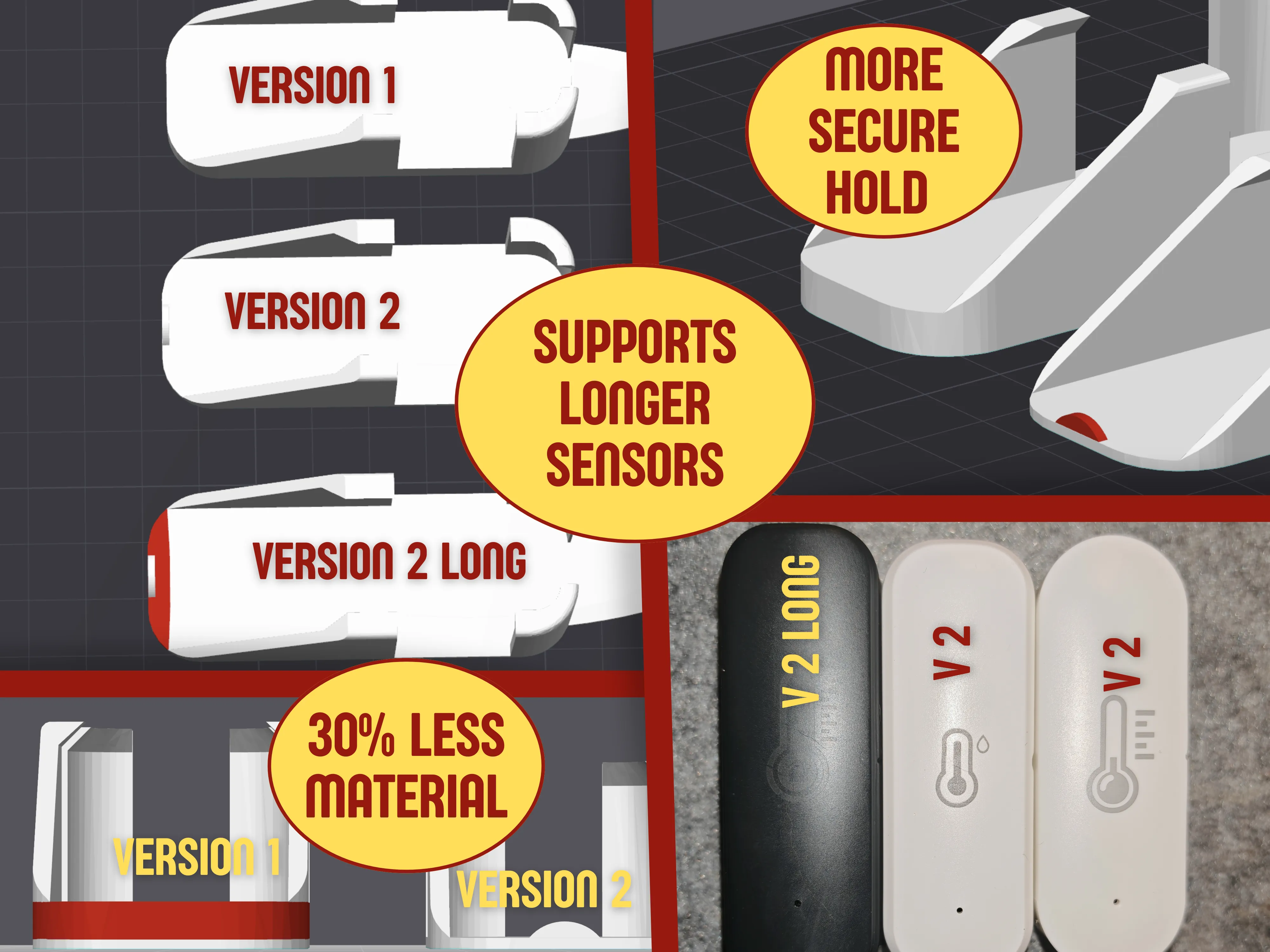

Changes:

  • 30% less material usage through a revised design
  • More secure hold due to an additional "nose"
  • Now also supports 72mm long sensors (Profile Version 2 LONG)



Print Profiles

Version 2 provides different print profiles with:

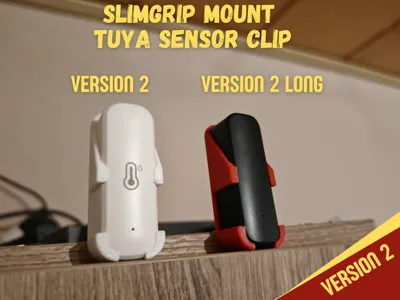

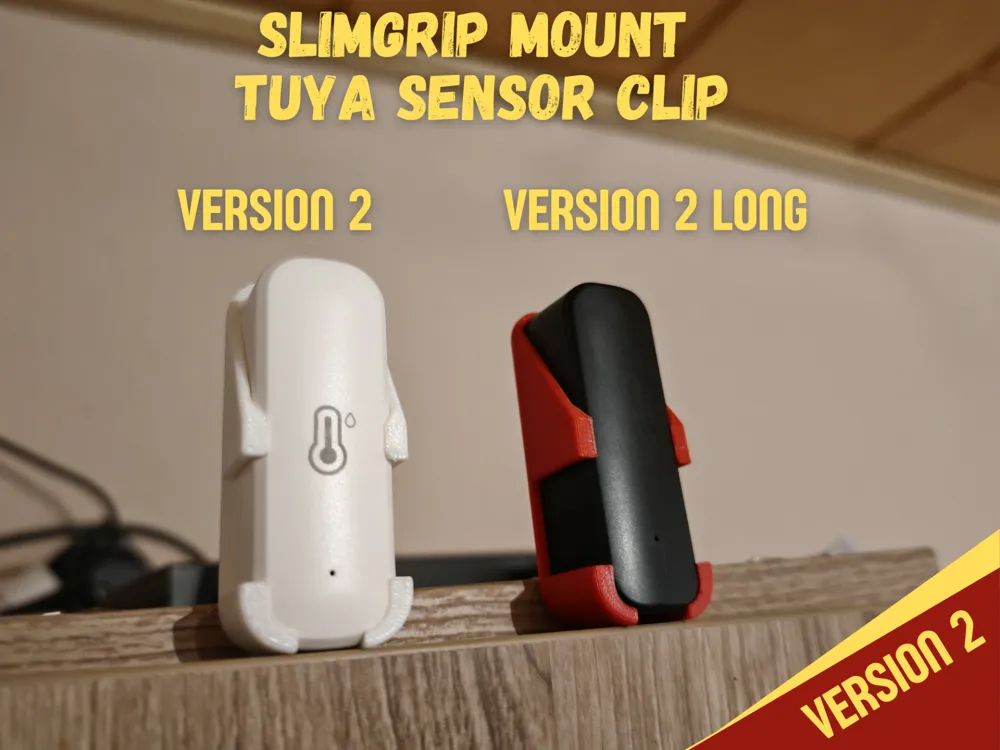

  • Profile Version 2 is for sensors with a length of 70mm. The most common variant. Often sensors with rounded corners
  • Profile Version 2 Long is for sensors with a length of 72mm. Often sensors with visibly square corners



Boost Me (for free)

Do you like it? Does it help you? Then boost me

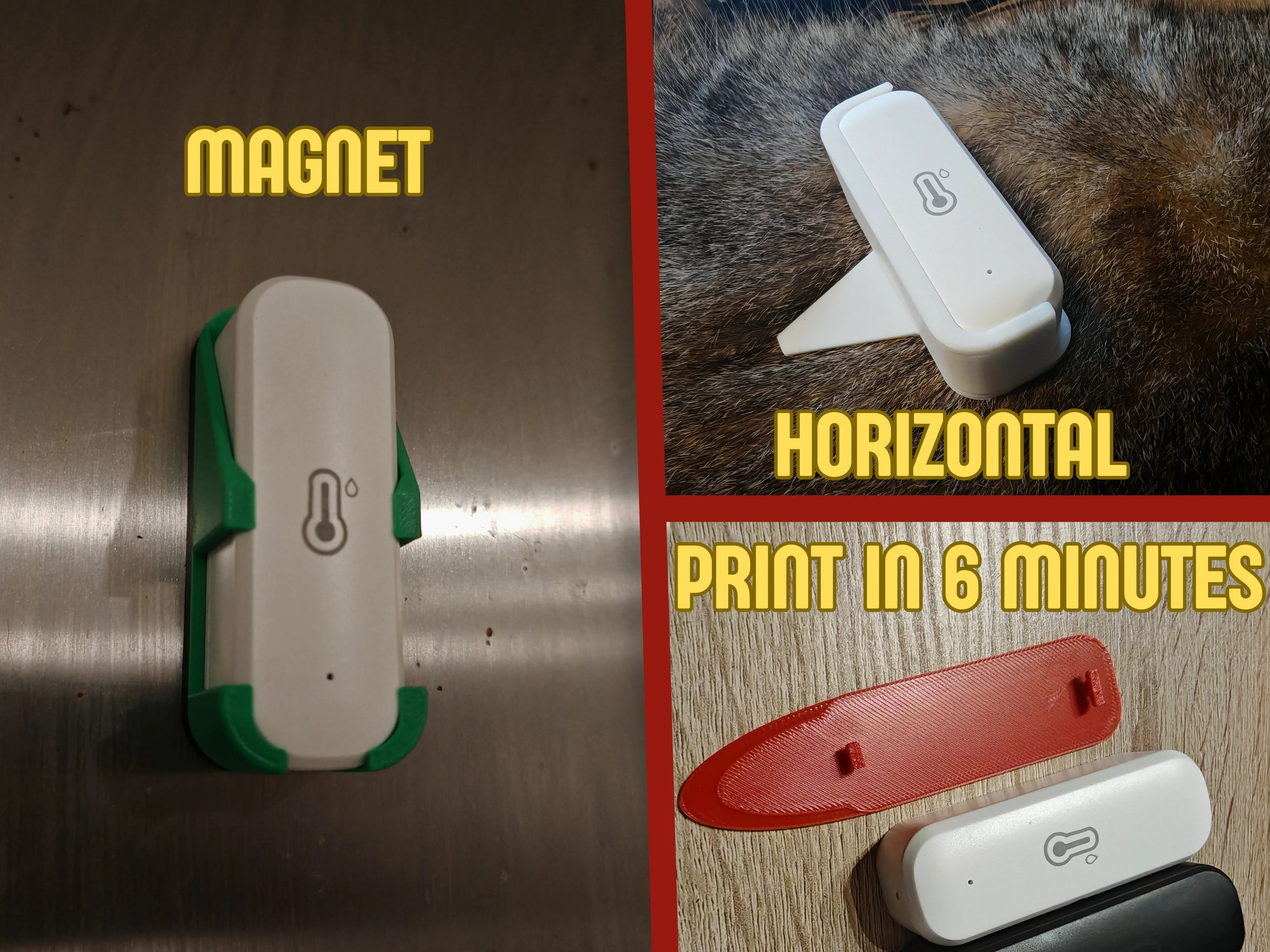

Also check out my other mounts:



Do you want to attach the sensors using a magnet? Then continue here… https://makerworld.com/de/models/919605#profileId-881531



Do you want to use even less material? Print in 6 minutes? Then continue here… https://makerworld.com/de/models/923572#profileId-886219



Do you want to attach the sensors horizontally rather than vertically? Then continue here… https://makerworld.com/de/models/923319#profileId-885915
