Radius Measuring Tool

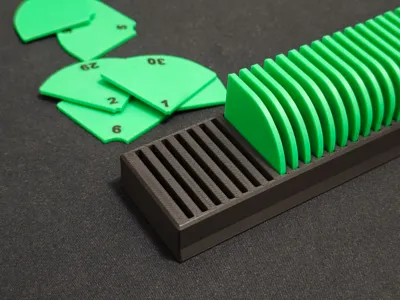

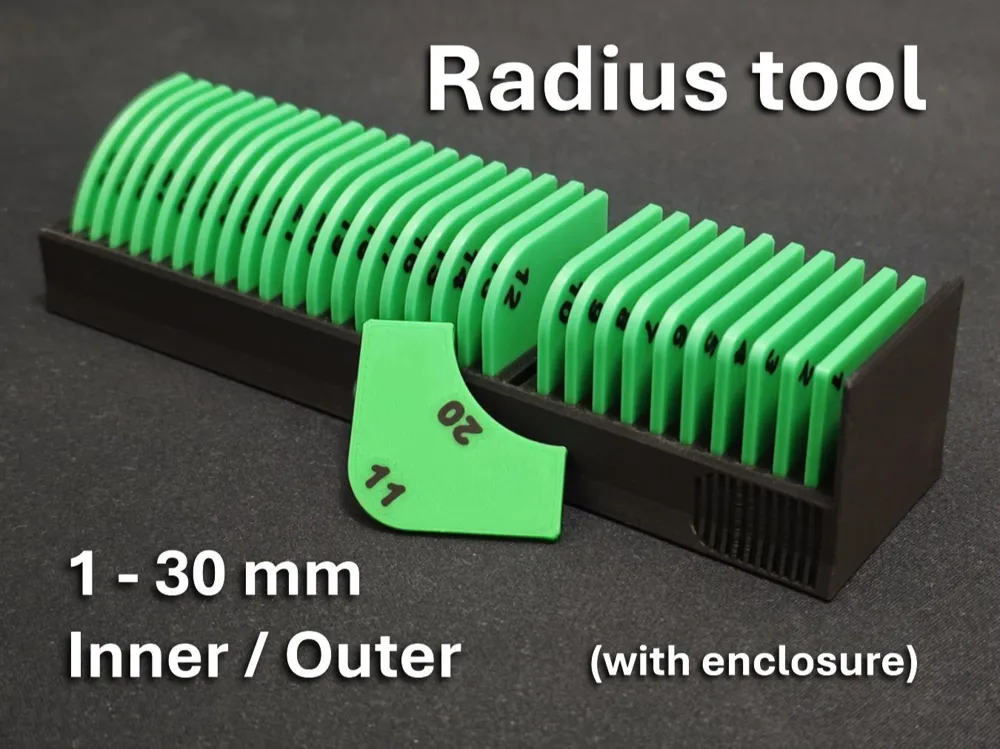

This tool is designed for measuring both inner and outer radii, ranging from 1mm to 30mm in 1mm increments. It comes in a sturdy, well-crafted enclosure that ensures the components are secure and easy to access.

Key Features:

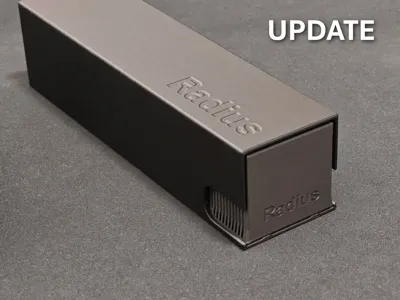

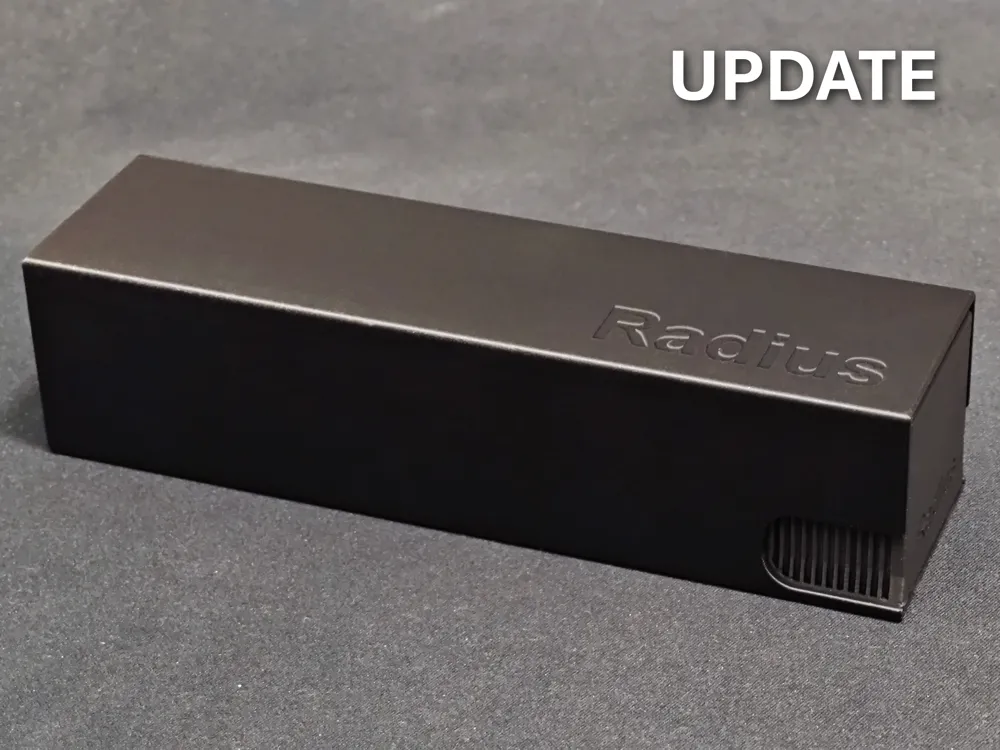

Compact Enclosure: The box features a sliding mechanism with angled railings, allowing for smooth and effortless sliding.

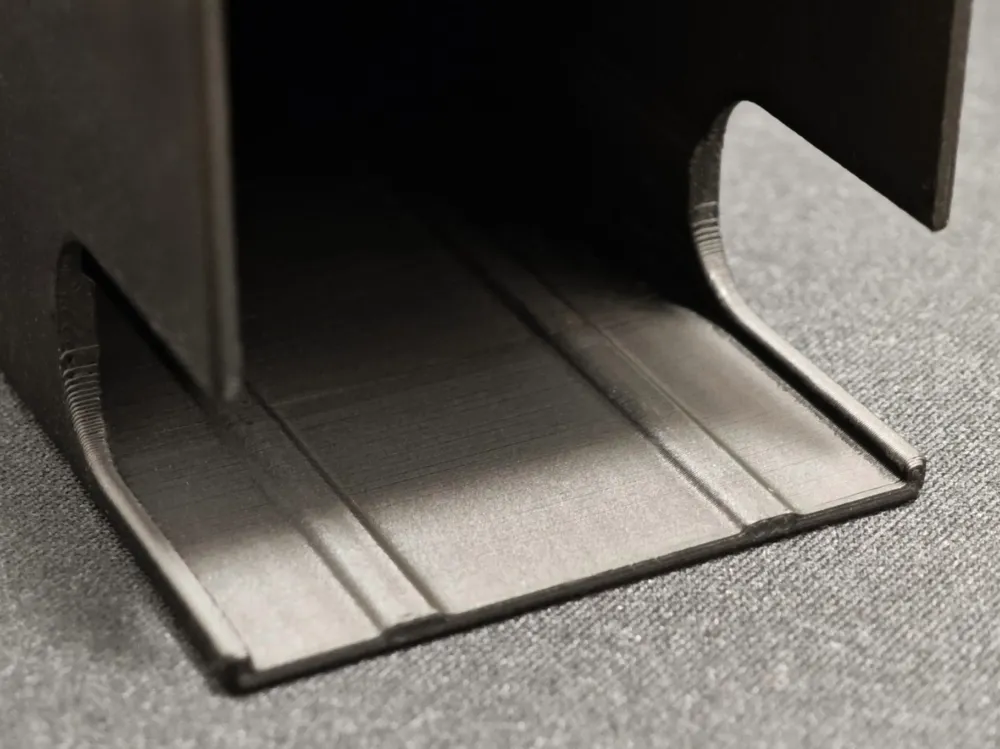

Secure Fit: Once fully inserted, the holder locks into place and will not rattle inside the enclosure, thanks to the precise railing system.

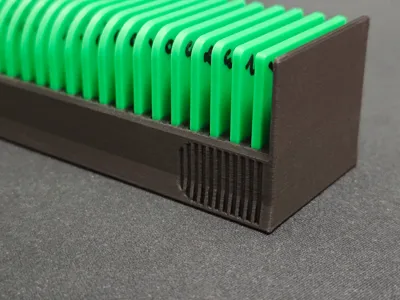

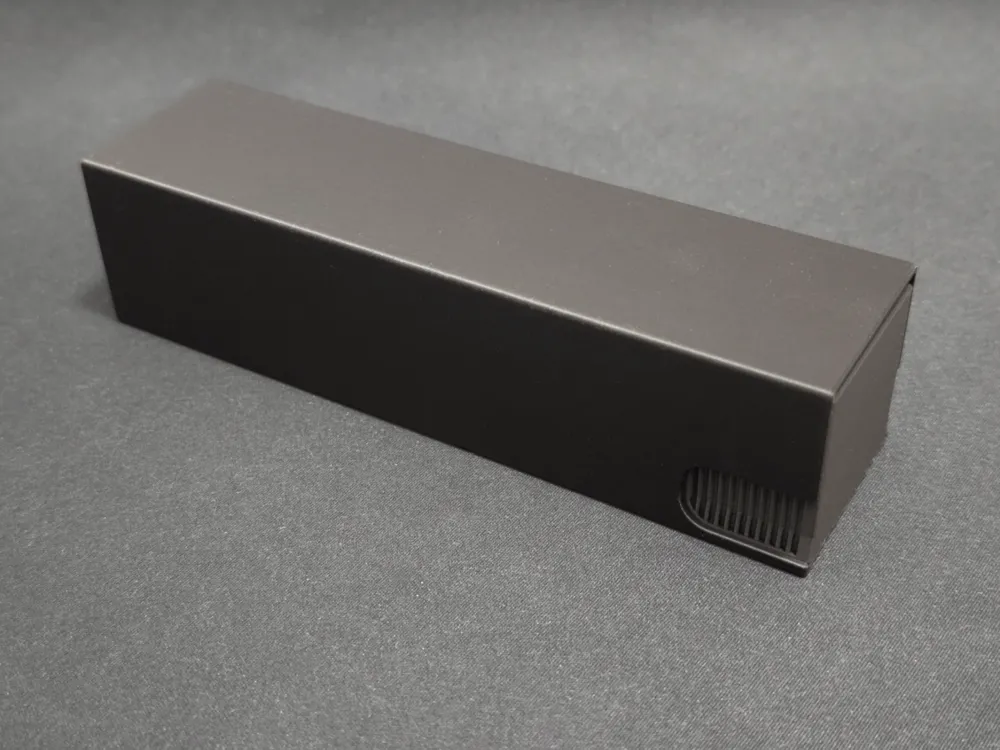

Convenient Ejection: A hole at the back of the box lets you push the holder out with a finger for quick and easy access.
Ergonomic Design: The tool holder includes finger ridges, providing a comfortable and reliable grip for pulling it out.

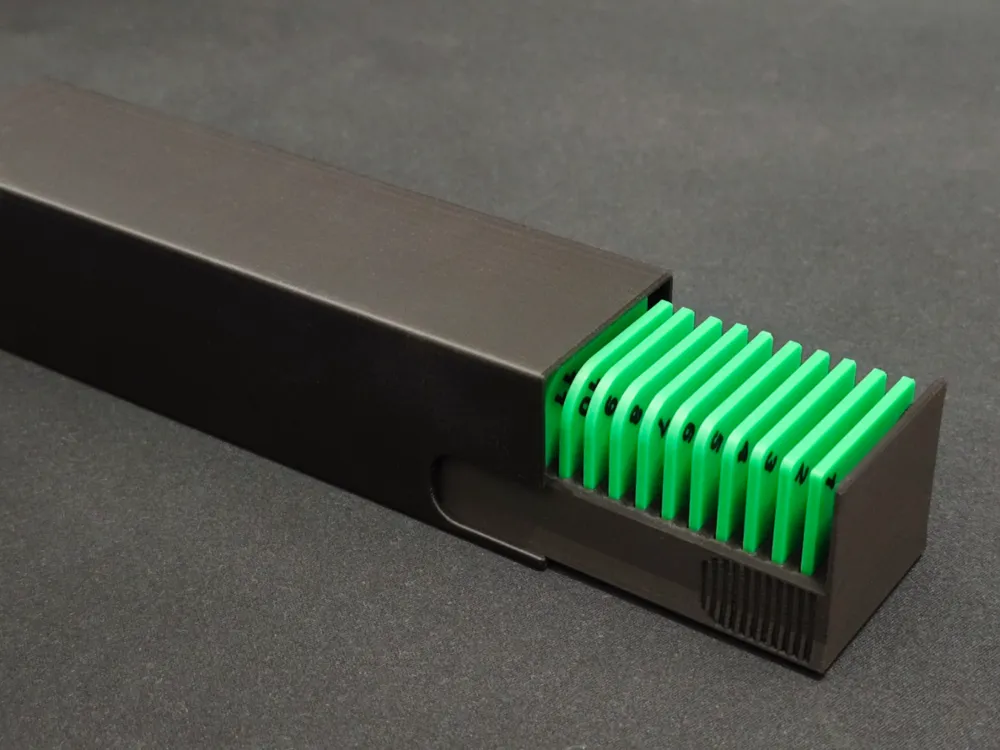

Organized Layout: Each measuring piece is neatly arranged in the holder, spaced apart to allow individual removal while also making the numbers clearly visible for easy selection.
Customizable Colors: Colors can easily be customized; plates and numbers separately.

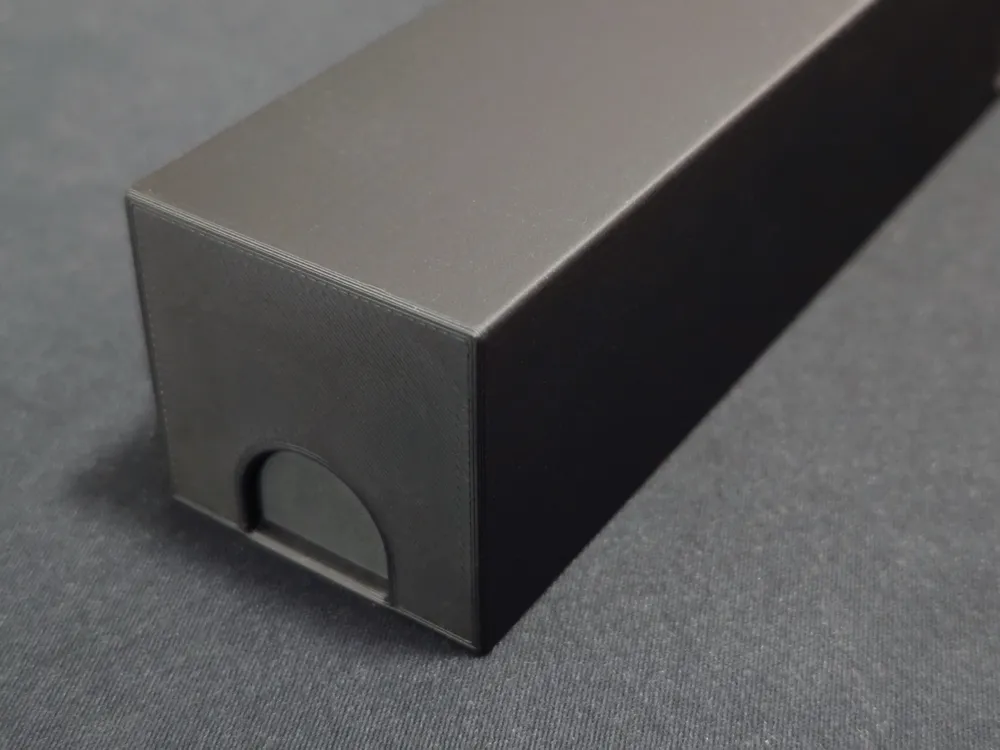

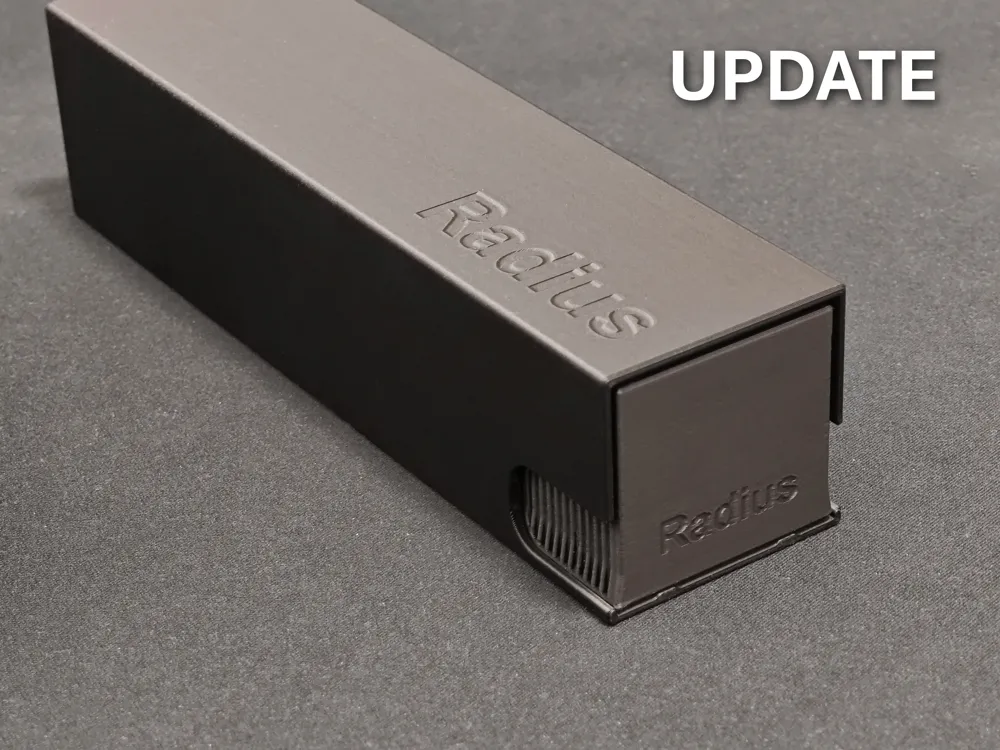

Tool name: Debossing on the front face of the holder and on the top face of the cover, which makes it easy to distinguish from other similar tool sets.

Both debossed areas can be easily removed, converted to embossing, or customized with different text.

This tool combines functionality and thoughtful design, making it an excellent choice for those who need a reliable solution for radius measurements.

This model was inspired by the 'Radius Redeux' design created by user Joons. However, I have completely redesigned the enclosure to enhance its functionality and usability.

Be sure to check out the other tool sets as well!
