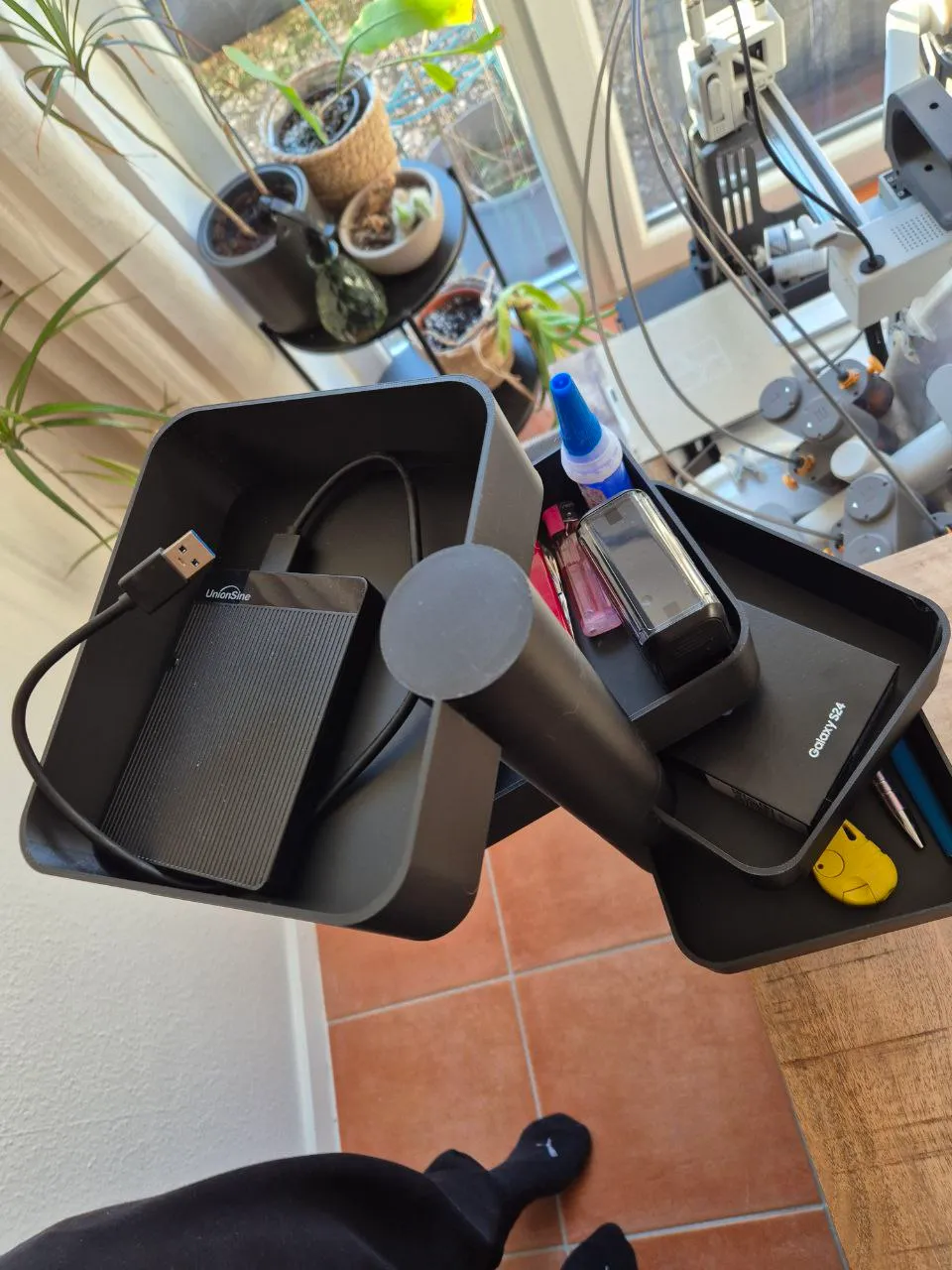

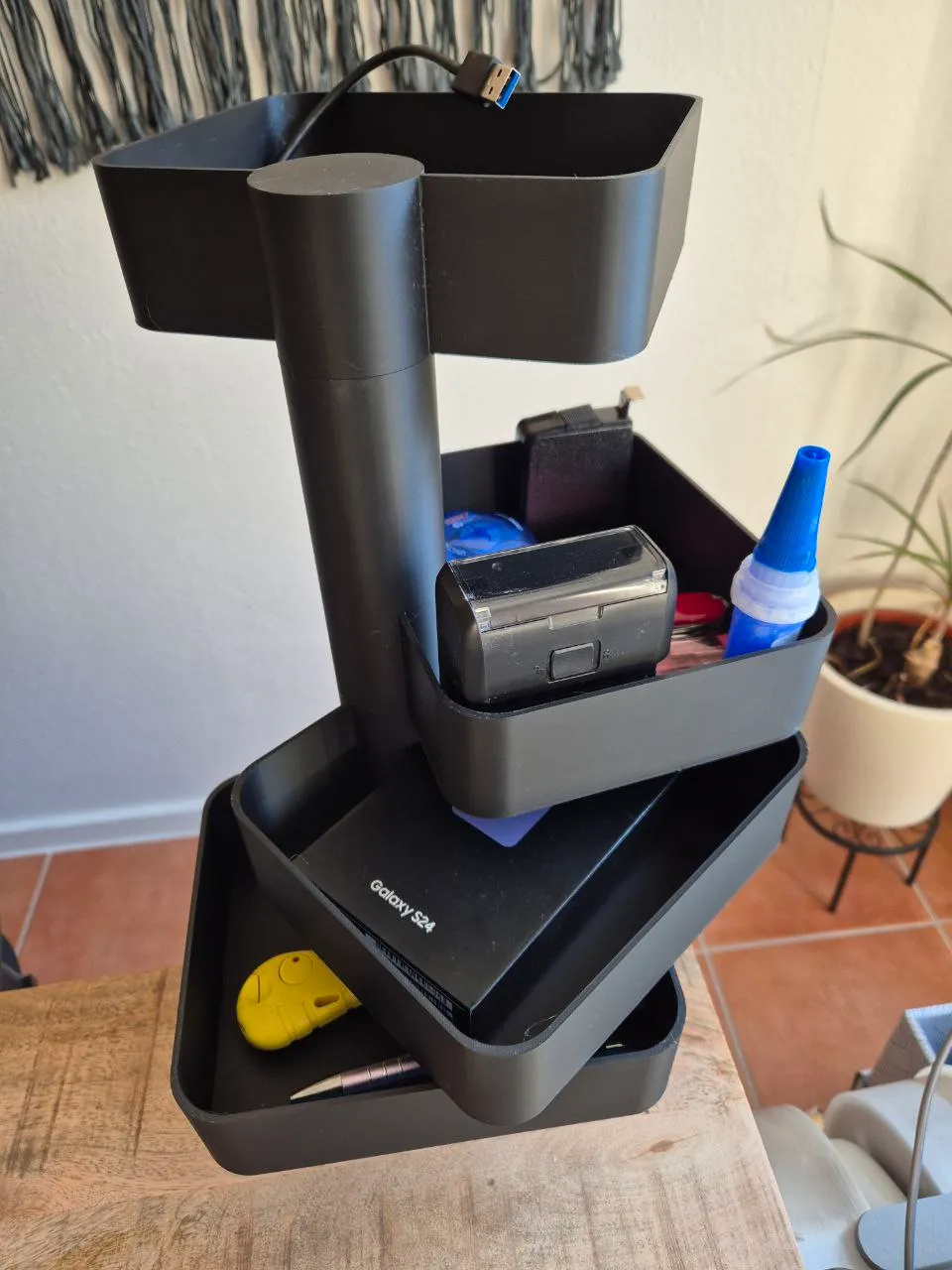

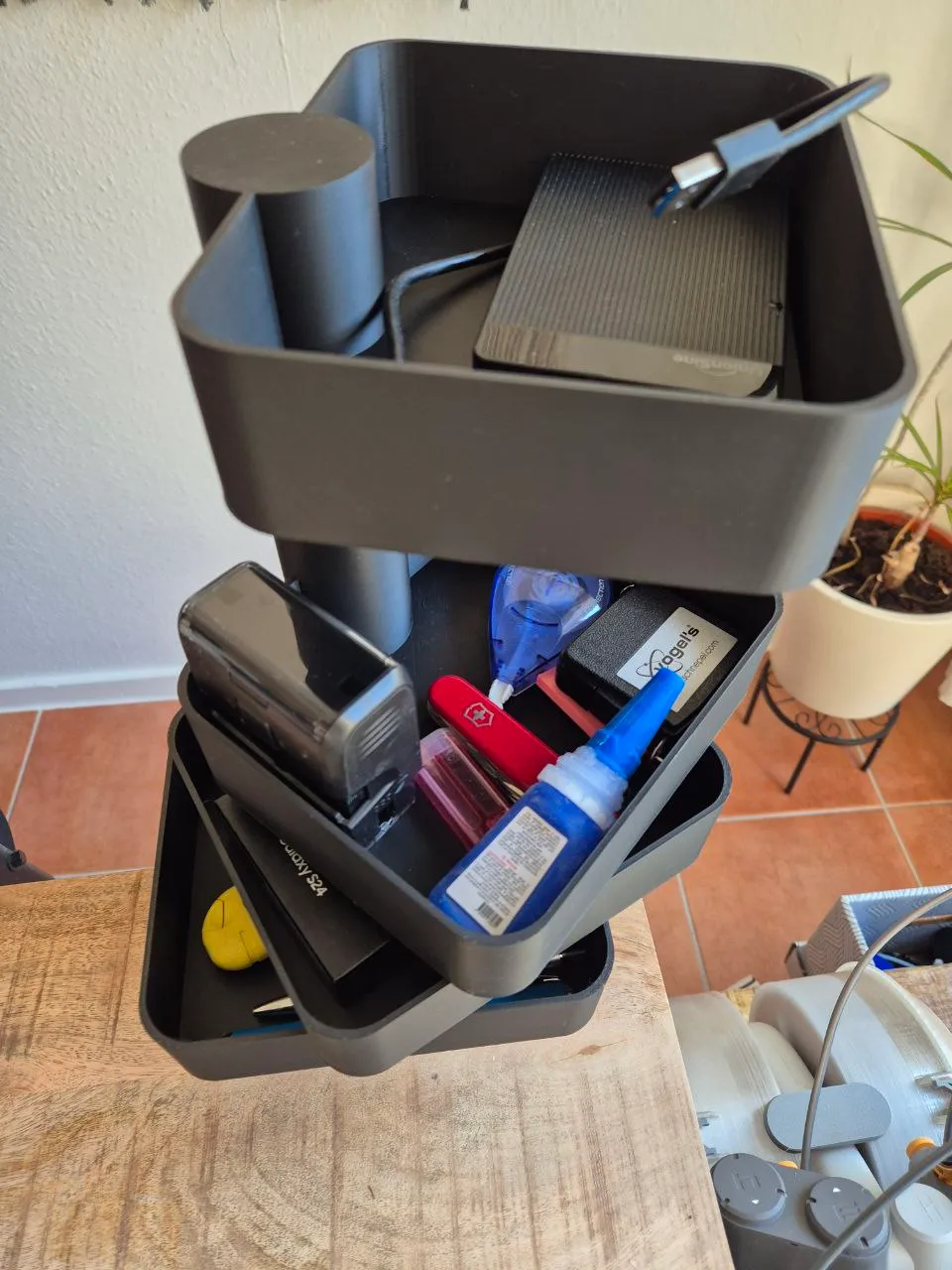

360° Modular Desk Shelf, also for A1 mini

This model draws significant inspiration from this design:

https://makerworld.com/en/models/899786#profileId-858538

Unfortunately, it proved too large for the A1 mini.

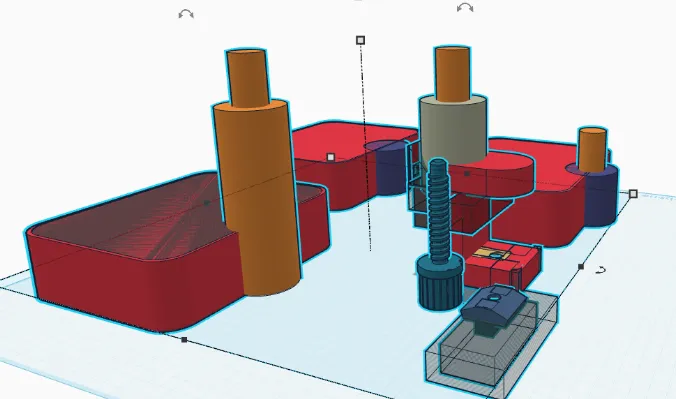

Therefore, I have designed this variant from scratch, maintaining a similar aesthetic:

Important Note:

Amanda crafted a simple clamp holder, incorporated into this version.

https://makerworld.com/en/models/181634

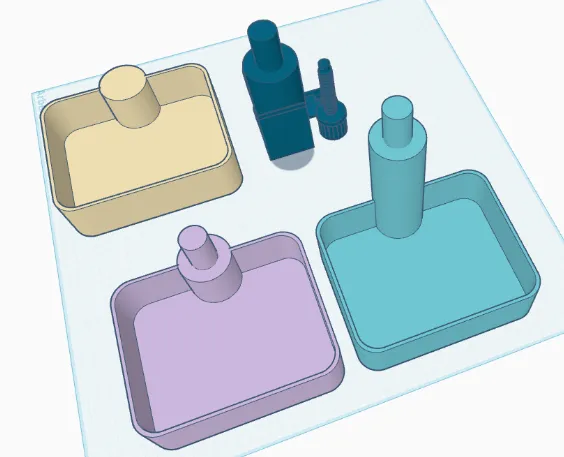

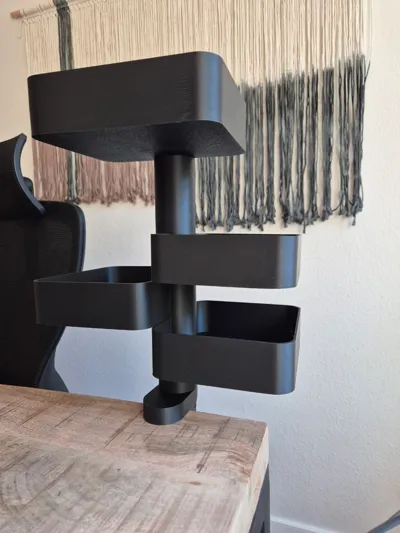

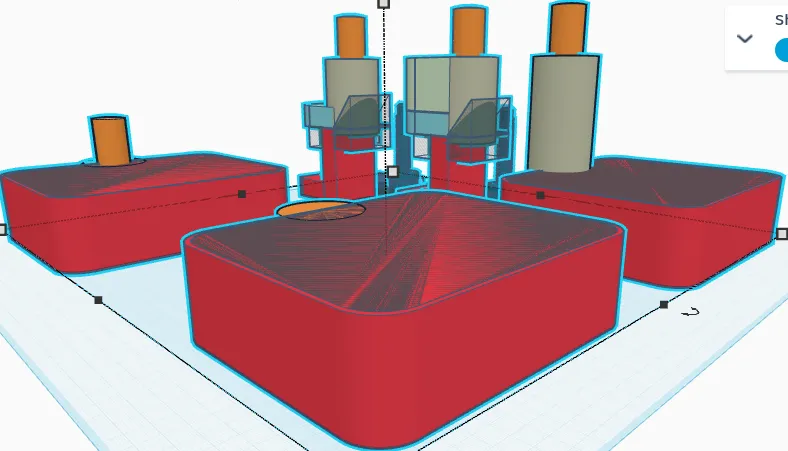

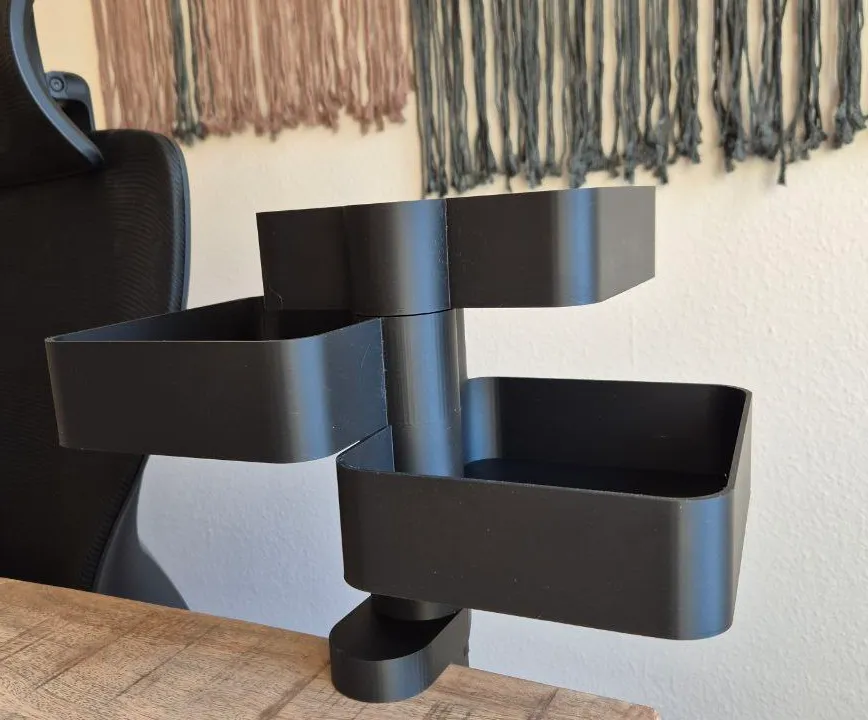

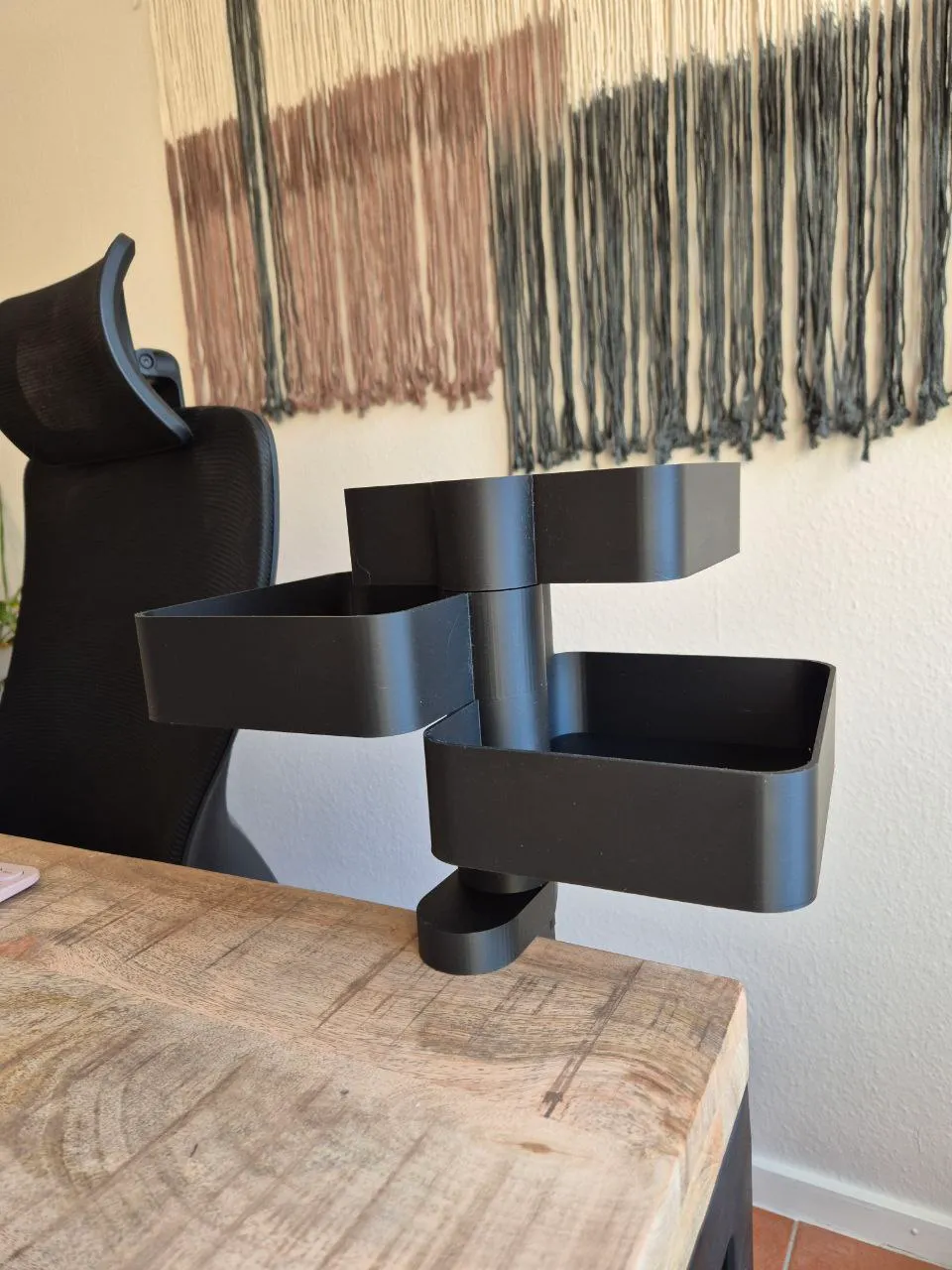

This model is modular, allowing for customized assembly to meet your needs:

1. Choose either the compartment with or without the holder.

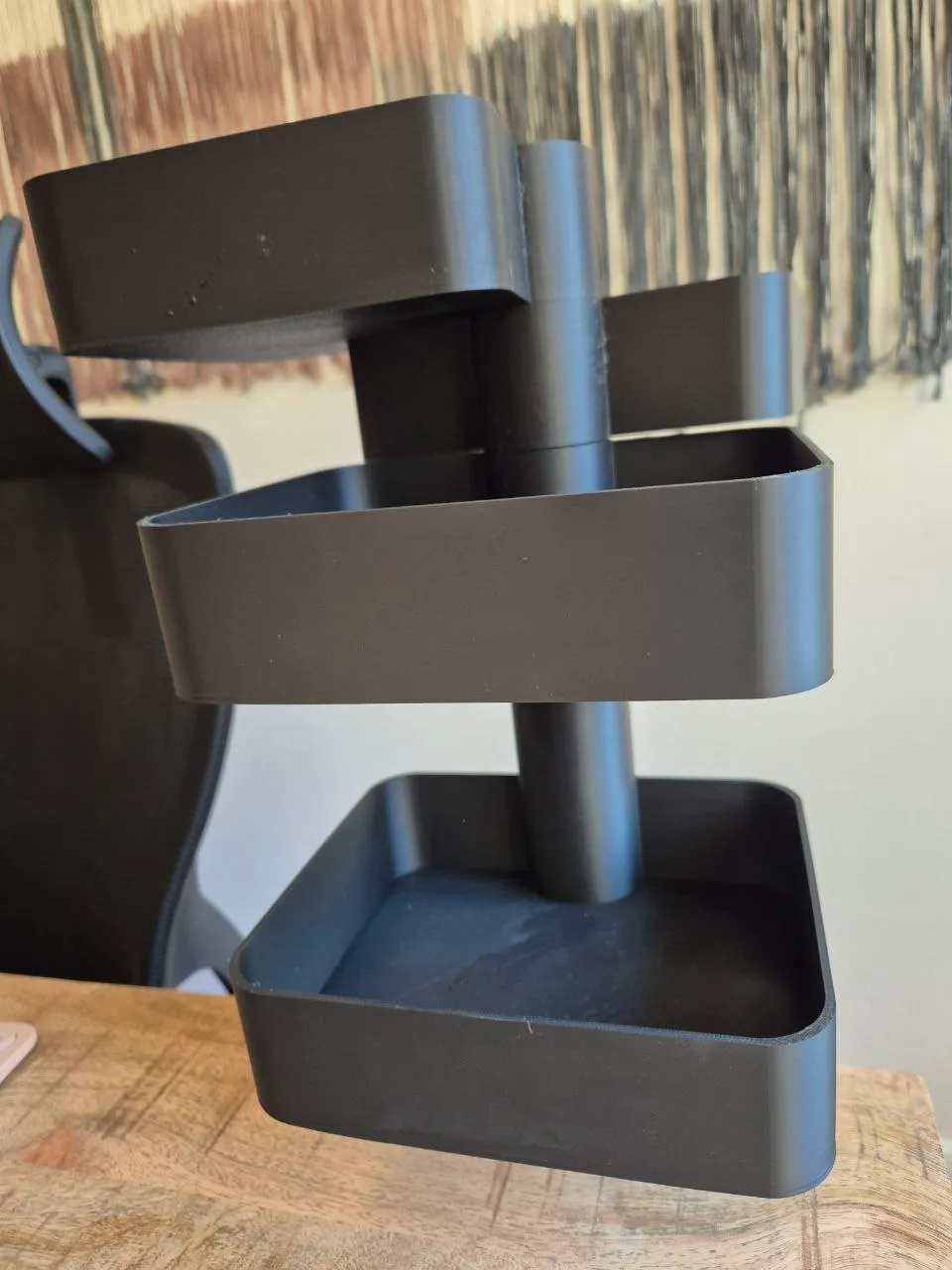

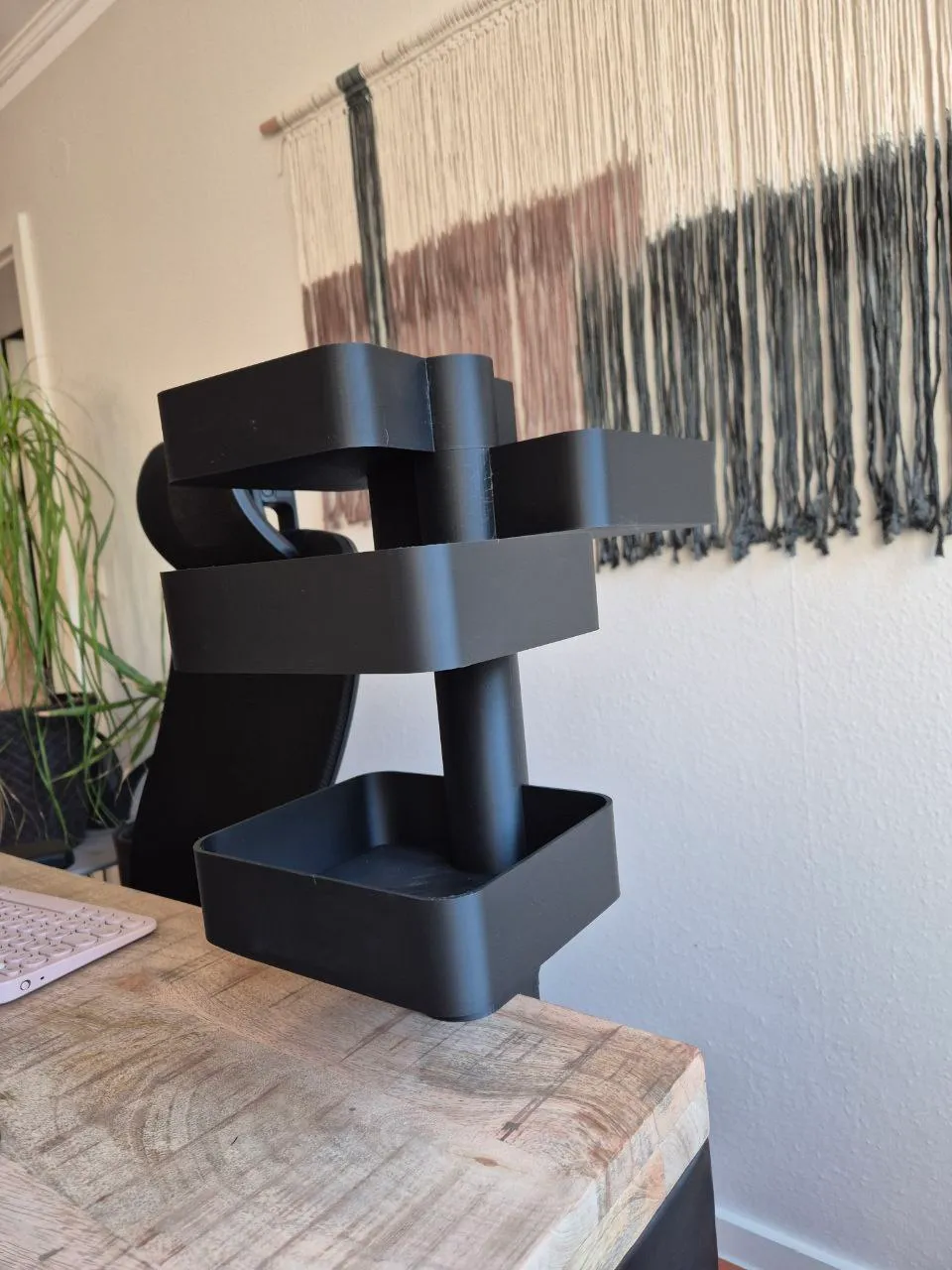

2. Utilize only low components or combine high and low parts.
3. Print just two or multiple bases.

Specifications:

• The tall compartment measures approximately 14cm in height without the tenon
• The short compartment and top compartment are 5cm high

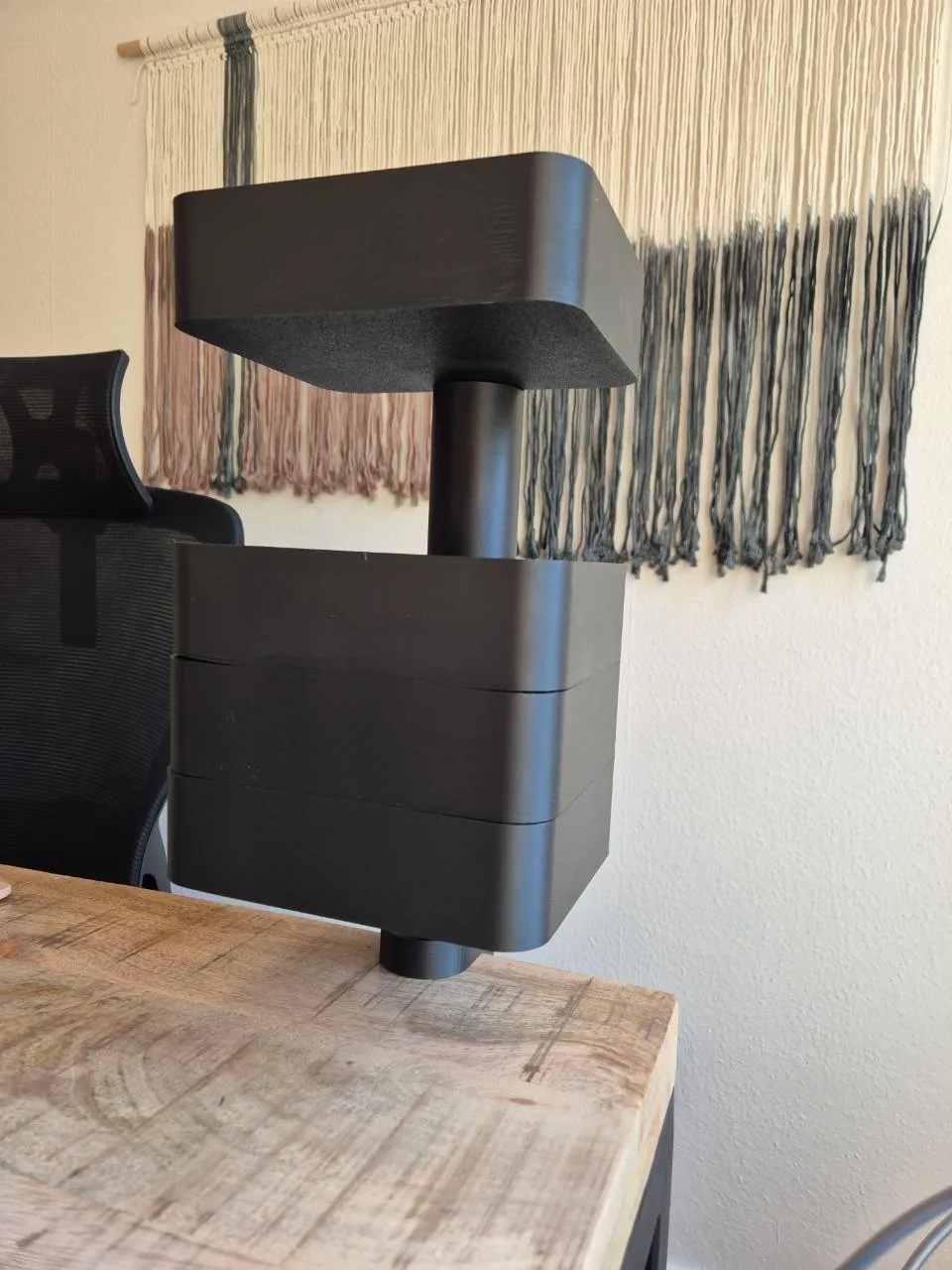

• The clamp securely grips tables up to 4.5cm thick

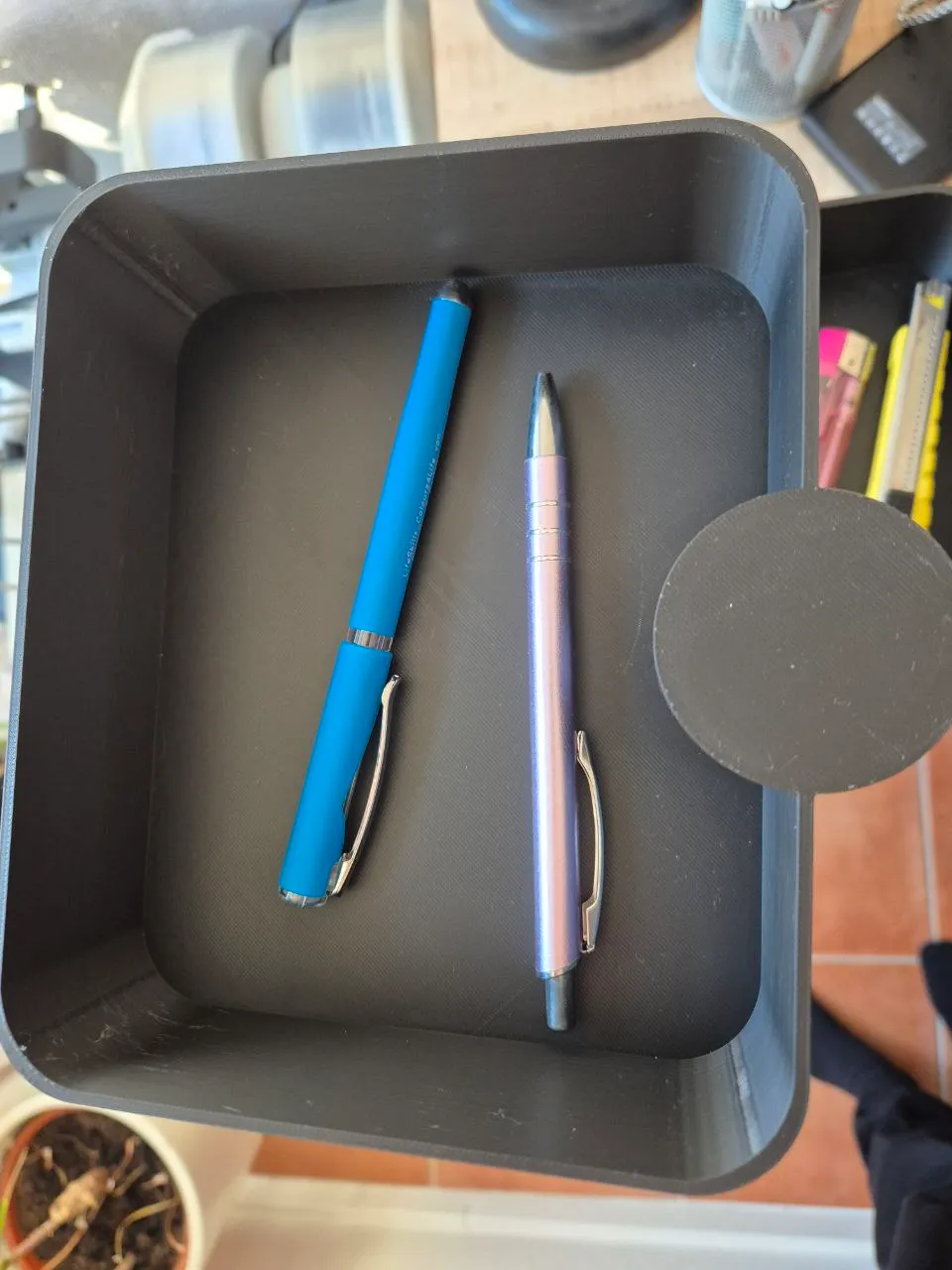

• Compartment width: 18cm
• Approximate depth: 14.9cm

Print Settings

• 3 wall lines
• 20% infill (increase infill for enhanced stability)
• Standard speed
• Tree supports from 15%
• Filament: PLA Black Matte
• Printed on the A1 mini

Clean the print bed before commencing the project to prevent adhesion issues during printing.
