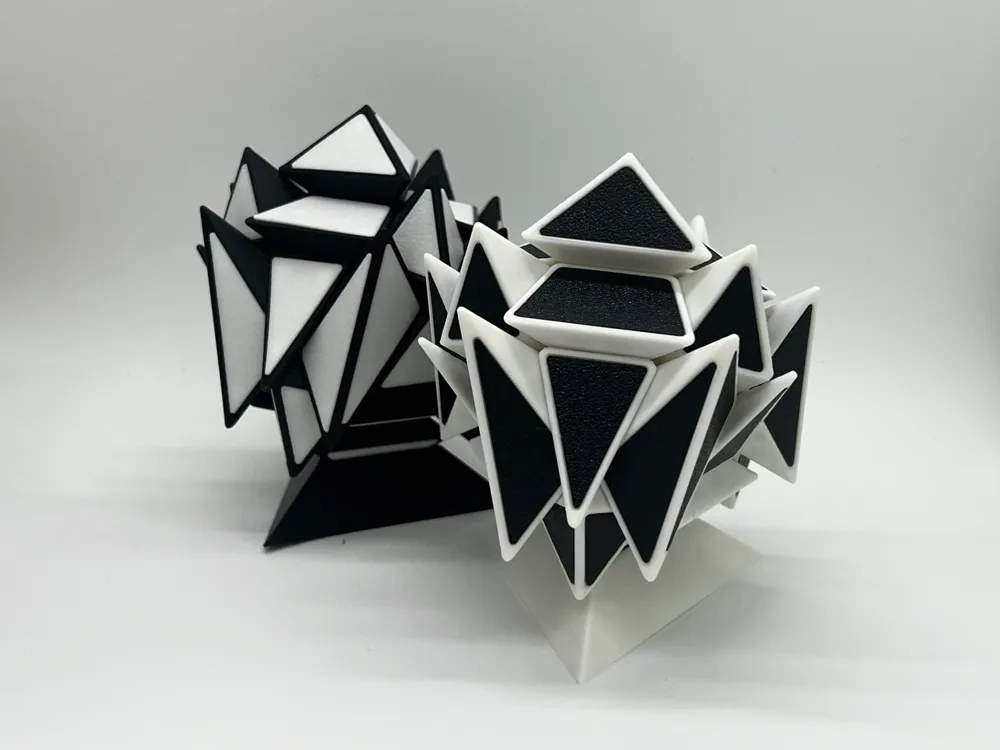

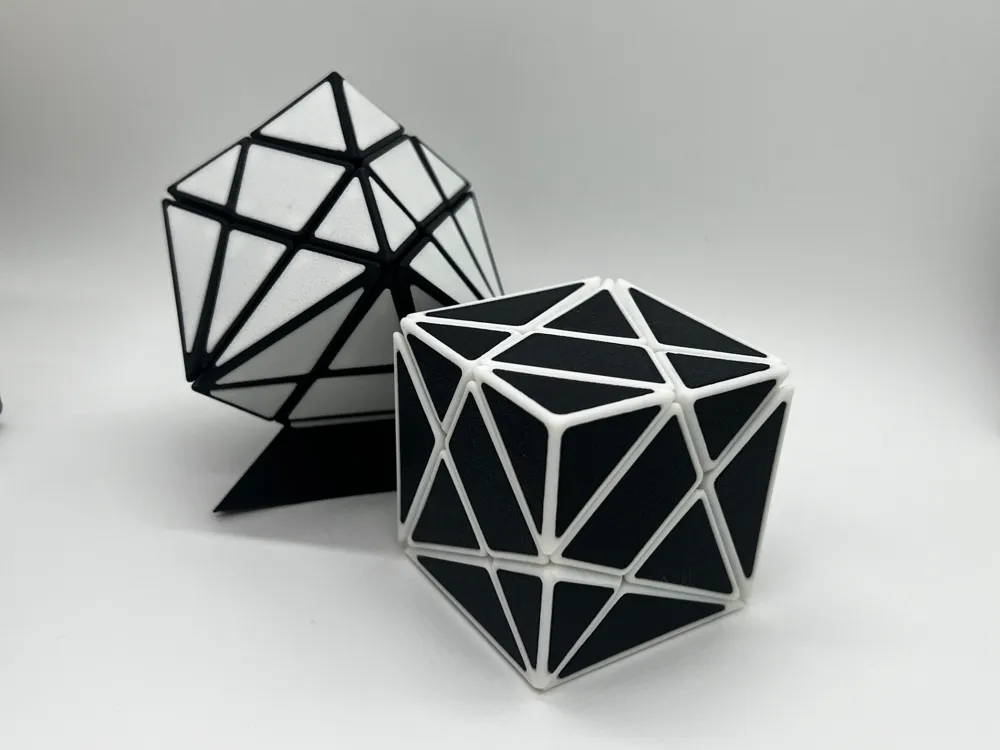

Axis Cube Tile (Fully-3D Printed)

The 3x3x3 Axis Cube gets a colorful upgrade with this Ver. Tile Edition! Combining the unique, asymmetrical design of the Axis Cube with vibrant, customizable color tiles, this version is both a challenging puzzle and an eye-catching display piece. Fully 3D-printed and screwless, it’s designed for makers who love geometric puzzles and bold aesthetics.

Check out more Rubik Cube Style Puzzle designs:

Classic 3x3x3 (So-called Rubik's Cube)

• Style Plain
• Style Tile
• Style Colorblock

Series 3x3x3 Variations:

• Axis Cube
  • Style Plain
  • Style Tile
• Mirror Cube (Style Plain and Colorblock)
• Diamond and Hexagonal Bipyramid Cube

Series 3x3xN:

• 1x3x3 (Style Plain and Tile)
• 2x3x3 (Style Plain and Tile)

Series NxNxN:

• 2x3x3 (Style Plain, Tile, Colorblock)

Others:

• 1x2x3, classic and mirror style
• Cube Stand

Printing Instructions:

• Print Plate 1 once, with any color (the body Color)
• Print Plate 2 once, with tile color
• Alternatively, Print the Tile only profile 6 times with different colors.

Assemble Instructions:

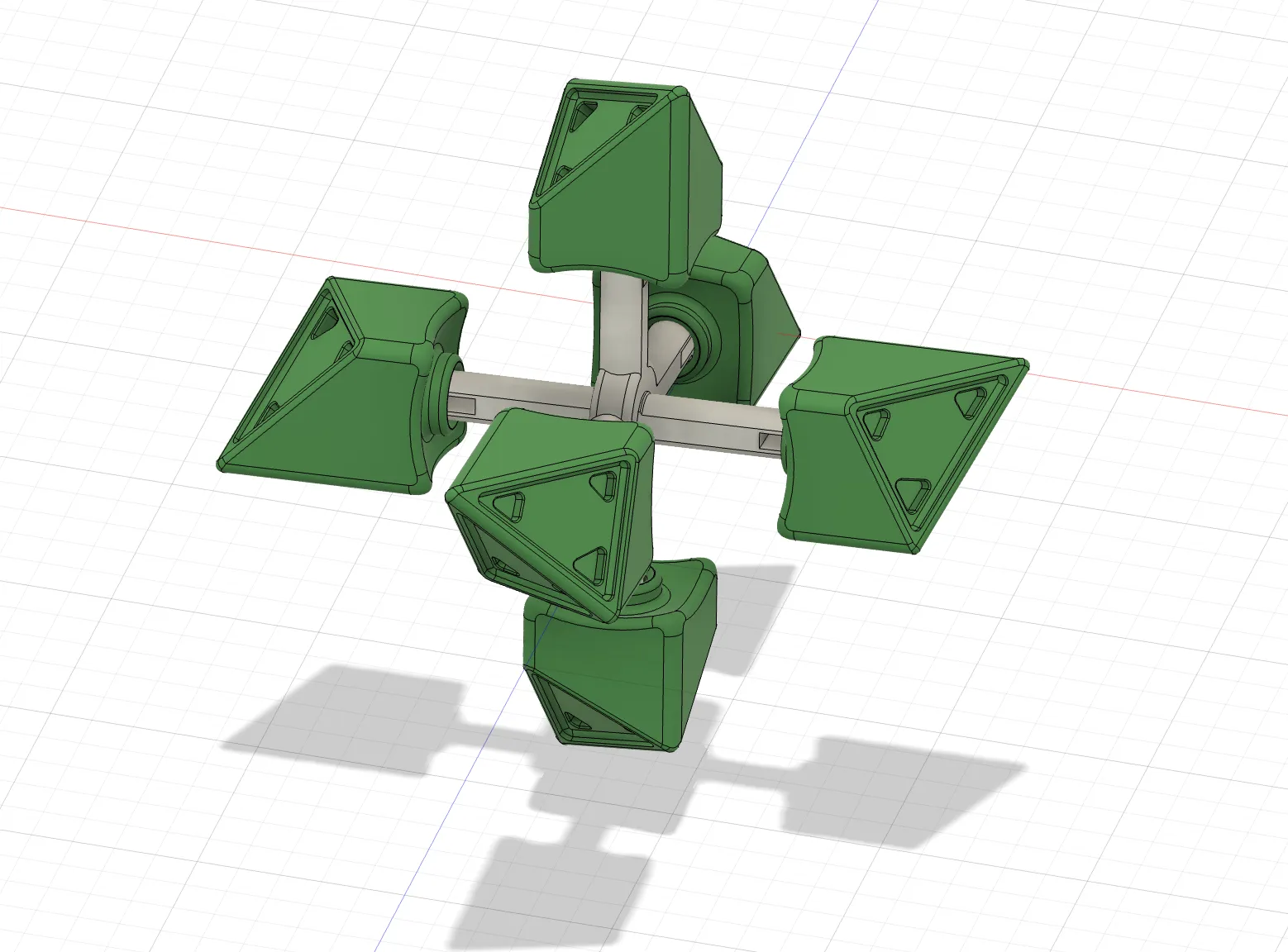

1. Insert Axis Stick to Axis Cross. Try to make the Axis stick at center.




2. Clip 6 Center pieces to the axis. All center pieces are identical.



3. Place 4 Edge Pieces

4. Place 4 Corner pieces.


5. Place 4 Edge pieces to middle layer.




6. Place 3 Edge pieces, 4 Corner pieces to top layer




7. Rotate top layer 45 degrees.


8. Clip last Edge piece into the slot.

   .  →

9. Rotate top layer 45 degrees back to original position



10. Apply Tile pieces to tile slots, and Done!




11. Optional: Apply silicone based lubricants to your new Axis Cube!
