Mean Well LRS-50 case
Print Profile(1)
Description

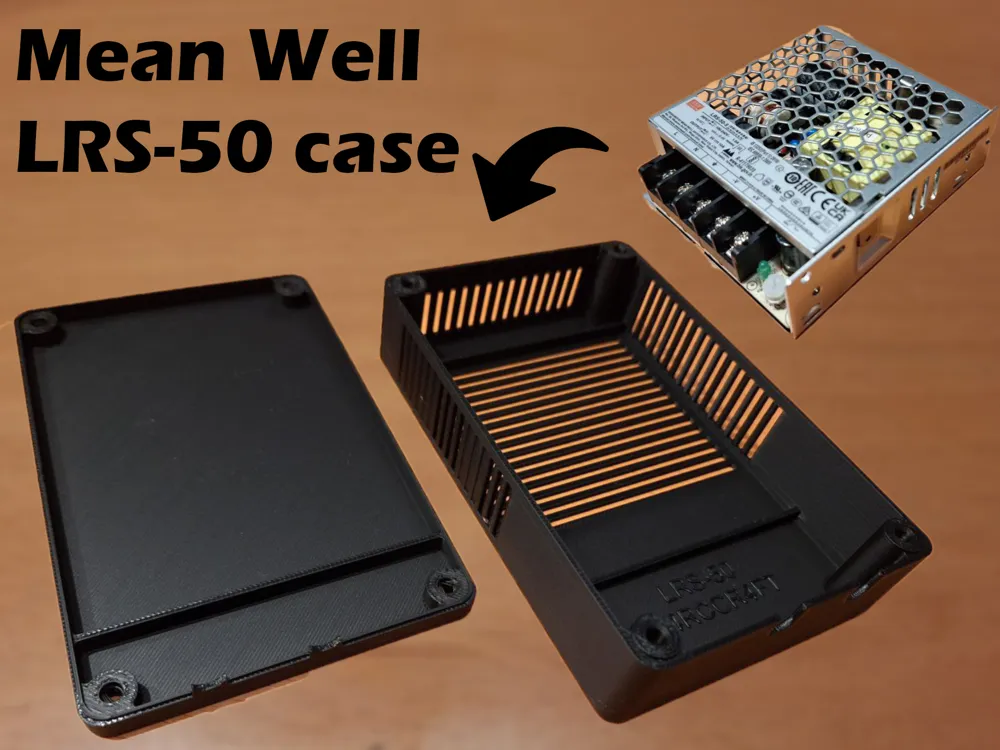

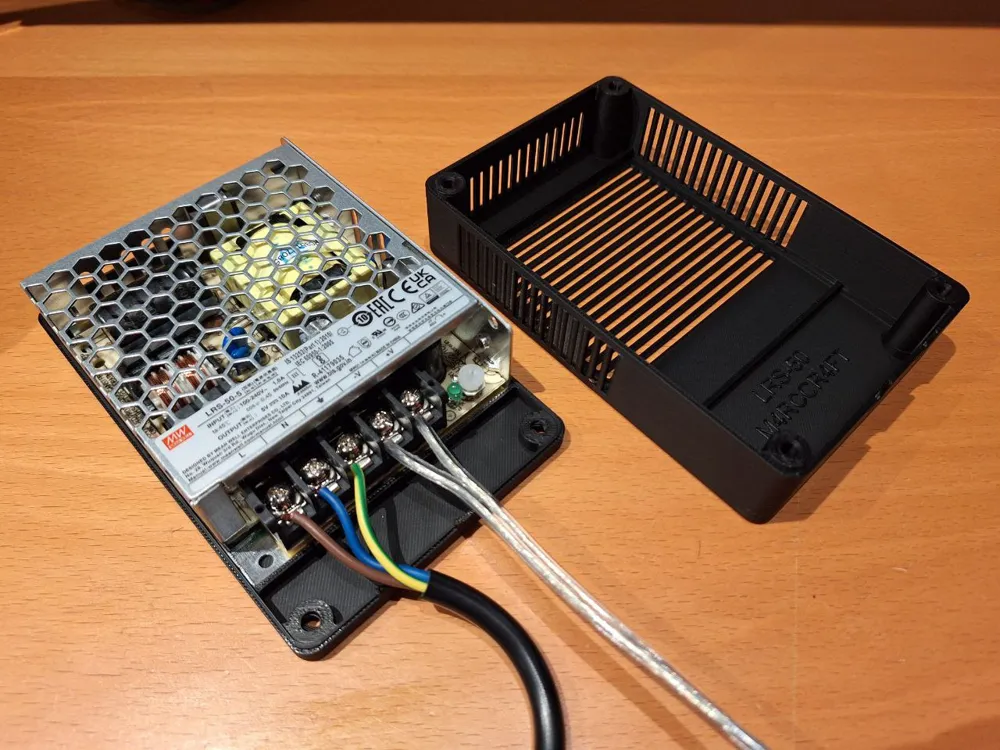

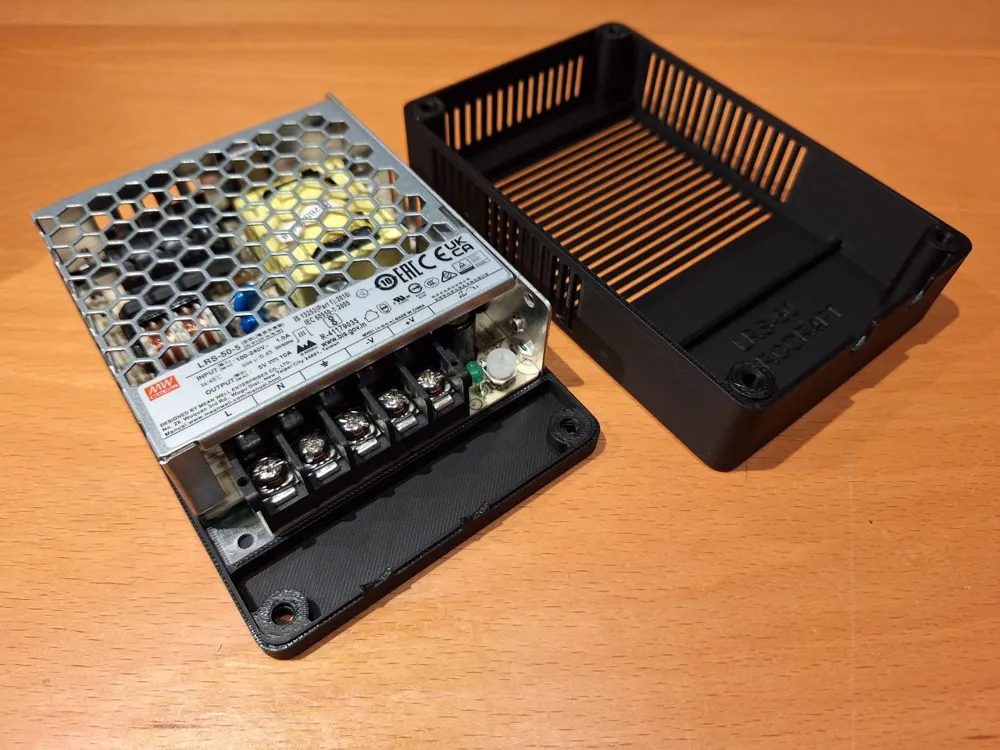

This is a case for a Mean Well LRS-50 power supply, see https://www.meanwell-web.com/en-gb/ac-dc-single-output-enclosed-power-supply-lrs--50--5. They are available in different voltages, but all deliver around 50 Watt of power, in the Pictures is my LRS-50-5 (5 Volt, 10 Amps).

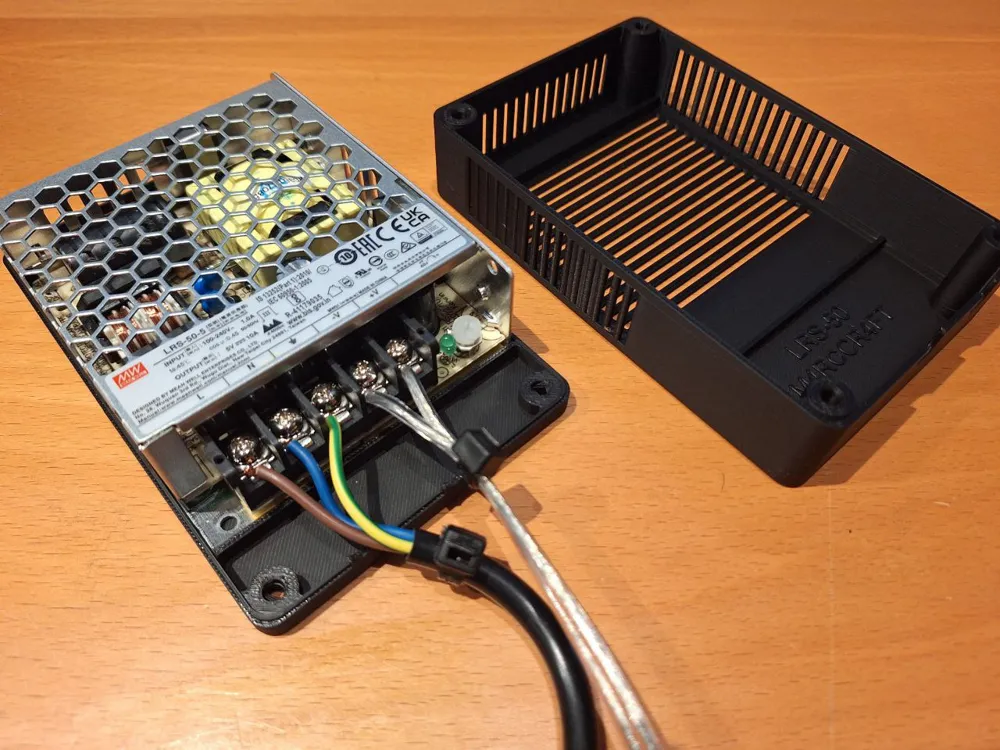

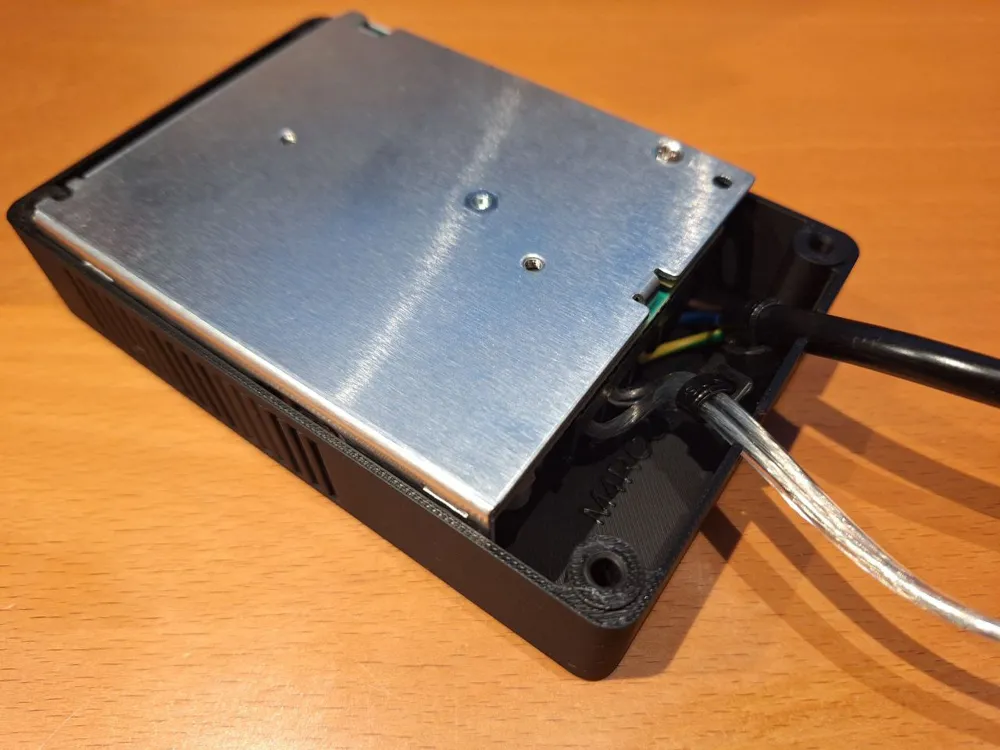

Make sure to add tie wraps (tyraps) around the outgoing cables, as I did in my pictures, to add some stress relieve on the connections. The holes have a diameter of 7mm.

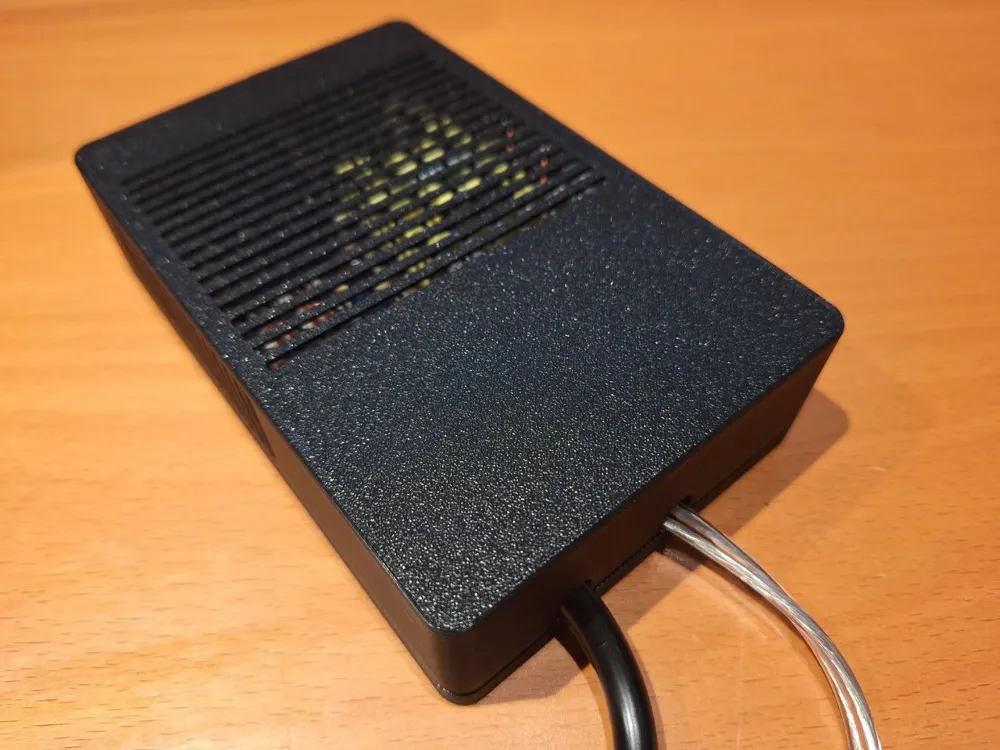

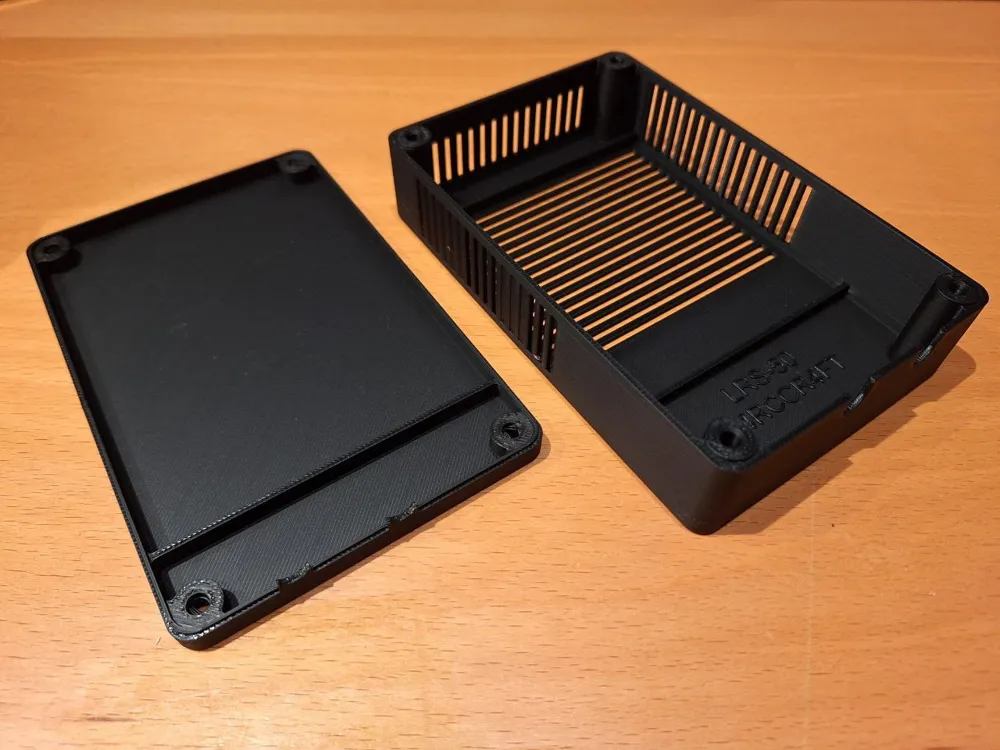

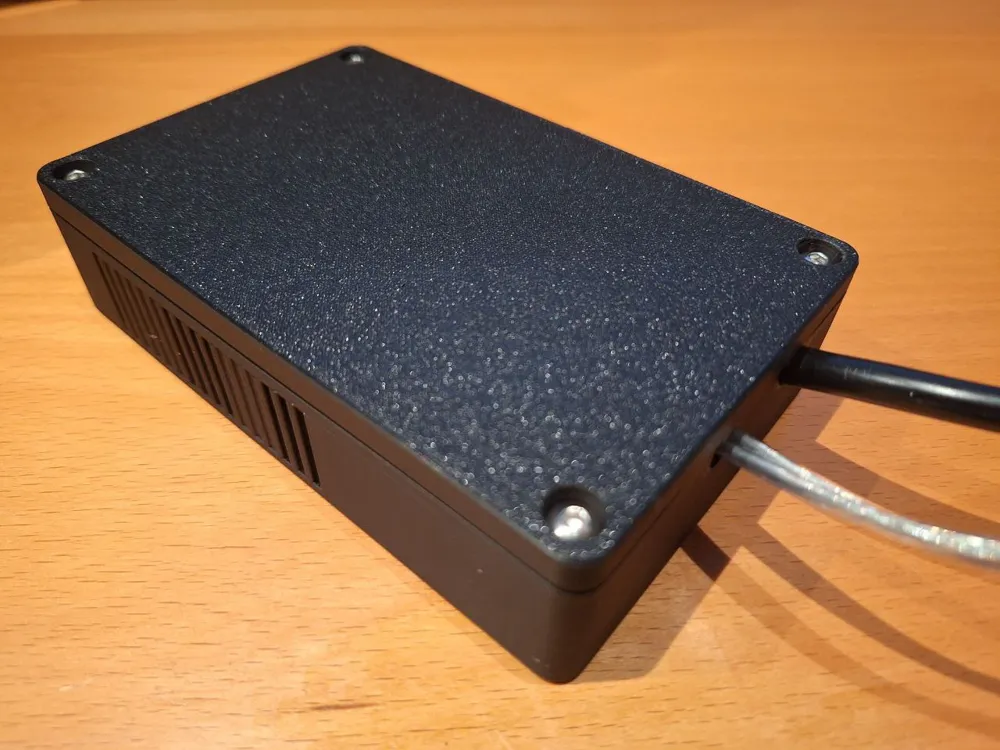

To close the case use 4 M4x12, M4x16 or M4x20 bolts, I used inbus but torx would work as well. The top cover will self-tap, the holes are 4mm.
Note that I've created a case for the Mean Well LRS-75 and RD-65A too, but not test printed that myself.
