Description

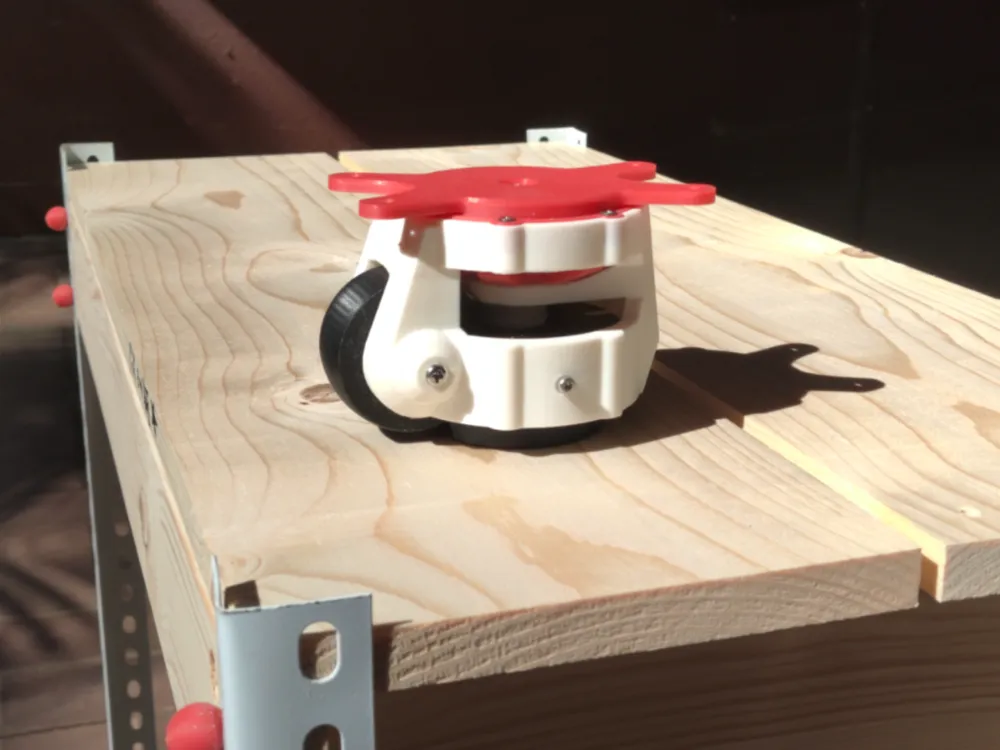

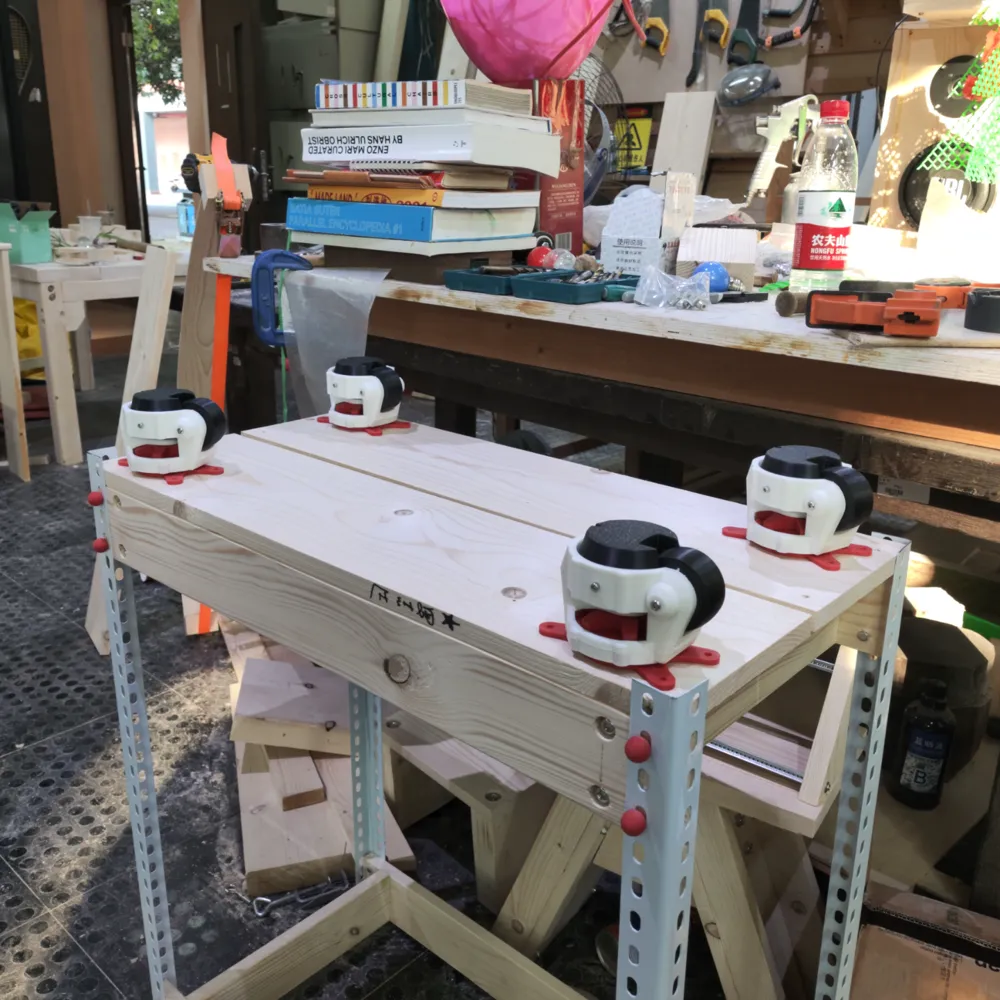

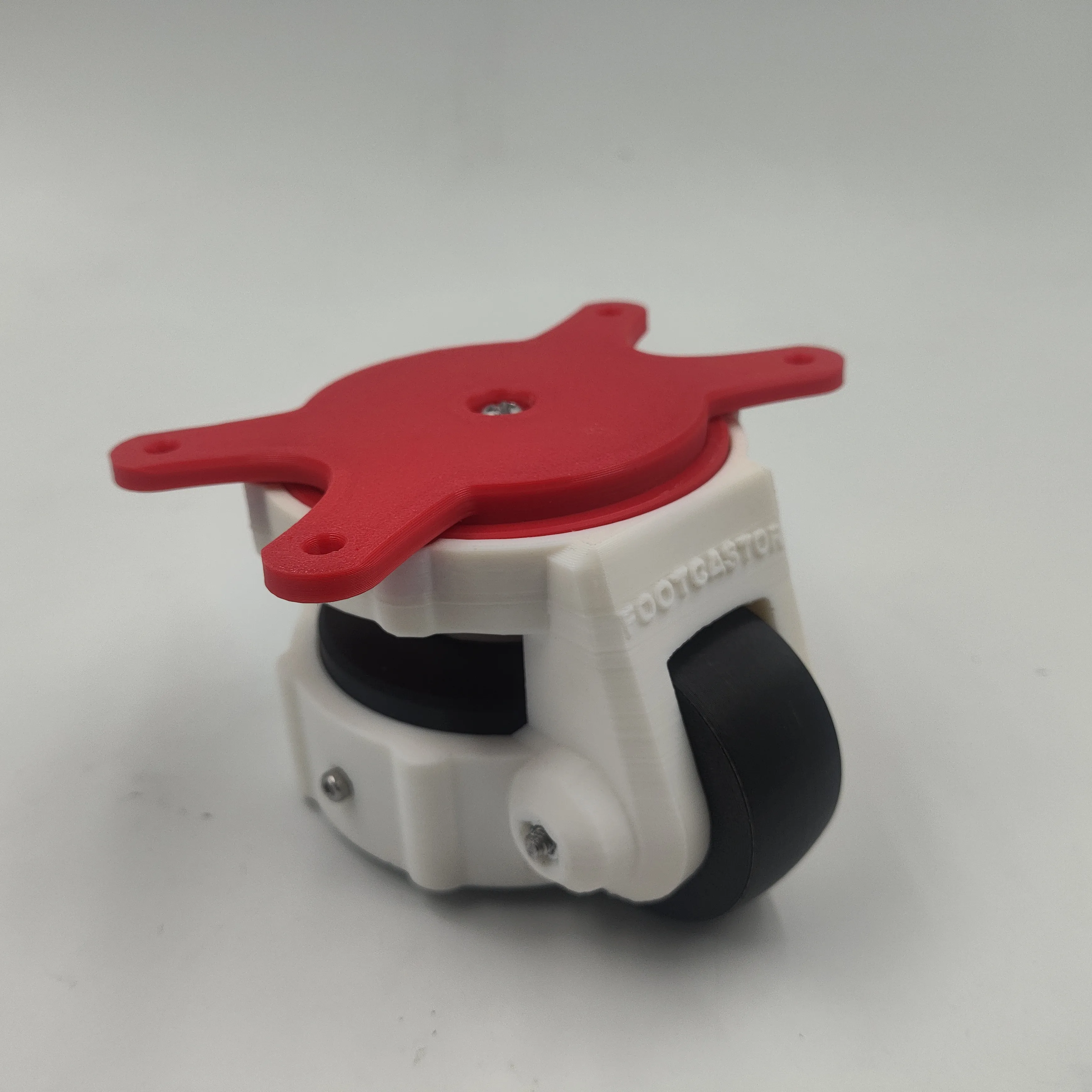

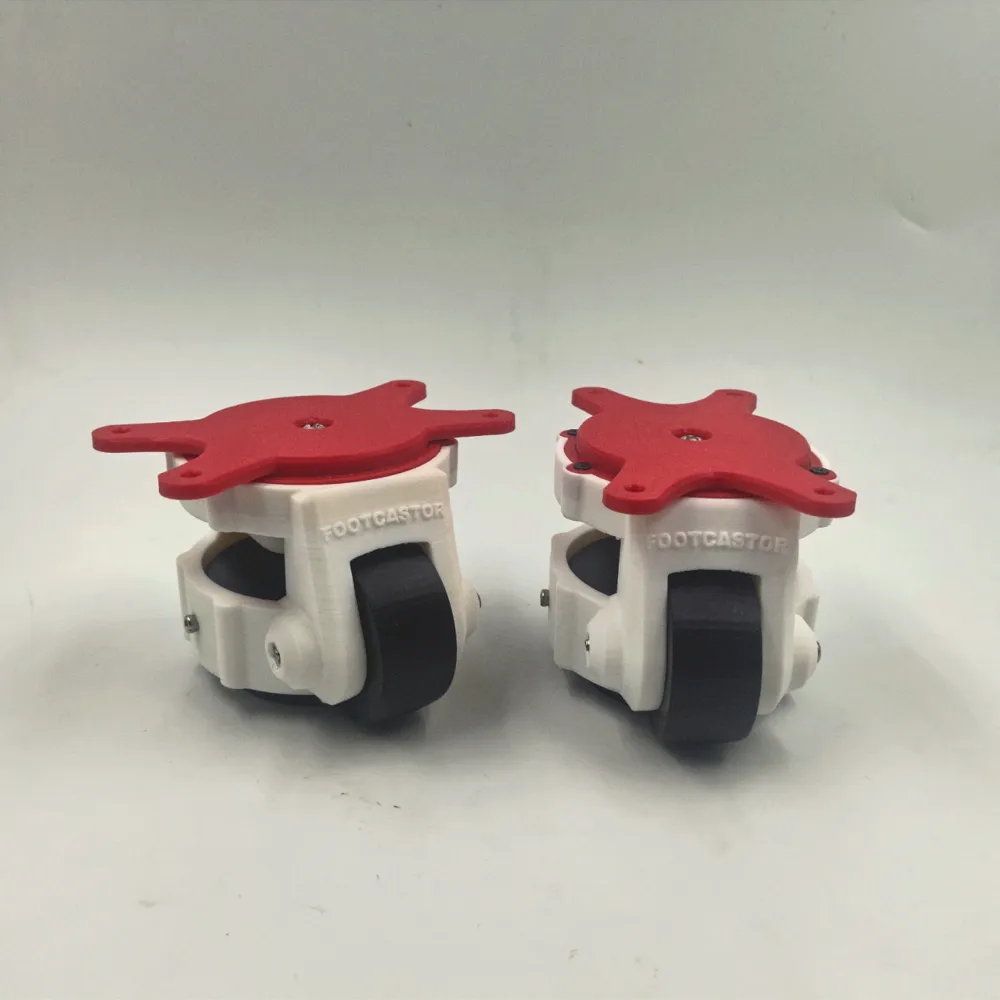

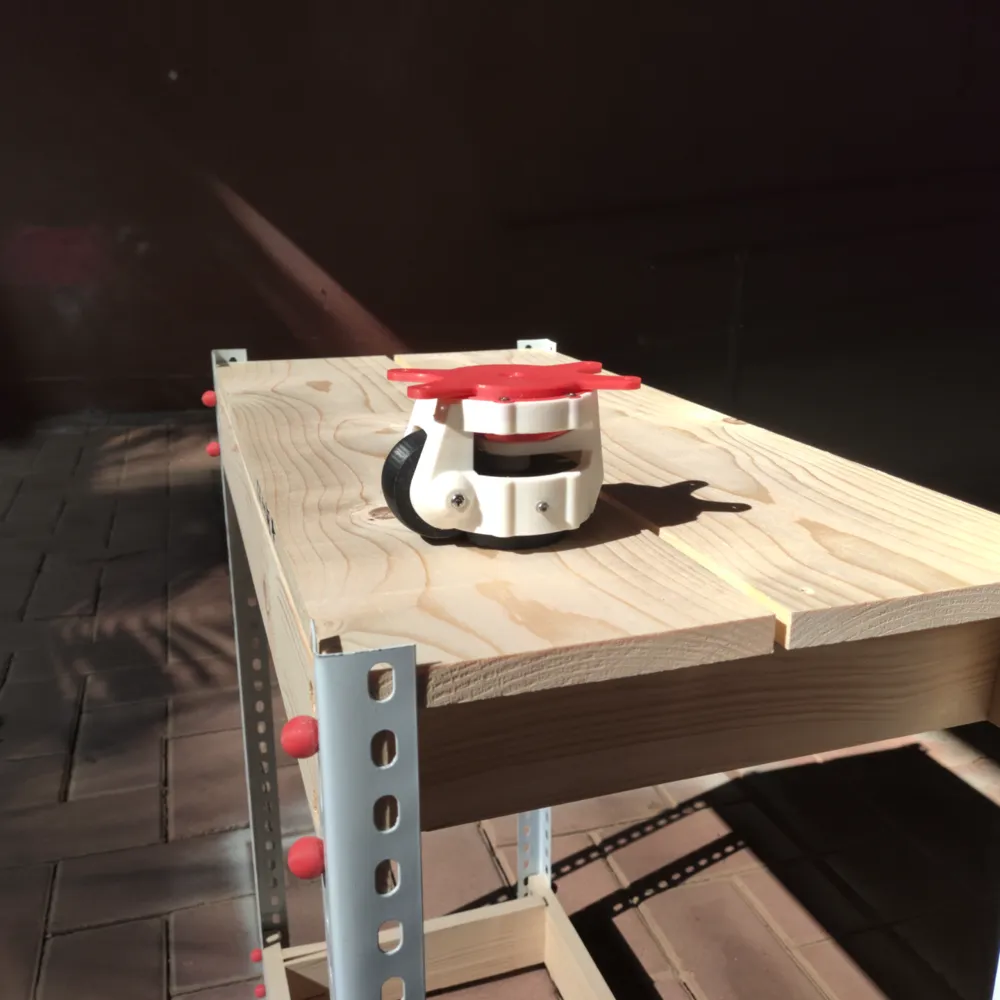

The original design intent for this model was to create a small cart that remains stationary most of the time but can be moved when needed, with an attractive appearance. Since I do not plan to update the model with different types of wheels in the future, I am making the STP model files available for download so that anyone can modify and print them.

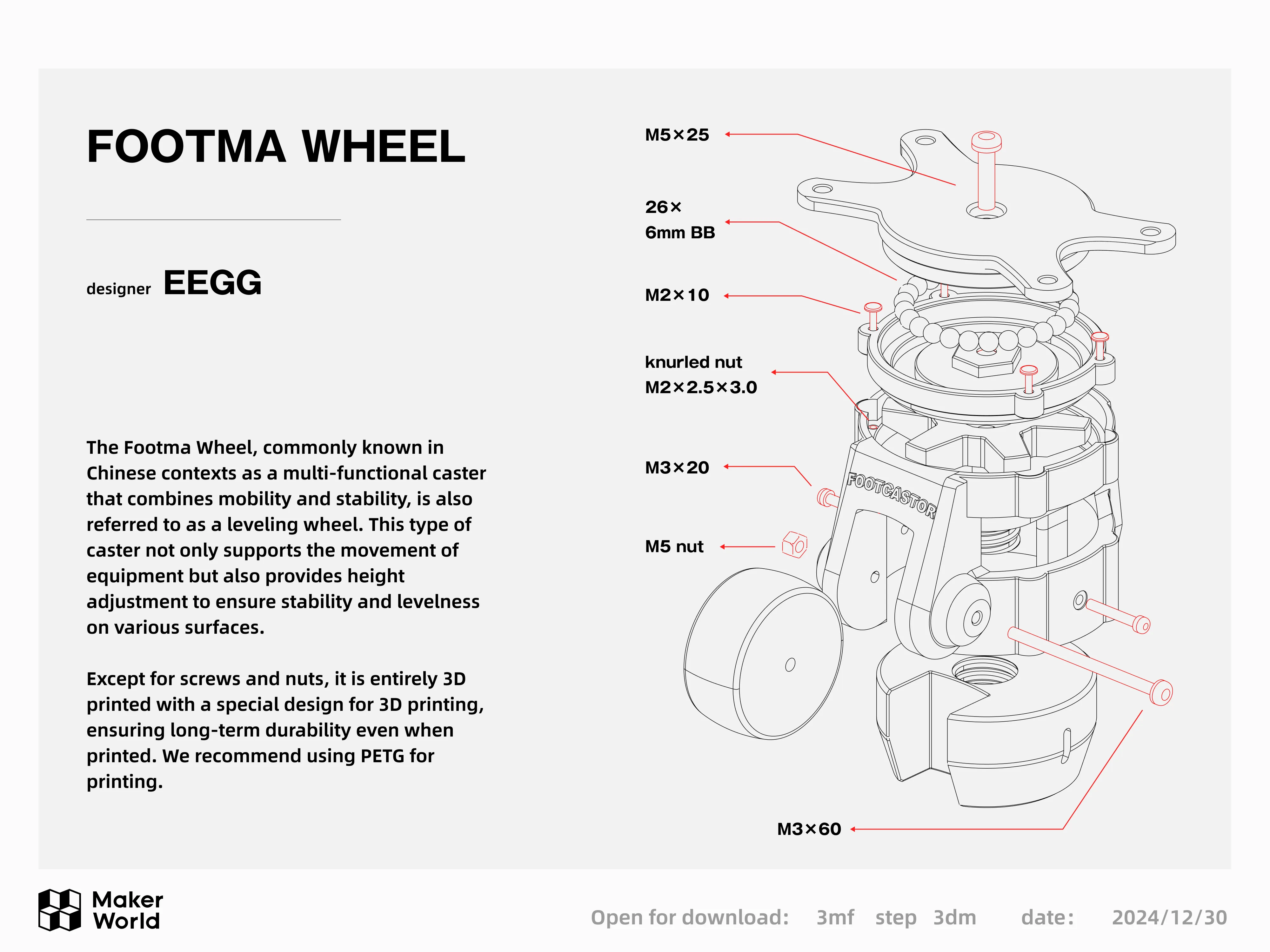

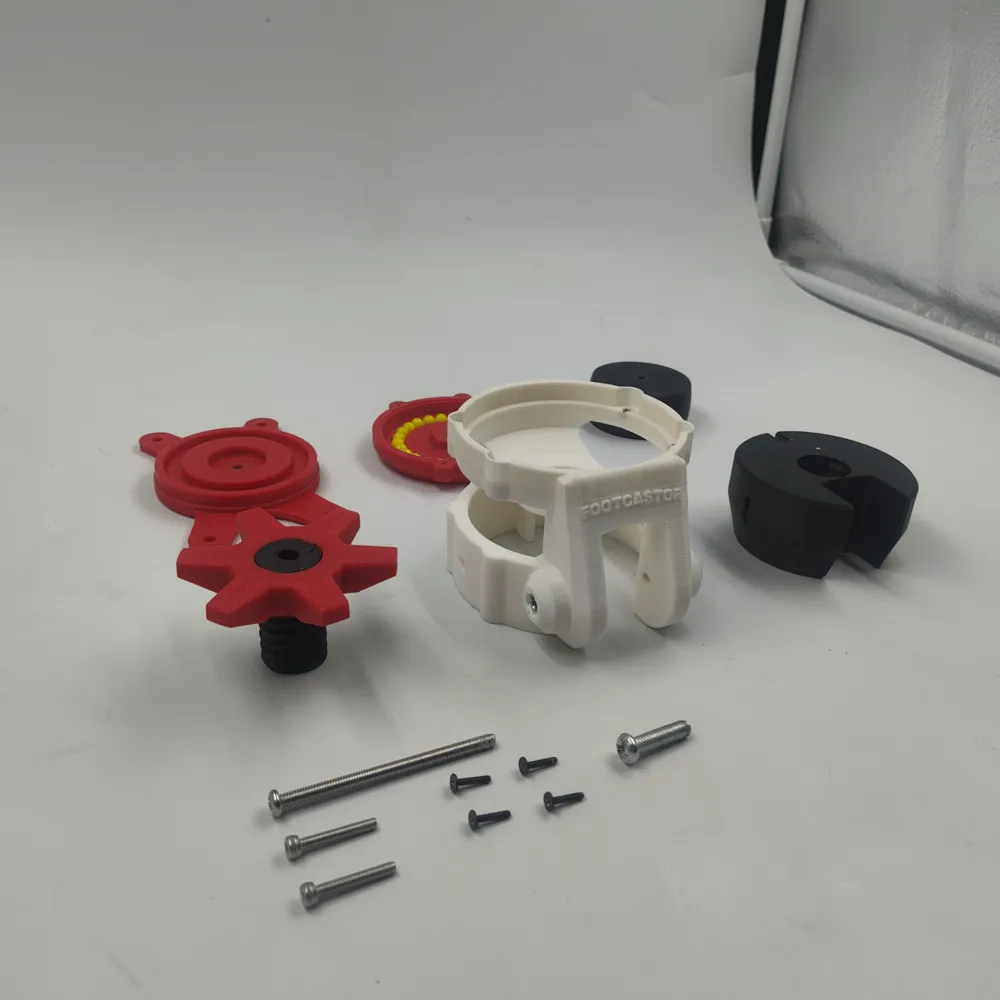

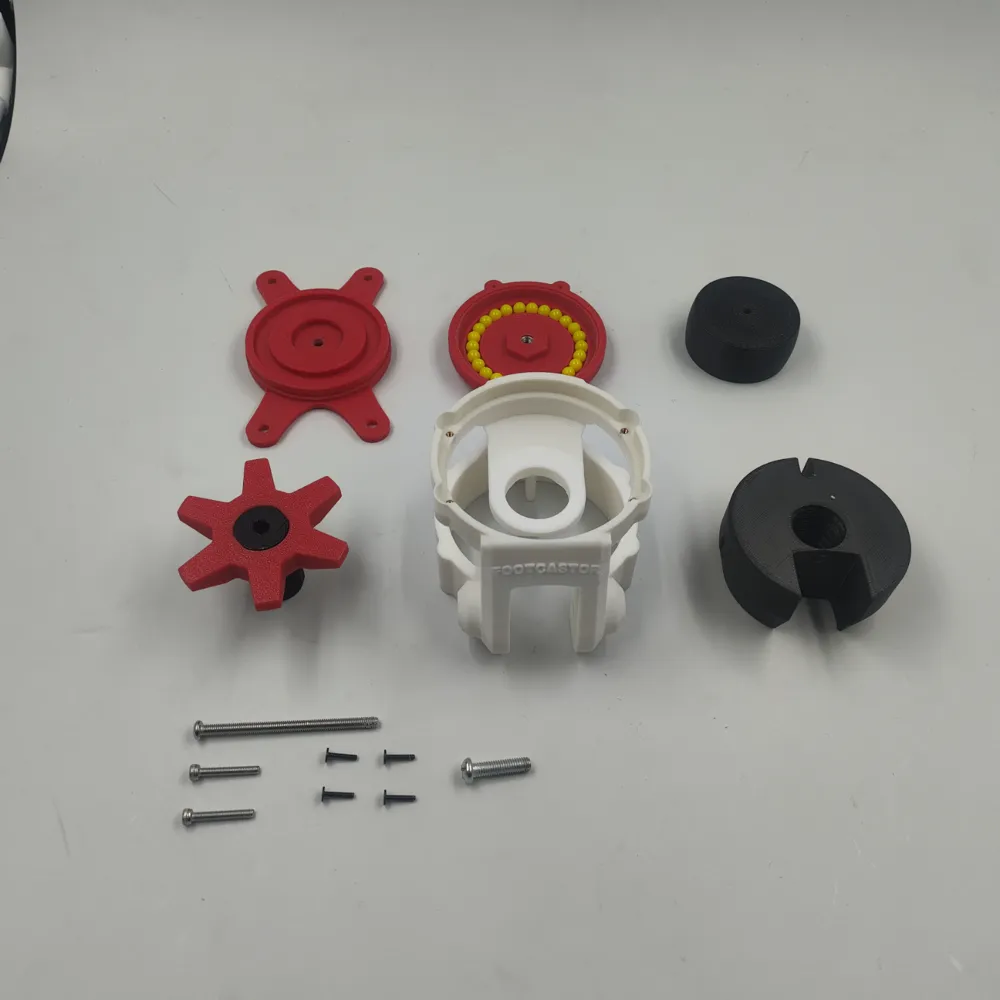

The hardware pieces you will require：
螺钉 (Screws): M5 x 25mm 1psc
M5 x 60mm 1psc
M3 x 20mm 2psc
M2 x 10mm 4psc
螺母 (Nuts): M5 2 psc
滚花螺母 (knurled nut): M2×3×2.5 4 psc
6mm BB 26psc

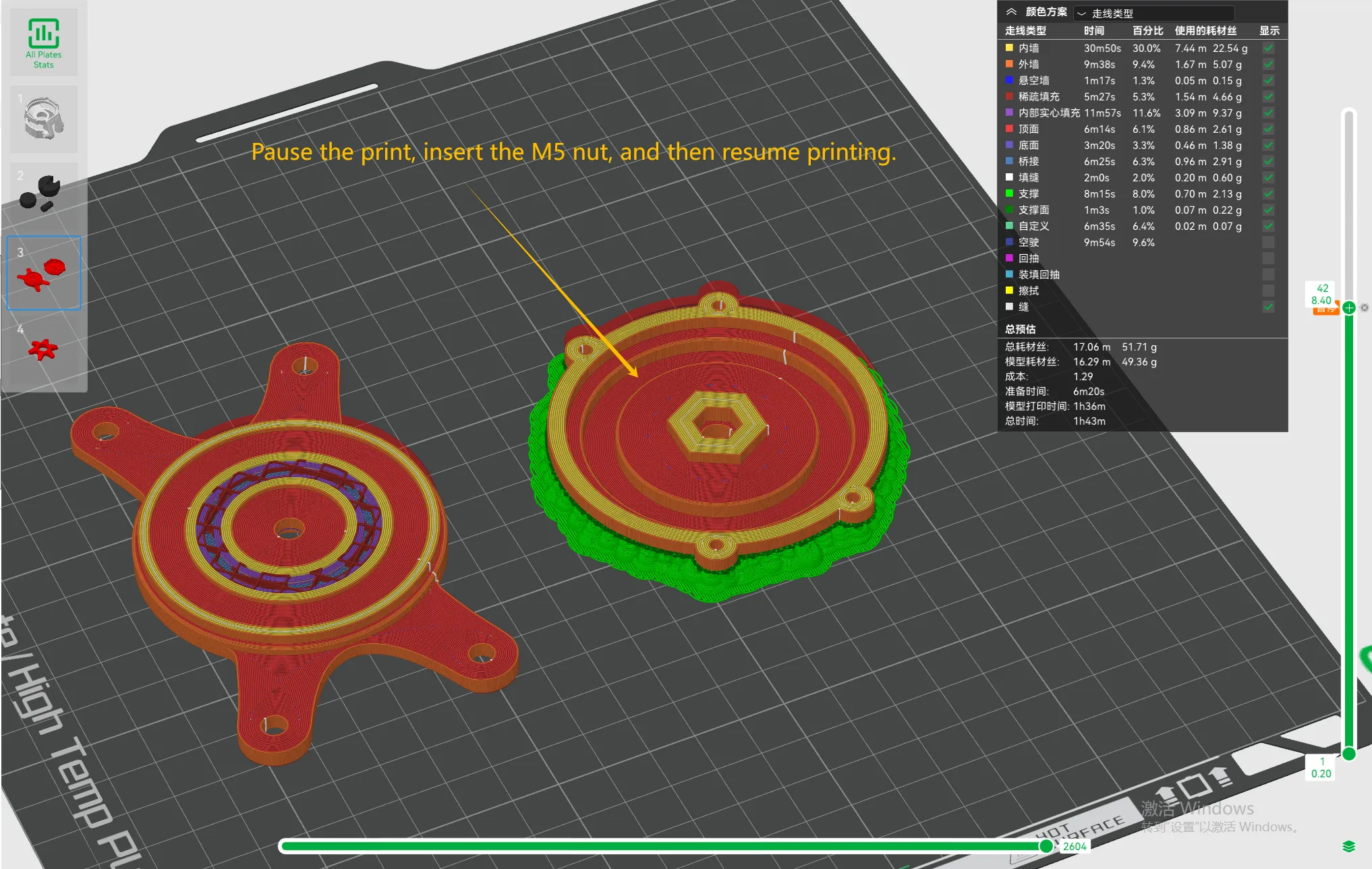

It is important to note that one of the nuts should be inserted into the part during the printing process.

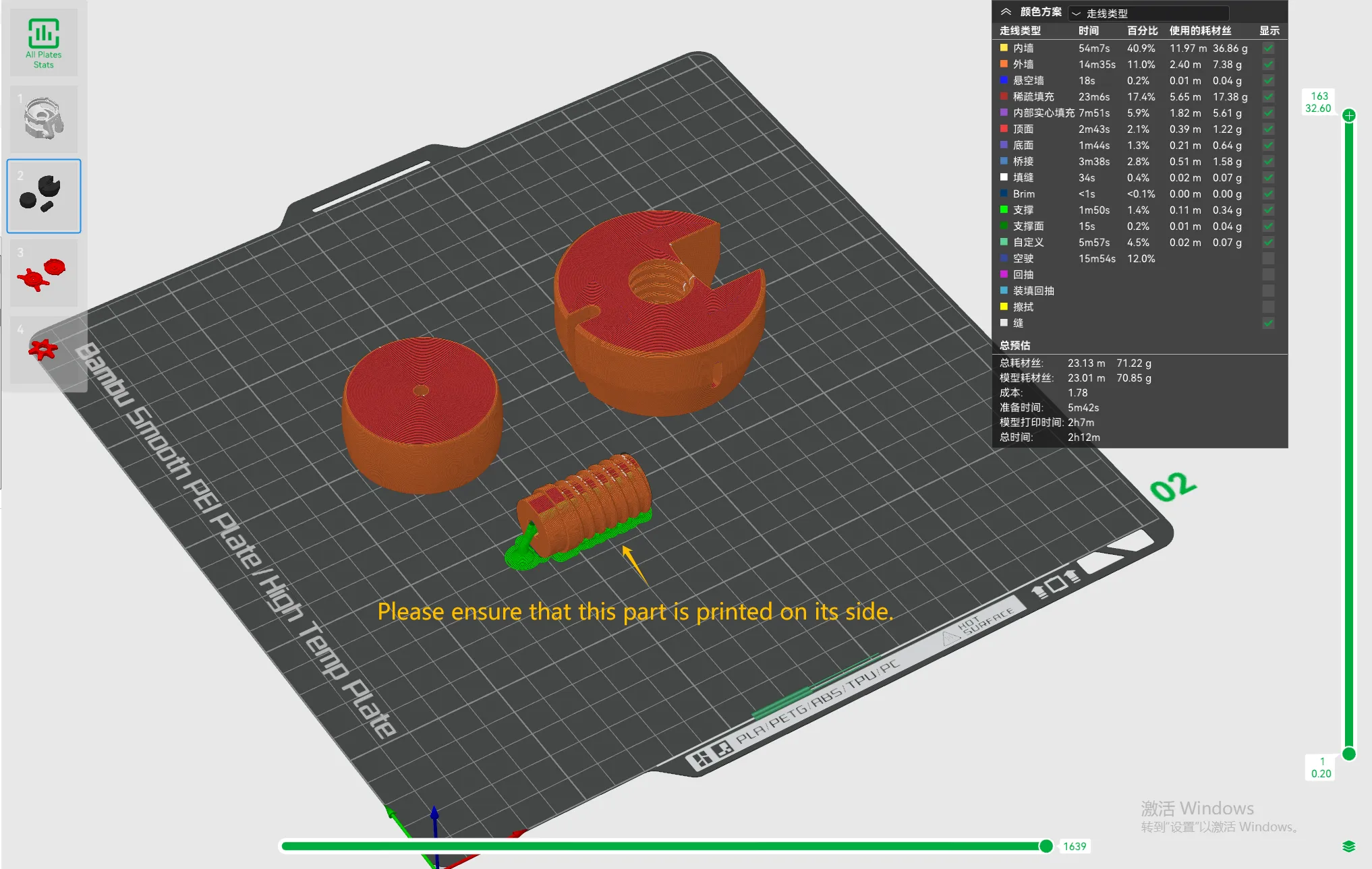

Please ensure that this part is printed on its side on the platform.

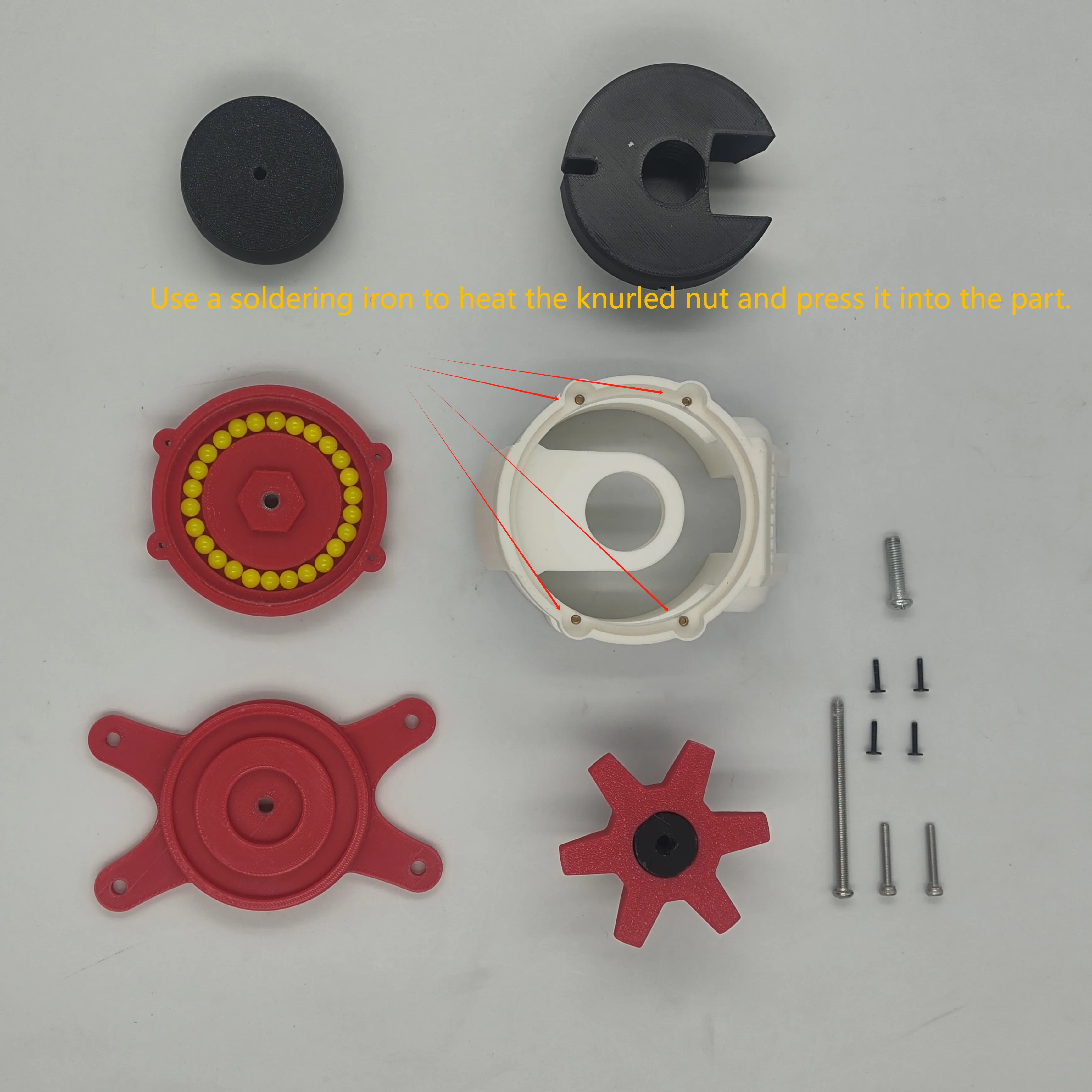

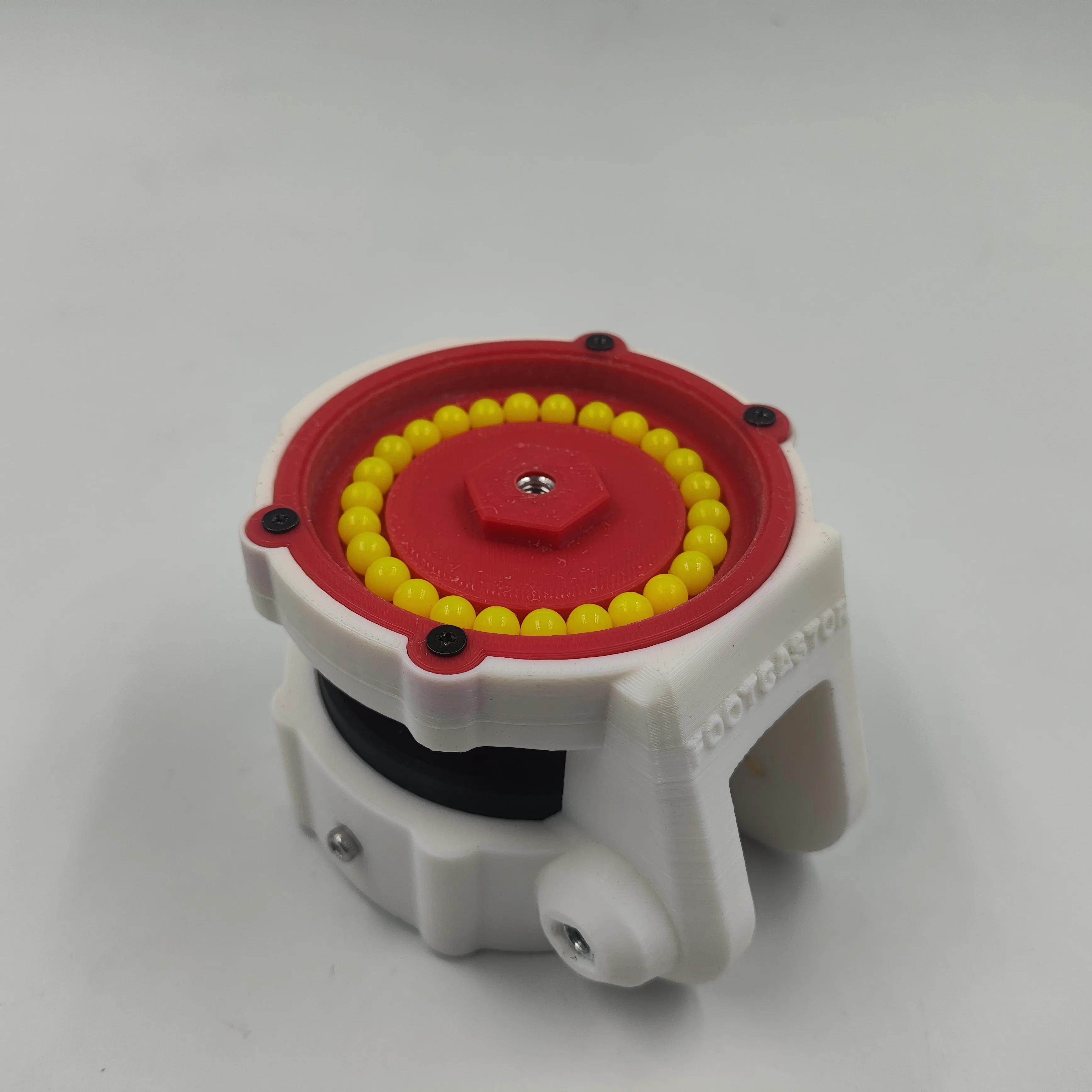

Installation Process：
