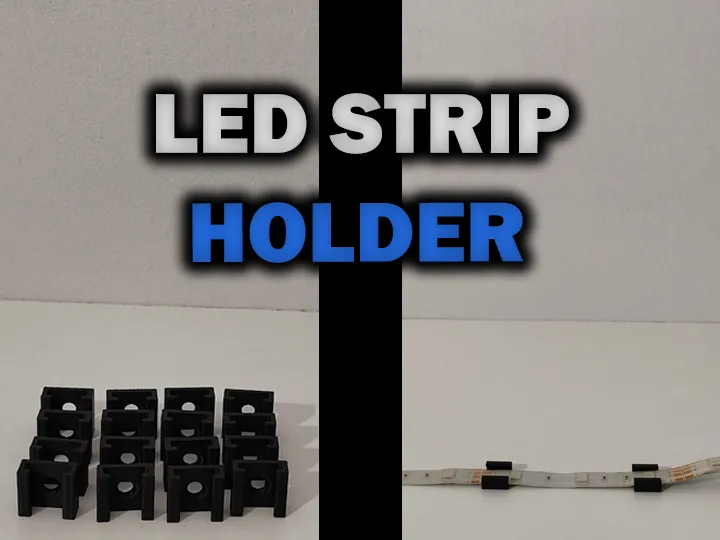

Led Strip Holder (different sizes)

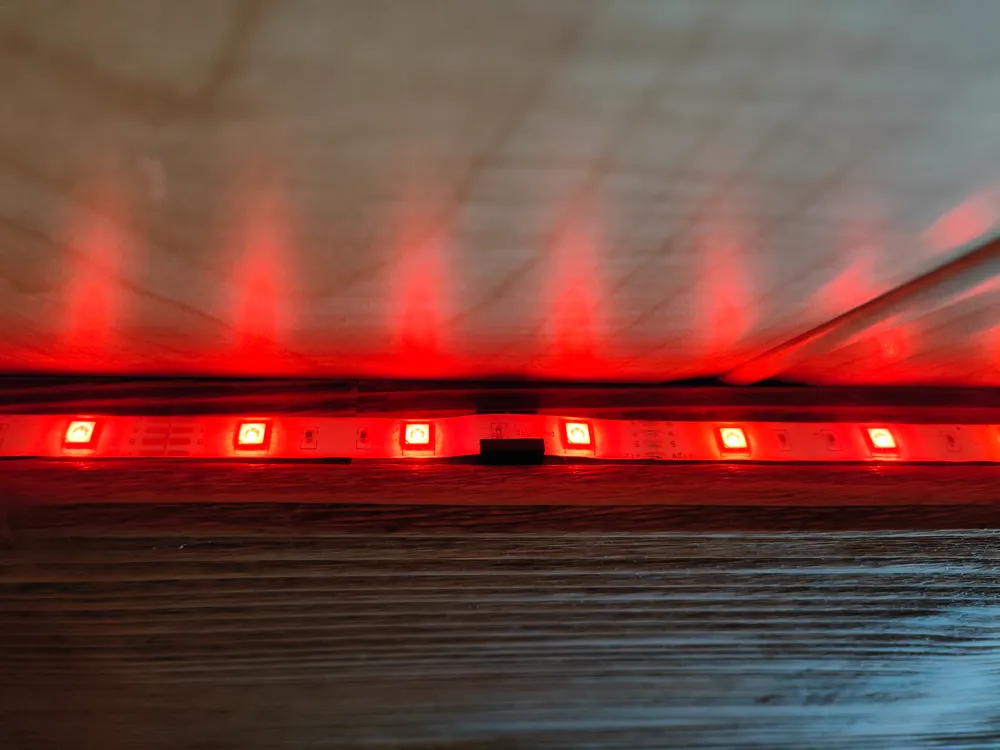

I created a model of an LED strip holder. You've probably experienced situations where the LED strips you stuck on eventually fell off. This model allows for stable support of the LED strip. The holder can be screwed in place. Various screws can be used to attach the holder (maximum 3mm screw thickness and 6mm screw head).

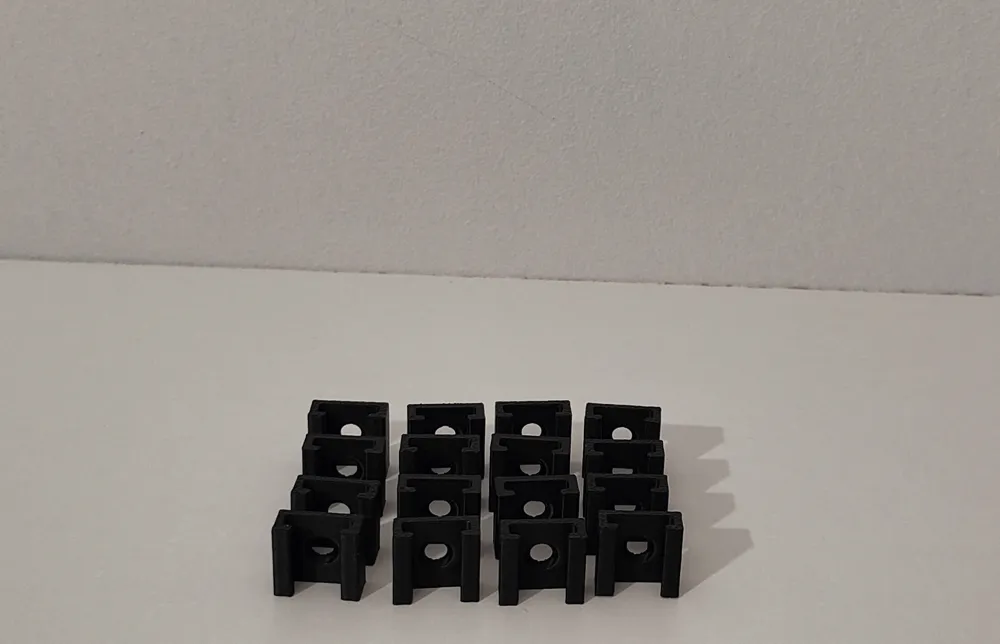

Each model includes 15 holders.
I designed models for different types of LED strips with widths of 8mm, 10mm, and 12mm, and thicknesses up to 5mm.
Dimensions (width and thickness):
- 8 x 3mm
- 8 x 5mm
- 10 x 3mm
- 10 x 5mm
- 12 x 3mm
- 12 x 5mm
Recommended Settings
- 0.2 mm layer
- Elephant foot compensation: 0.15 mm
- Infill: 15% gyroid
- Brim: outer brim only, width 2mm
