PARKSIDE X20 BATTERY POWER SUPPLY 0-36V DC
Print Profile(3)
Description
Boost Me (for free)

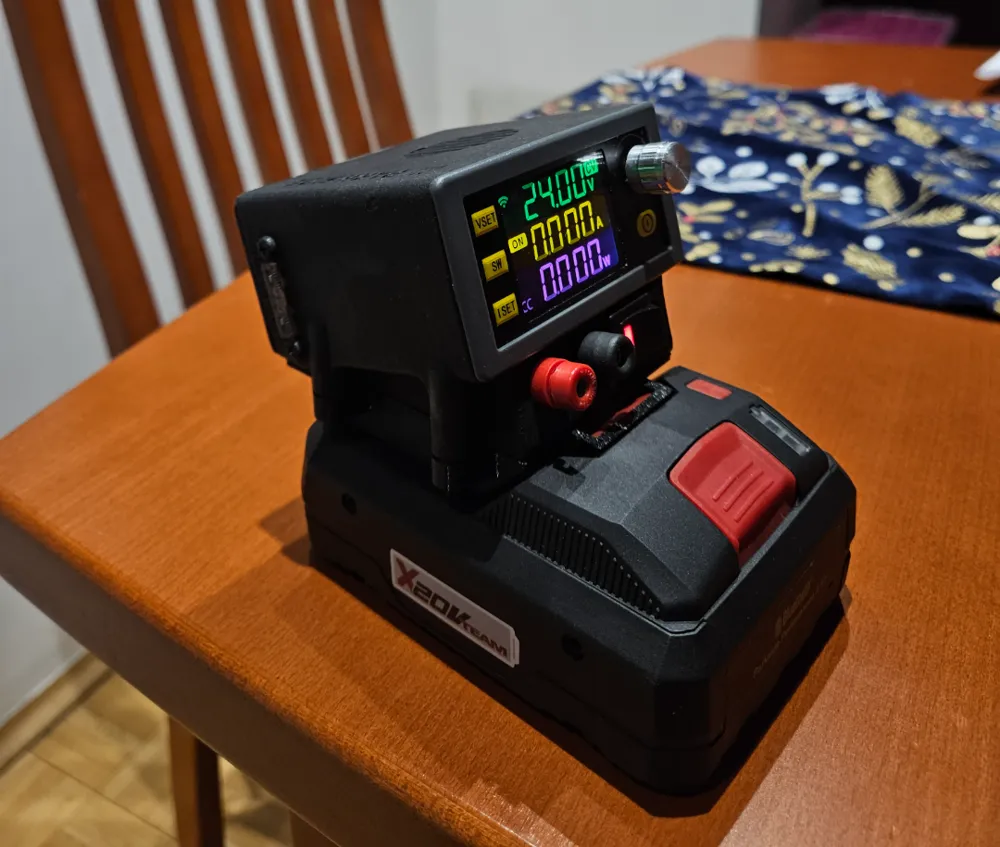

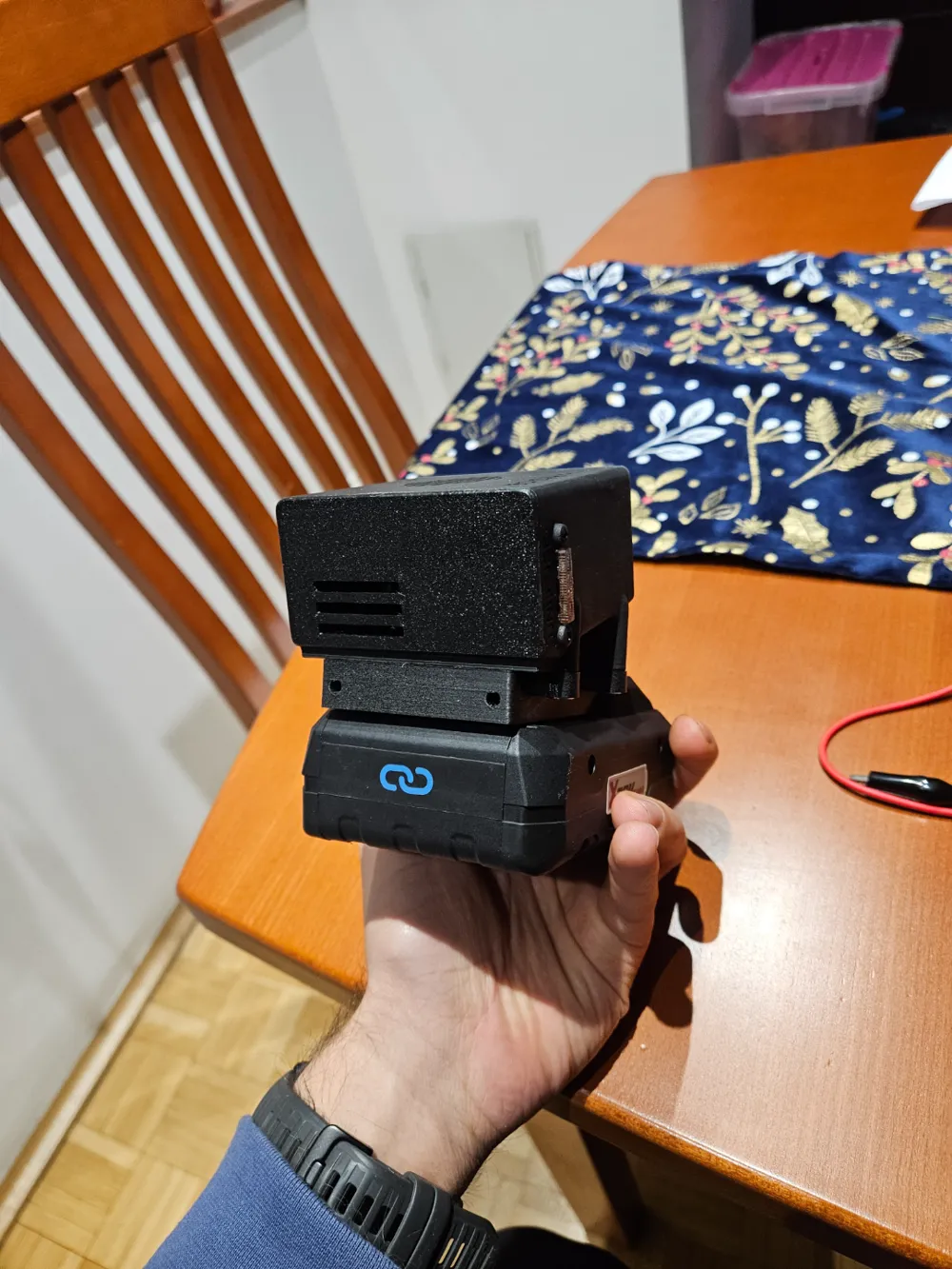

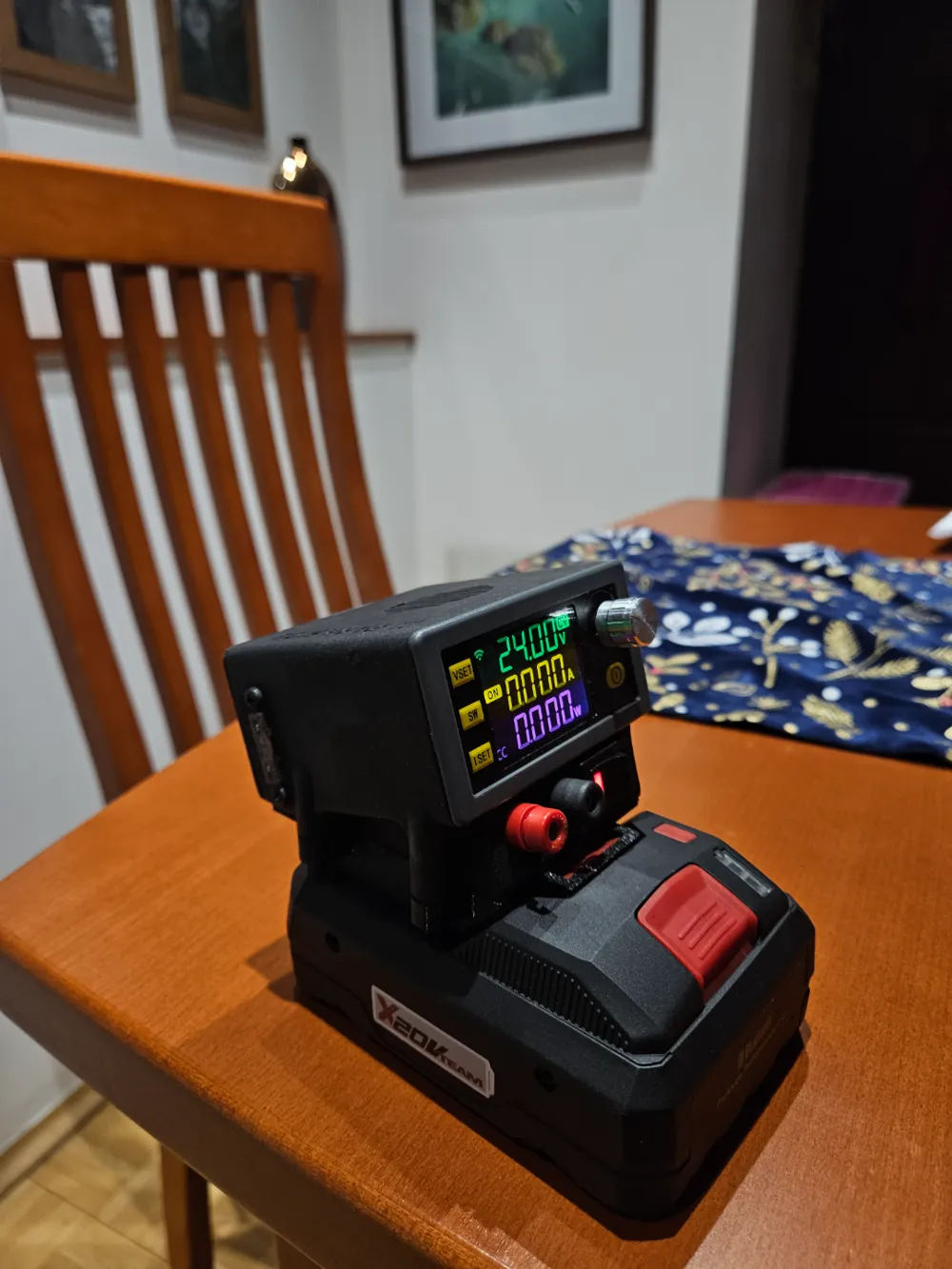

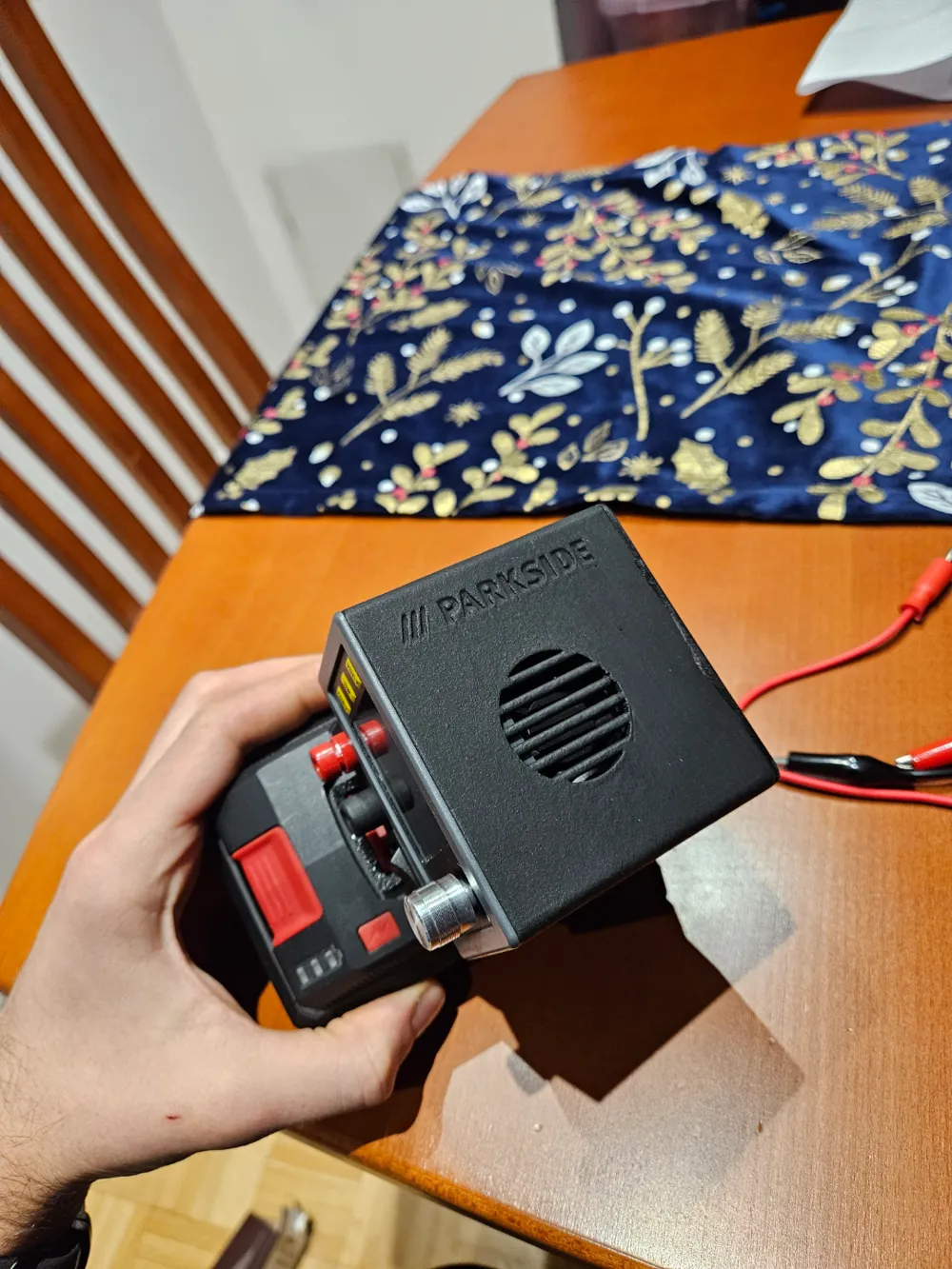

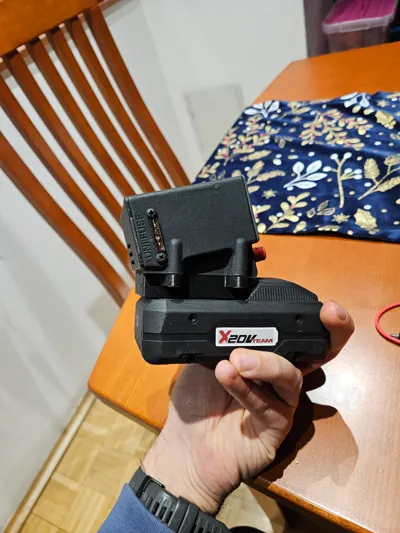

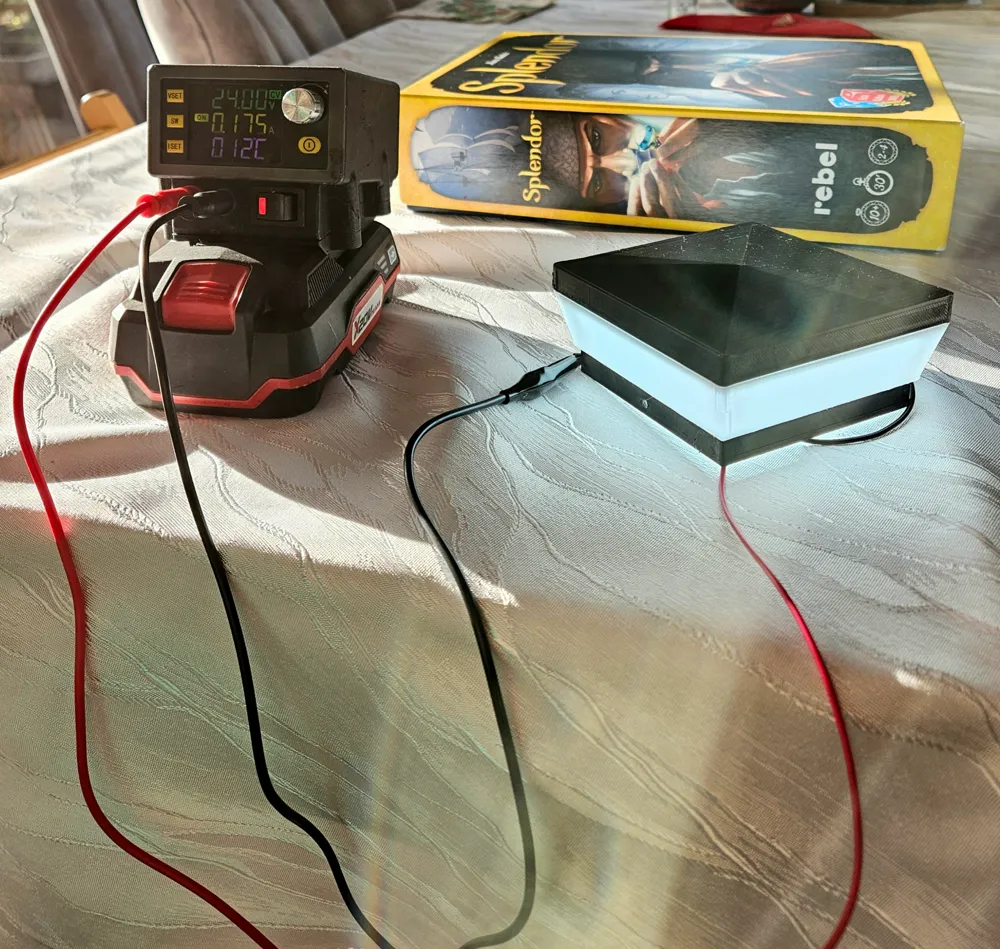

HI i've designed my own version of battery adapter for x20v Parkside batteries, & small and portable enclousure for yx sk-120 you can use it with other type of dc power supply module 0-36v dc.
Parts needed :
1x XY SK 120
2x 6.3 male connectrors (LONG VERSION) (dimentions in pics)
1 mm^2 wire

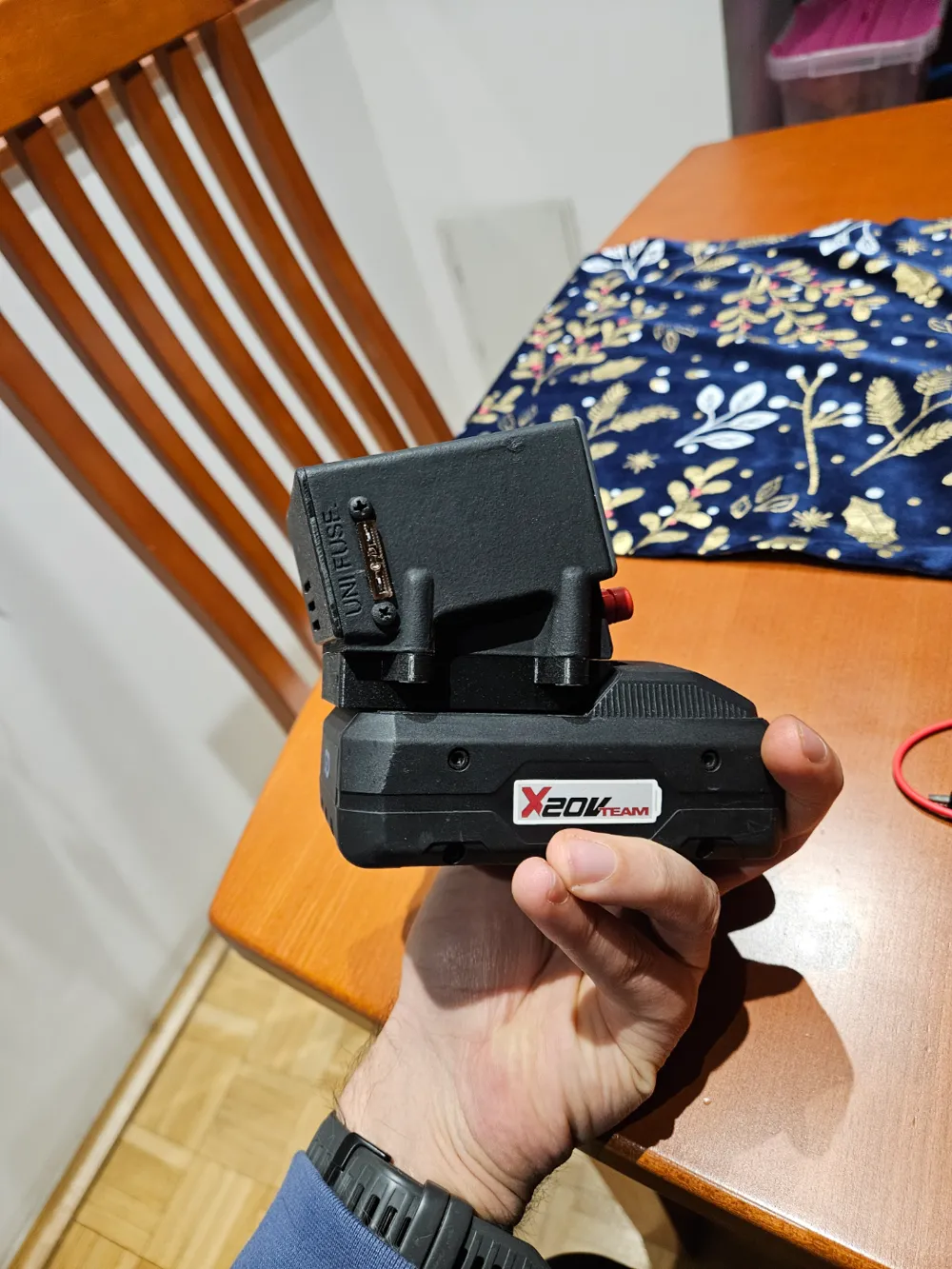

1x Car UNI fuse (big one)
1x switch (dimentions in pics) (if you would like tu use 12v led switch as me you will need 2k ohm resistor for led)
2x Female 4.8 mm connectors (dimentions in pics)
2x 4mm banana conectors (m6 THREAD size )

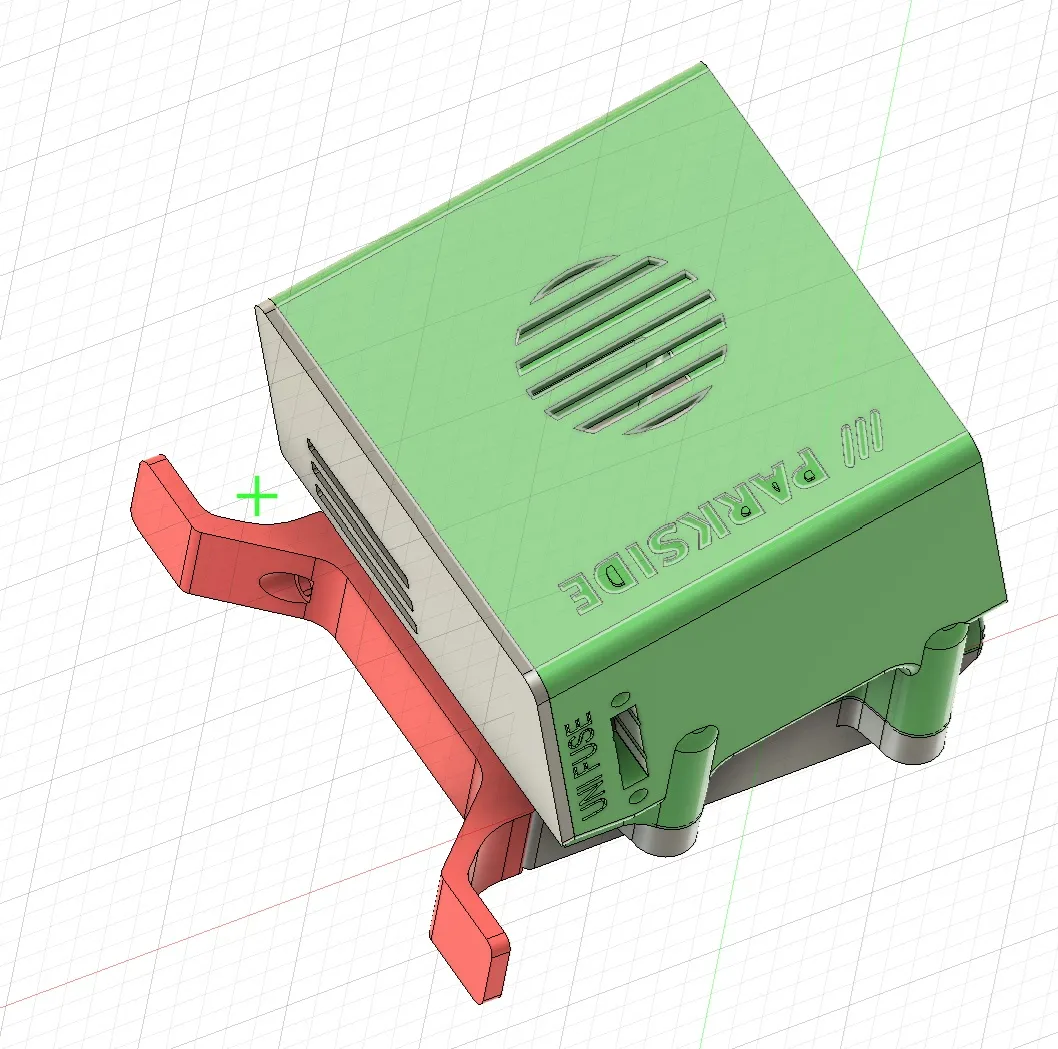

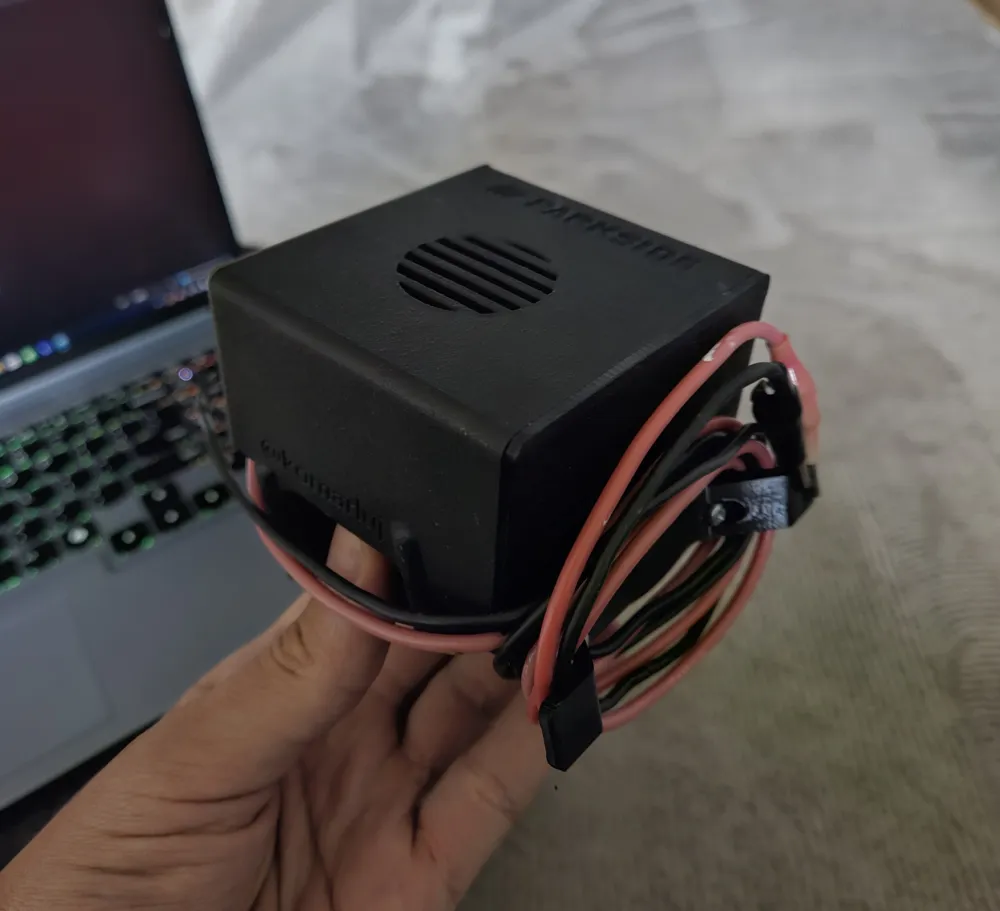

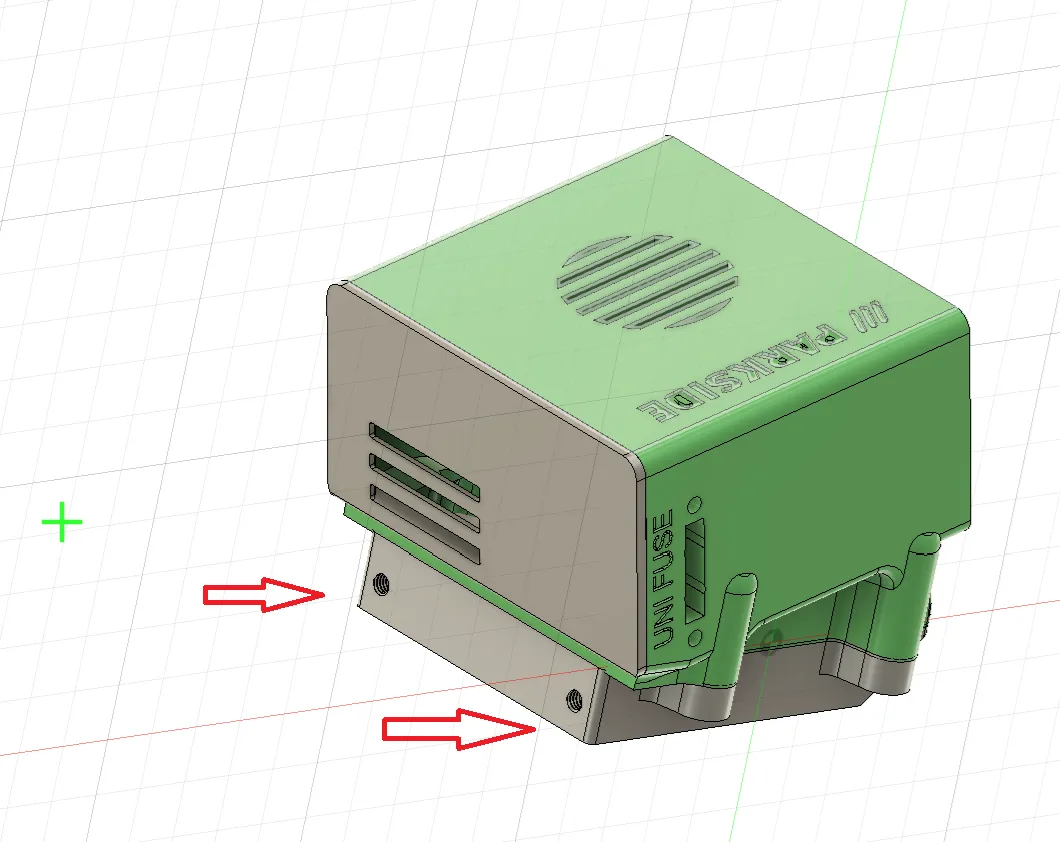

uprgade! cable holder for existing holes !
parts:

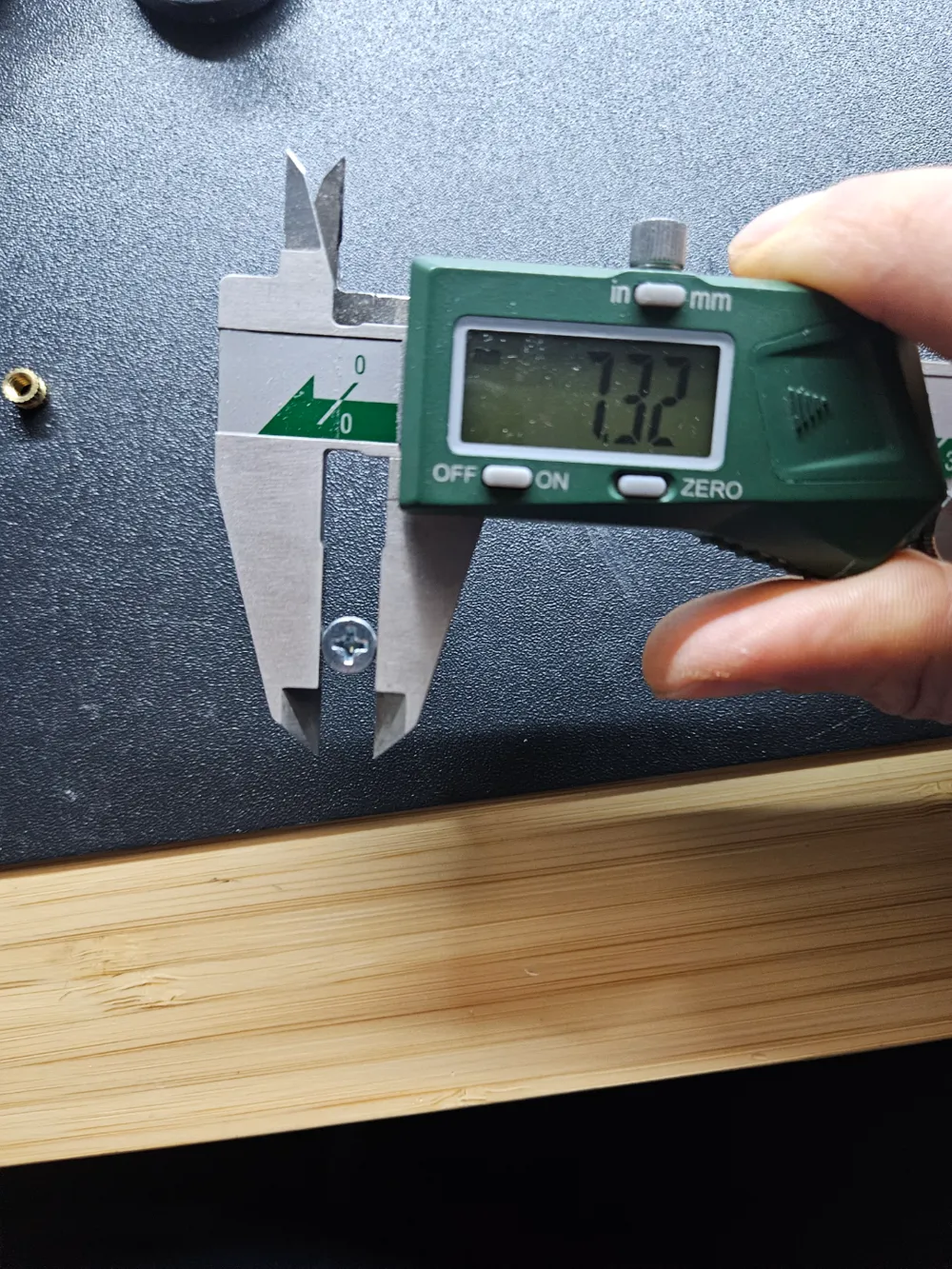

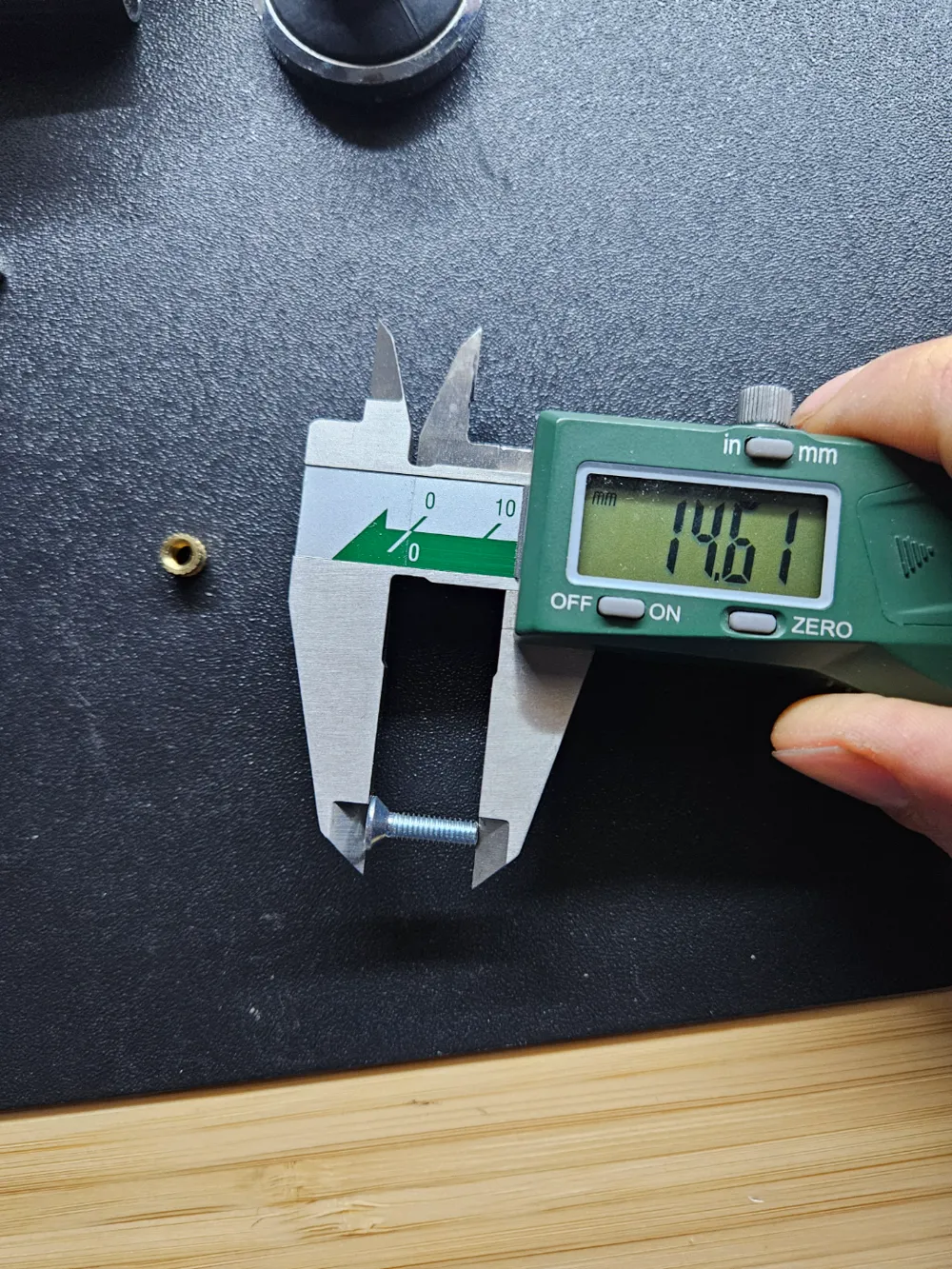

-2x m3x10 screw

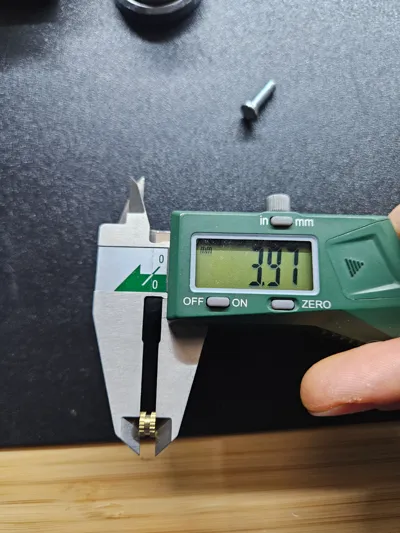

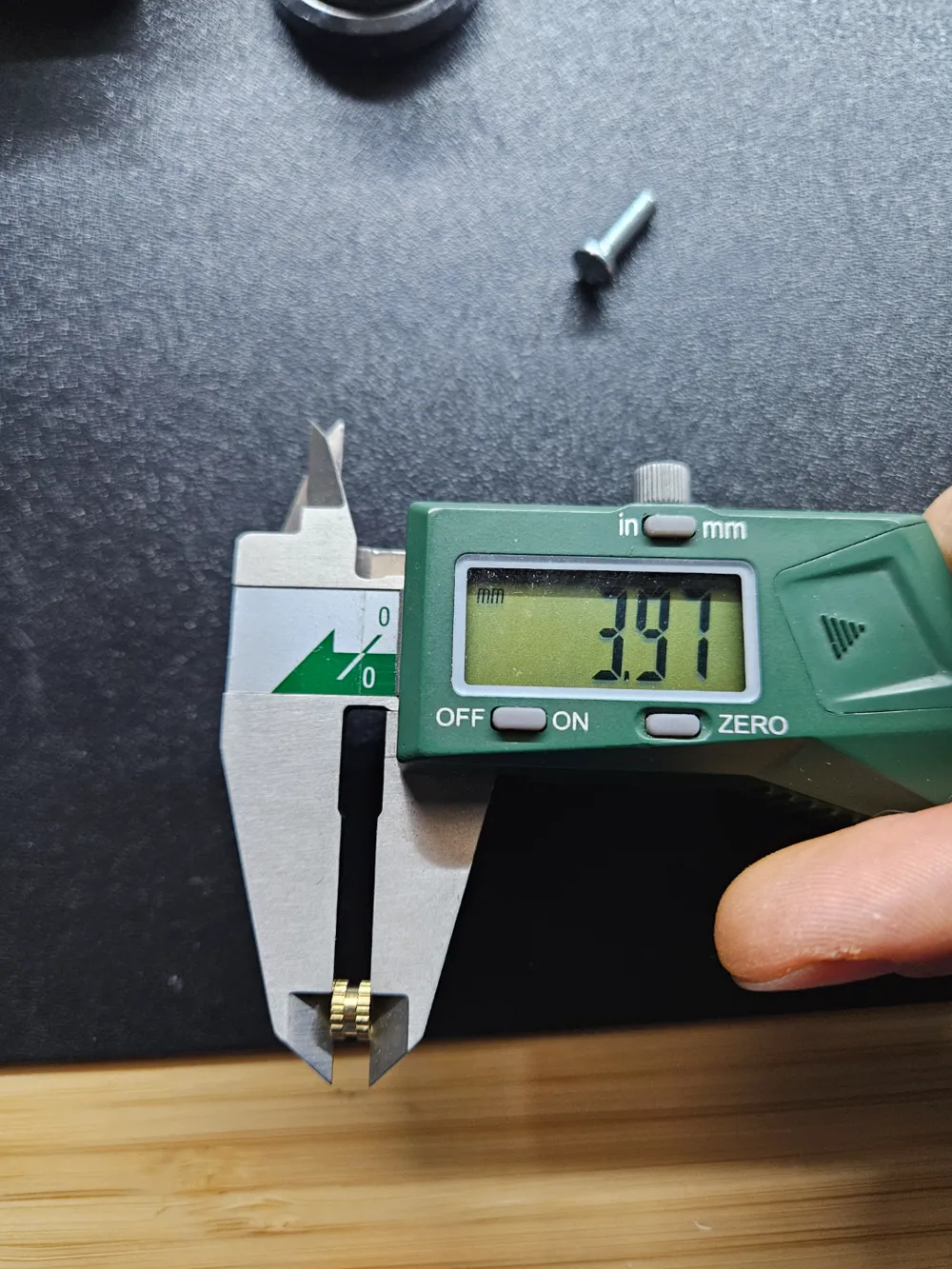

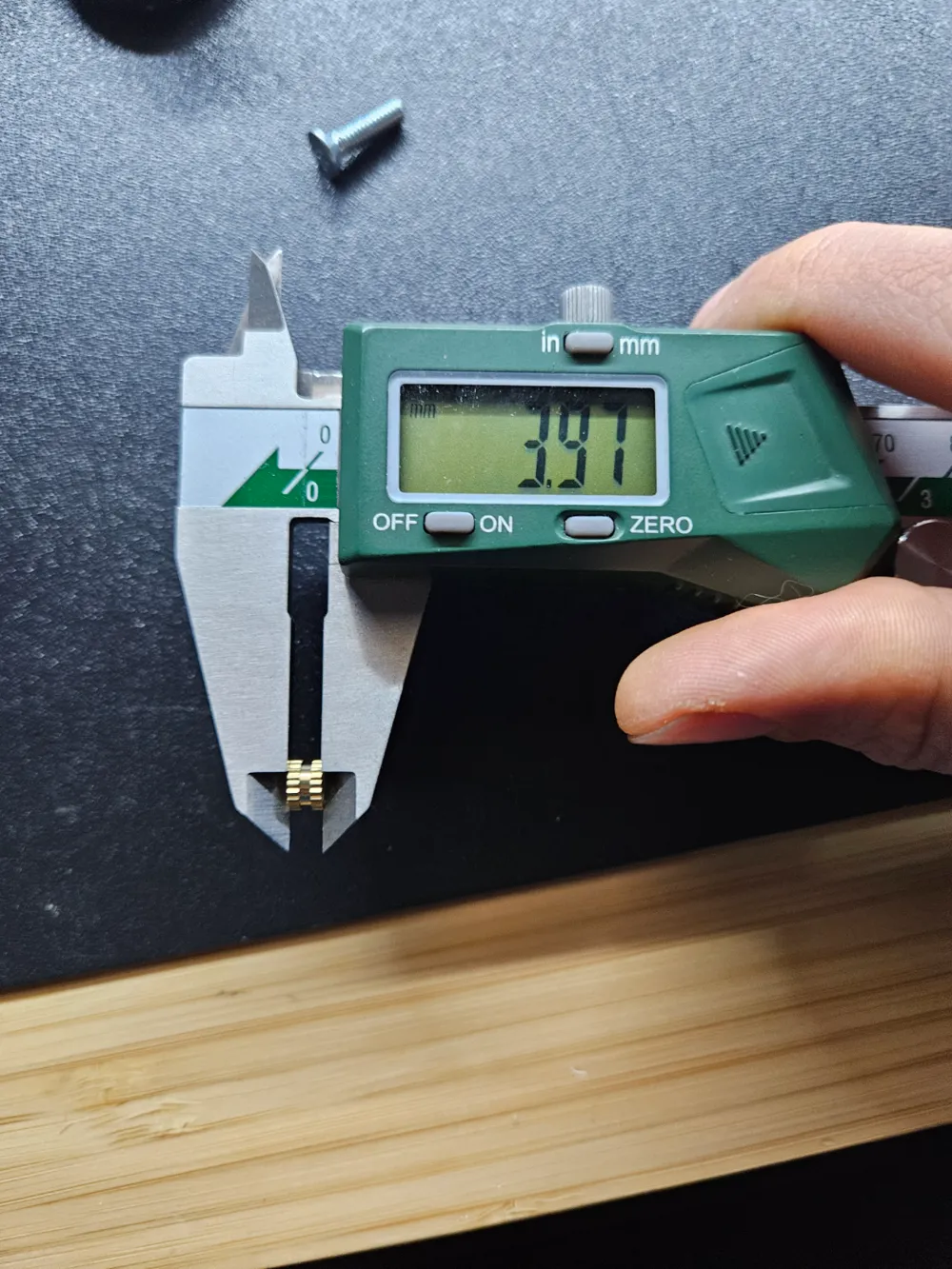

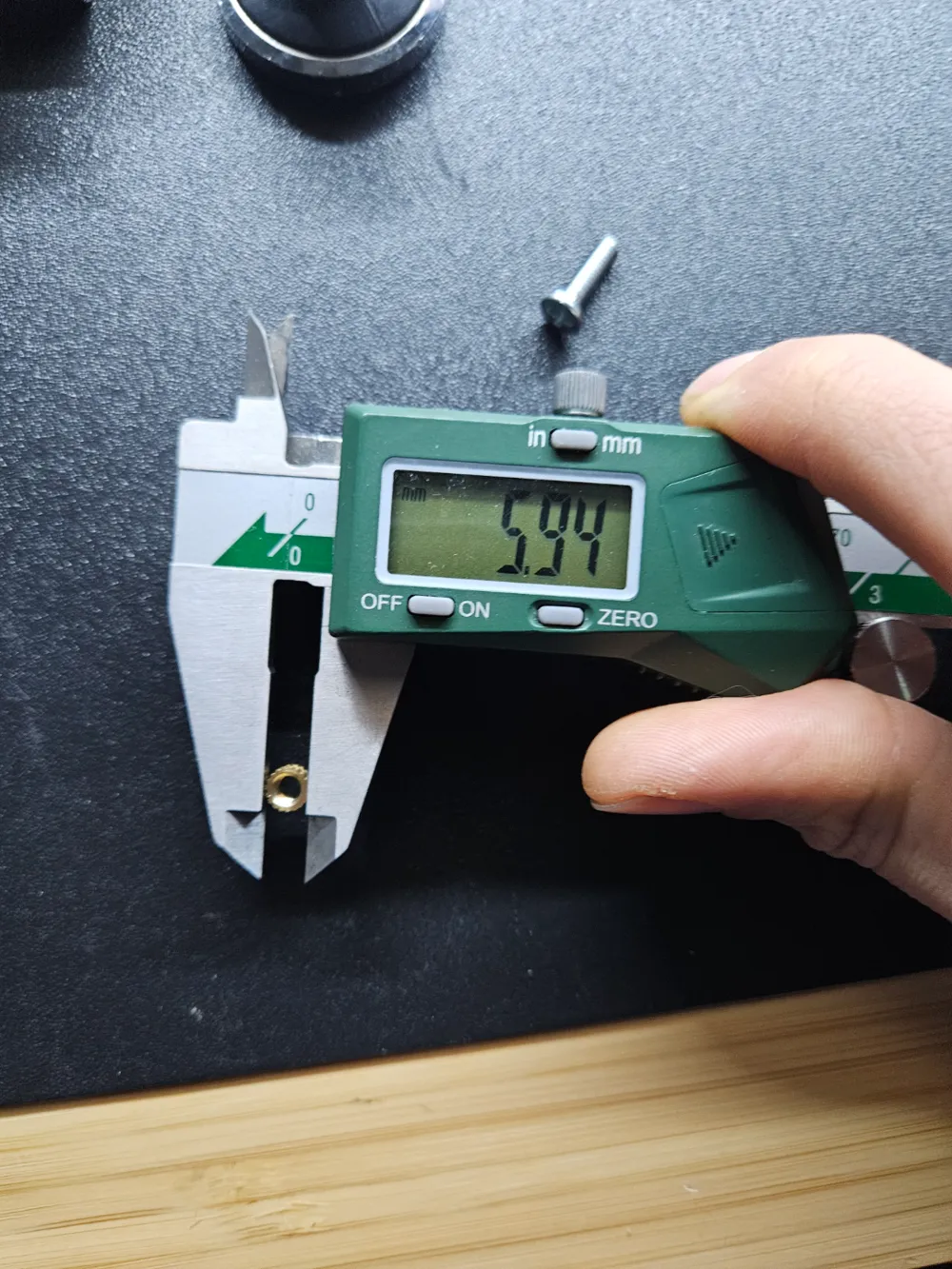

2x m3 threaded insert
