Ancient Chinese Broad Lock (Guǎng Suǒ), weighing only 22g
Print Profile(1)
Description

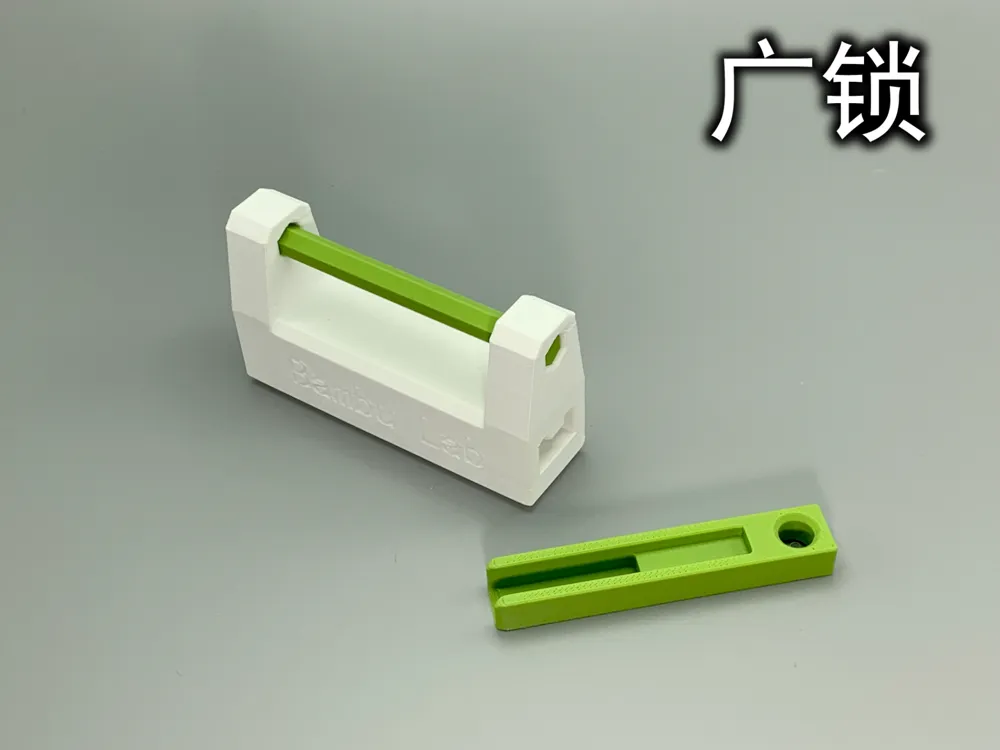

This model is a representation of a lock, complete with a functional key. Dimensions: 70*20*40mm.
It boasts a swift printing time, minimal support structures, and delightful playability.
Features:
- Ingeniously designed for seamless, single-piece printing with minimal parts and supports.
- The key inserts smoothly to unlock the mechanism and eject the locking pin—a user-friendly design.
- Print one to explore its mechanics, as an educational toy for children, or a decorative piece.
- Once locked, the locking pin cannot be removed without destructive force.
*The term "Broad Lock" (Guǎng Suǒ) refers to a horizontally oriented lock. During the Guangxu reign of the Qing dynasty, numerous such locks originated in Shaoxing, leading to the alternative name "Shaoxing Lock." Commonly known as "horizontally opening locks" or "pillow locks," these locks, dating back to the Tang dynasty, were extensively used for doors, chests, kitchen cabinets, and more, with over one hundred variations. This model is a simplified rendition of one type, incorporating minor design modifications. We hope you appreciate this model!
