Extraction Shoe Drill Bit Socket Countersink
Print Profile(1)
Description

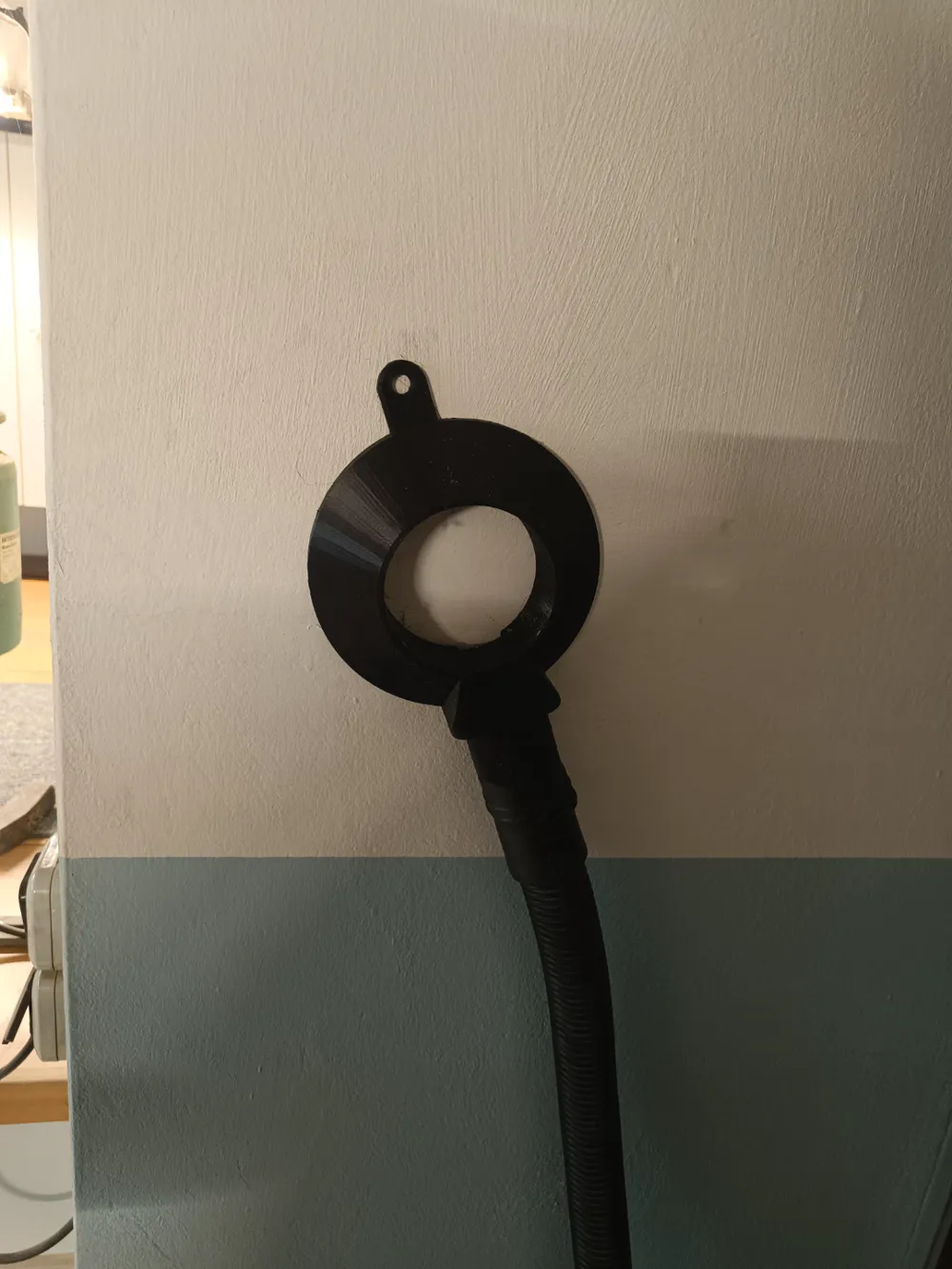

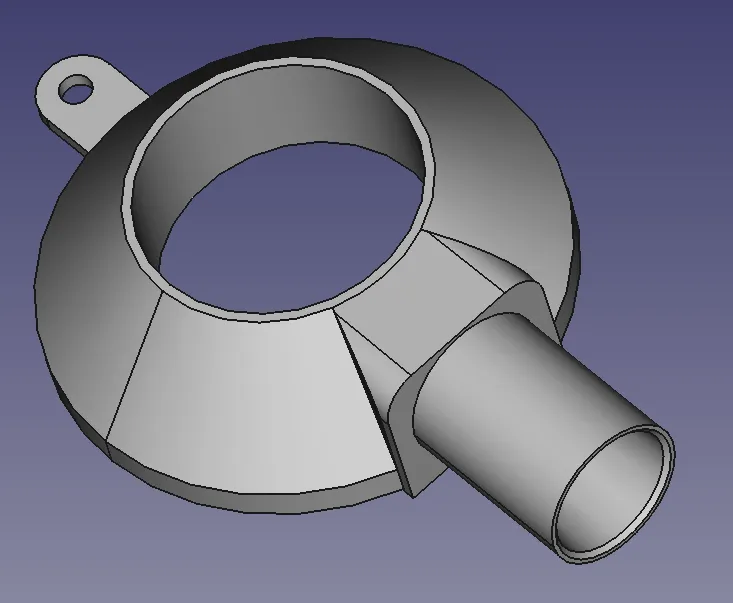

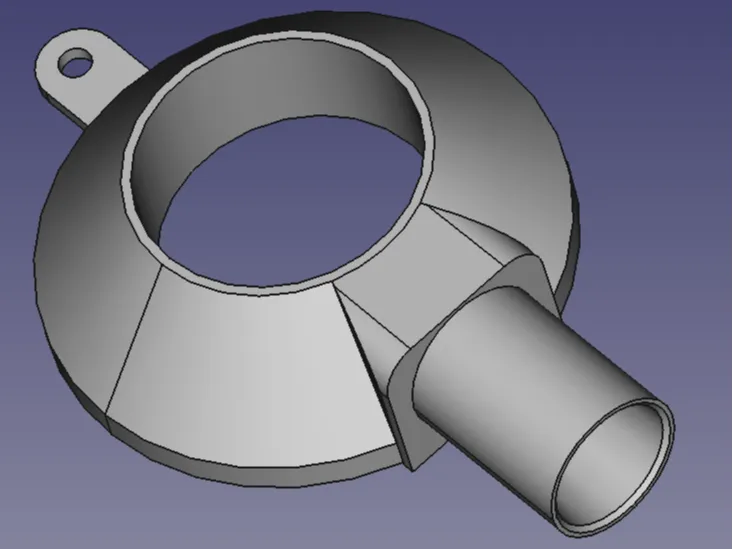

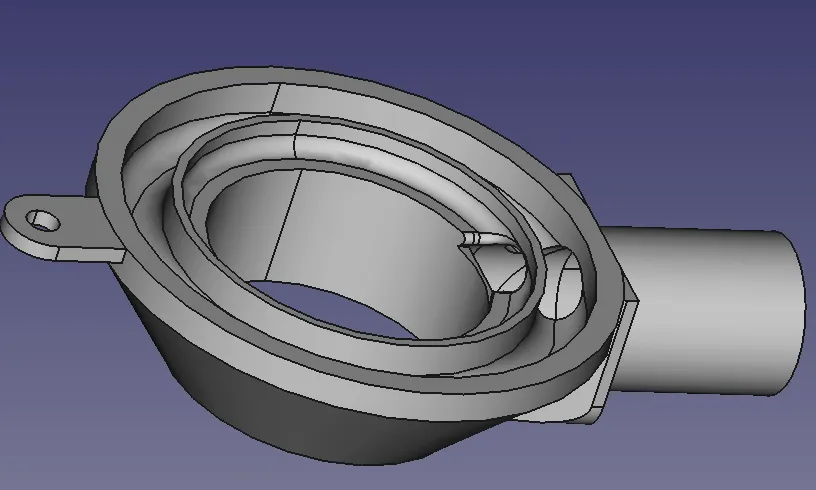

Self-priming dust extraction shoe, ideal for installing sockets or flush-mounted boxes
The upper tab is a kind of safety tab or for securing the dust extraction shoe with a nail if the wall is too uneven
On a normal sand-lime brick wall, the dust extraction shoe holds even without a nail - even with a cordless vacuum cleaner
Suction connection: 41-41.4mm (if the vacuum cleaner is a bit thinner, I secured/sealed it with gaffer tape)
Drill hole: 85mm
Note: If your vacuum cleaner has a tapping function (filter cleaning), switch it off
Further/more detailed information upon request
