Description

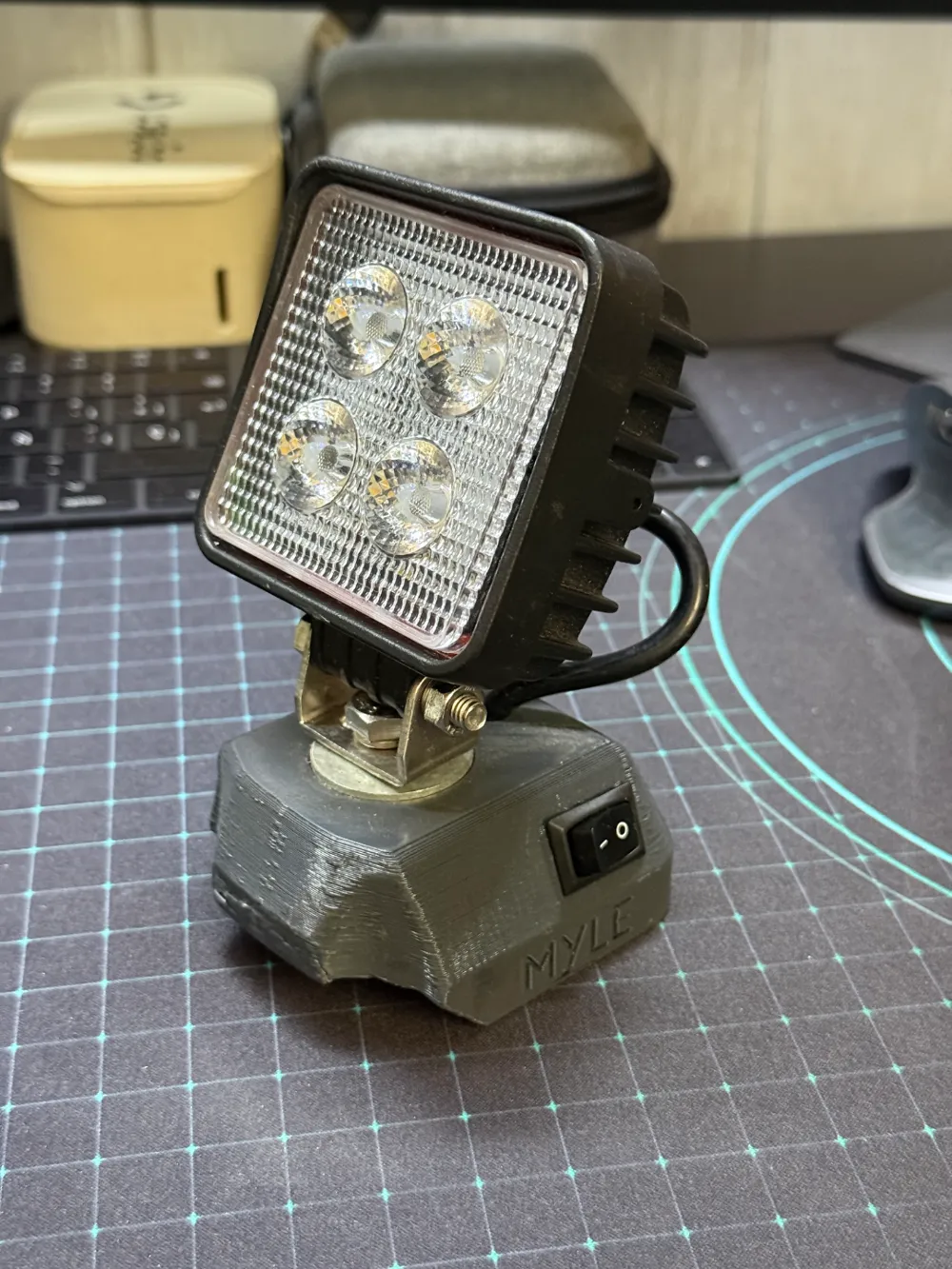

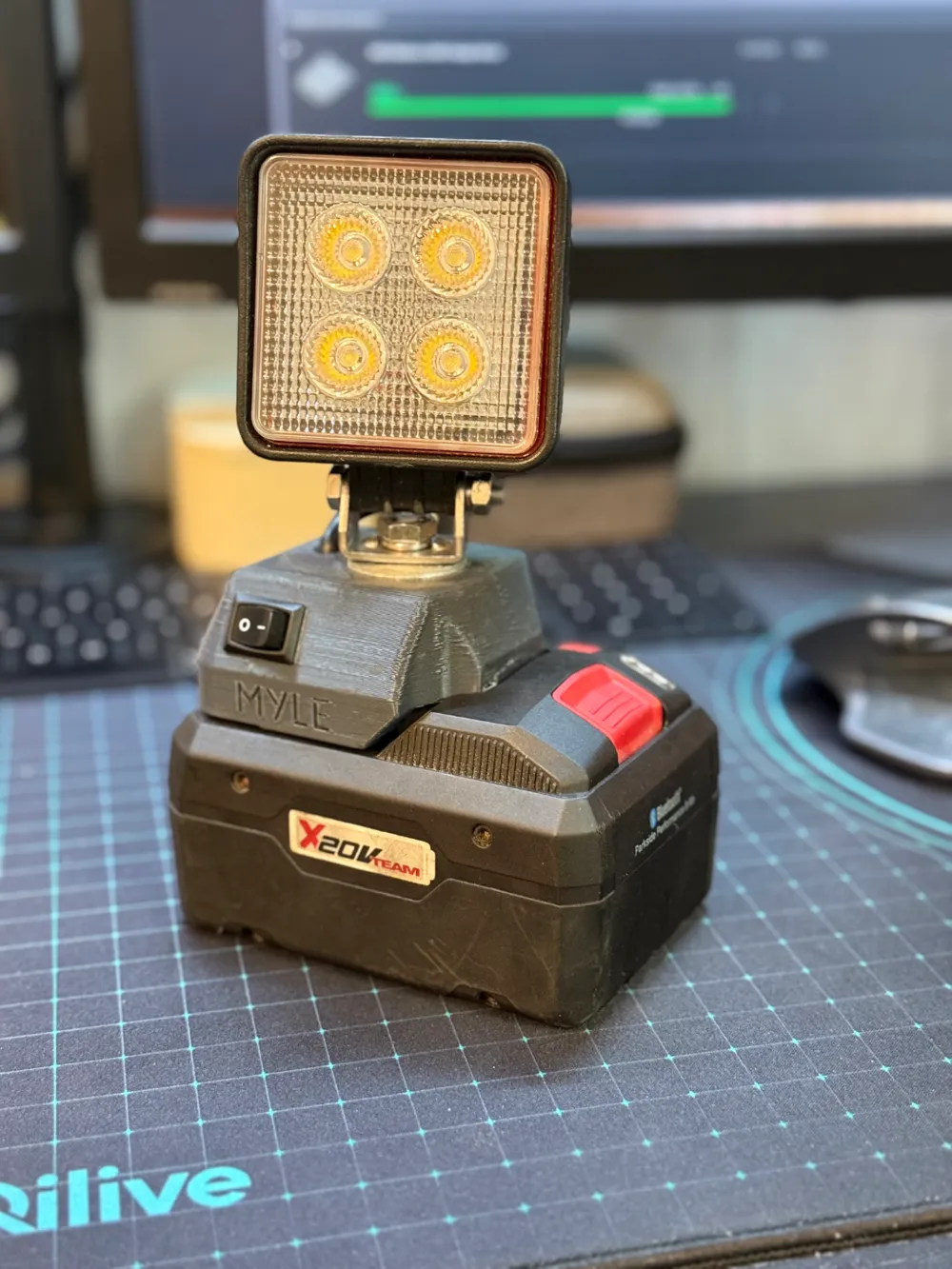

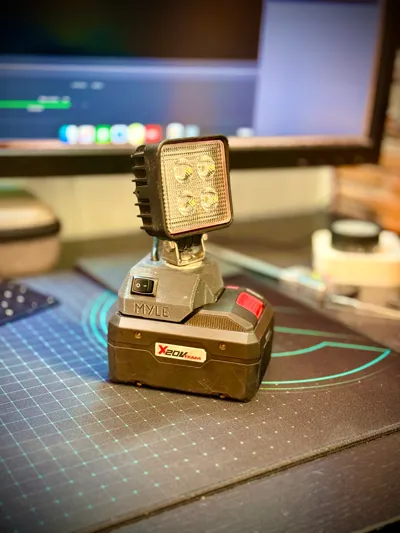

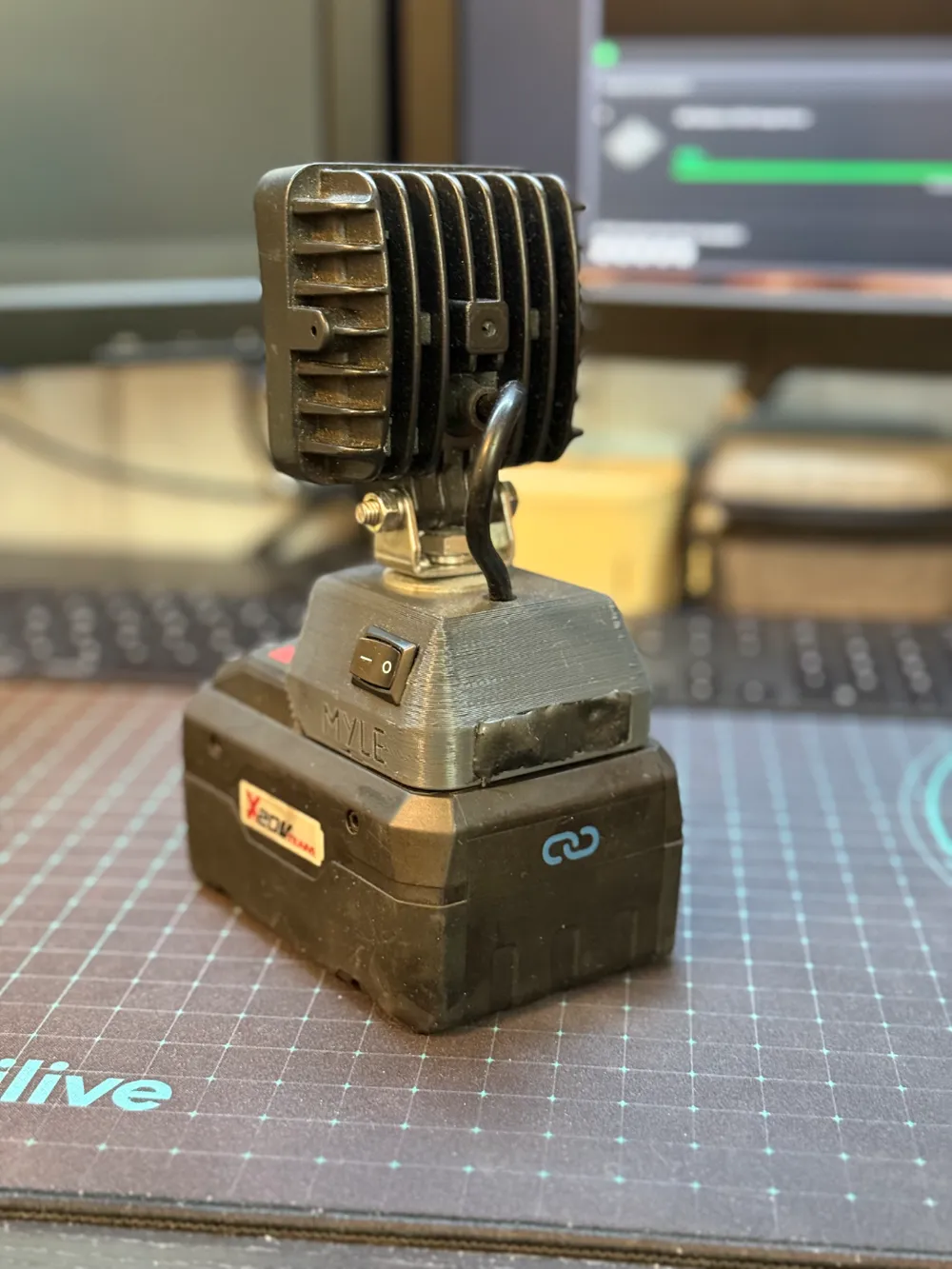

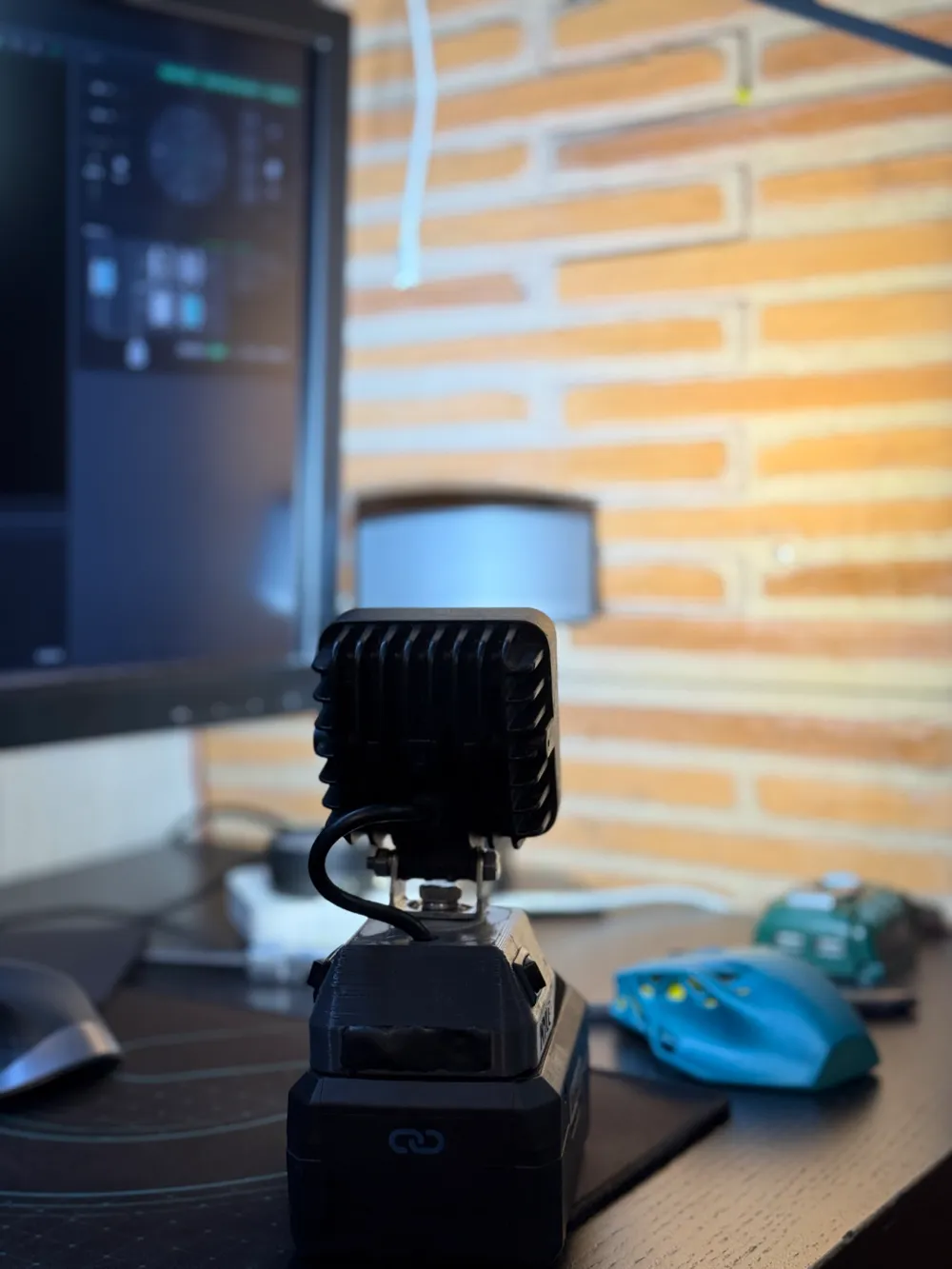

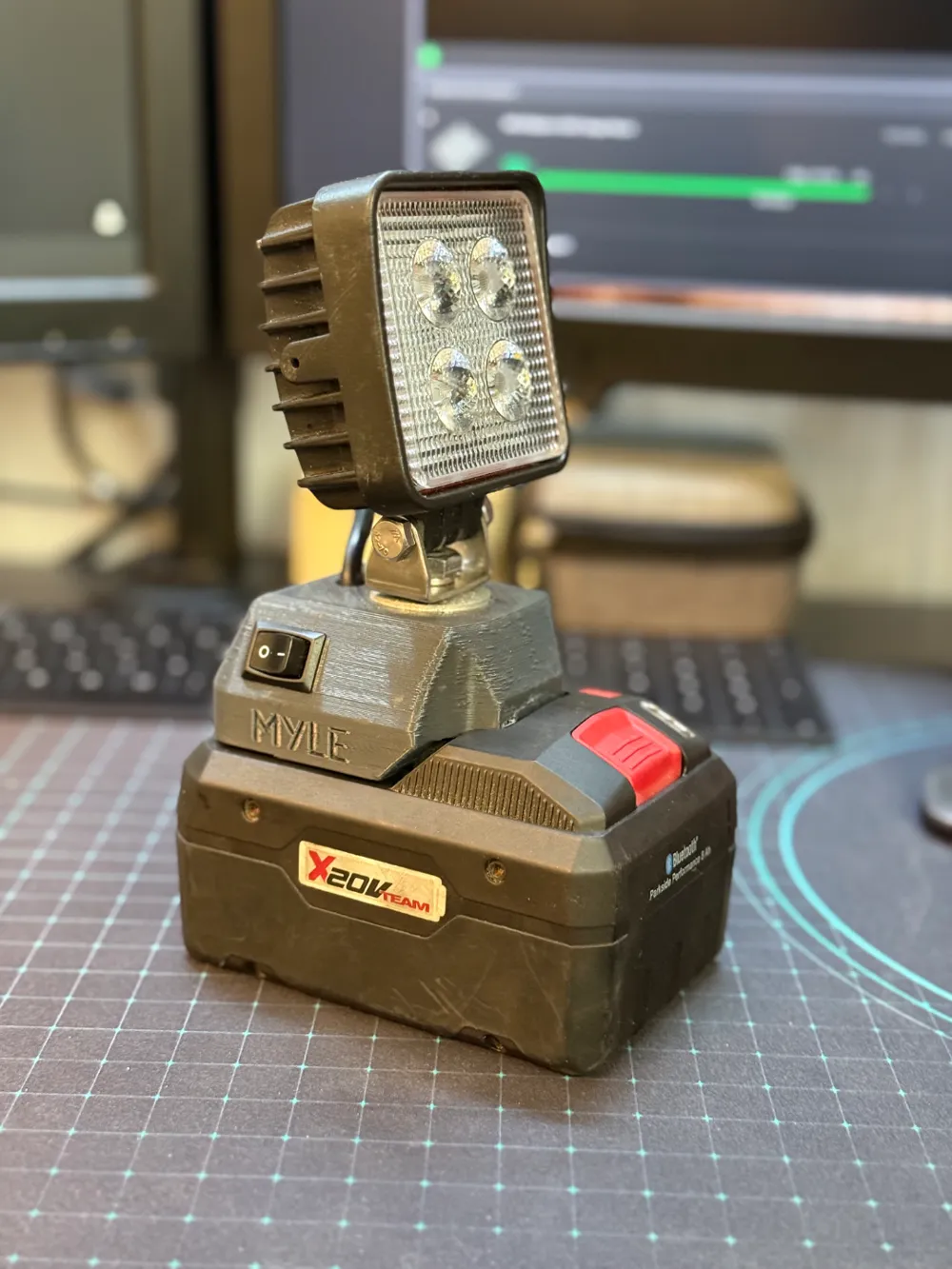

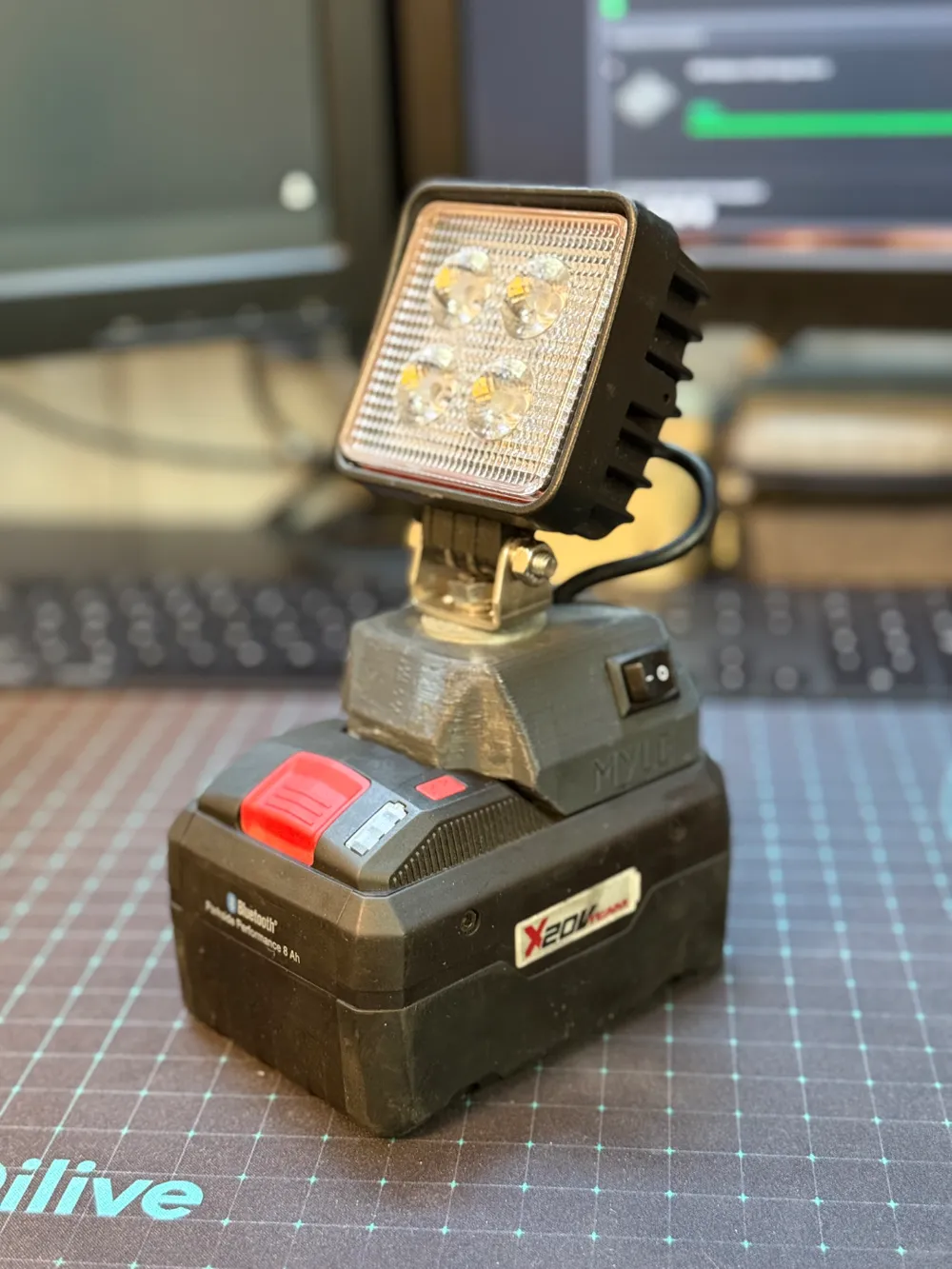

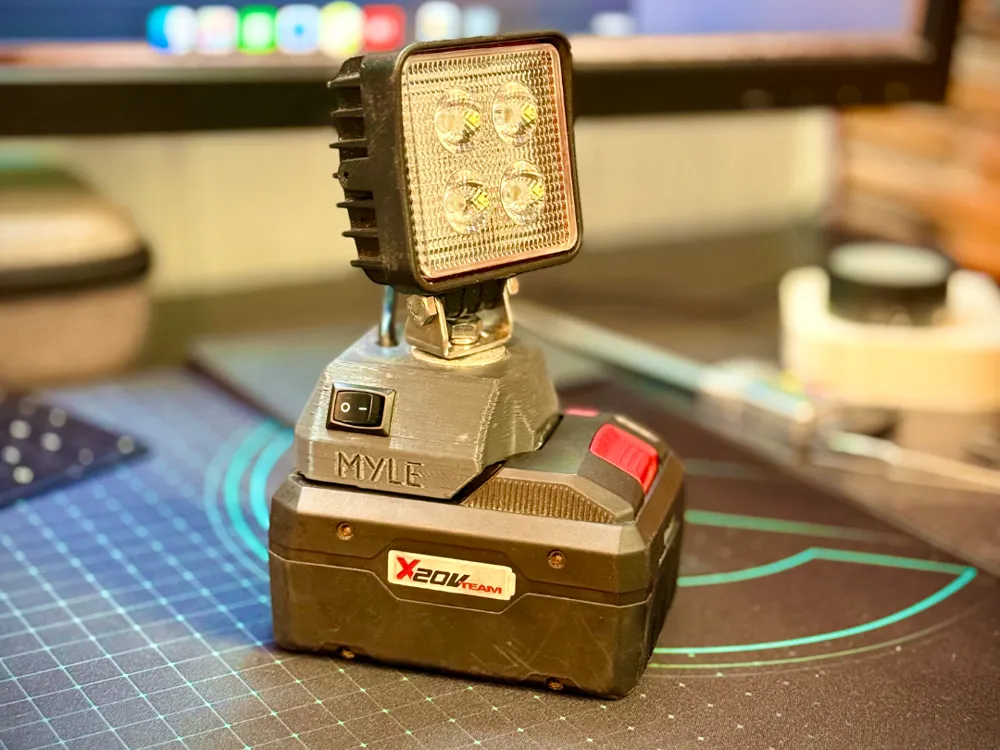

This is a little adapter to mount any worklamp with M8 Screw to a Pârkside battery.

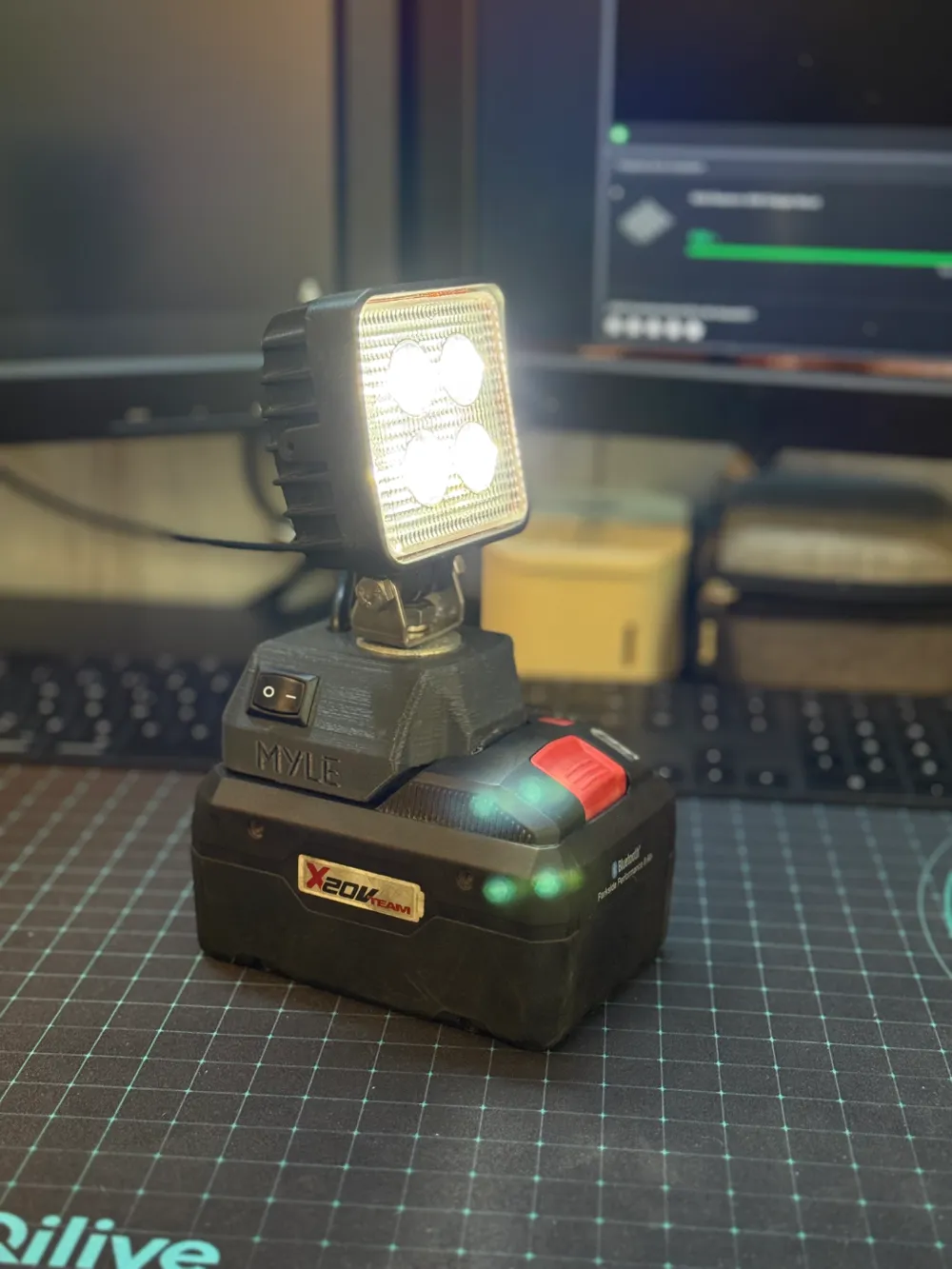

It´s designed to work with 2 rectangular regular switches. in my case each side control the temperature colour of the worklight, as it have 3000k, and 6000k power imputs, so if both switches are on the light would be more powerfull and arround 4500k
You will need:
M8 nut
M8 Screw
M8 Wide Washer
2 x Male Faston terminals
2 x rectangular switches.
Material is up to you but is recommended to print in some strong material.
PLEASE NOTE THAT IF YOU CONECT THE LIGHT DIRECT TO THE BATTERY THERE IS NO UNDER VOLTAGE PROTECTION SO YOU COULD DAMAGE THE BATTERY IF FORGET TO CHECK BATTERY STATUS OR FORGET TO TURN OFF THE LIGHT.
