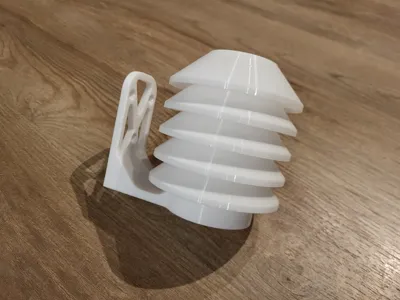

Universal cage for meteo sensors with 2 diferent sizes and 3 types of mount, easy to print!
Use PET-G for good resistance to weather conditions.

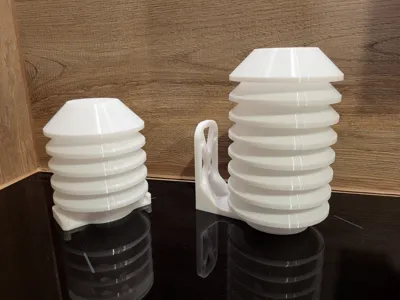

Bigger cage has 140mm deep and 45mm diametr hole for sensor. Cage external dimension: 90mm diam. x 145mm long + mount.
Smaller cage has 95mm deep and 45mm diametr hole for sensor. Cage external dimension: 90mm diam. x 100mm long + mount.
Hanging mount needs one screw M4x25, one pad and one M4 hex nut.
Other mount types don't need screws.
Flat and hang mounts can be easy fix with clamp band to balcony railing, band max 8mm width.
The thread is quite tight for a better fit and not to unscrew on its own.
