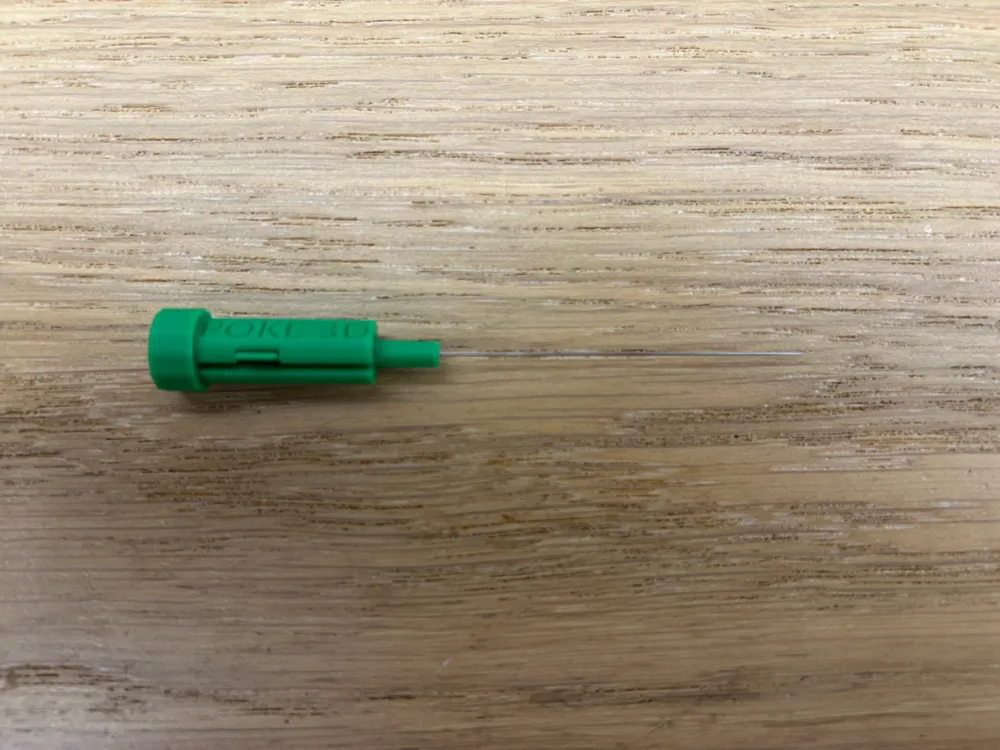

POKE 3D - Unclogging tool for nozzle cleaning

Holder for needle used for nozzle cleaning.

All you need is a needle!

Improved grip for better handling.

Due to it's design the needle can easily be used.

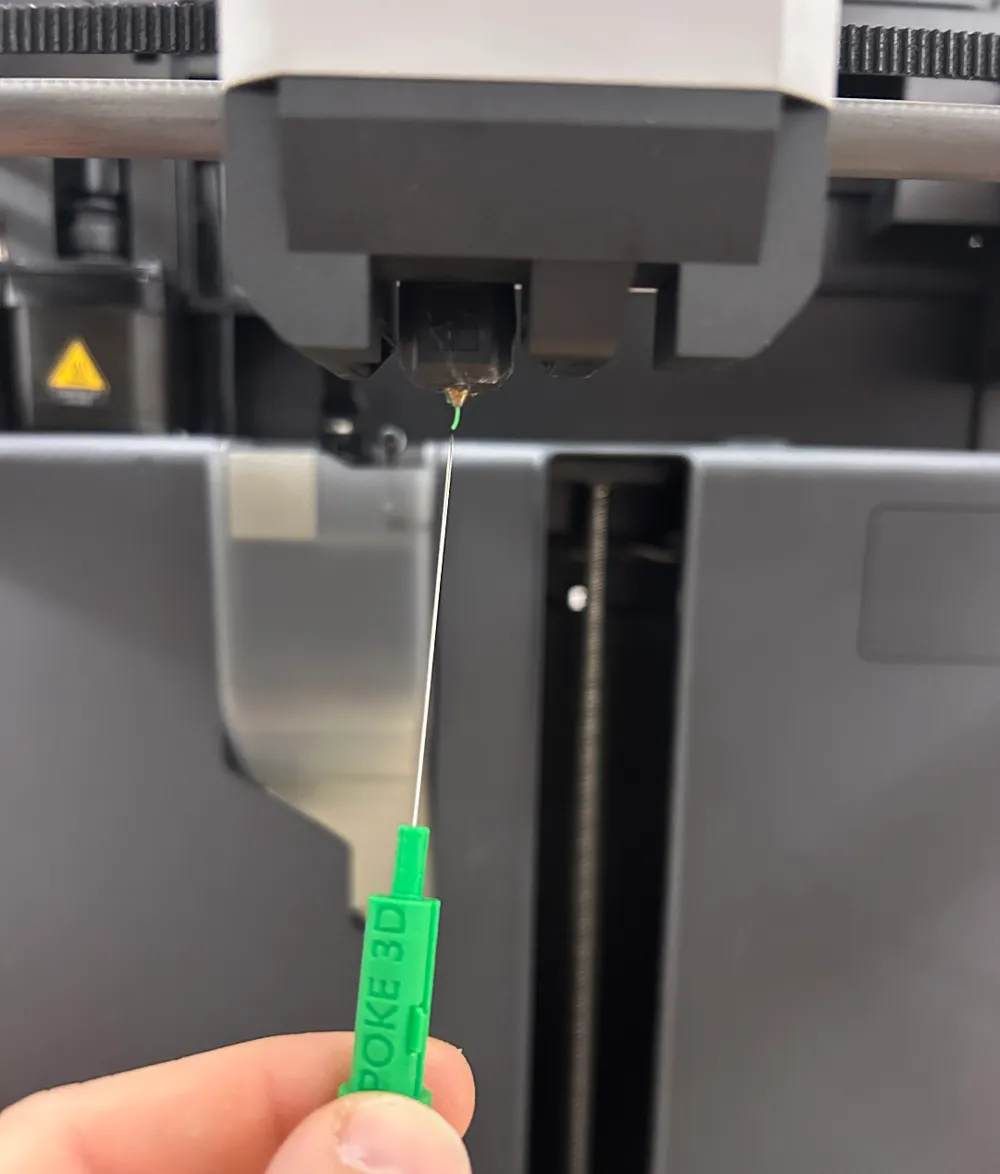

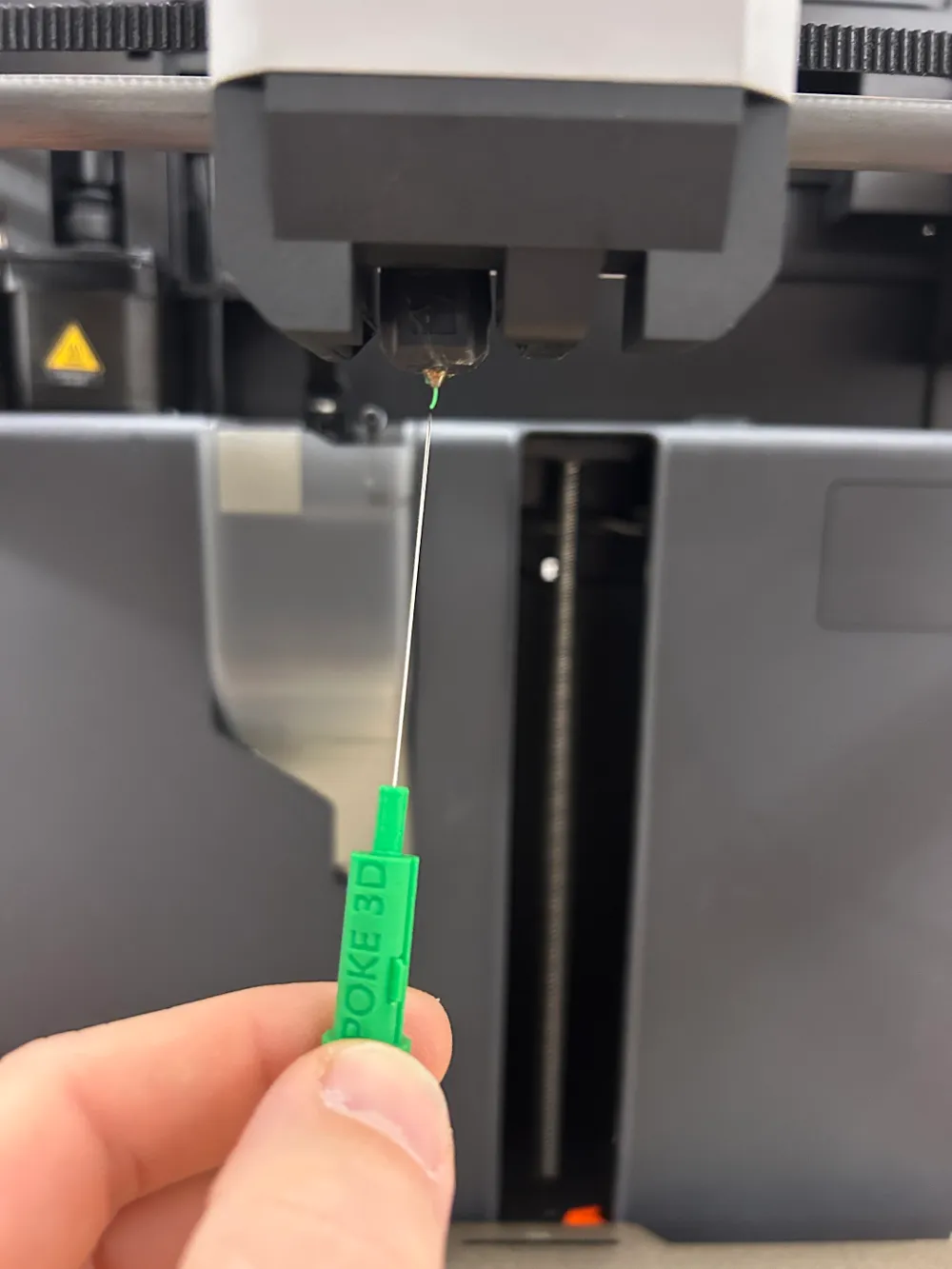

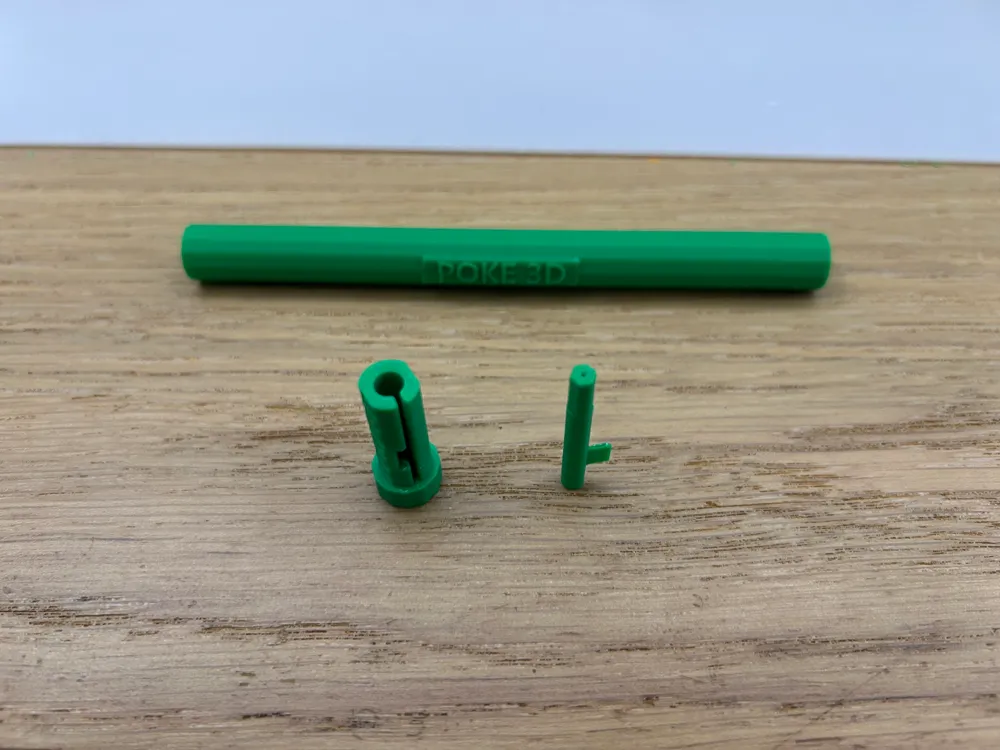

Just push it in and secure it with the little lever.

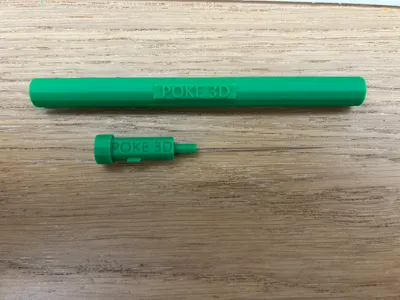

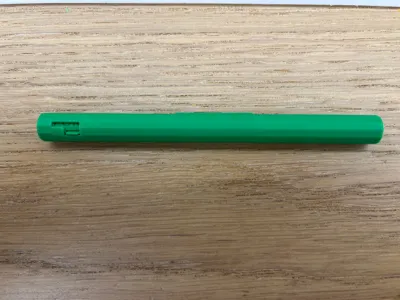

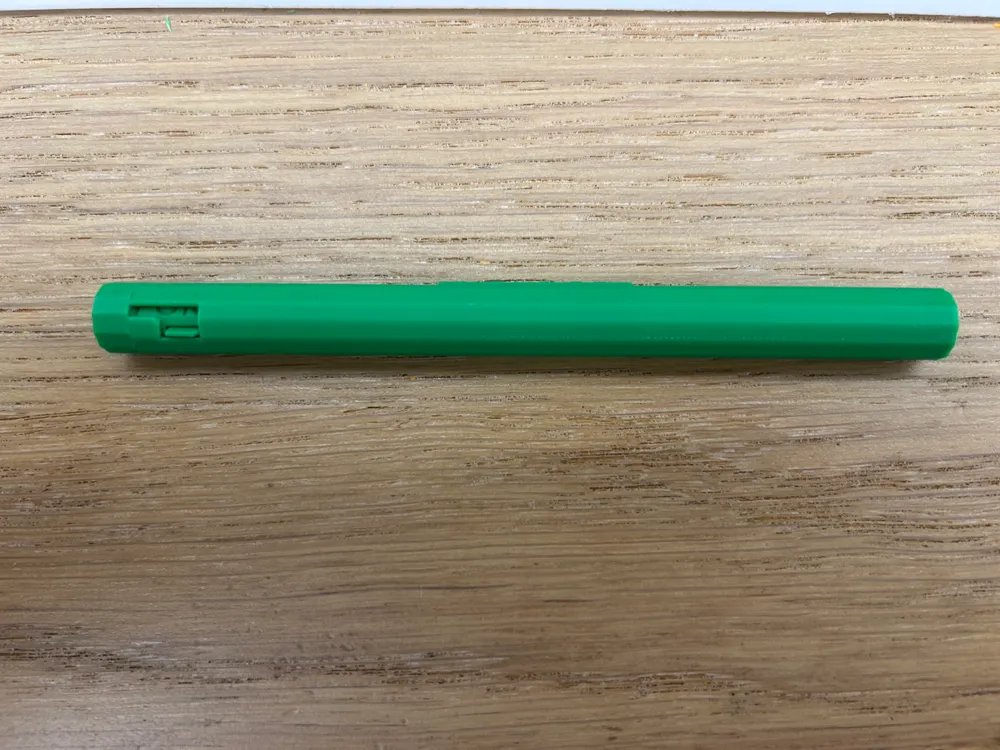

For storage, a protective cover is also provided.

Capable of needles up to 100 mm / 4 inch (130 mm / 5.11 inch including grip (spiral at the end), needle diameter up to 0.4 mm / 0.016 inch).

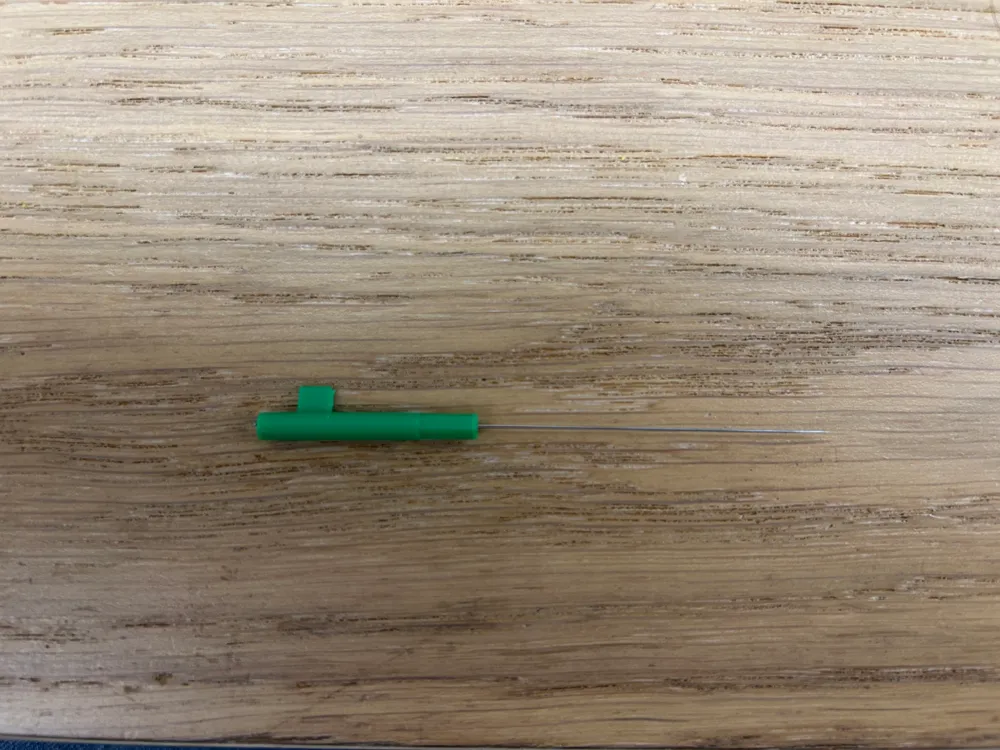

Base dimensions of needle grip (approx.): Length 29 - 30 mm (1.14 - 1.18 inch), diameter 1.5 - 1.6 mm (approx. 0.06 inch).

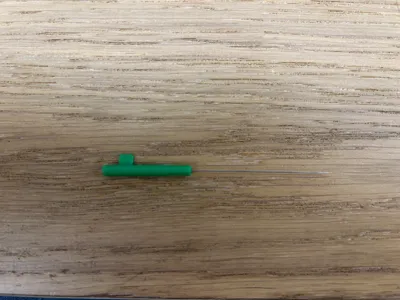

If the hole at the bottom of the small key-shaped part is not visible after printing, it can be easily poked through with a needle.

I recommend printing in a durable, temperature resistant material like PETG.

Alterations of the model (length, diameter,…) will be made available upon popular demand.

Disclaimer:

Handling of sharp/tip pointed objects (like needles) can be dangerous.

Pay special attention and take safety precautions to avoid any harm when handling those objects.

I am not liable for any injuries/damages due to improper use and/or careless handling.
