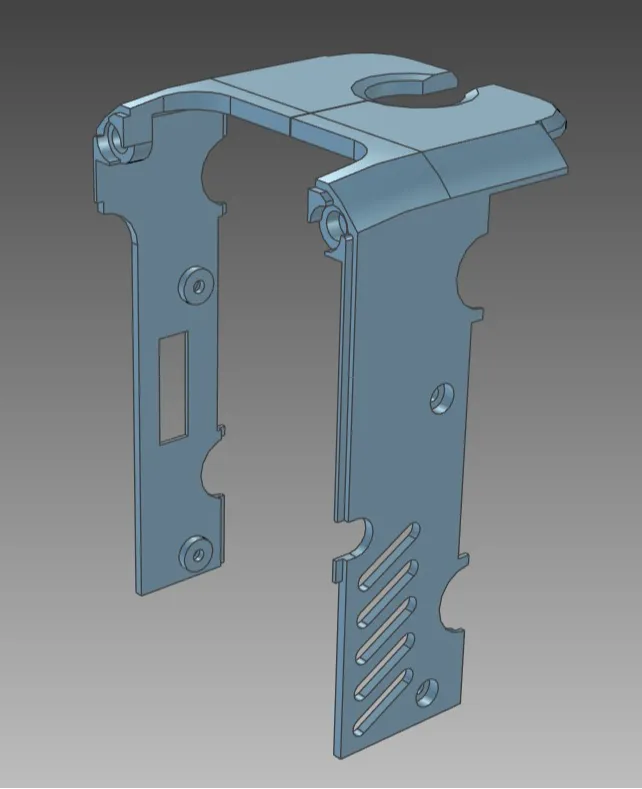

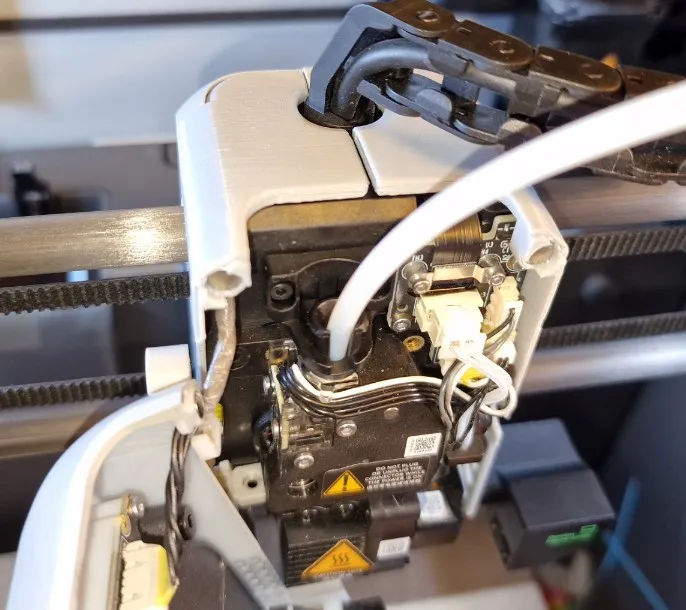

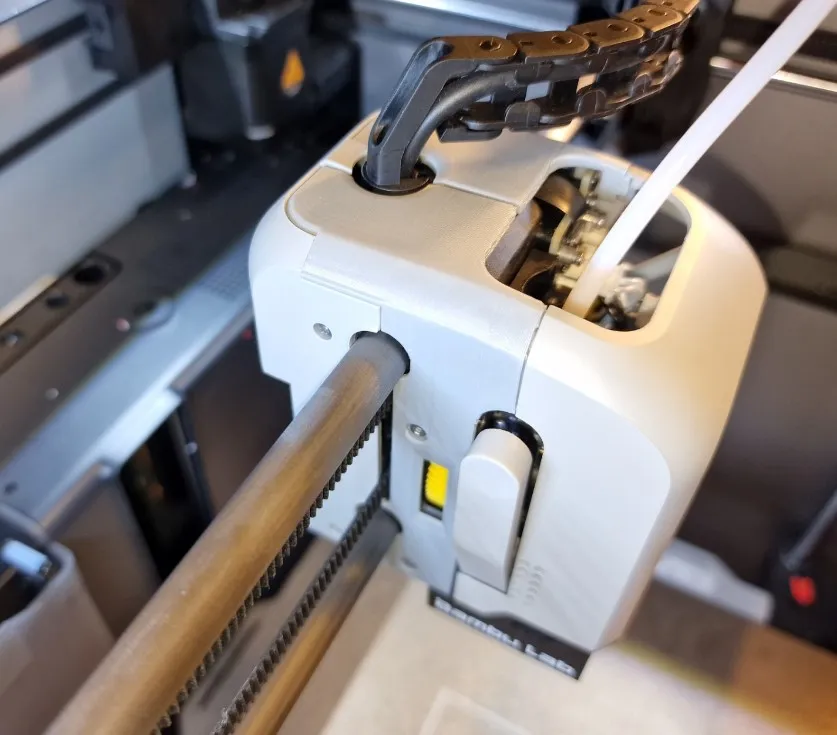

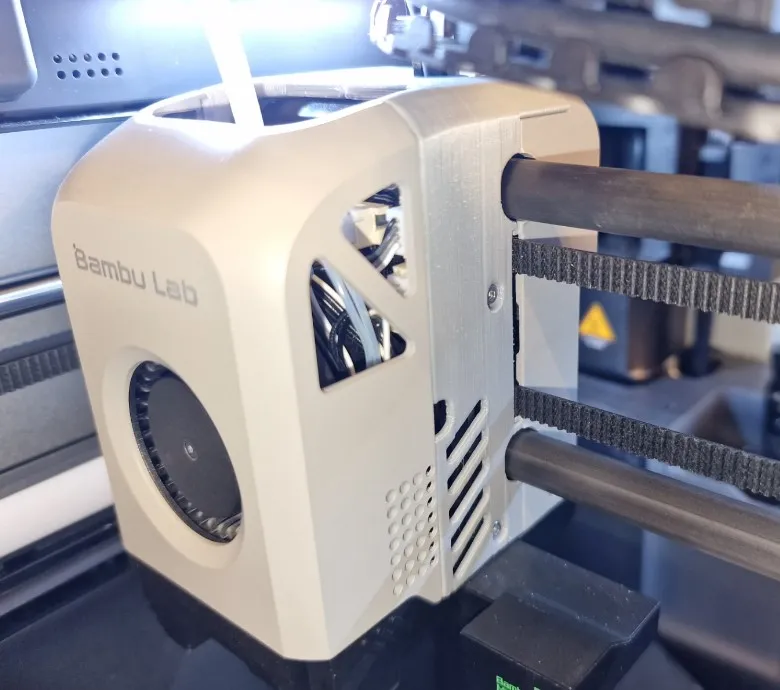

Middle cover of X1 toolhead; this is not a copy or original part - but it suits and it's easy to print.

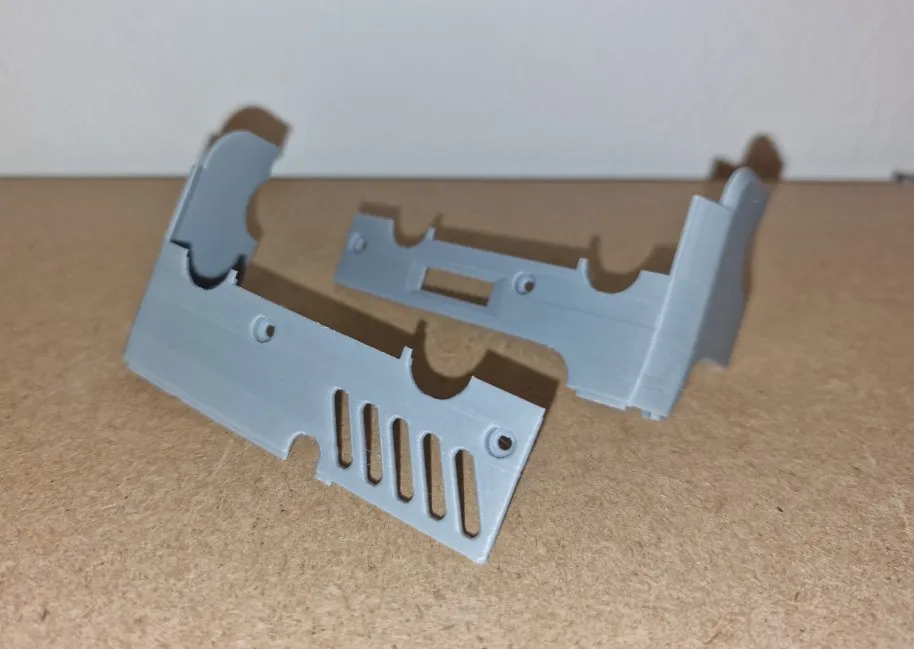

Cover is separated to 2 parts - left and right. It's easier to dis/mount. Also there is a hole to access screw for extruder spring.

Use some heat resistant filament; I have used ABS.

Originally there is a place for two 4x2 magnets. I have drilled some place for 5x1 and it's still working.

edit.

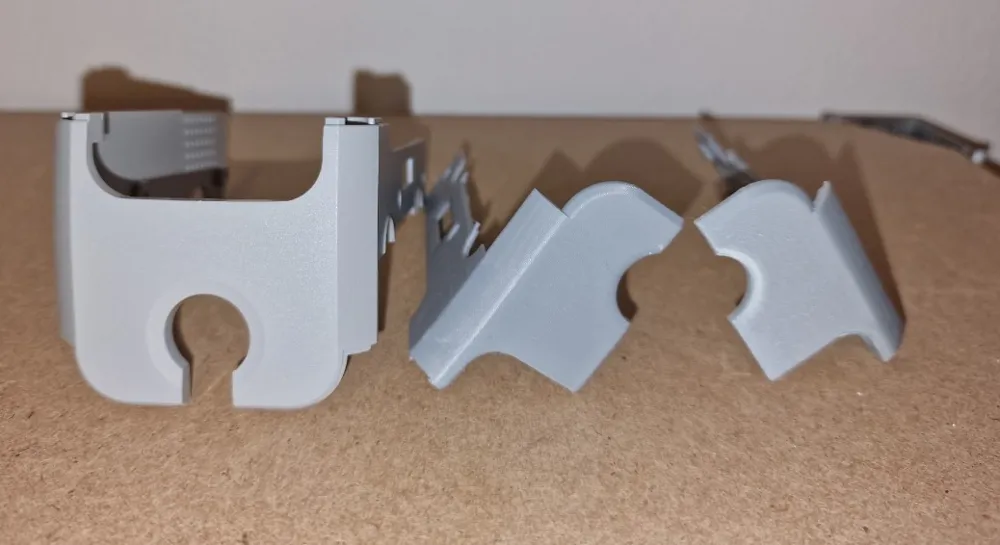

I have added version of cover as one piece. (It may be hard to mount it in place, as original!)

edit 2.

There is albo back cover: https://makerworld.com/en/models/986461#profileId-961272
