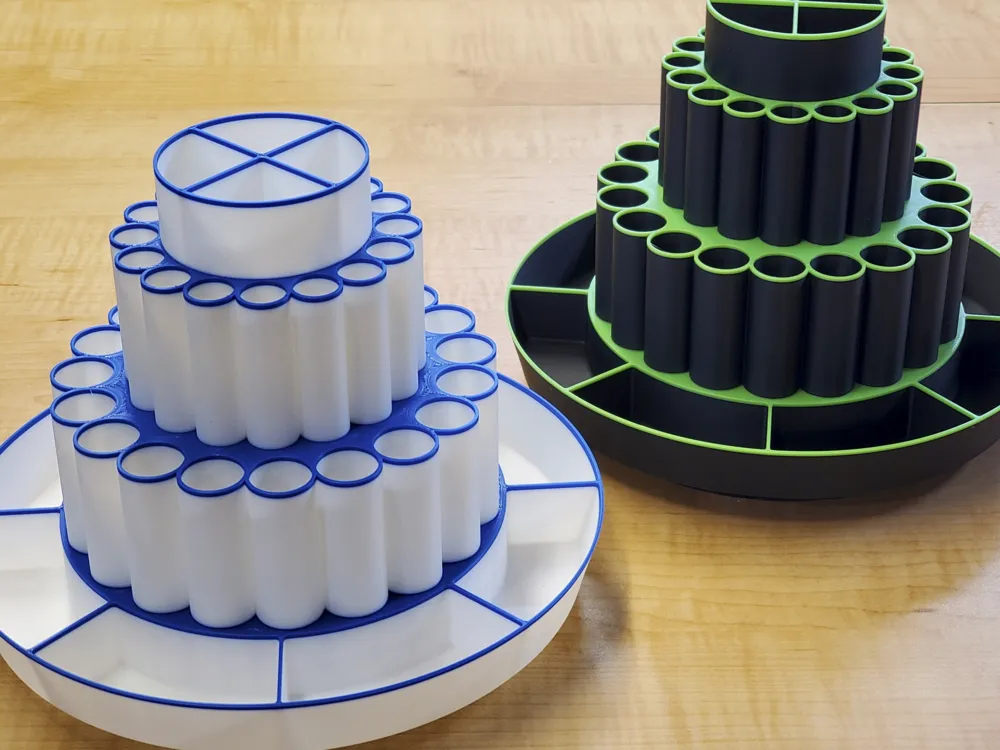

Several parts use special settings and these are configured in the object settings but they are noted below and in the print_notes.txt doc in the posted .zip file.The bottom base part needs supports on to support the screw hole bore. This is important as the screw is designed to leave the proper clearance with this bore when fully tightened. If it is not supported the sagging that would occur will interfere with the screw head and cause drag when rotating. The bottom and top base parts use manually set adaptive layer height to print the bearing surfaces with the finest layer height. This ensures that the slightly sloping bearing surfaces are printed with minimal stair stepping. The upper print surfaces of these base parts are also set to concentric pattern to again, ensure the bearing surfaces are as smooth as possible. The rollers need good bed adhesion to print reliably. They can be printed with brims if needed but it needs to be removed carefully and the rollers tested in the roller cage to be sure they roll freely without interference. The carousel prints in two colors as in the pictures set by filament changes in the layer view slider. If you want a one color print delete these layer changes on the slider after slicing and slice again. Best to save a backup file first in case you ever want to print the two color version.

0.2mm layer, 2 walls, 15% infill

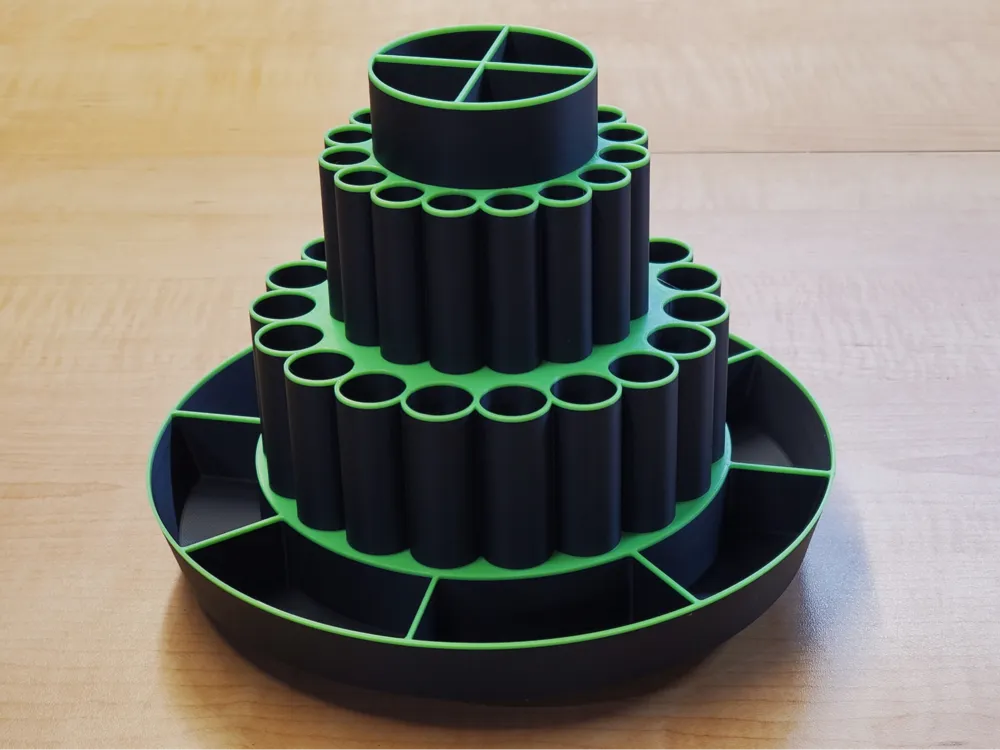

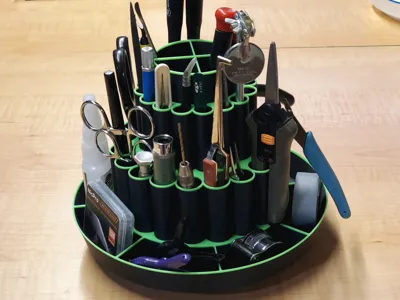

This is a carousel type tool organizer. It uses a large roller bearing in the base to provide smooth turning even with a heavy load. It can store and organize the paraphernalia of many hobbies and activities.  Several parts use special print settings. These are saved in the file but be sure to note them in the print profile section or the printer_notes.txt file included in the raw files .zip file. The assembly is easy needing nothing more than the printed parts and there is an assembly instruction document.
