Description

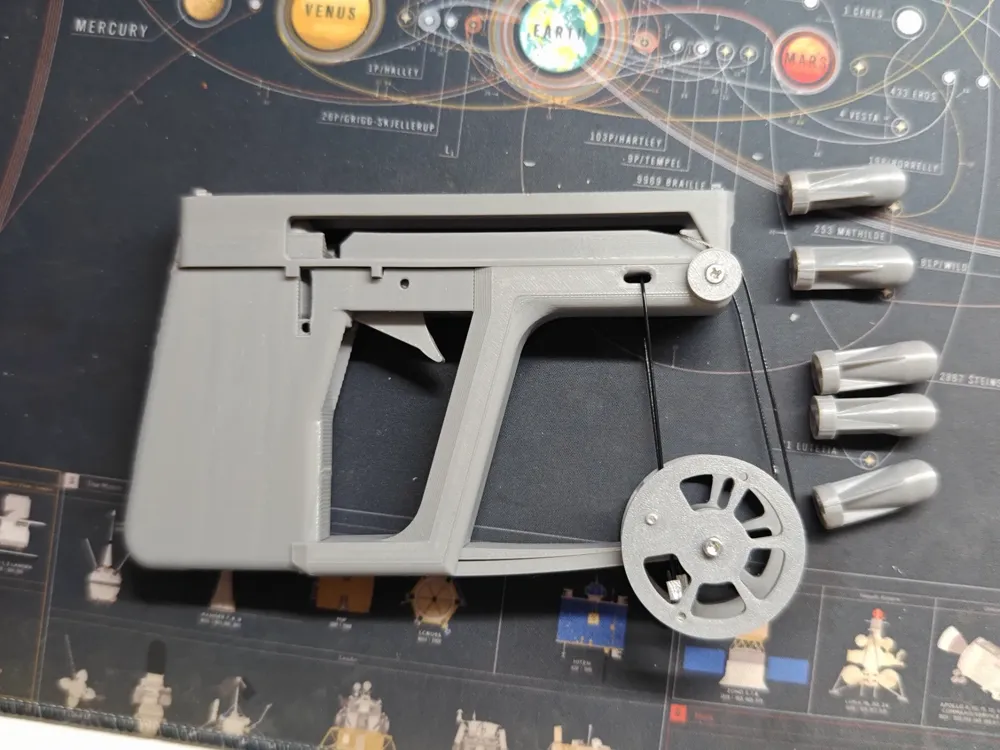

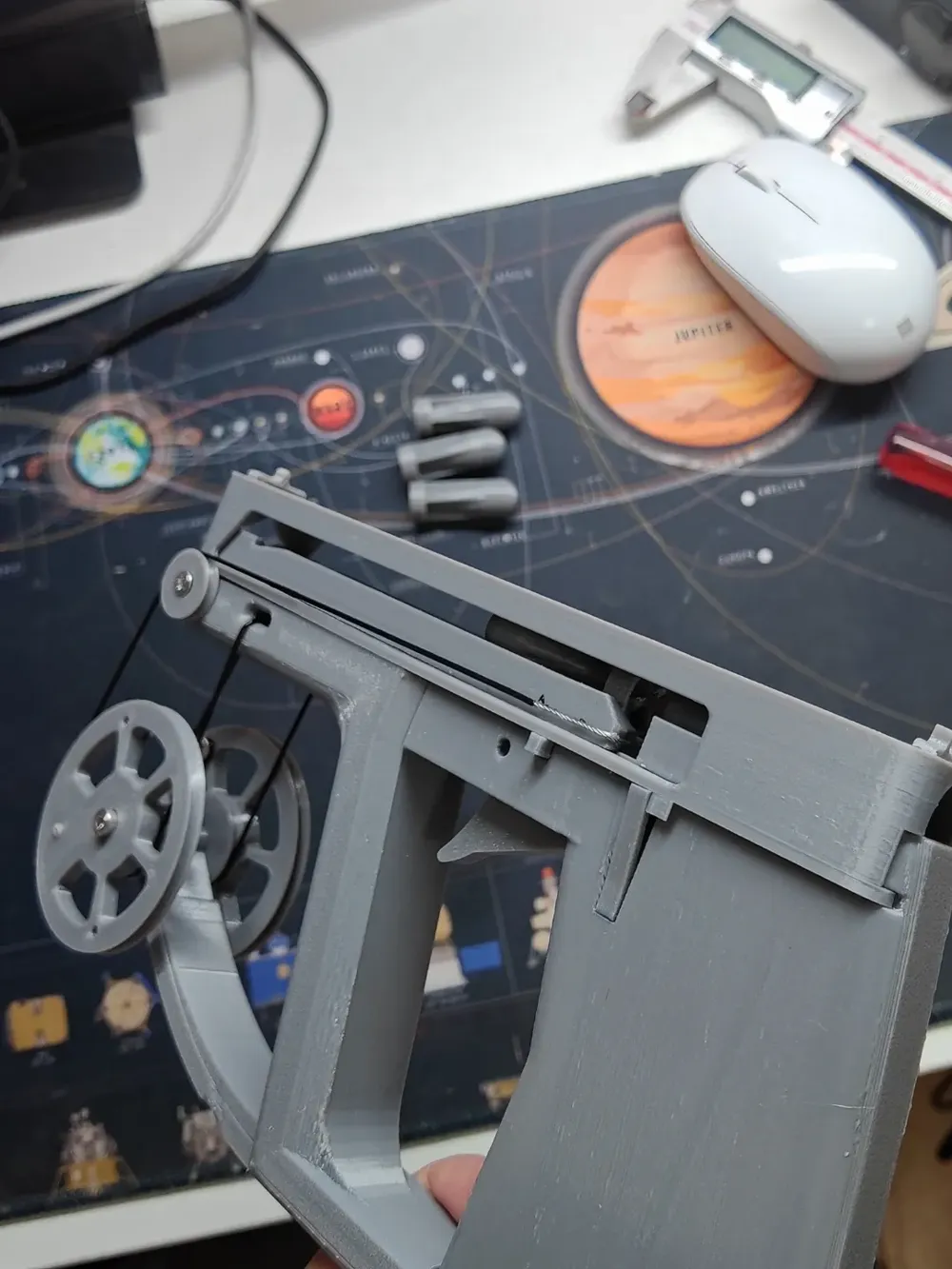

A soft egg launcher powered by a crossbow-style arm; lacking soft eggs, I designed my own based on a 13mm diameter and 36mm length.

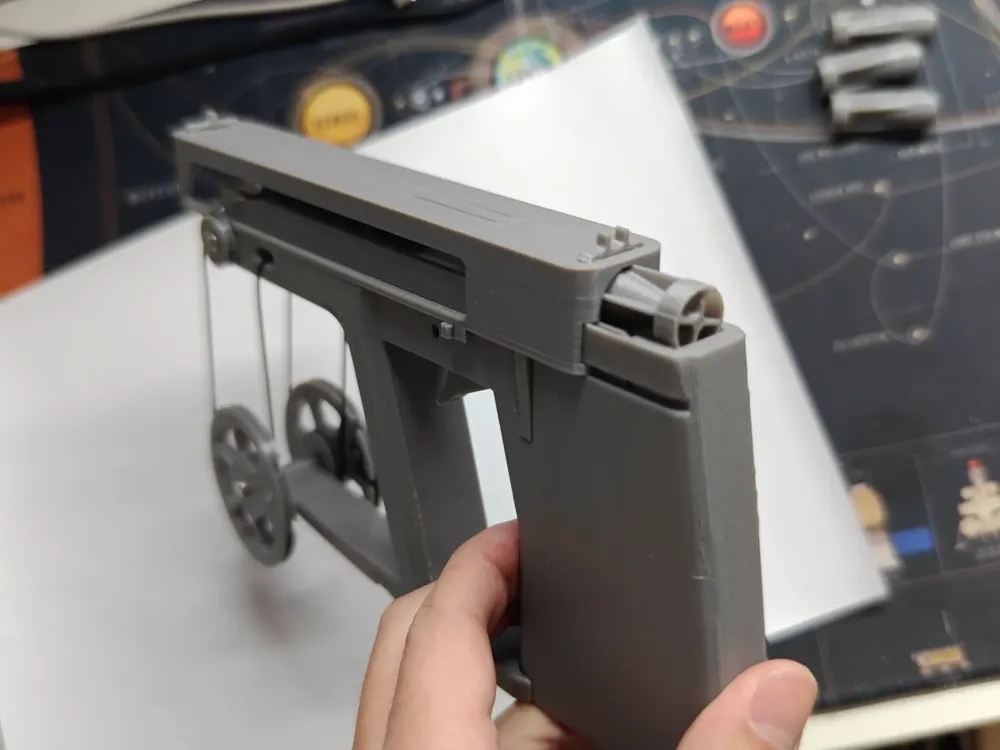

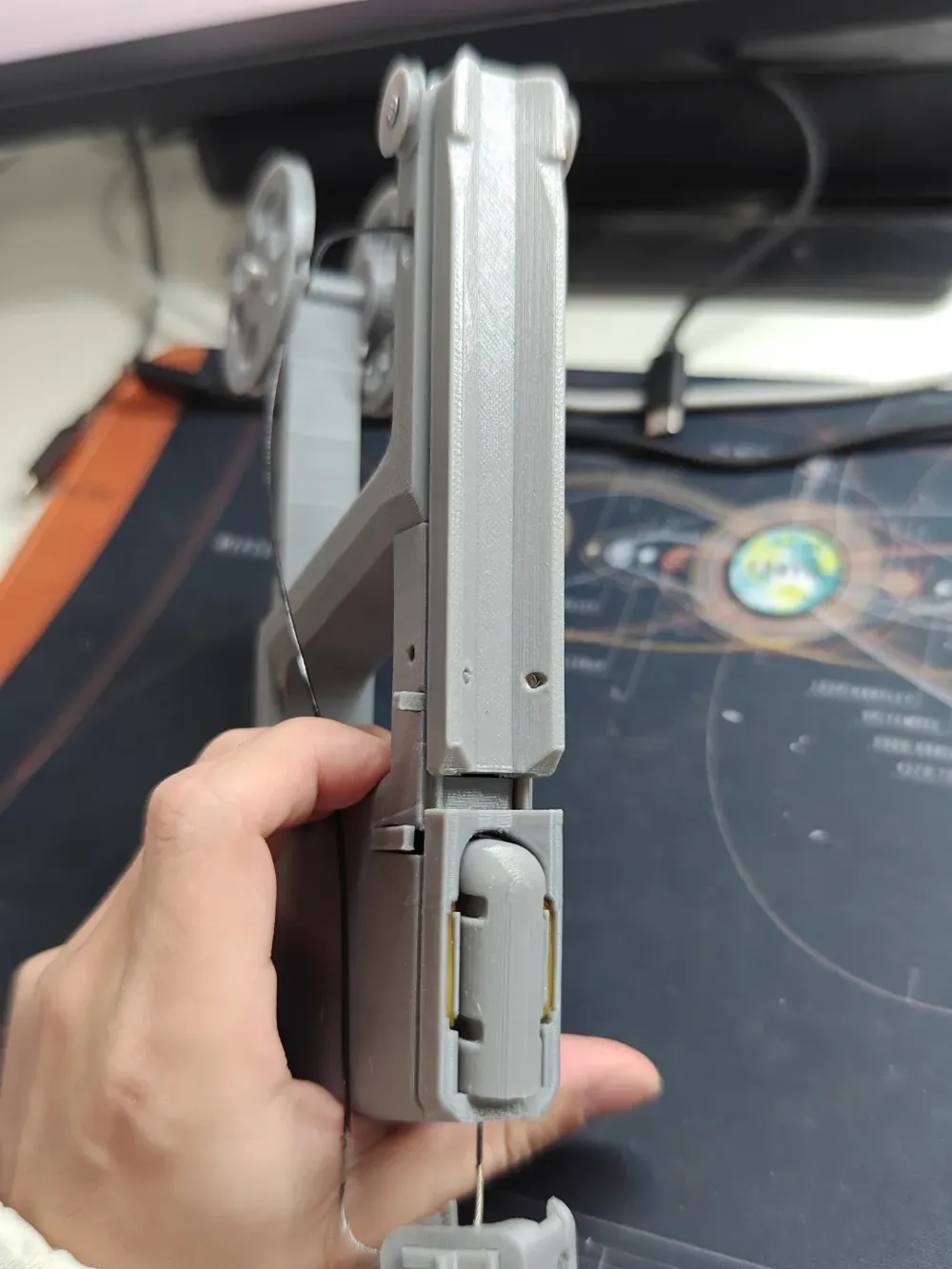

This launcher features a fixed magazine with a six-round capacity.

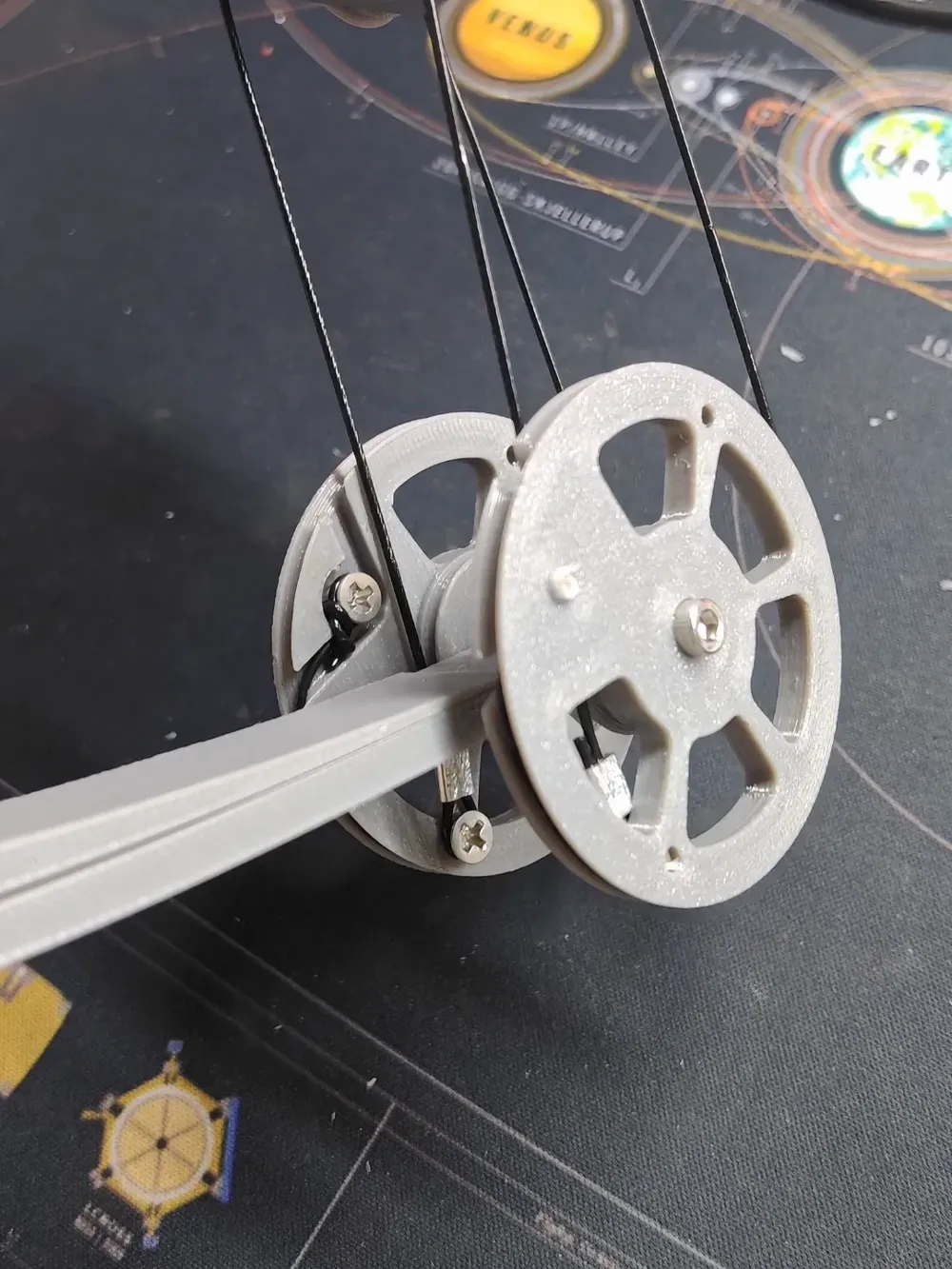

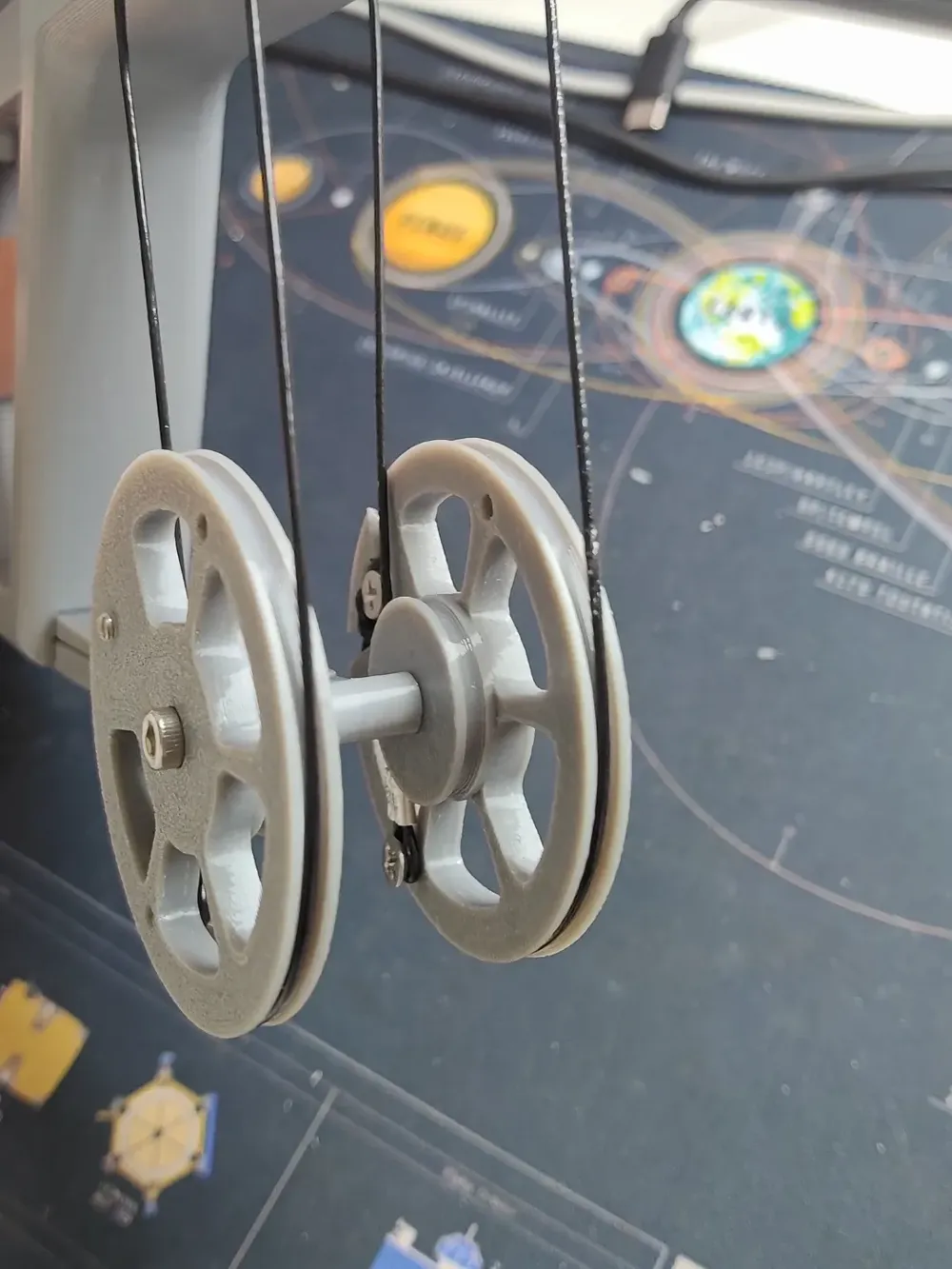

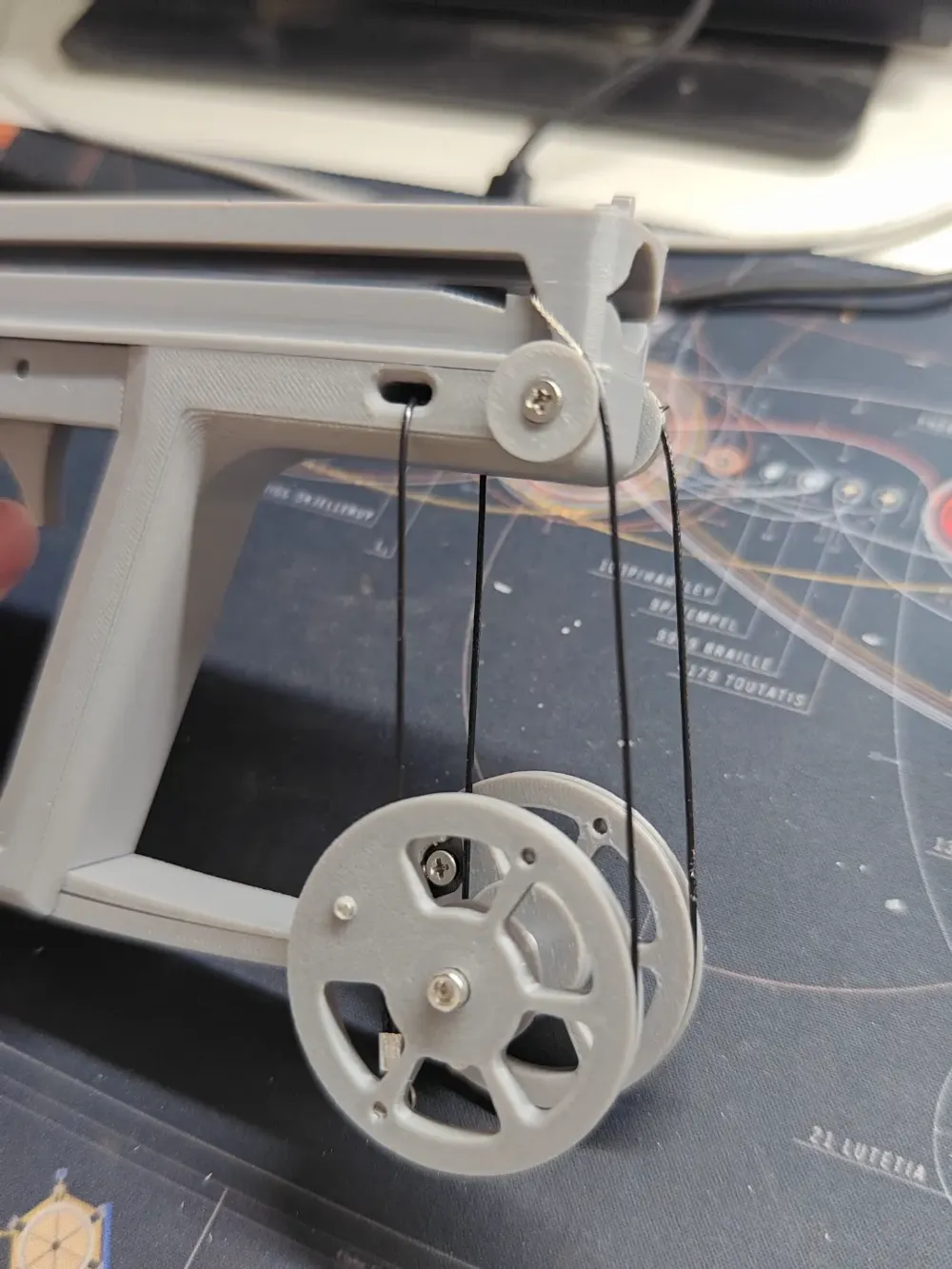

Additional accessories required: one rubber band (egg tray elasticity), four M3x5 countersunk screws (for securing the bowstring), two M3x10 countersunk screws (for securing the guide wheel), two M3x16 hex socket screws (for securing the lower receiver and track), four M3x12 hex socket screws (for securing the bow arm and pulley), and a bowstring approximately 1mm in diameter.

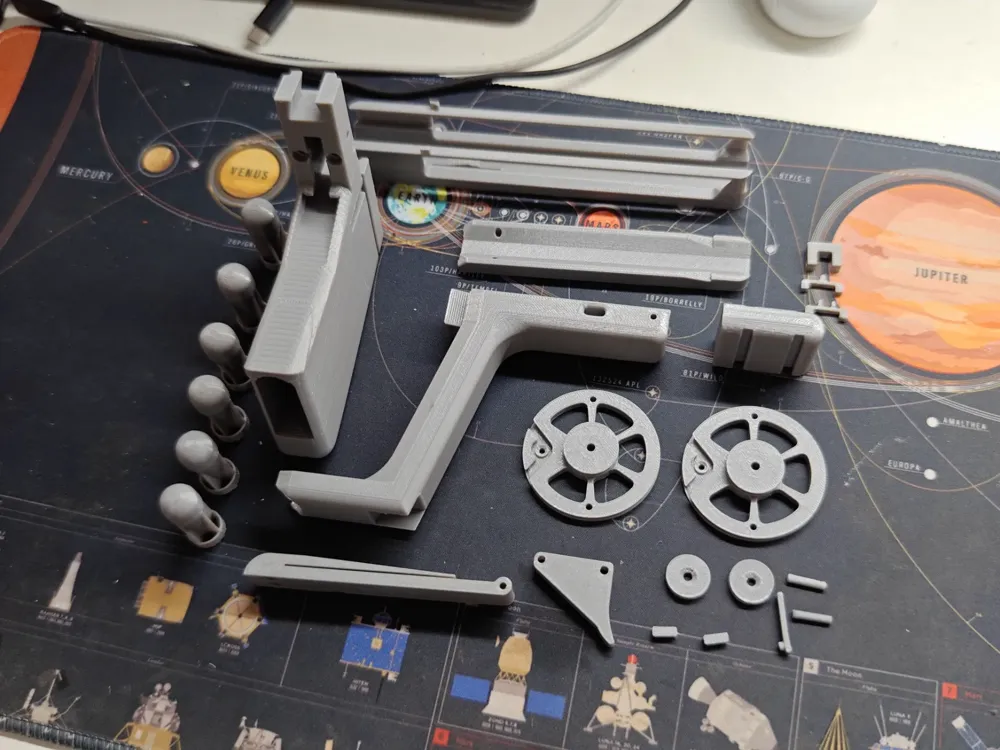

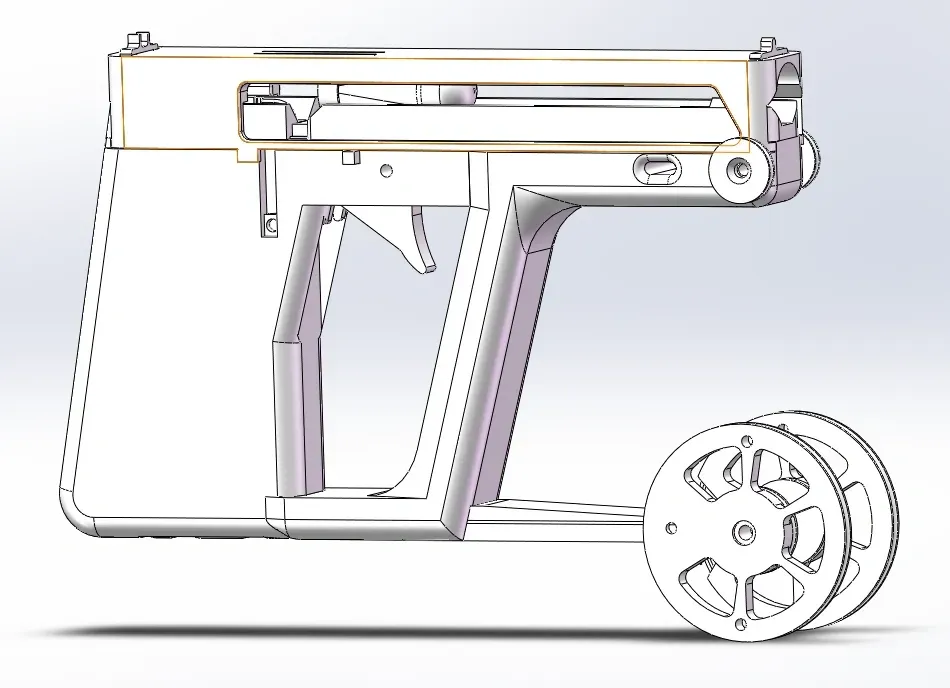

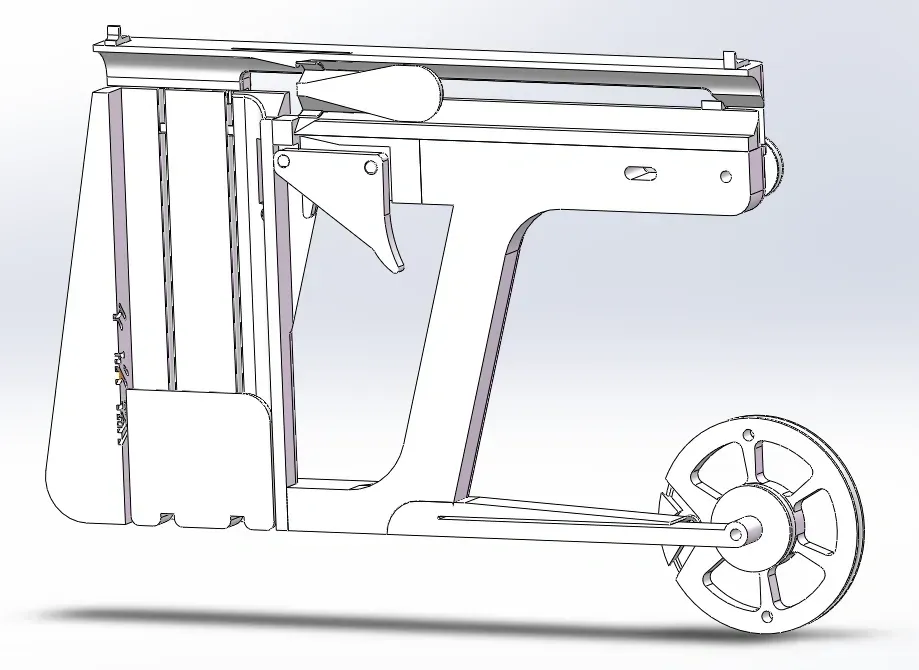

The uploaded model and photographs exhibit minor discrepancies reflecting subtle refinements.

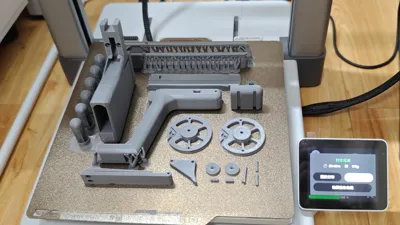

Unsupported areas on the lower receiver print may show imperfections and require smoothing, though functionality remains unaffected.
【Soft Egg Launcher Loading and Firing Demonstration】 https://www.bilibili.com/video/BV1Qq66Y3Et3/?share_source=copy_web&vd_source=4184100424b6ffb514abd47488d9b603
【Soft Egg Launcher Assembly】 https://www.bilibili.com/video/BV1hq66Y3ERg/?share_source=copy_web&vd_source=4184100424b6ffb514abd47488d9b603
