Page-Turner Wand (though it more closely resembles an oversized electric toothbrush)
Print Profile(1)
Bill of Materials
- esp32 x 1:
- asrpro核心板 x 1:
- 咪头 x 1:
- 喇叭 x 1:
- 移动电源充电模块 3.7v升5v模块 x 1:
- 18650电池及电池盒 x 1:
- 导线或者杜邦线若干 x 1:
- 6*6轻触开关 x 4: 其他也可以，但是模型的孔是6*6
- 8*8自锁开关 x 2:
Description

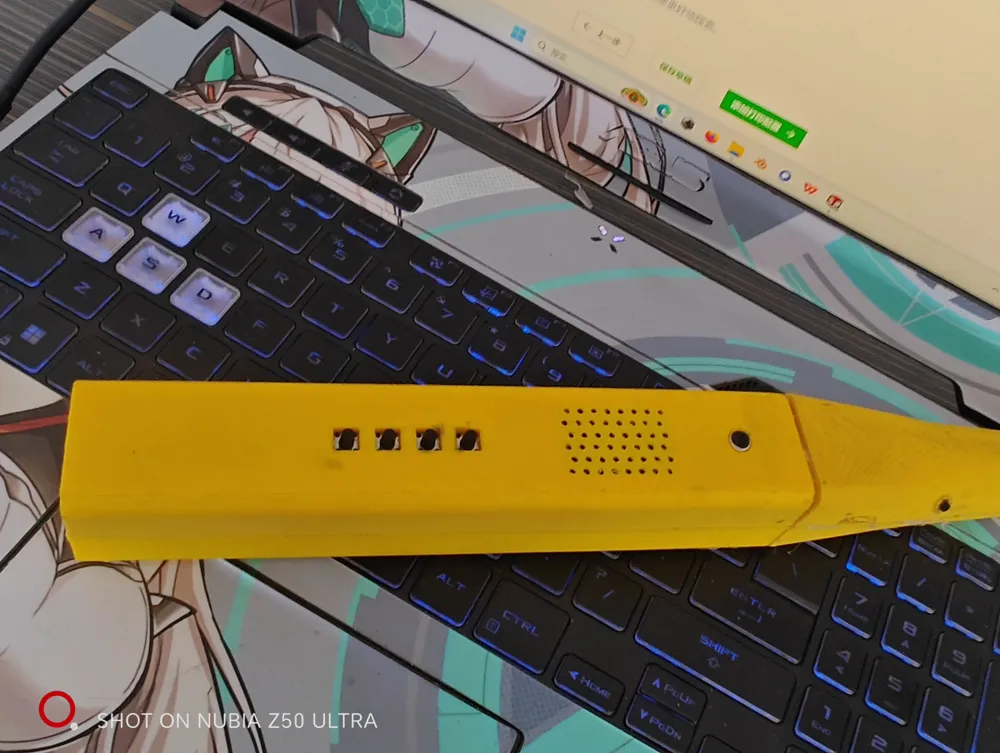

This wand, crafted with an ESP32 and an ASRPro core board, incorporates a page-turning stylus and voice interaction (the size is somewhat substantial due to the modules used)
For a detailed demonstration, please view my video
The four buttons are: Previous Page, Next Page, Hyperlink Selection, and Confirmation
Dual-button functions are also implemented:
Simultaneously pressing Previous Page and Next Page------------------------Starts PPT playback from the first slide
Simultaneously pressing Next Page and Hyperlink Selection------------------------Starts PPT playback from the current slide
Simultaneously pressing Hyperlink Selection and Confirmation------------------------Turns the PPT screen black
Simultaneously pressing Previous Page and Confirmation------------------------Exits
The program utilizes slightly modified sample code from GitHub. The library files and code will be included in the folder
