Mini Skateboard for Dummy 13 or Doll/Action Figure

🛹 Futuristic Skateboard – Dummy 13 Scale (Tron-Inspired)

This is my take on a futuristic, cyber-style skateboard designed specifically for Dummy 13, inspired by the iconic glow patterns and light aesthetics seen in Tron.

The design features clean geometry, glowing accents, and circuit-style details throughout. This model was fully designed in Fusion 360 and went through multiple iterations and test prints to achieve the final look, fit, and functionality.

📐 Features

• Futuristic Tron-inspired design with glow accents
• Multi-part build with clean, modular assembly
• Fully functional spinning wheels
• Snap-fit glow components with optional adhesive
• Designed specifically for Dummy 13 scale

🛠️ Assembly Notes

• Assembly is straightforward and requires minimal super glue
• Gel super glue is recommended over liquid
  • Easier to control
  • Helps fill small filament texture gaps

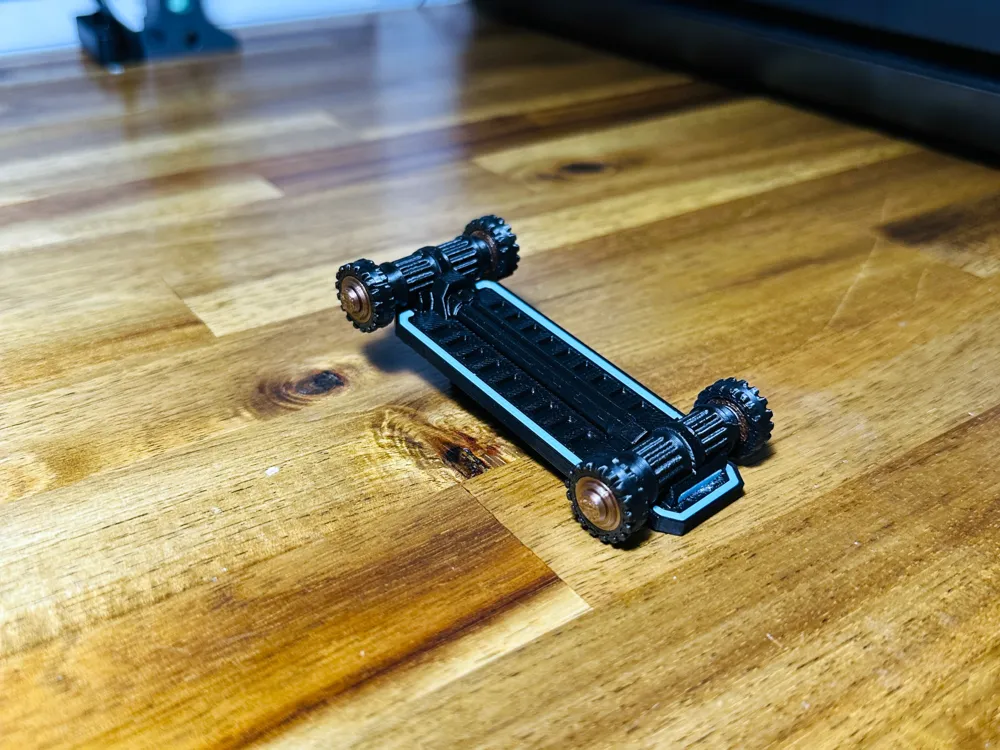

Wheels & Motion

• Wheels spin freely once assembled
• Avoid getting glue on the outer bolt shaft where the wheel rotates

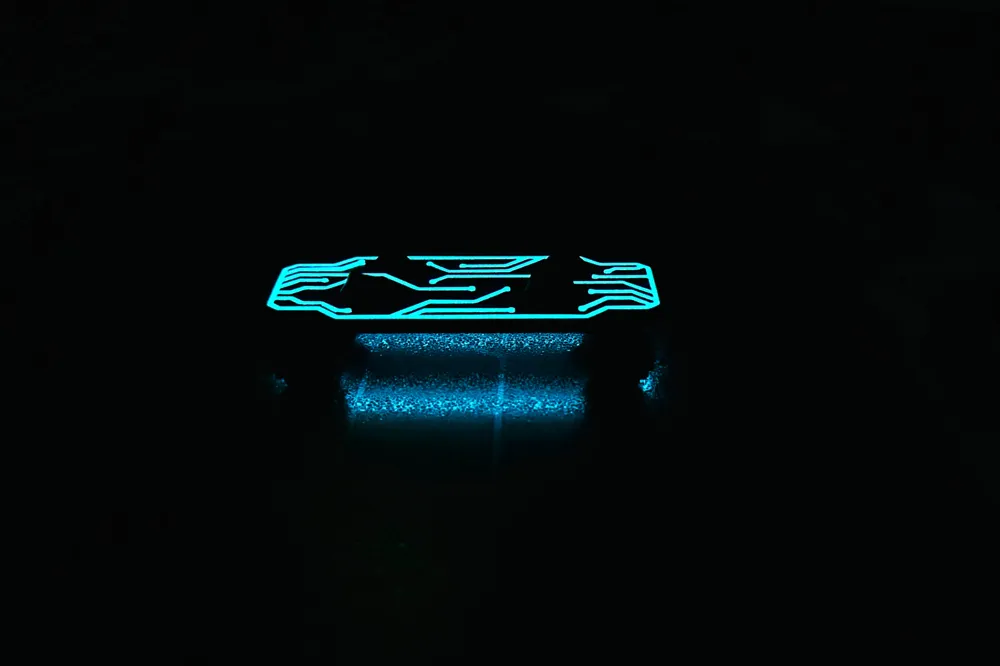

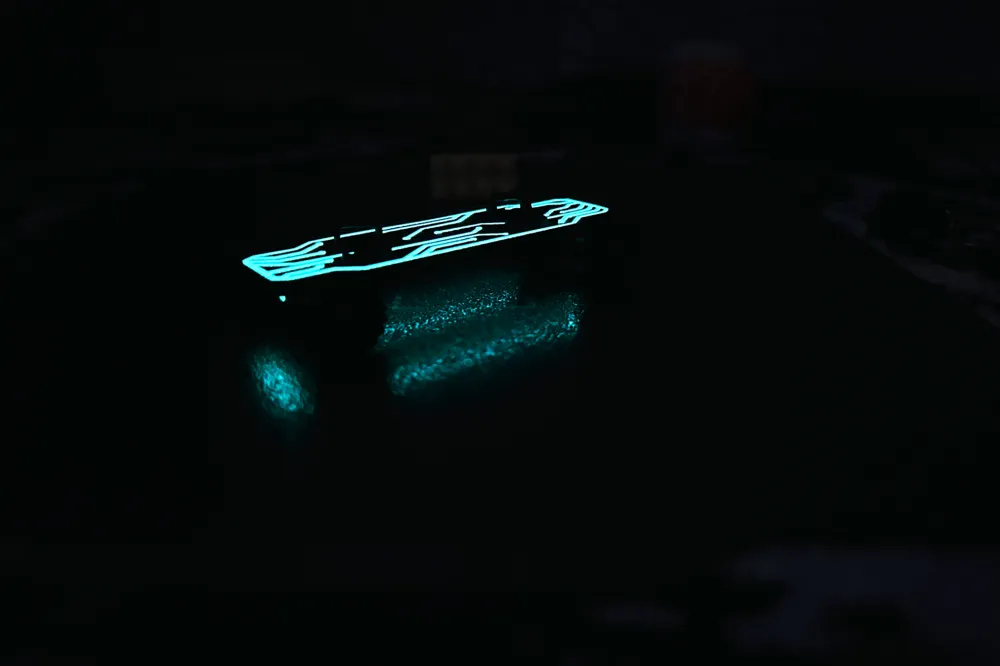

Glow Components

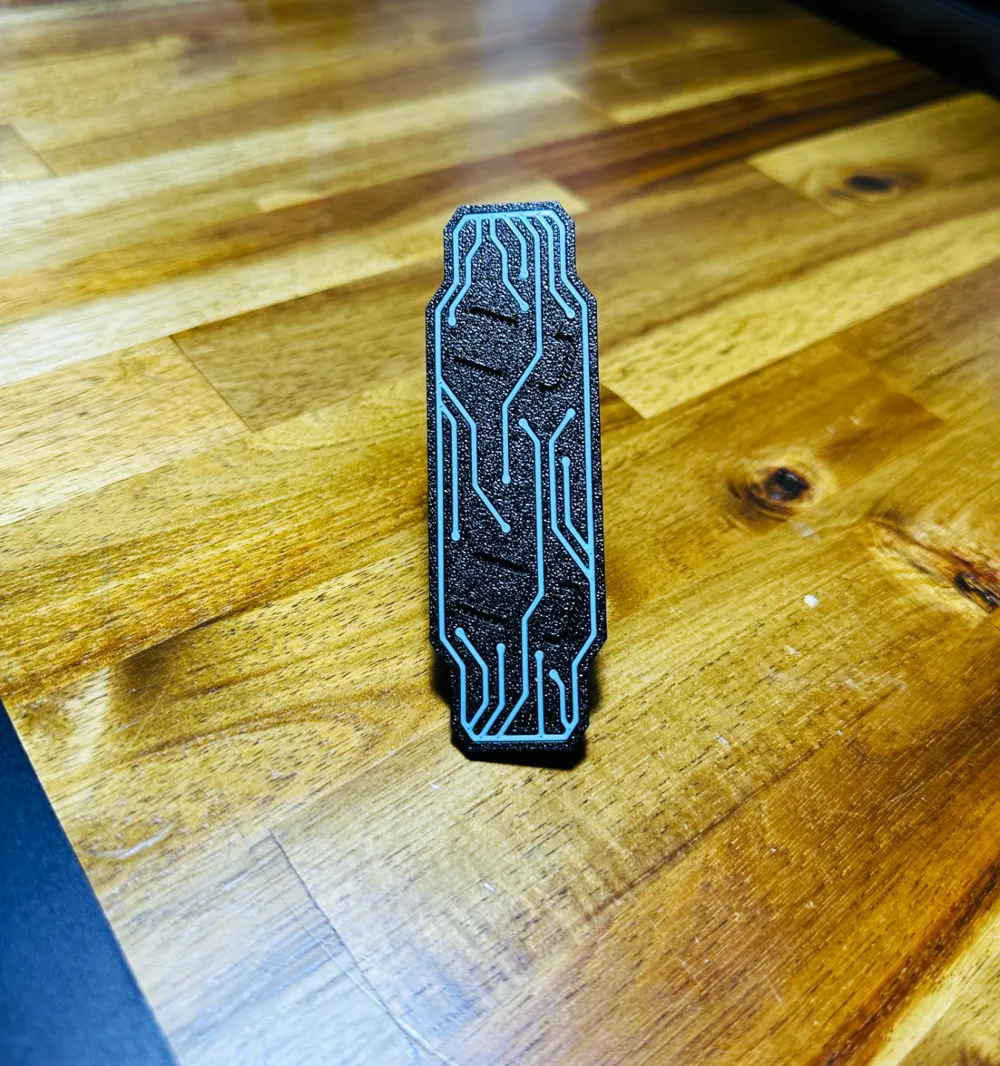

• Top glow-in-the-dark circuit plate snaps into place

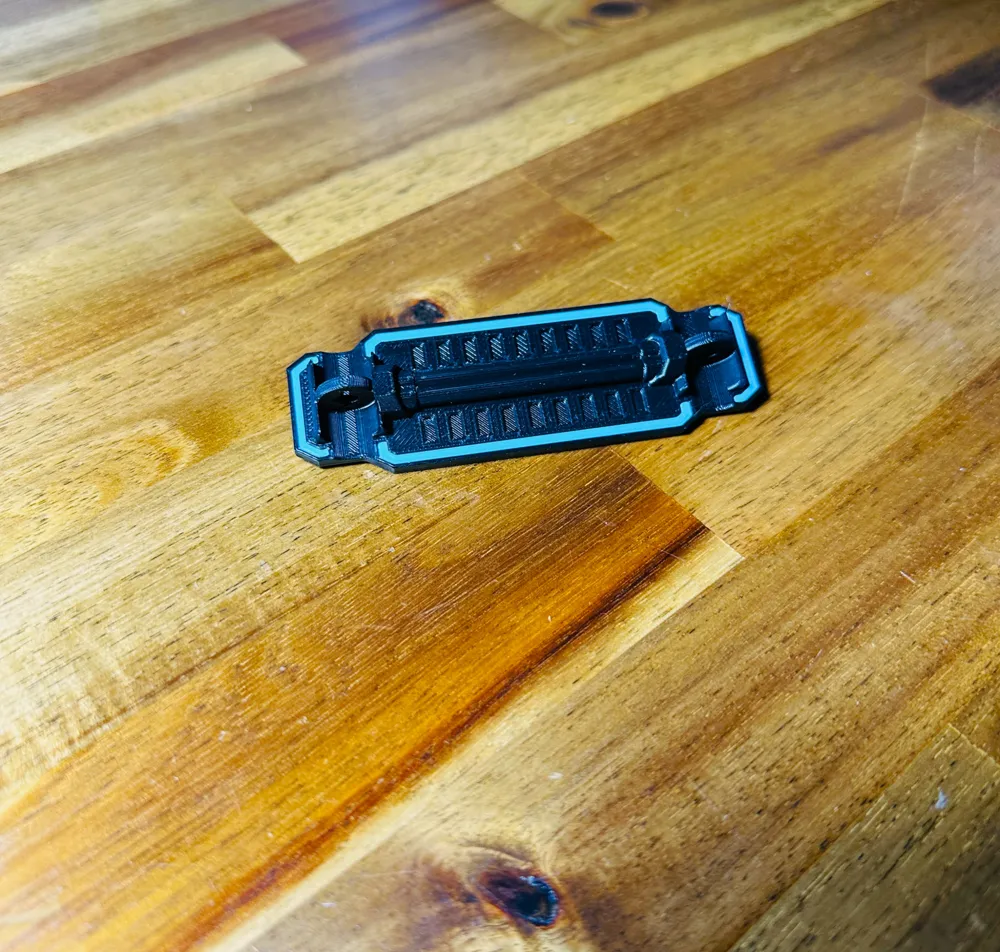

• Underside glow edge pieces snap in easily
  • Glue is optional, but recommended for the top plate
• Front and rear outward-facing light pieces require glue
  • Example color scheme used: glow (front) and red (rear)

⚠️ Important Notes

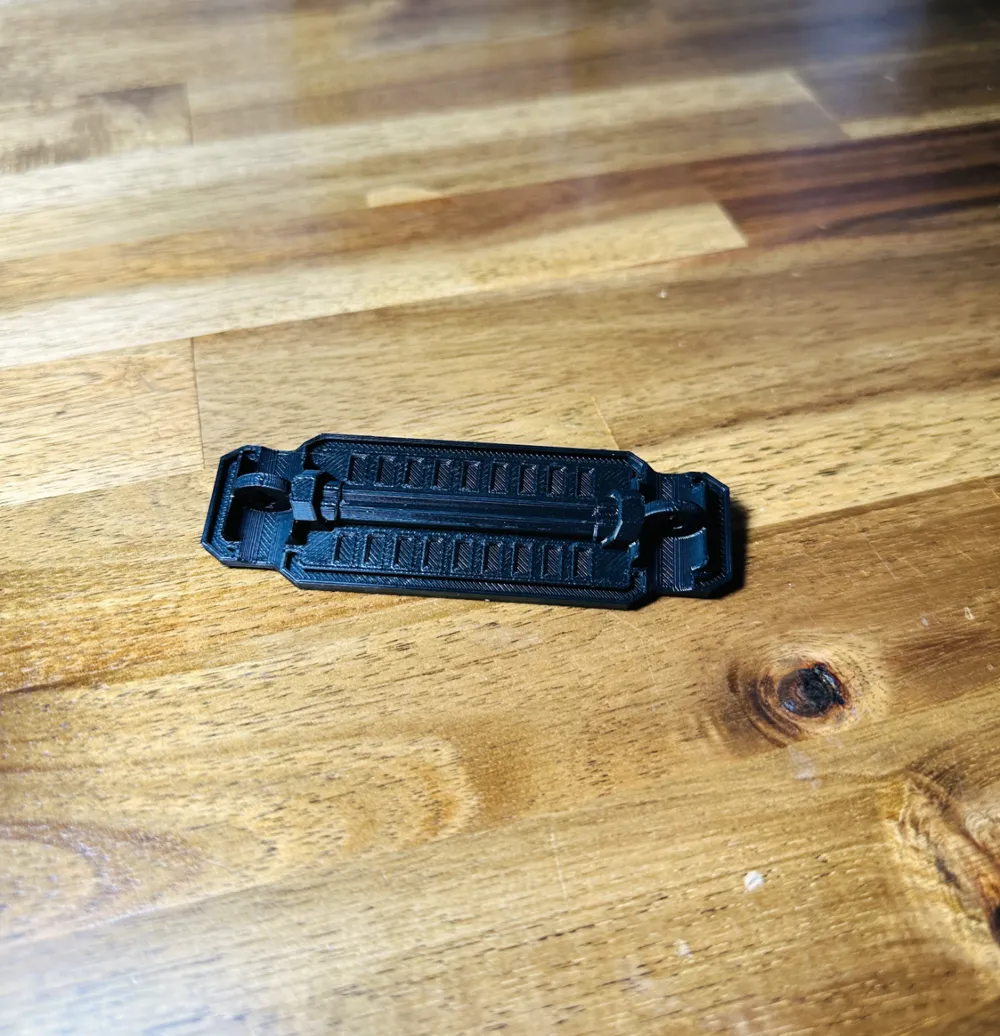

• The skateboard deck and wheel hubs require minimal supports
  • Supports are intentionally small and easy to remove
  • Only small tree supports appear inside the hubs and around the top plate recess
• Wheel hubs include a brim for print reliability
  • Brim removes cleanly
  • Any remaining edge is hidden once wheels are installed

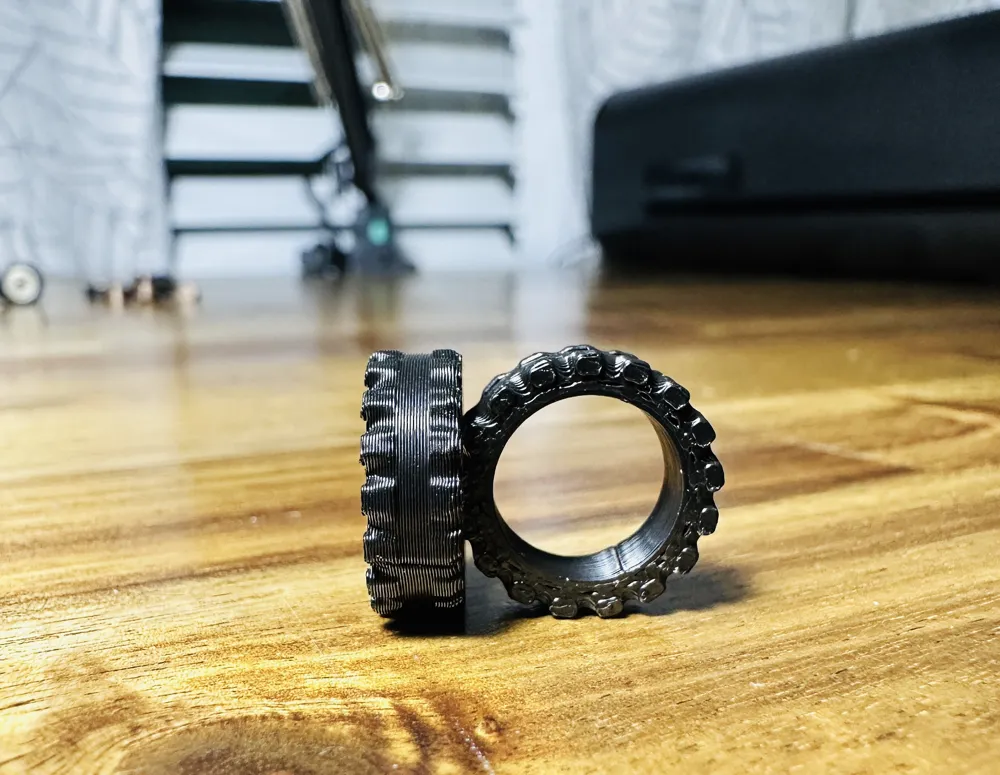

Tire Orientation (Important)

• Tires are not symmetrical
• Front tires feature a slightly raised edge
• Rear tires are flush
• Correct orientation is important during gluing and installation

Dummy 13 Foot Bindings

• Bindings are very small, detailed parts
• These are the only components requiring a different layer height
• Included print profile already accounts for:
  • Layer height
  • Speed
  • Supports
  • Brims

🔧 Installation Steps

1. Remove all supports
2. Glue the top circuit-style plate to the deck
3. Glue the underside glow edge pieces into their slots (symmetric)
4. Install front and rear lights
   • Beveled edges ensure they only fit one direction

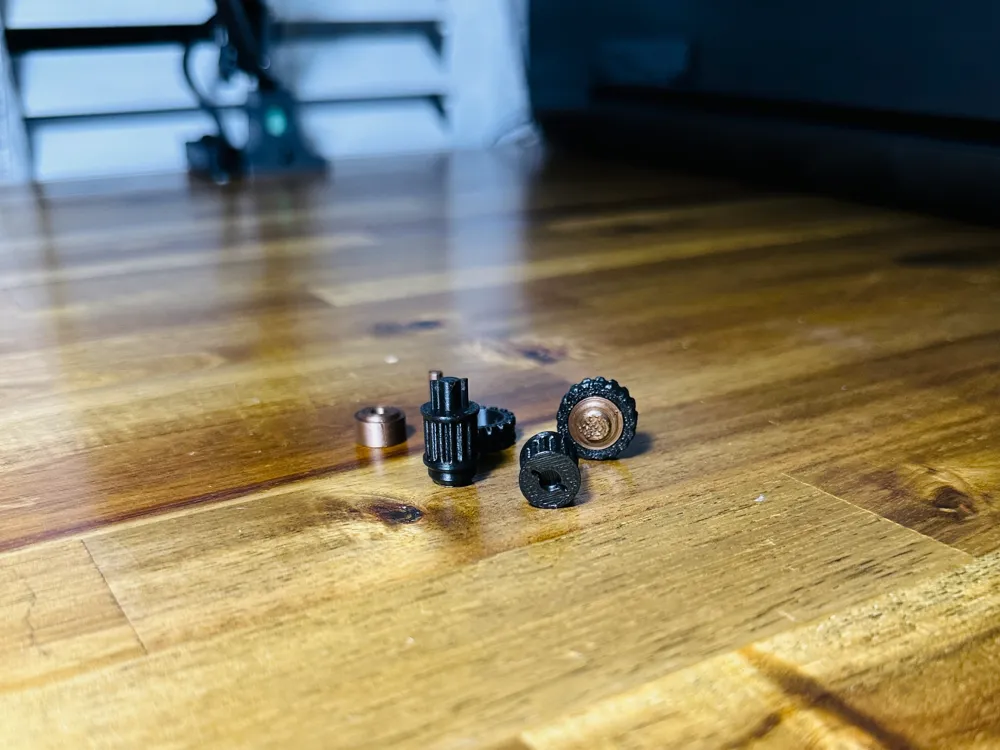

5. Glue tires to rims in the correct orientation
6. Glue hub assemblies into the underside of the board
7. Critical:
   • When installing bolts, apply a small drop of glue only to the top of the bolt
   • This prevents glue from reaching the rim and ensures free wheel rotation

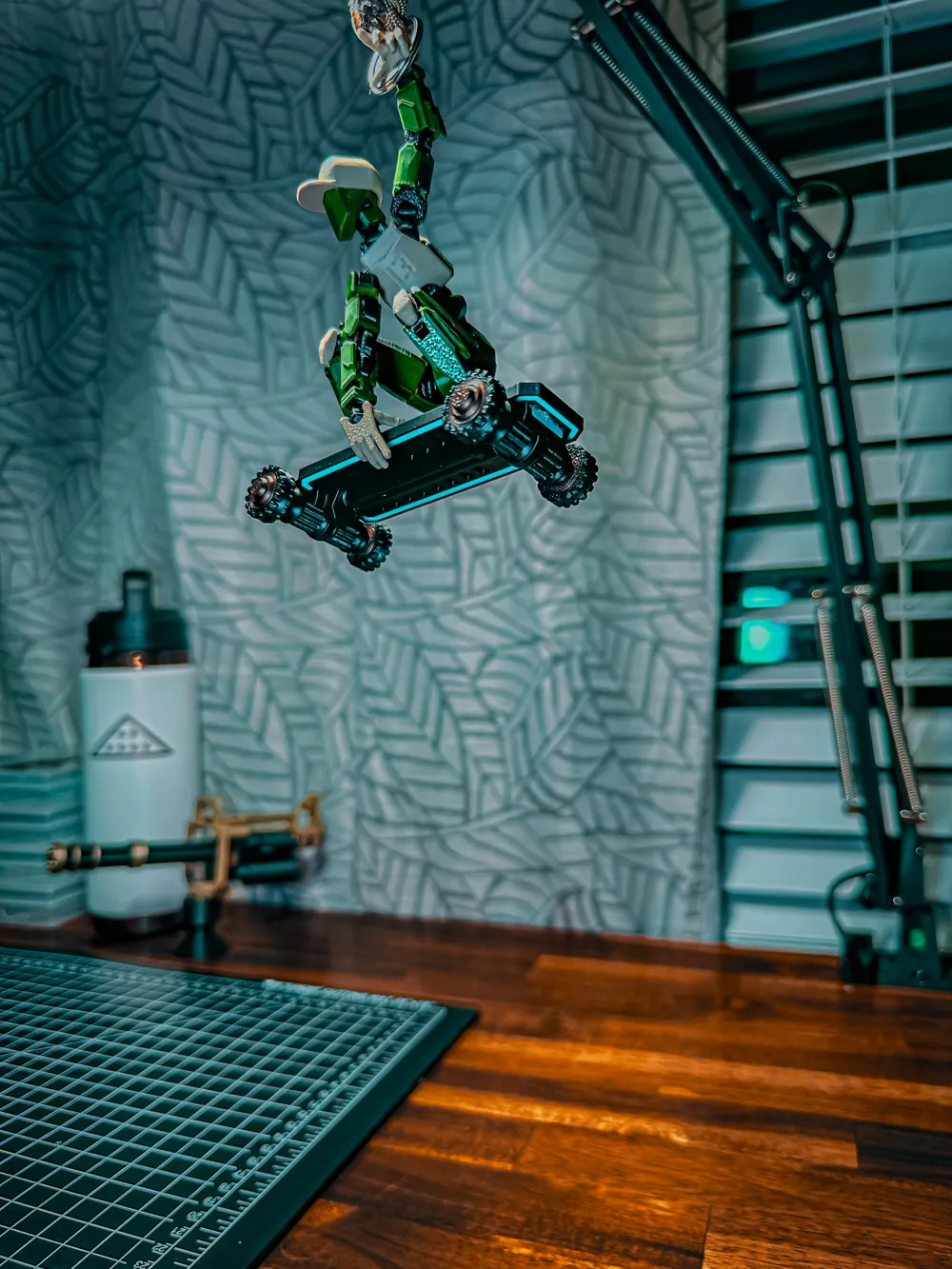

This skateboard adds a bold, futuristic look to any Dummy 13 setup and pairs perfectly with modern or cyber-themed displays.

If you encounter any issues or have suggestions for improvements or variants, feel free to reach out.
