MMT - Hexagon Marker Spacers
Print Profile(1)
Description

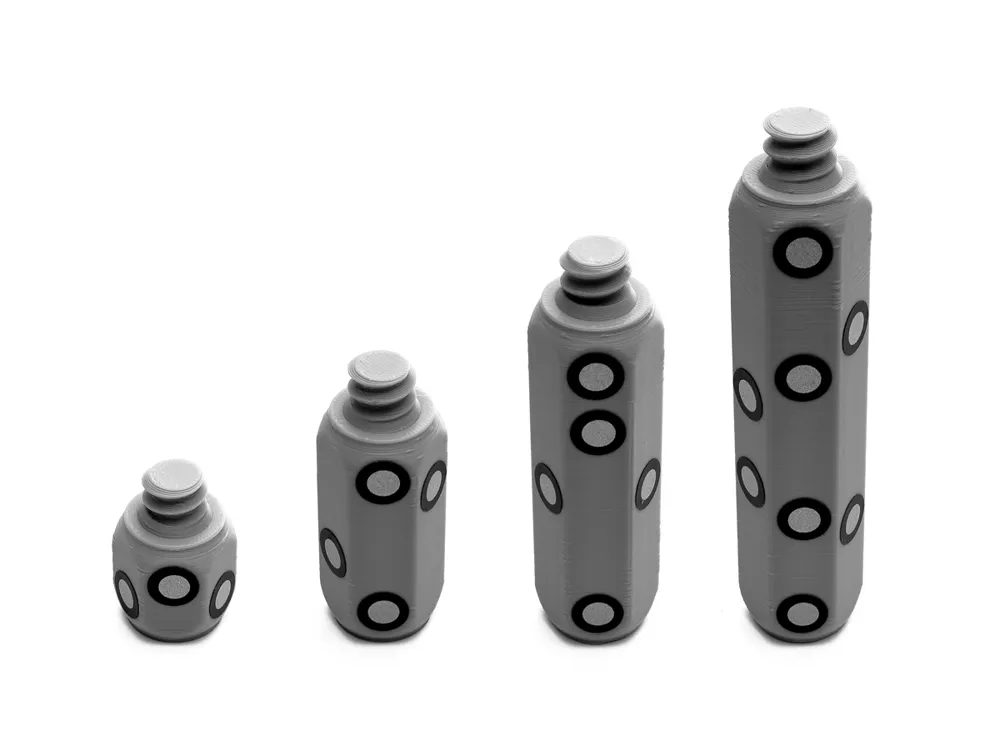

These are Hexagon Marker Spacers for the MMT (Modular Marker Tower) system.
The available sizes (on different buildplates) are:
25 mm, 50 mm, 75 mm, 100 mm
Place markers in non-repetitive patterns across the hexagon shape.
The markers for this item are diameter 10 mm (6 mm reflective center).
Choice of filament material for the MMT:
This part was designed for use with Bambu Lab PLA Basic, but can work with other regular PLA of similar quality.
Matte PLA or Silk PLA should not be used due to their weaker mechanical properties compared to regular PLA.
Choice of filament color for the MMT:
Gray: Works well when scanning most objects in marker mode, and it will also work to assist tracking in geometry mode.
Black: Works well when scanning black parts, as it can otherwise risk overexposing the marker block, leading to loss of tracking.
Boost Me (for free)
A lot of filament is used for all the iterations of design and prototyping of these parts.
If you find the item helpful, please consider sending a boost as it helps to cover some of the development cost.
The 3mf file for the different sizes has the following number of pieces per buildplate to be printed:
25 mm - 6 pcs
50 mm - 4 pcs
75 mm - 2 pcs
100 mm - 2 pcs
The sizes 75 mm and 100 mm use an outer brim setting due to the large height/base ratio to assist in adhesion to buildplate while printing.
Added an introduction video for the MMT-system that you can find here:
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
