Case for Dewalt Maxfit Steel Nut Driving Set (5pc)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
4.2 h
3 plates
Open in Bambu Studio
Boost
6
15
0
1
6
6
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description
This is a magnetic case for the Dewalt Maxfit Ultra Nut Drivers.
The print profile includes two versions:

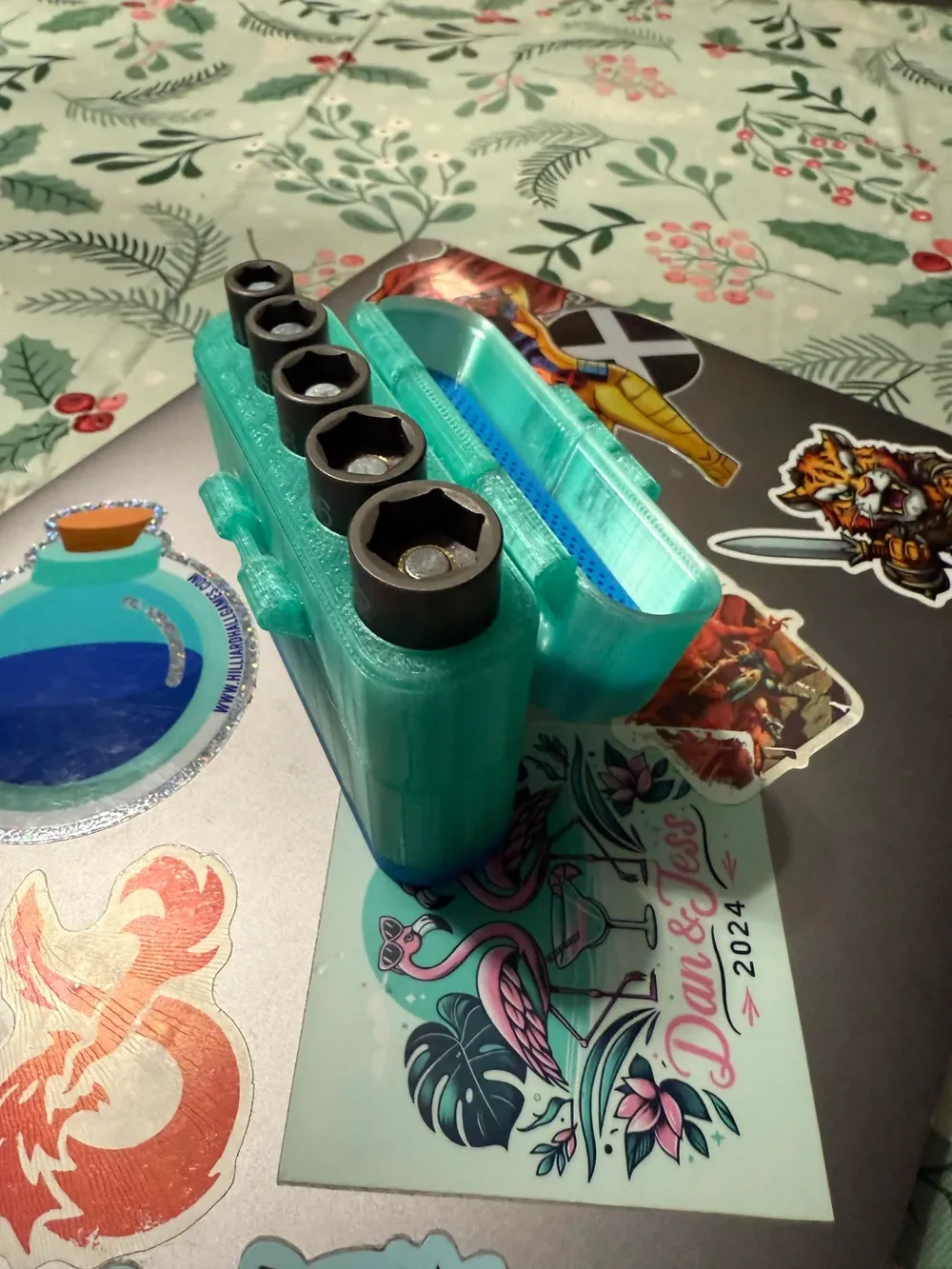

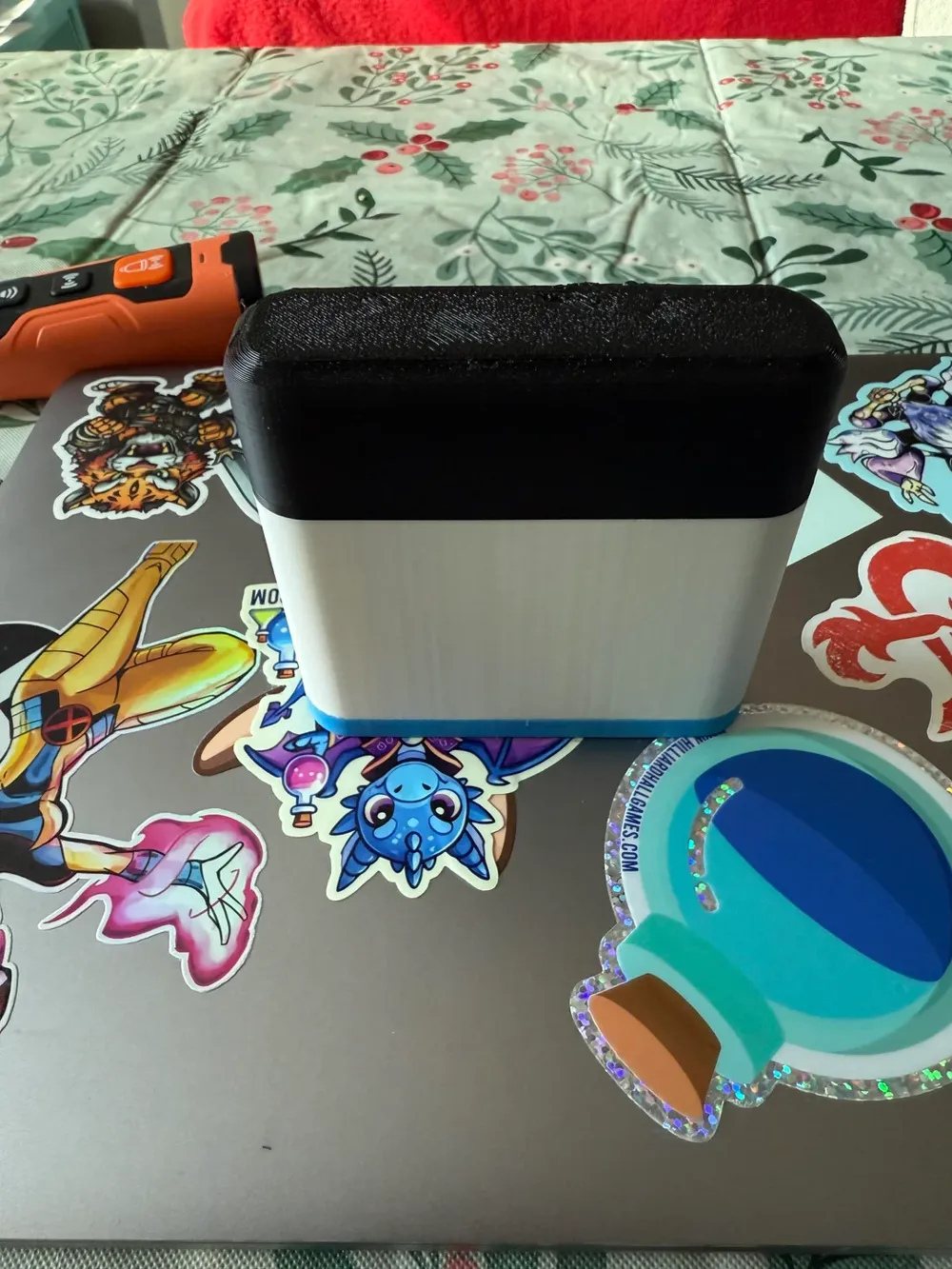

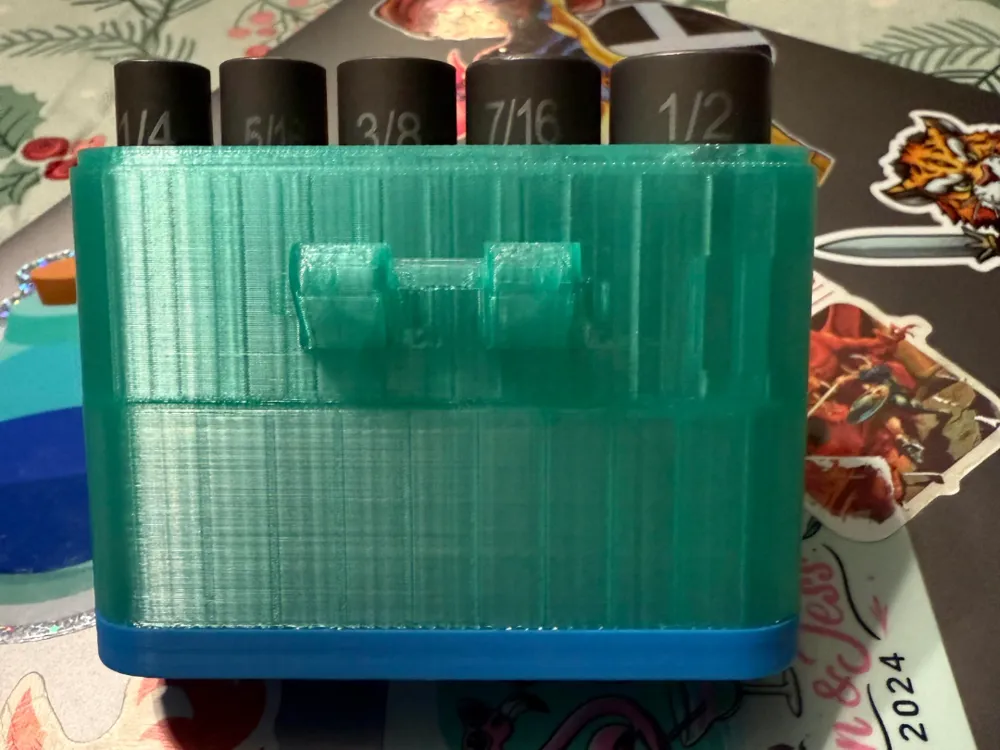

Both versions are magnetic to help keep the drivers in place when they are in the case. There is a version with a hinged lid and a version with a lid that snaps on.
ASSEMBLY INSTRUCTIONS
- If you print the hinged version of the body, glue the two pieces together. Otherwise, skip this step.

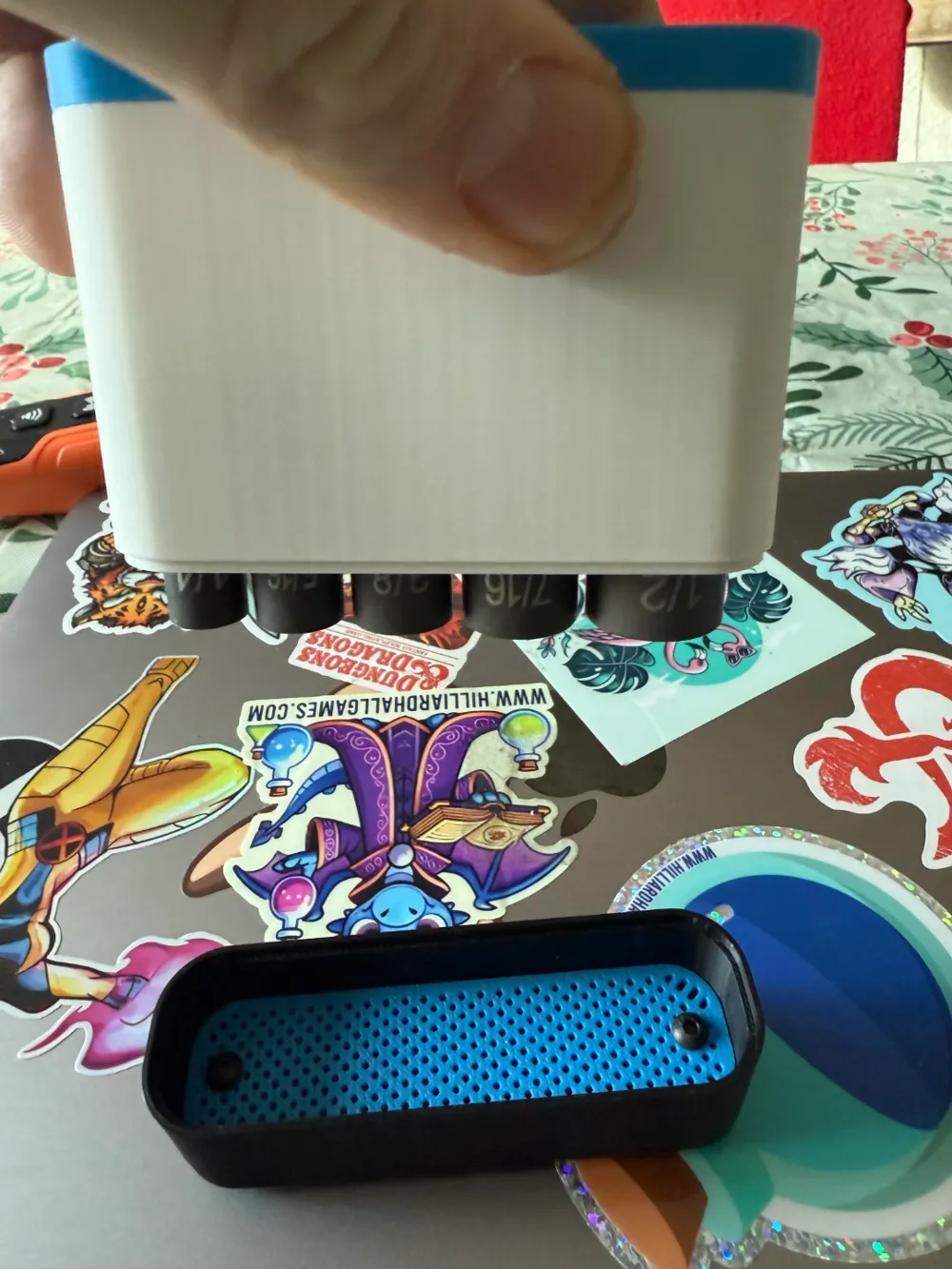

- Place 5 magnets (8mm) in the “bottom” and secure it to the bottom of the body using two M3 screws (no glue required).

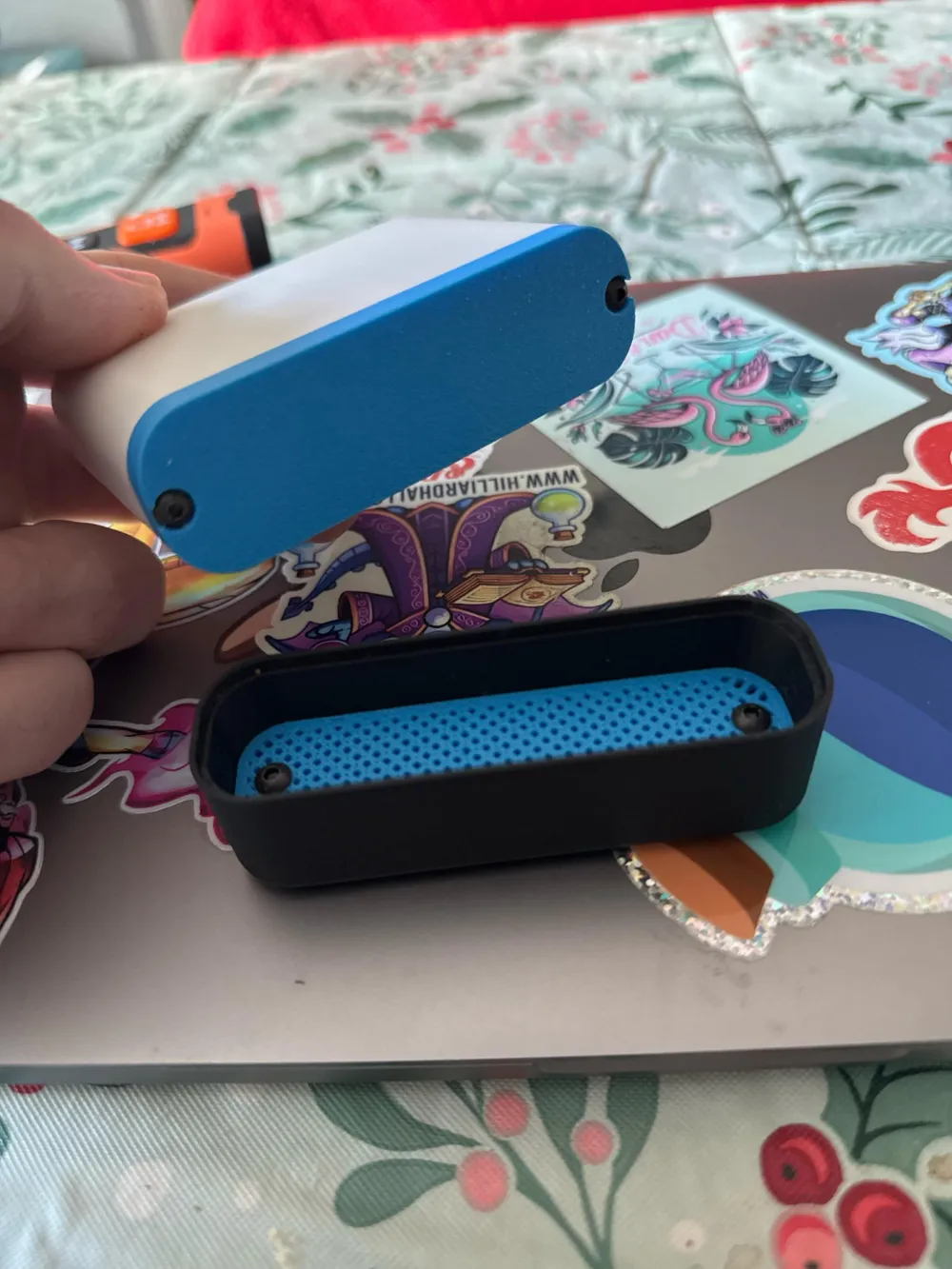

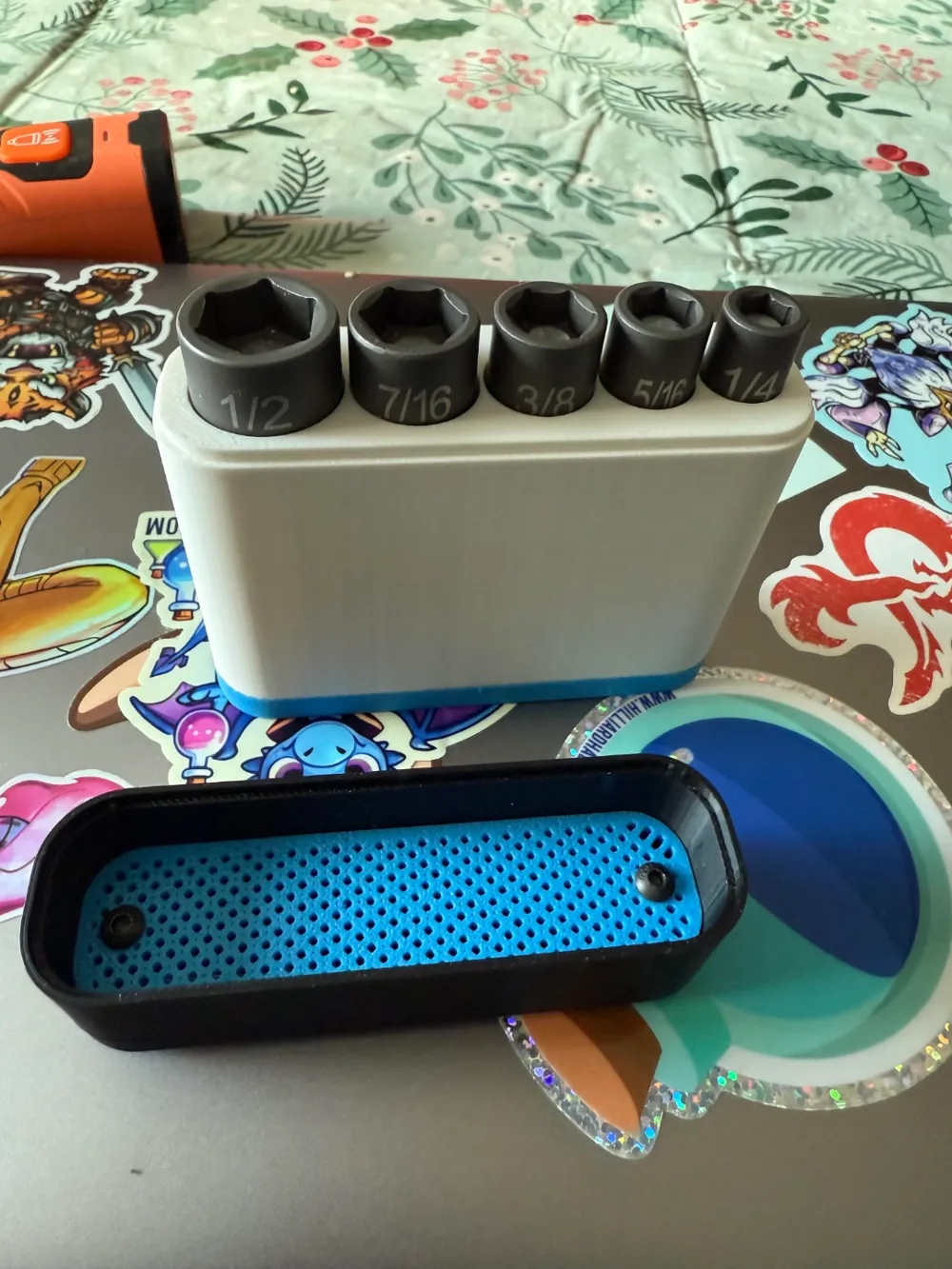

- Pour reusable dessicant beads into the lid until they cover the screw posts. Attach the dessicant screen to the screw posts using two M3 screws (no glue required). Enjoy!
