Heart Lock/Four-Digit Combination Lock number combination lock
Print Profile(2)
Description

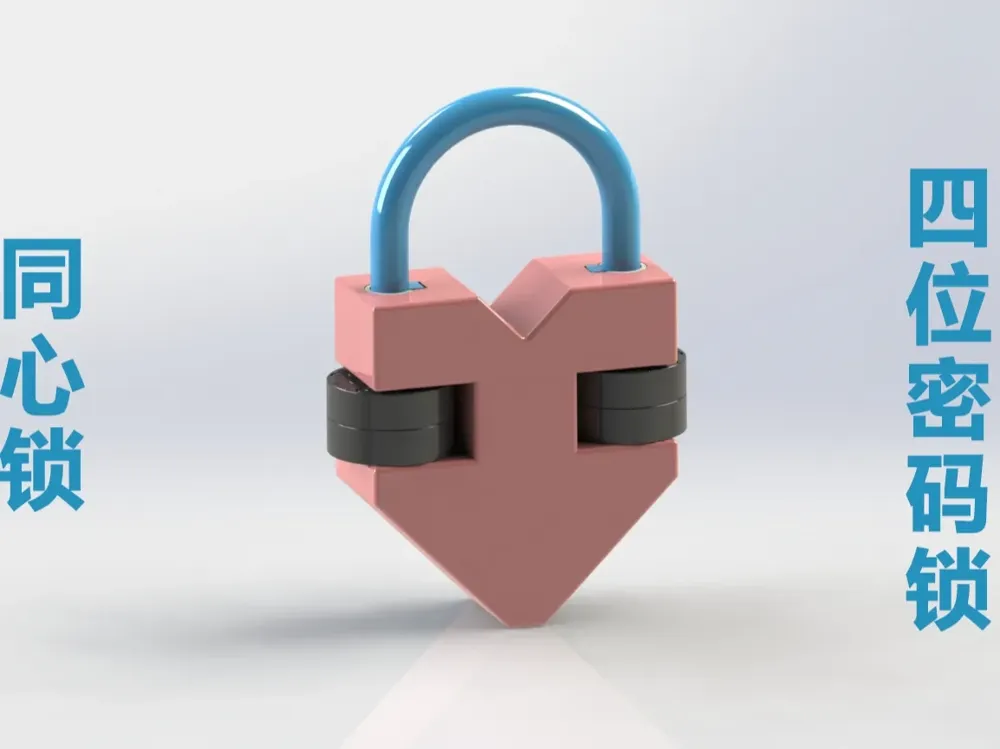

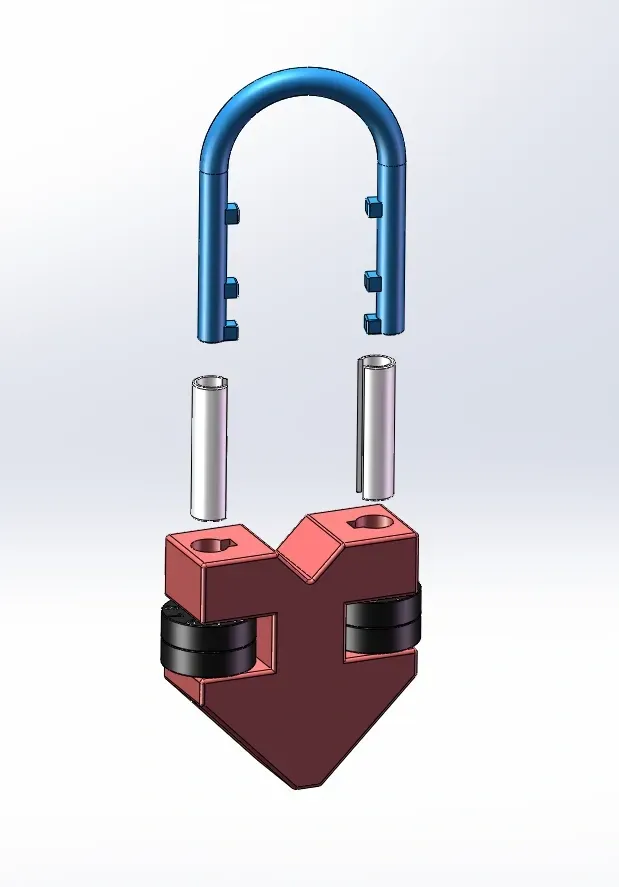

A four-digit combination padlock, heart-shaped (perhaps not exactly?), hence temporarily named the "Heart Lock". Installation is as shown. The recesses on the number dials face inwards; the sleeve and clasp are inserted from above in sequence.
1. Four-digit combination locking mechanism; the number dials feature digits 0-9, with the digit opposite the recess being the decoding digit.
2. The digits on the number dials are all on a single plane, allowing for manual pausing of filament feed for improved digit clarity. Of course, filament feeding is not required.
3. The four-digit combination design facilitates setting combinations such as month/day, securing items with personally significant numerical combinations.
4. The dual-combination design enables two individuals to set a combination each; unlocking requires both individuals to input their respective combinations simultaneously, thus the name “Heart Lock”, although it can also be used as a conventional padlock.
5. To reset the combination or in case of forgotten combination, a pin less than 2mm in diameter can be inserted into the two small holes at the bottom of the lock body to unlock. You may optionally plug these holes with a small piece of filament to conceal them.
