Description

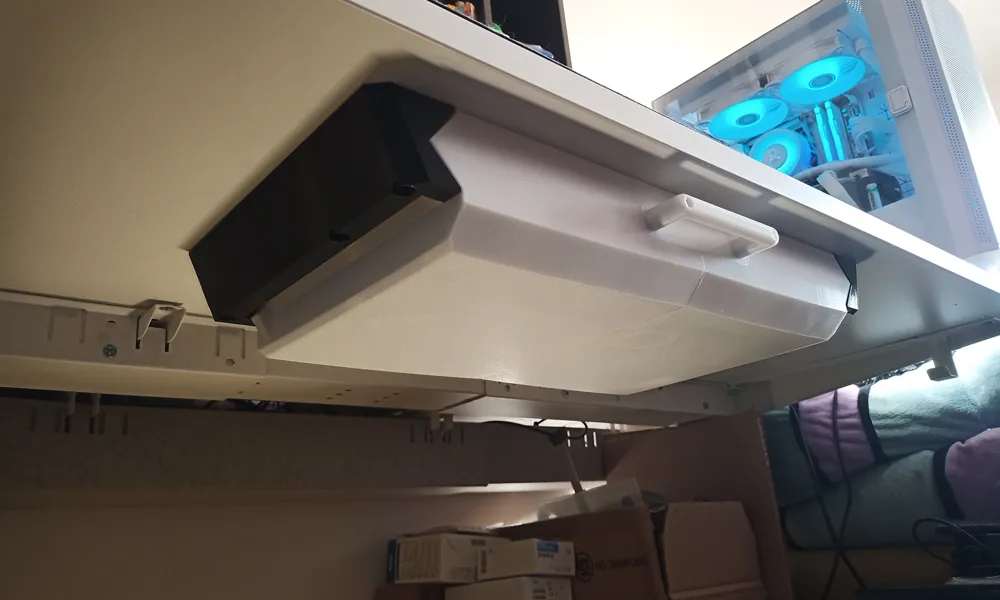

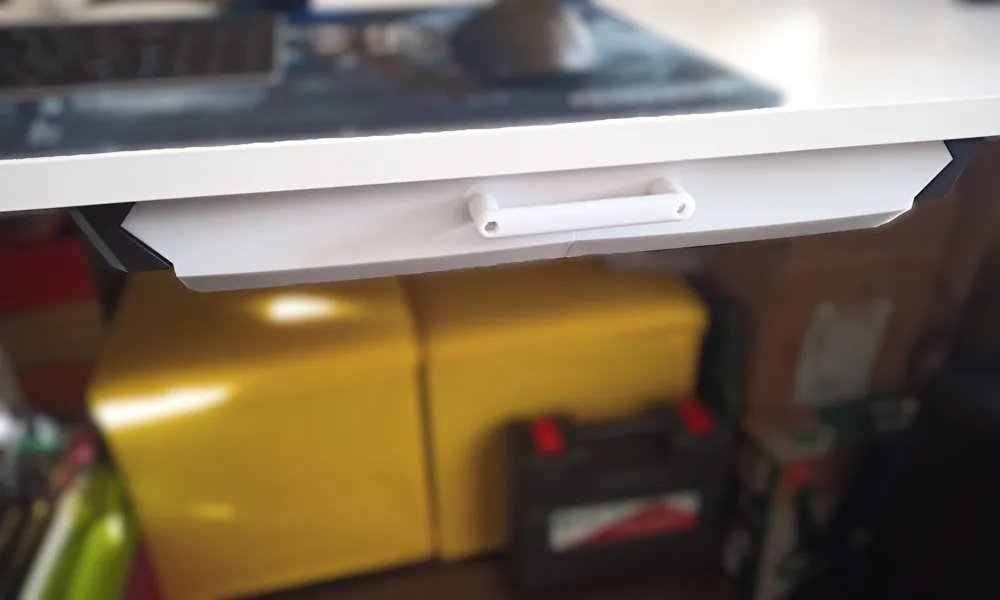

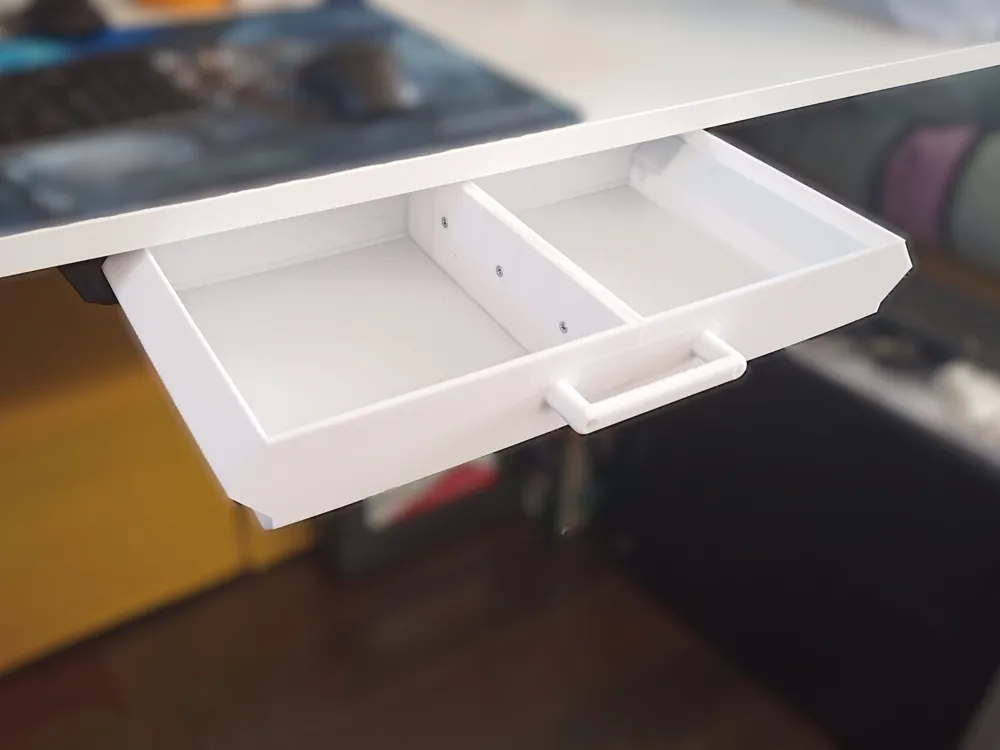

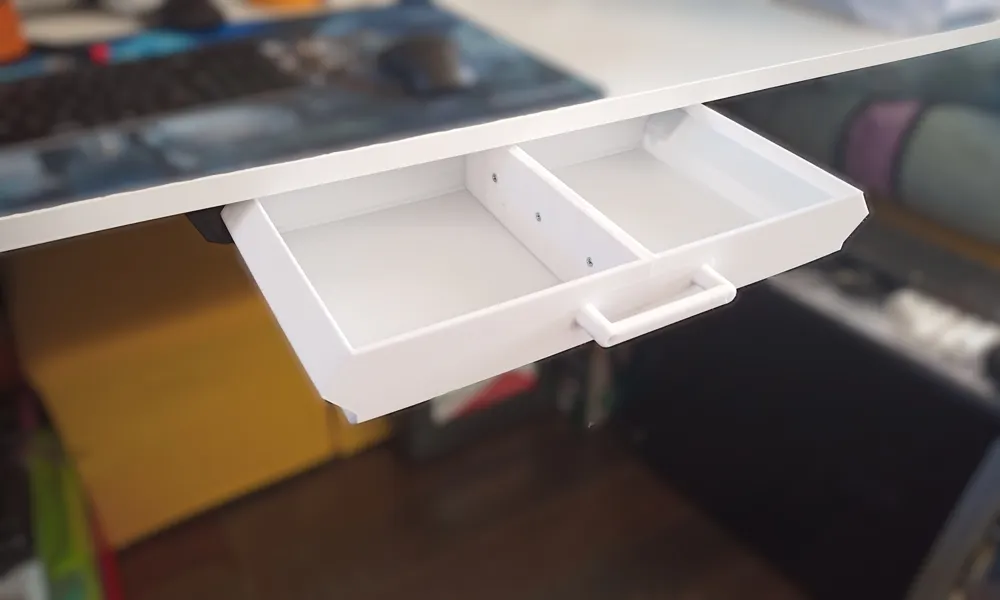

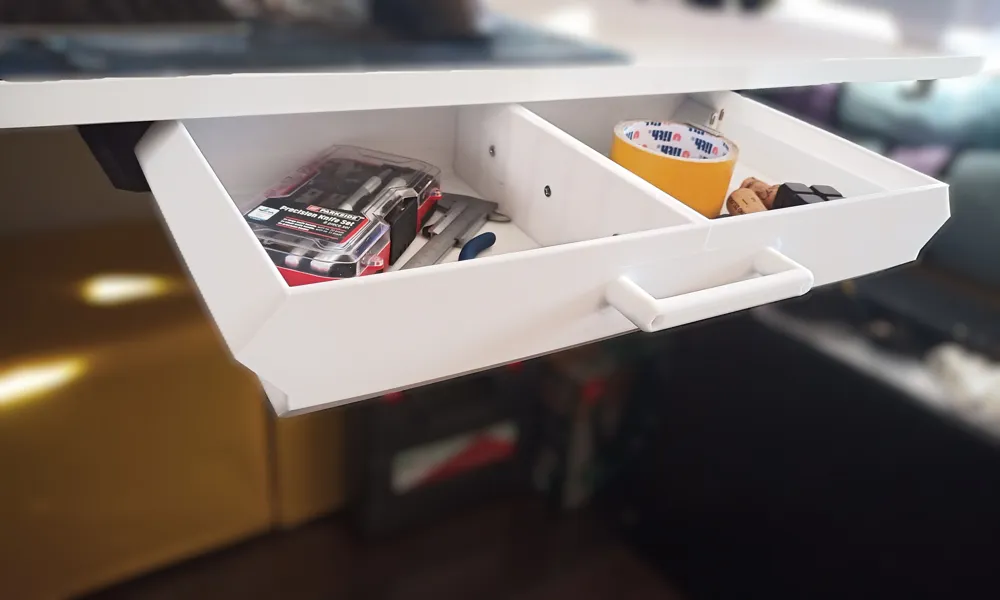

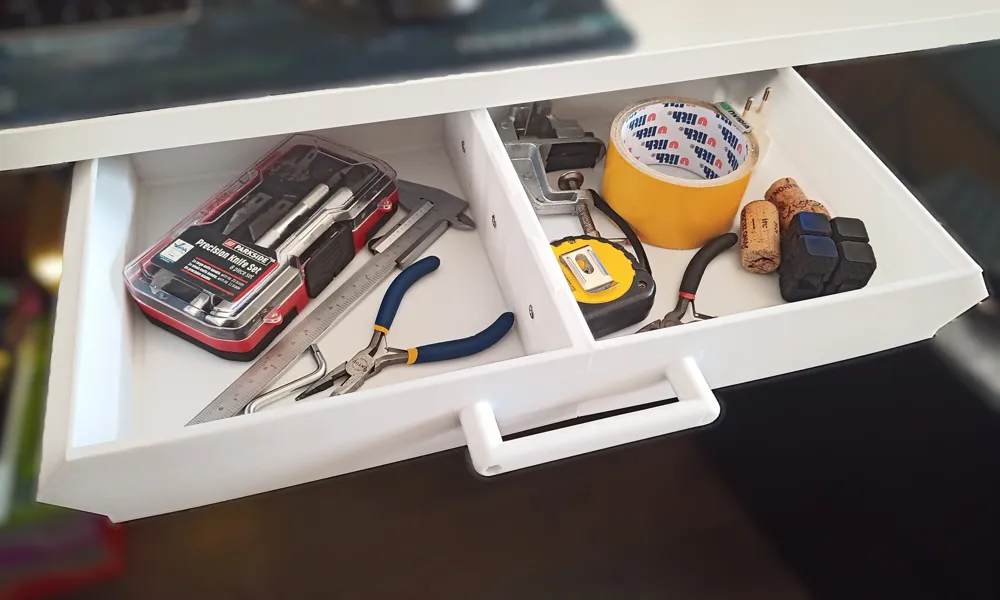

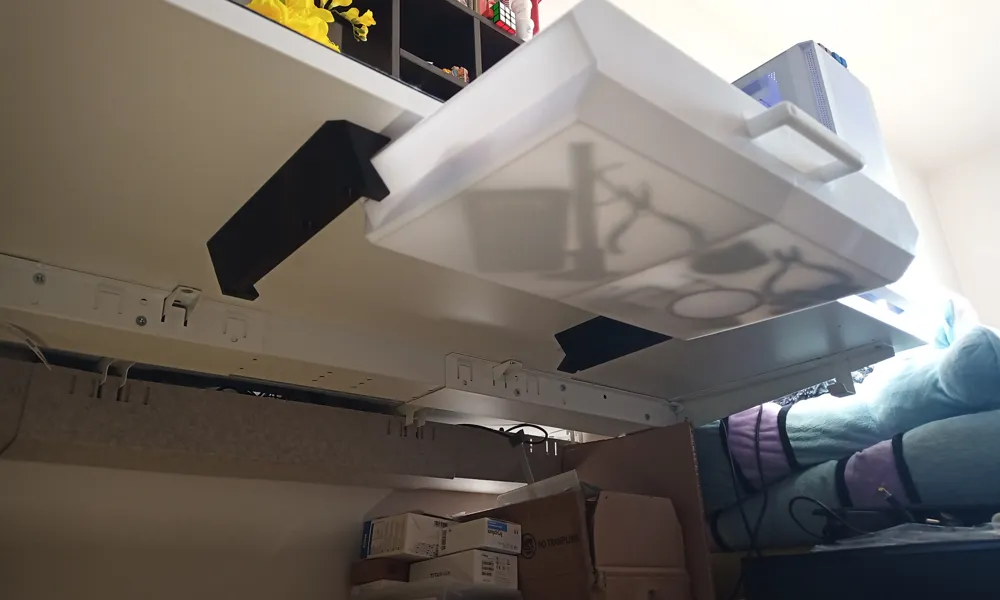

I made this drawer to fit the pre-drilled holes on IKEA MITTZON 140x80 desk, but you can screw it under any desk.

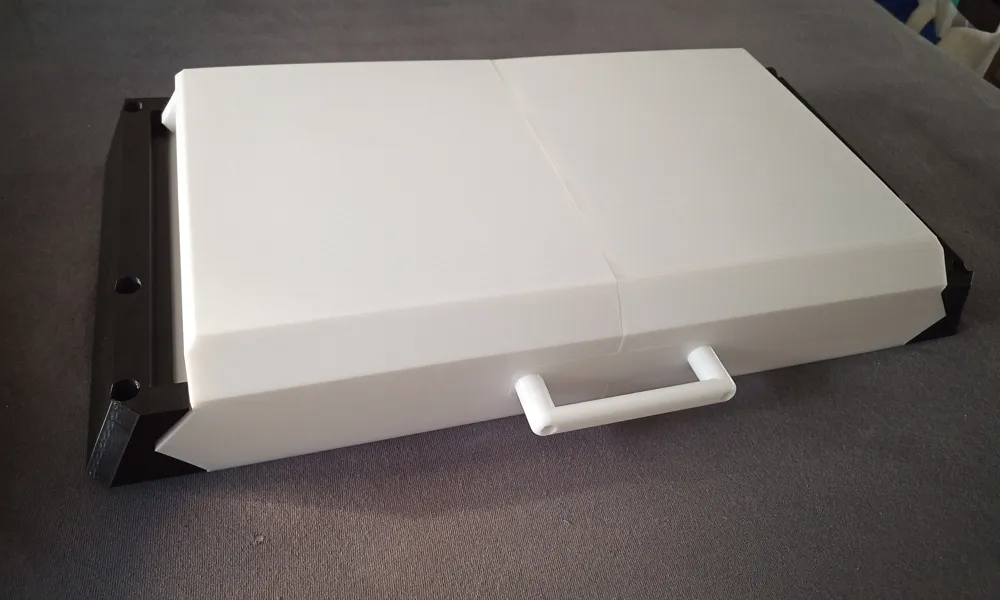

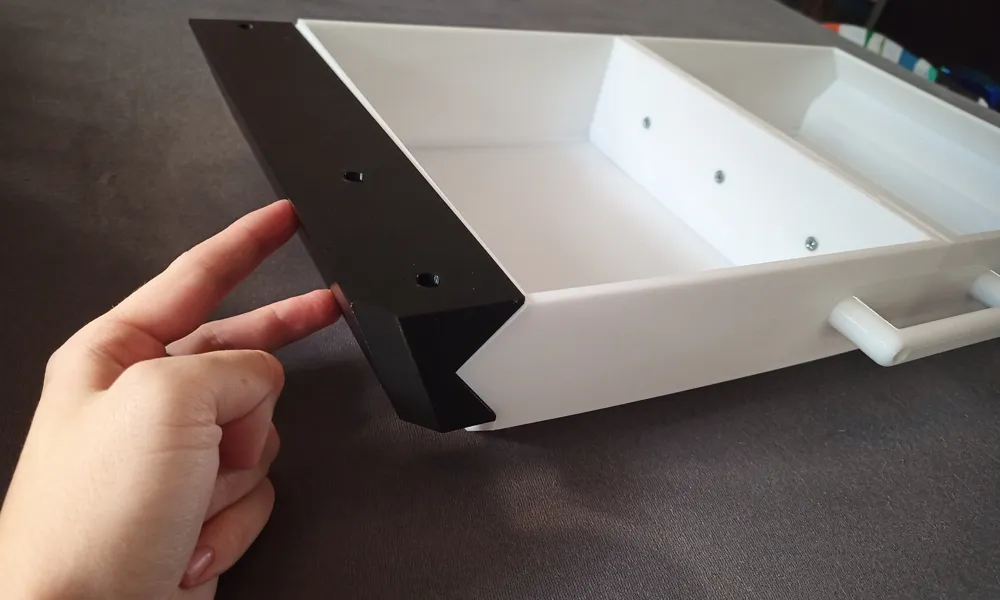

The drawer is printed in 2 halves, assembled tightly with dovetail joints and extra fitted handle, so it's very sturdy.
You may need to do a little bit of sanding to fit handle into the drawer front socket, depending on how much it warped, but it's designed to be really tight fit.
I printed this with PETG, but other materials should be perfectly fine too.
This print need a little bit of support, front drawer socket for handle and handle itself. Settings I used worked really well, I recommend using interface material for handle that doesn't stick together (I used PLA x PETG) with 0mm top and bottom Z distance.
Dimensions: 51,5cm x 25cm x 7,3cm (complete assembly with rails)
Drawer dimensions: 41cm x 24cm x 7cm

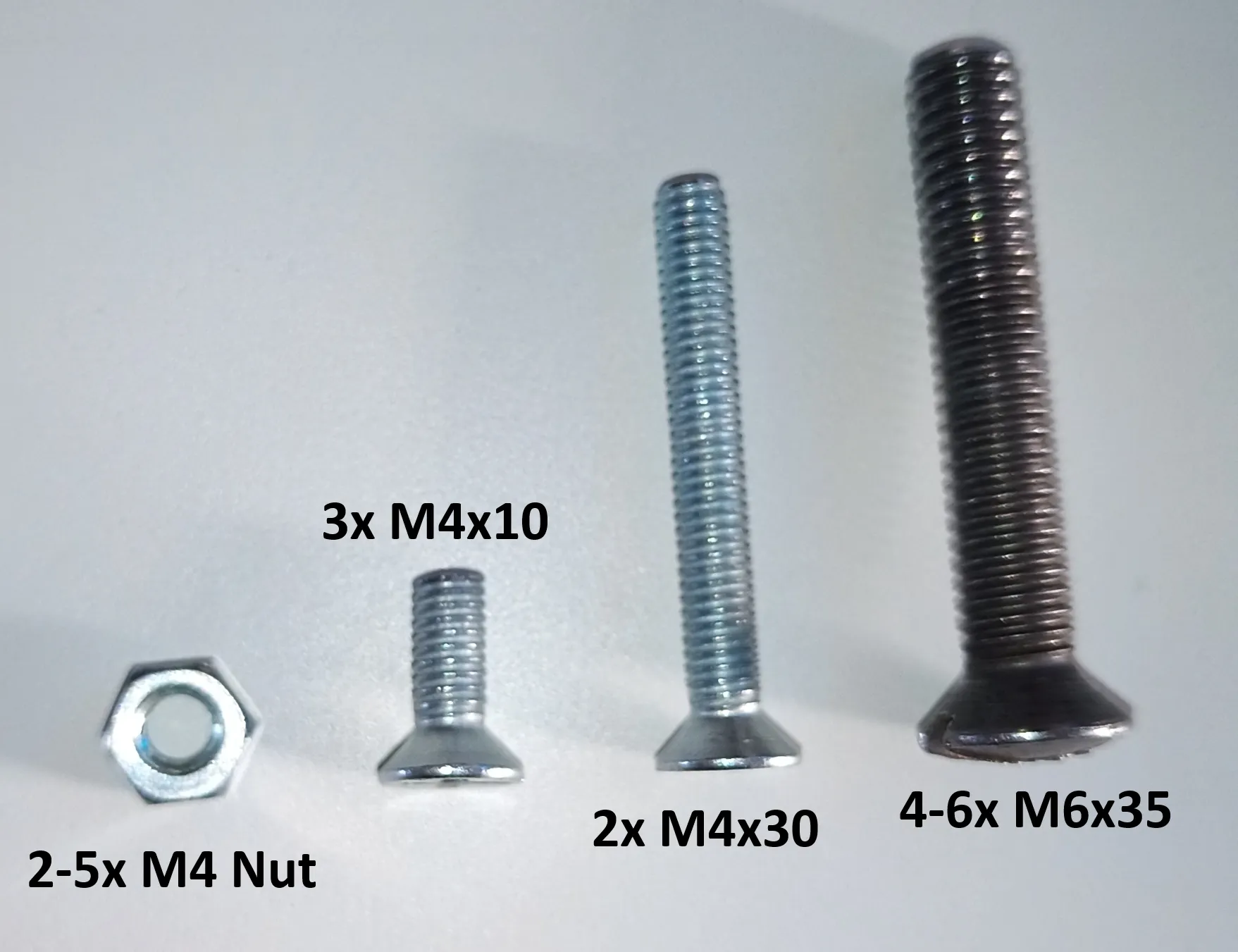

BOM: I just used things I had around
2-5x M4 Nuts
3x M4x10 - Optional, to reinforce middle dovetail joints
2x M4x30 - For handle
4-6x M6x35 - for rails, or just use 6x30-35mm wood screws to fit any desk
