Minimalist Wall-Mounted Planter Shelf (105mm)

Minimalist Wall-Mounted Planter Shelf (105mm)

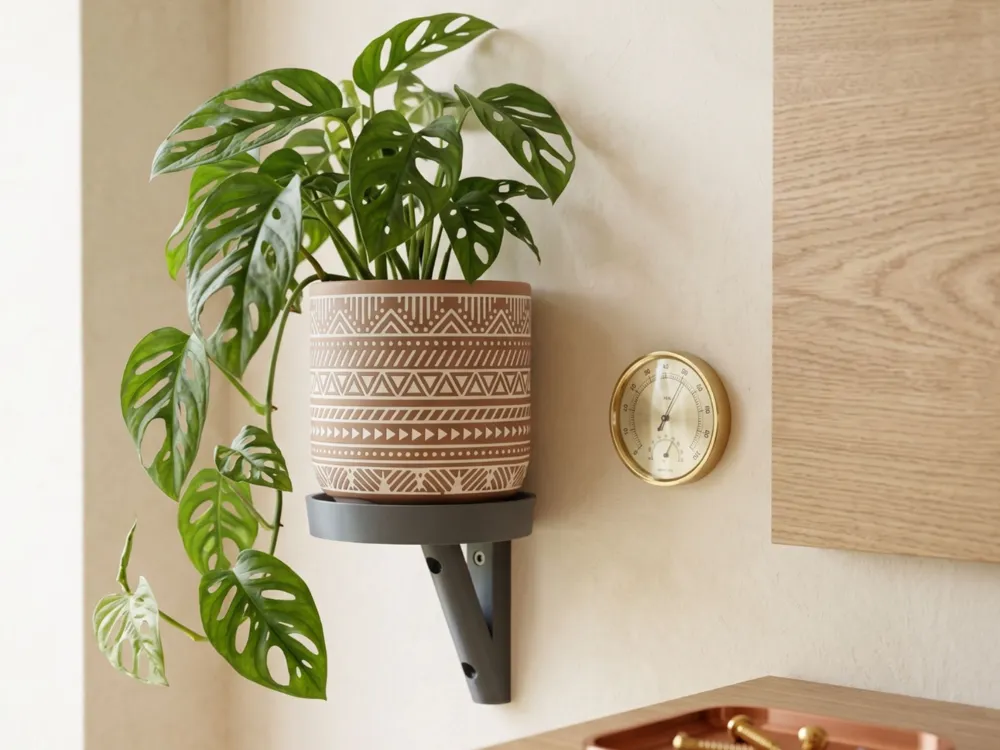

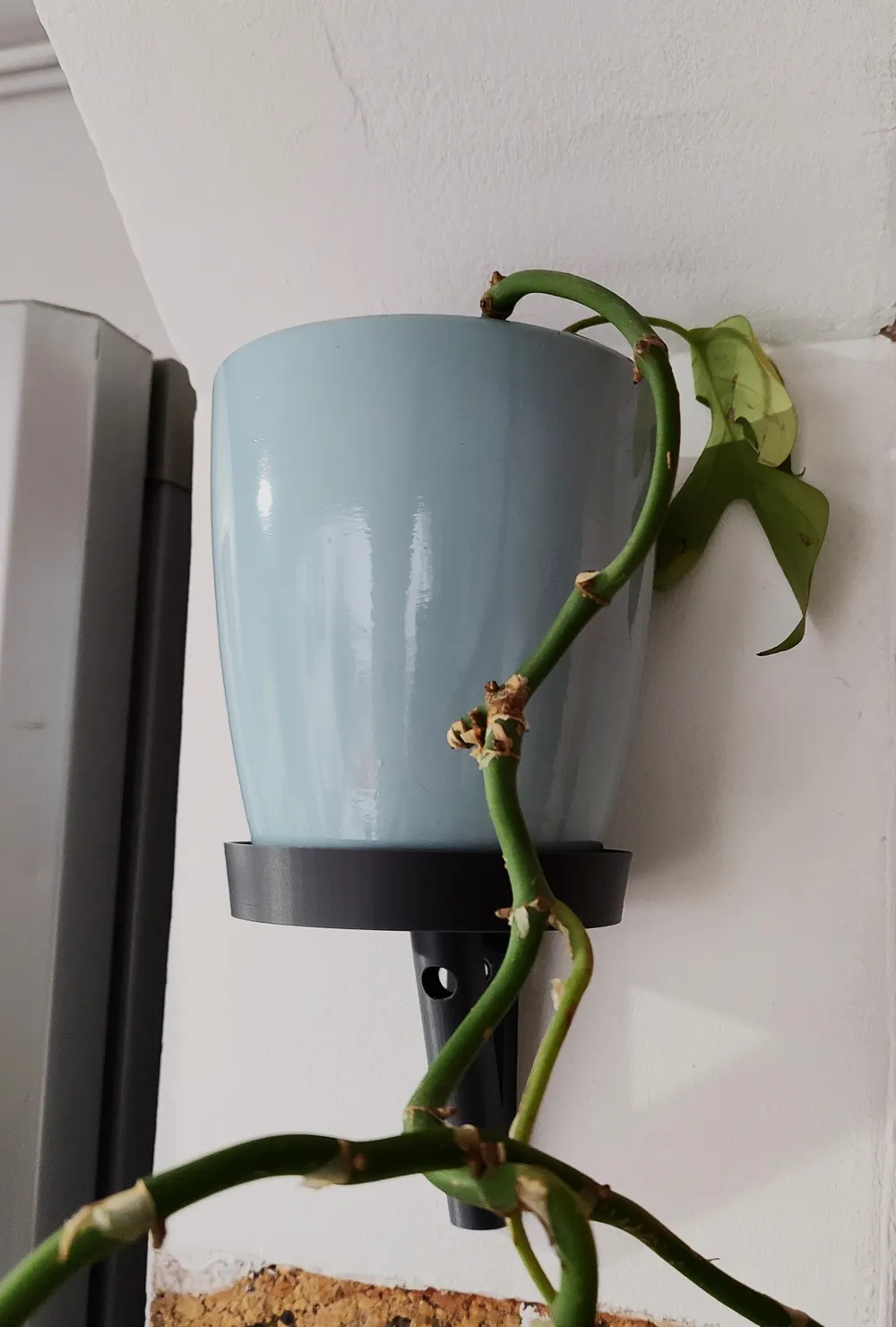

This is a sleek and functional wall-mounted holder designed specifically for small flower pots. It features a modern, clean aesthetic that fits perfectly into any home or office decor.

📐 Design & Dimensions

• Tray Width: 105 mm (Internal diameter).

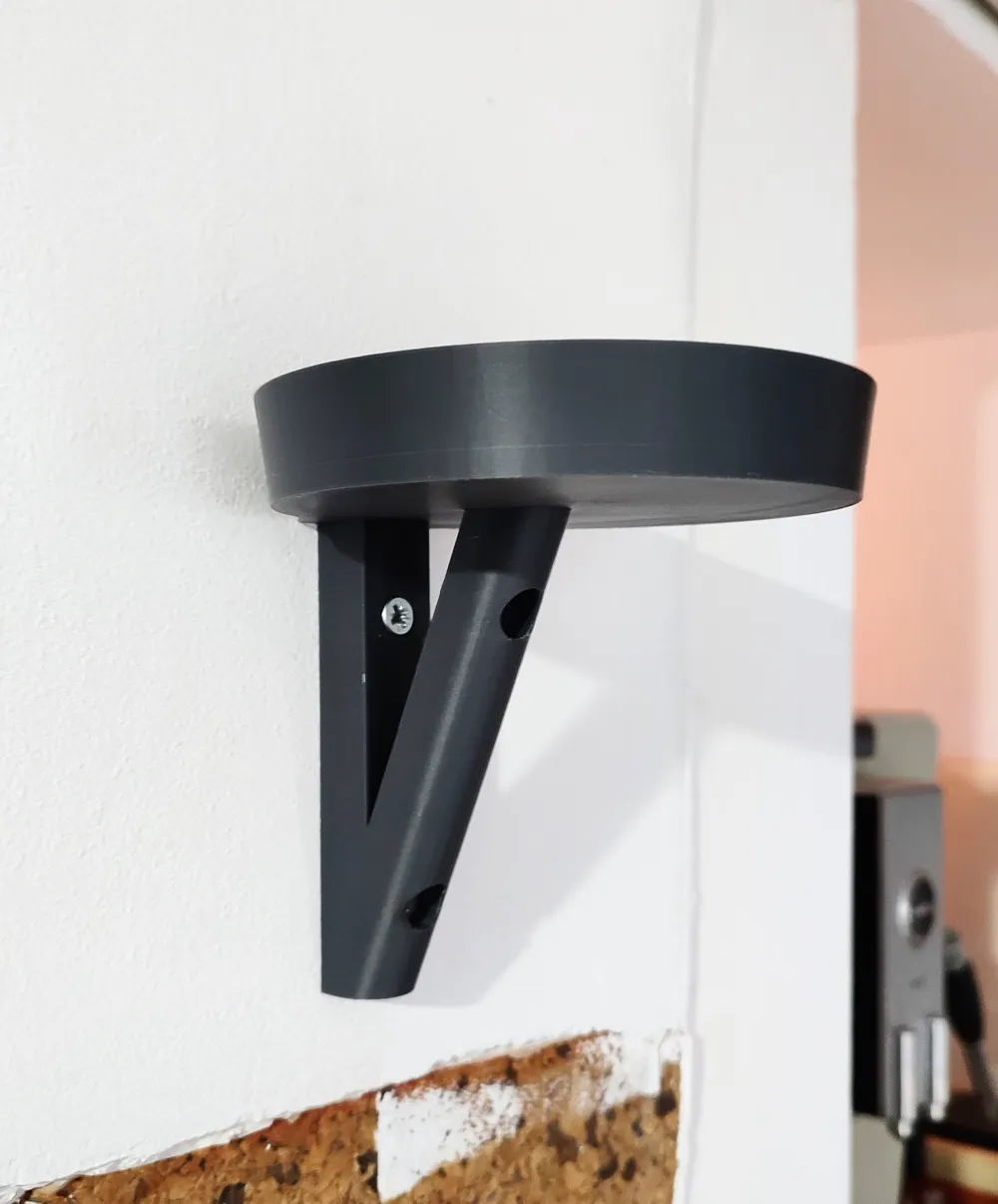

• Mounting: The bracket features two 5 mm holes for secure wall mounting.
• Screw Compatibility: Designed with recessed apertures to accommodate screw heads up to 10 mm in diameter, ensuring a flush and professional finish.

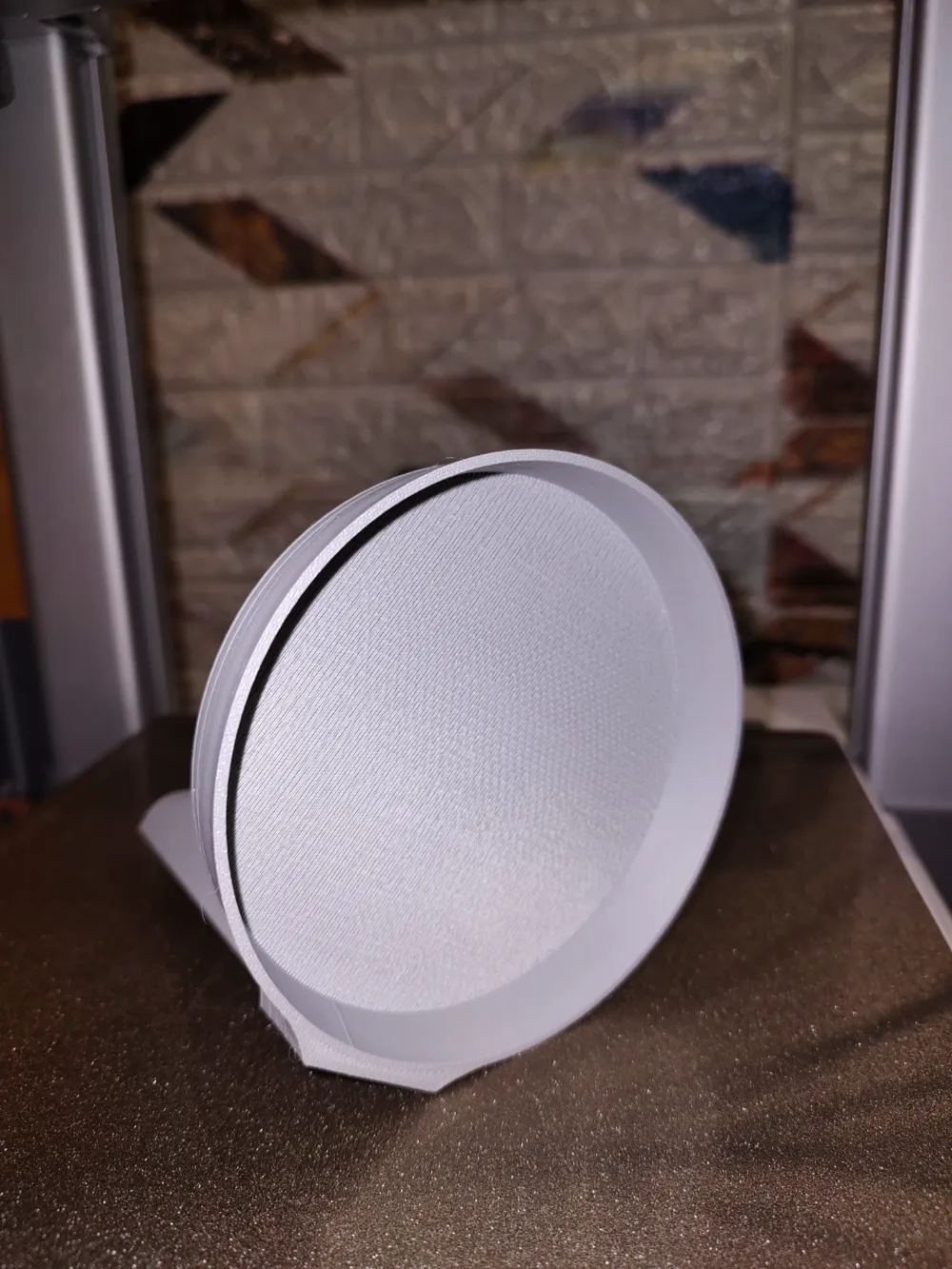

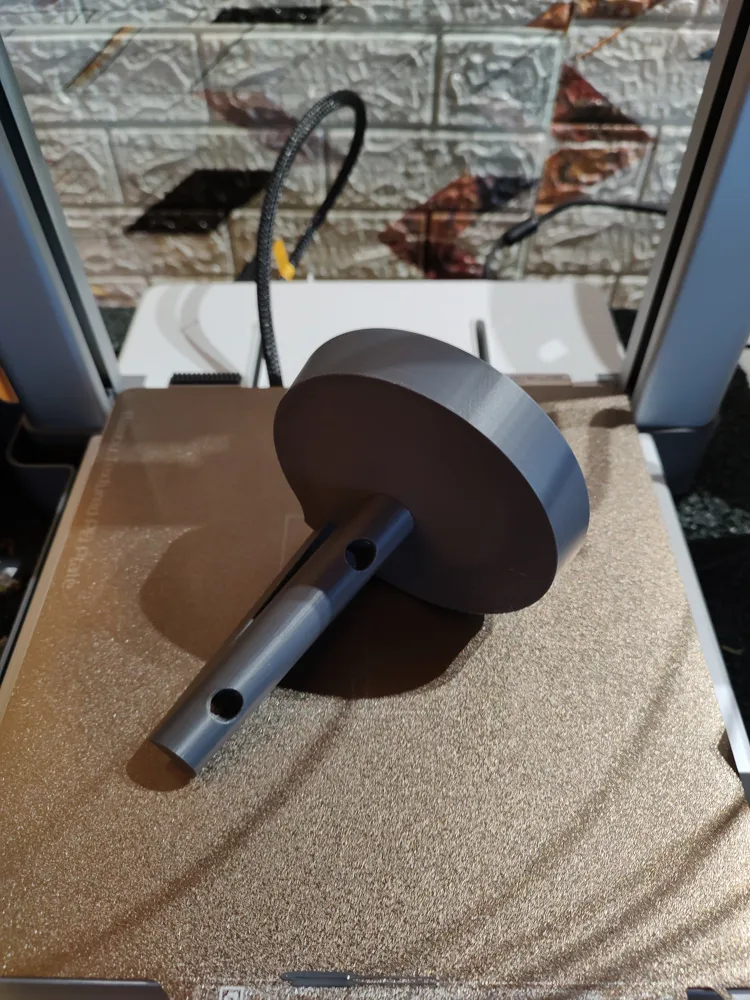

🛠️ Print Settings

• Layer Height: 0.2 mm
• Infill: 25% (Gyroid or Grid recommended for strength)
• Walls: 3 wall loops (Provides necessary structural integrity for the weight of the pot)
• Supports: Yes (Normal supports are required for the bracket overhang)
• Brim: Optional (Recommended if you experience bed adhesion issues or are printing with warp-prone materials)

🧪 Recommended Materials

• PETG: Ideal for its strength and slightly better heat/UV resistance if placed near a window.
• PLA+ / Tough PLA: Great for indoor use and offers excellent finish quality.

Installation Tip: Use appropriate wall anchors (dowels) for your wall type (drywall, brick, or concrete) to ensure the shelf stays level and secure under the weight of the plant and soil.

If you like this, check out the other flower pots too:

• Flower Pot Holder: https://makerworld.com/en/models/1192661-flower-pot-holder#profileId-1204729
• Wall-Mounted Flower Pot Holder (120mm): https://makerworld.com/en/models/1195212-wall-mounted-flower-pot-holder-120mm#profileId-1207745

If you like my model, please give it a like and check out my profile for more functional designs!

Happy Printing
