Echo Show 15 Rack

As always: Comments and especially your pictures are so welcome.

Please give me that few minutes of your time in exchange. :-)

We use our Amazon Echo Show 15 at various places. As a picture frame on a wall, a TV at the bed, …

So I made these models to hang it to a wall or over some kind of rod.

There are two versions:

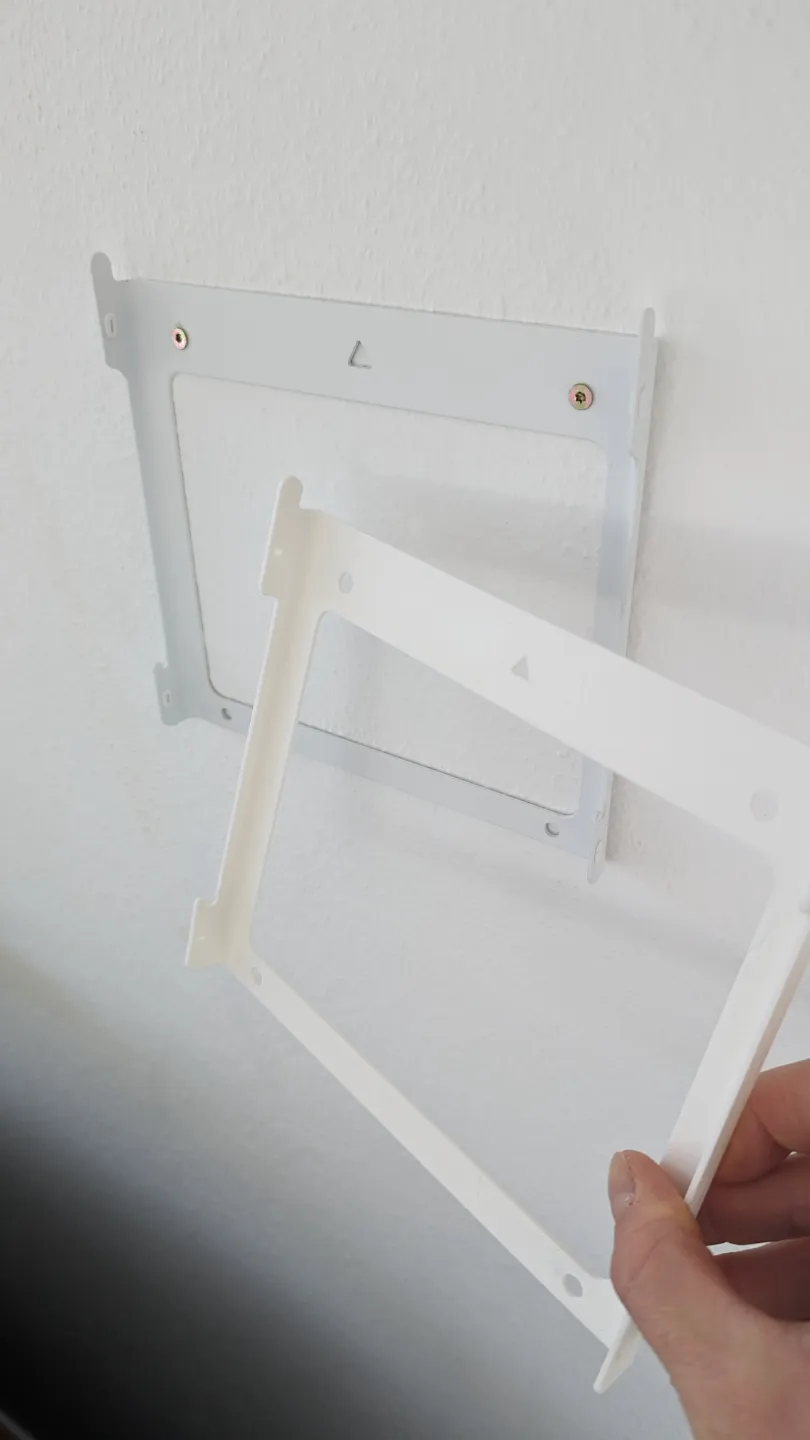

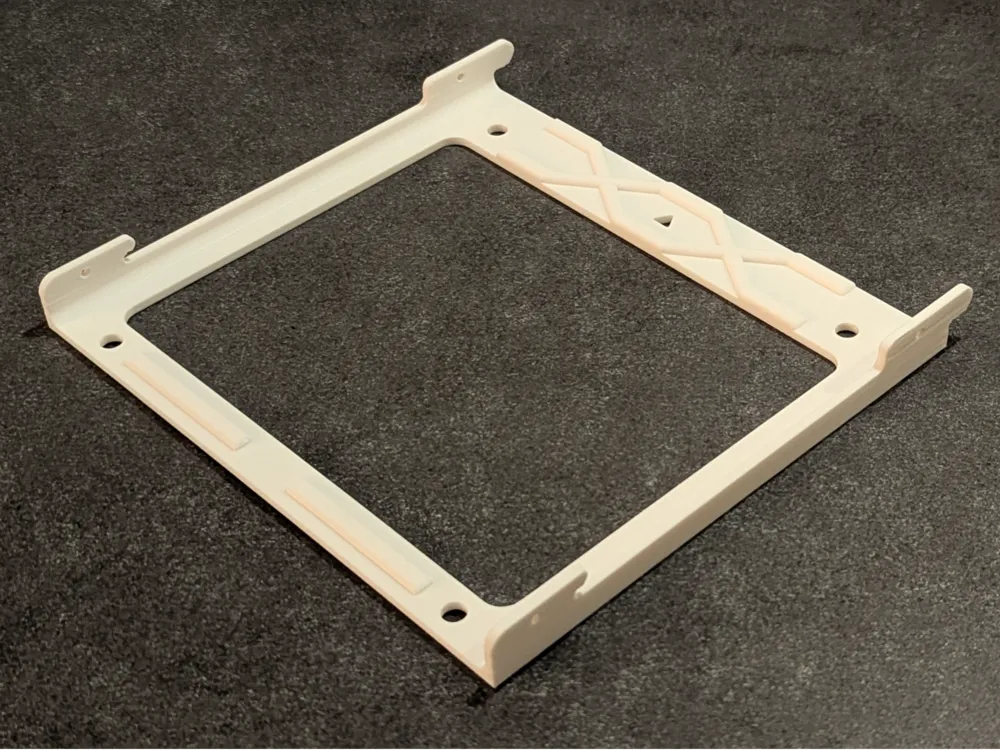

1. A rack for the standard wall mounting. That is the first print plate “Rack for Echo show 15” and you do not need anything else. Just fix this rack to a wall and hang you Echo Show 15 on it. You could use the strengthened version on the last print plate, too, but this is not necessary.

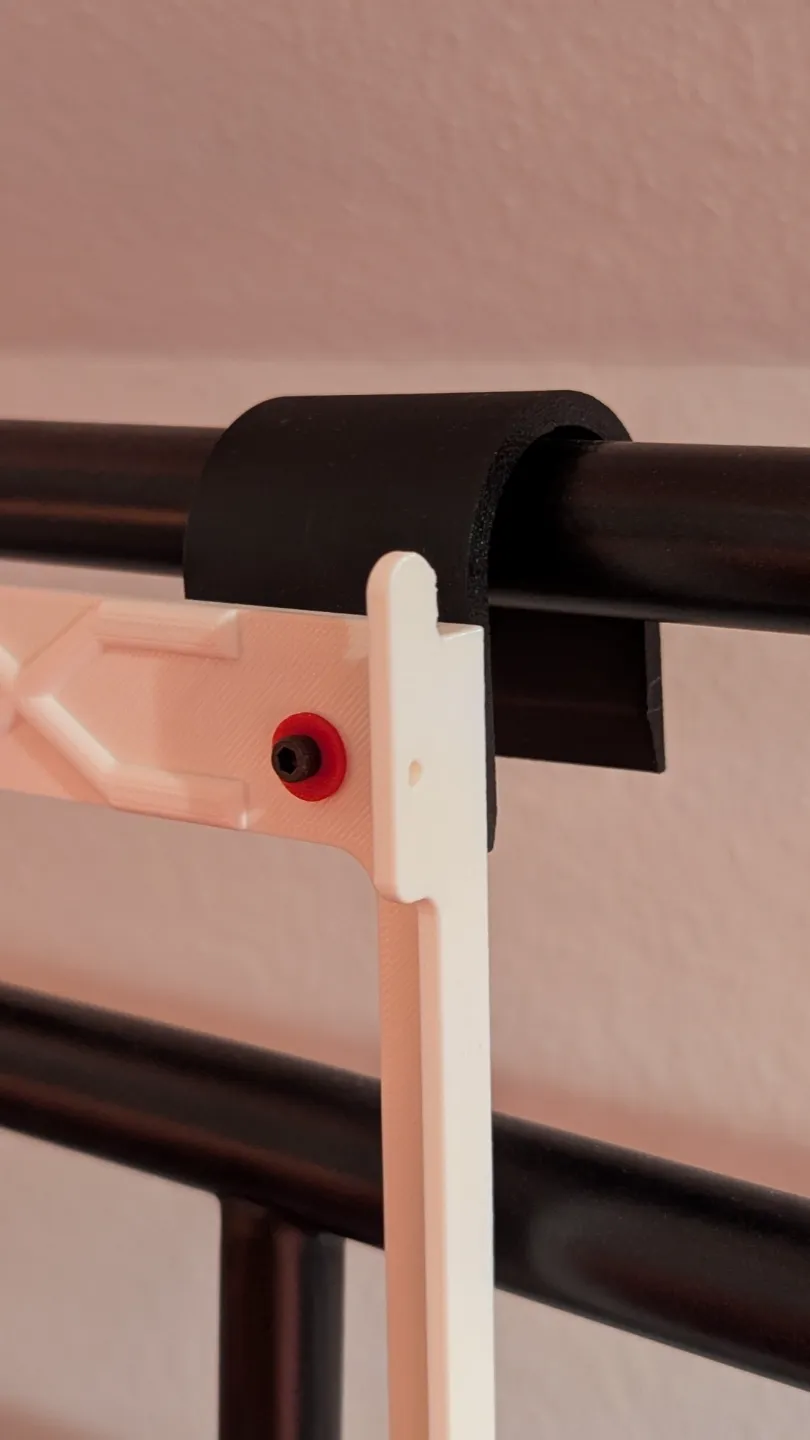

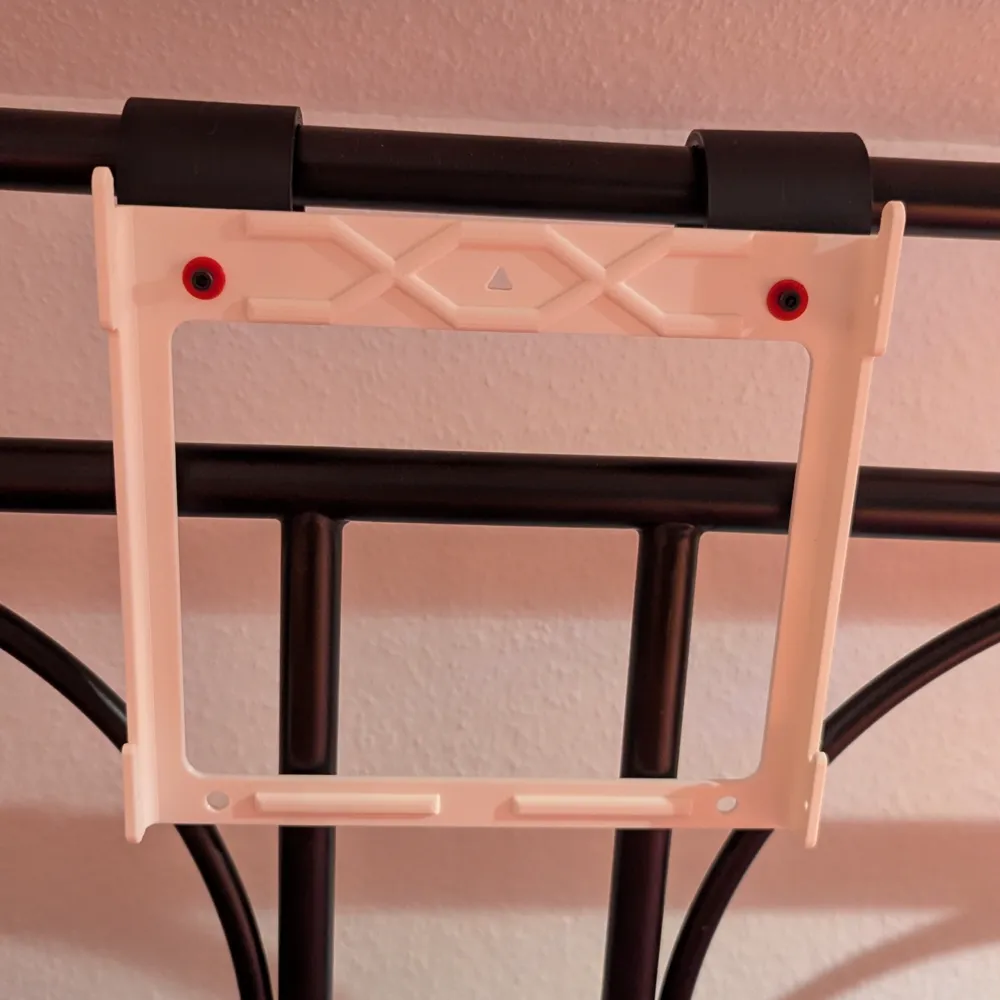

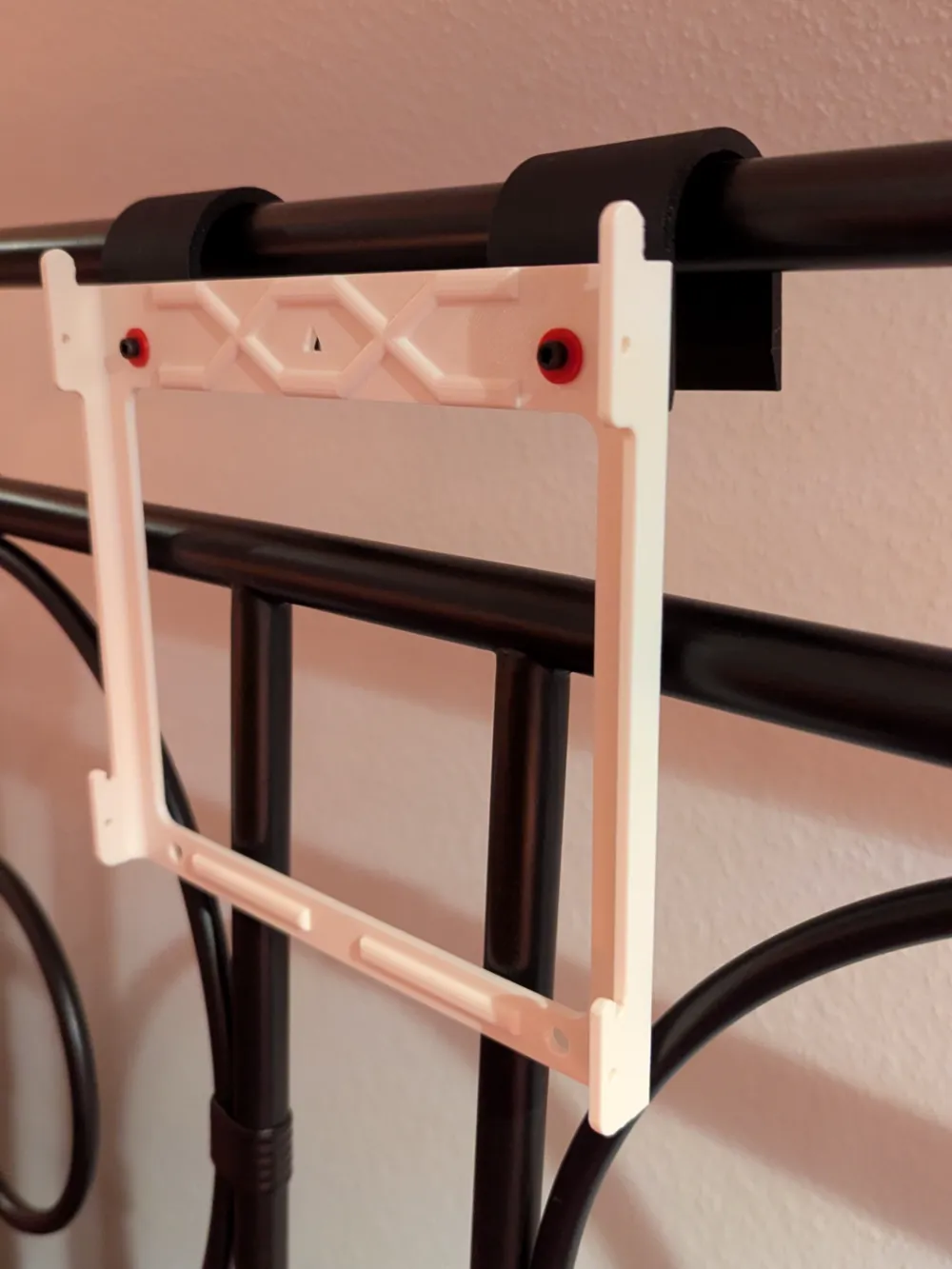

2. A rack with a connection to hang it somewhere over something. For example over a bed. See my example photos.

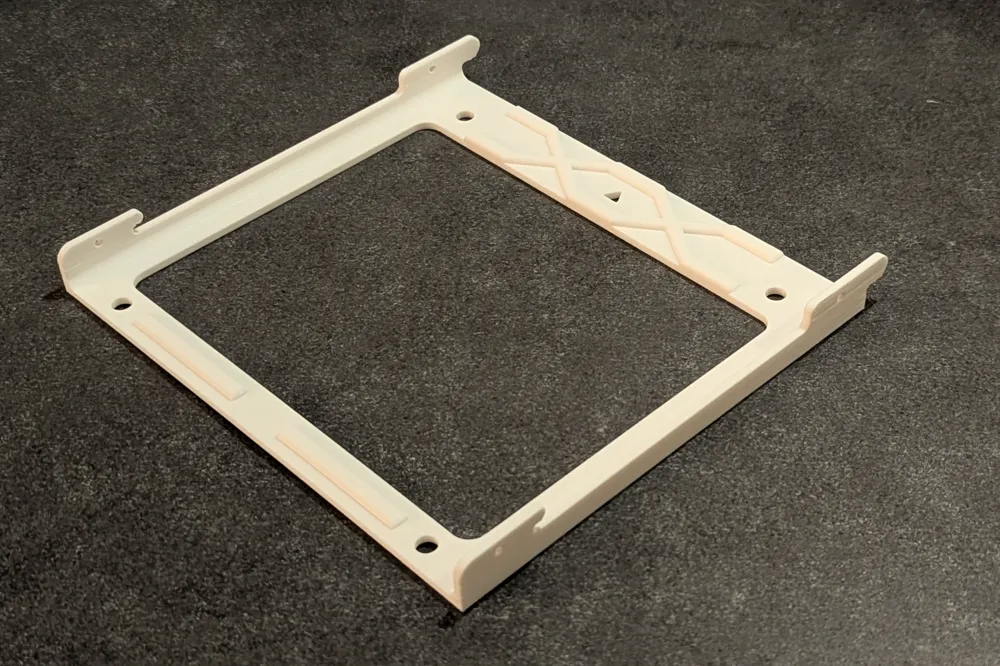

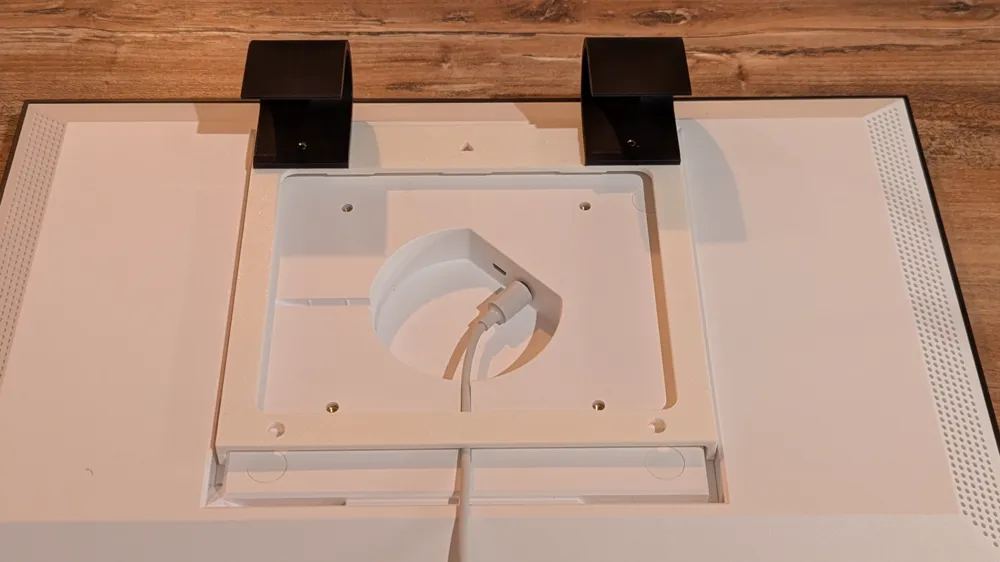

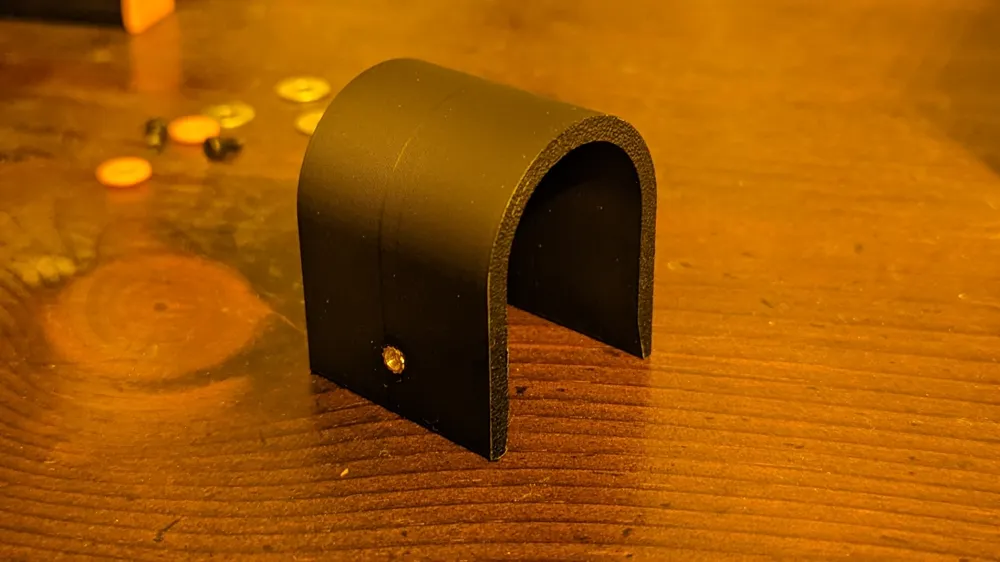

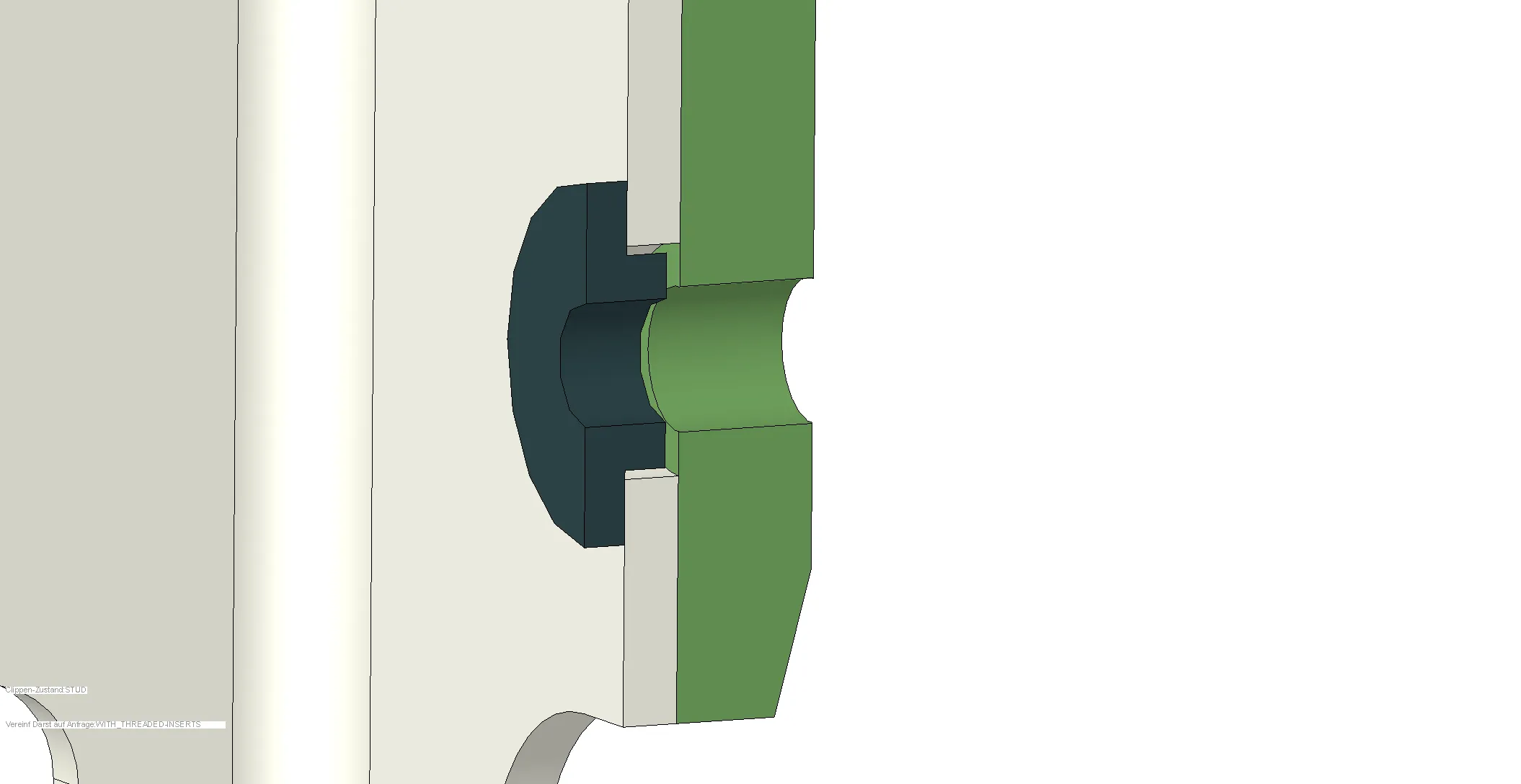

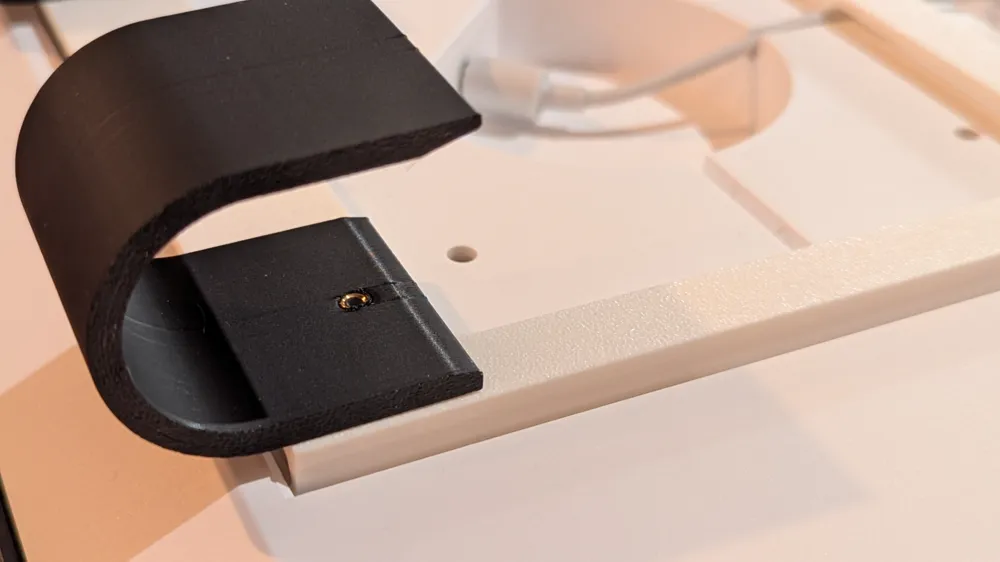

   Here you need the strengthened rack on the last plate "Rack for Echo show 15 - Strengthened". I connected this rack with the two round holders with heat-insert nuts. You find the correct ones at the bottom in the Bambu Lab link: M3x5x4 nuts with M3x8 screws.

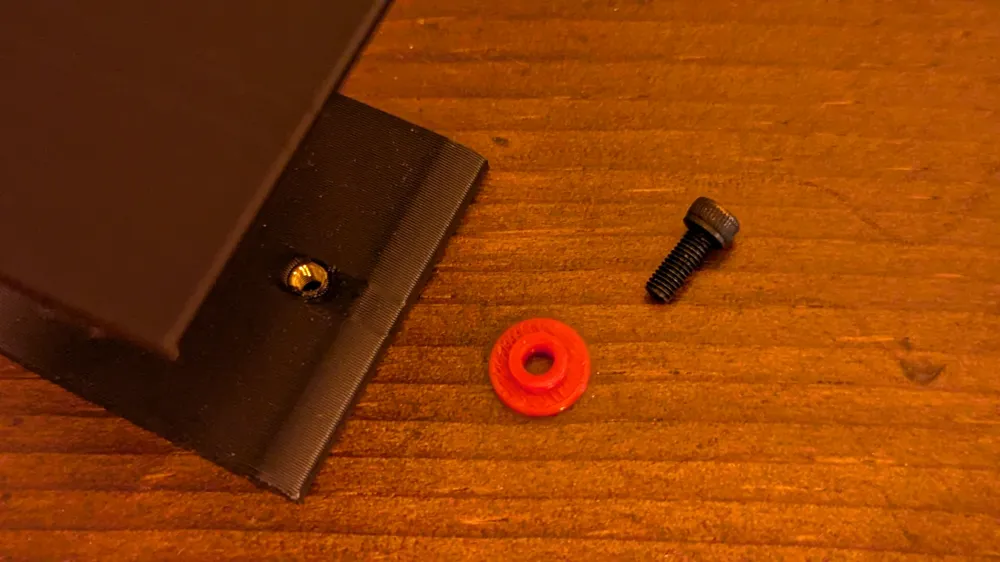

   The two printed washers are needed for the small M3 screws. You could use ones made of steel, too. ;-)



   Another more secure way would be to connect the parts with a simple screw/nut connection.

I printed everything in ABS with 30% infill. It is very stable. One rack is around 35 g.

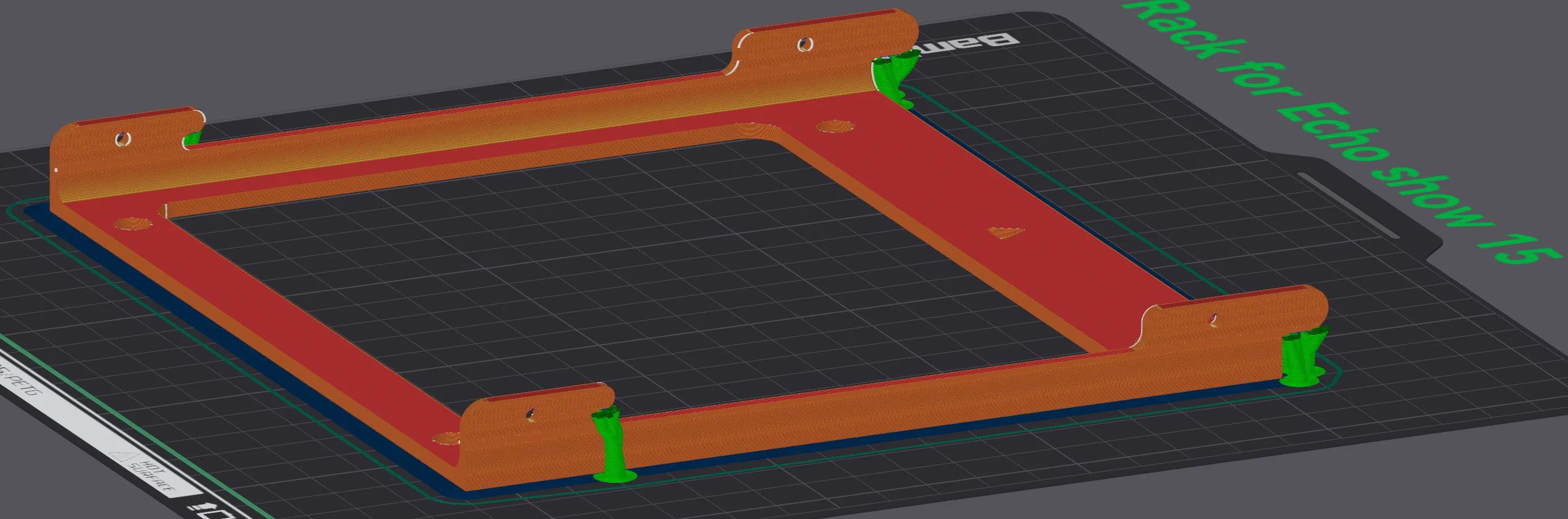

Little supports are needed under the noses, but you will remove them easily:
