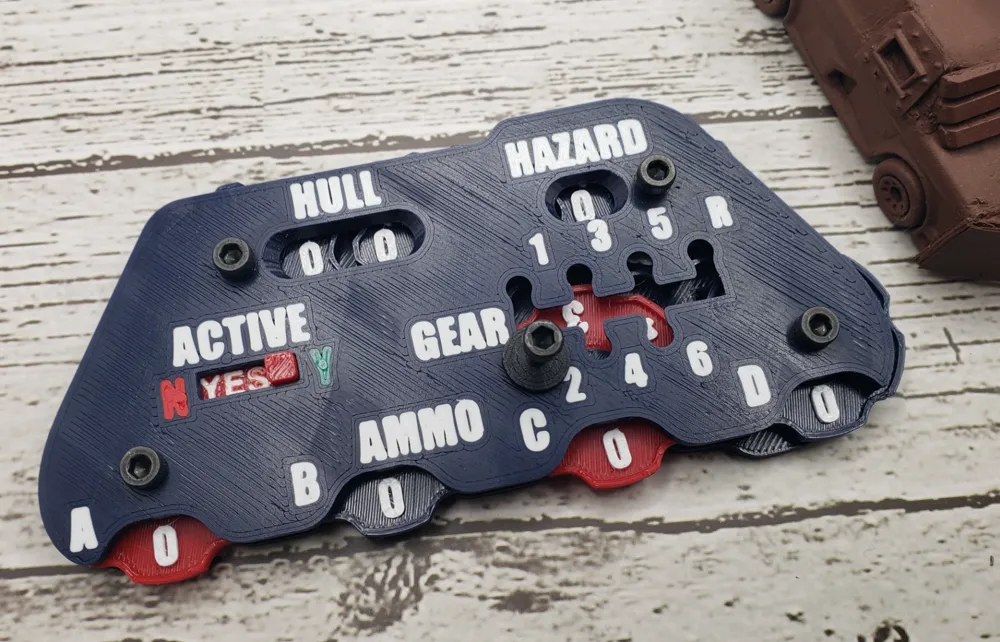

Gaslands Dashboard Counter (Diceless)(Remix)

This is a remix of the awesome creation from Siccity: https://www.thingiverse.com/thing:4889838.

I loved their creation; however, I wanted something with a gear shifter and had four weapons.

The 3mf file is made to be used with a multi-filament printer, like a Bambu Lab.  I used an X1 Carbon with an AMS.

If you want to use a single filament printer, you can flip the top plate upright and adjust the text to sit on top (instead of down in).  Additionally, you will need to turn on supports for the shifter/active slider cutouts.  Lastly, you will need to remove the YES and NO from the Active Selector Slider. I've never tried this so I'm not sure the outcome.

Extra Stuff You Need:

You will need (5) M3x10mm screws.  (4) to hold it together and (1) to use as a shifter (I used a longer one for this).

3MF File Explained

Plate 1

(1) Top Plate

(1) Bottom Plate

Plate 2

(4) Ammo Counters (0-5)

(2) Hull Counters (1 Left and 1 Right) (0-9)

(1) Hazard Counter (0-9)

(2) Shifter Mount Discs

Plate 3

(1) Active Selector

Putting It All Together

The only thing that isn't self-explanatory is the shifter.  Use an M3 screw and the two shifter discs.  Place one below the top plate and one above it (in the GEAR spaces), then screw through them both.  Adjust as necessary to make it tight to your liking.

Check out my other stuff

JnRPrintStudio - Etsy

Buy Me a Coffee

BTC, ETH, ADA, SOL, DOGE, HBAR: rykersaga.crypto

Paypal: @jenasimeone

Additonal Credit

I also used HalfACupkake's Linear Detent Mechanism: https://www.thingiverse.com/thing:6277651
