EC-145 Helicopter Line Art - Front - Side - Top

**Commercial licenses are now available: Membership | Fight To Fly Studio

Line Art

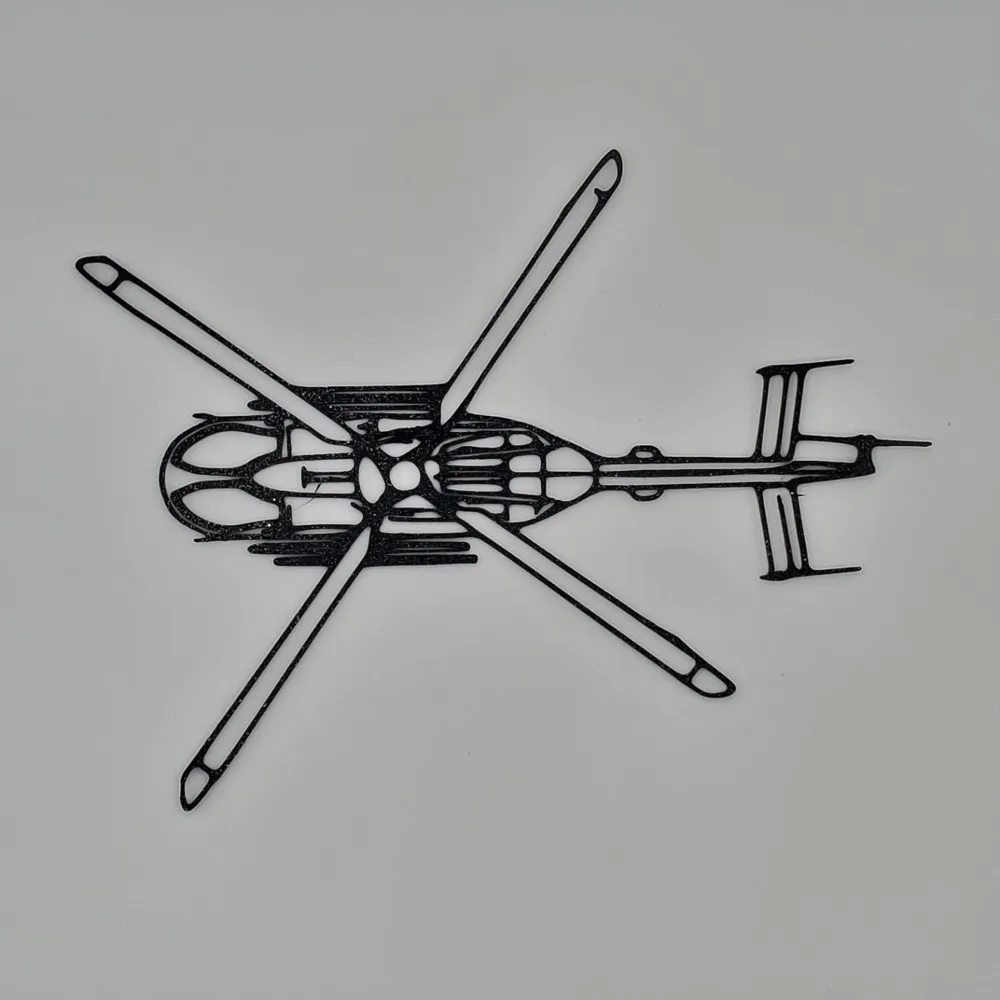

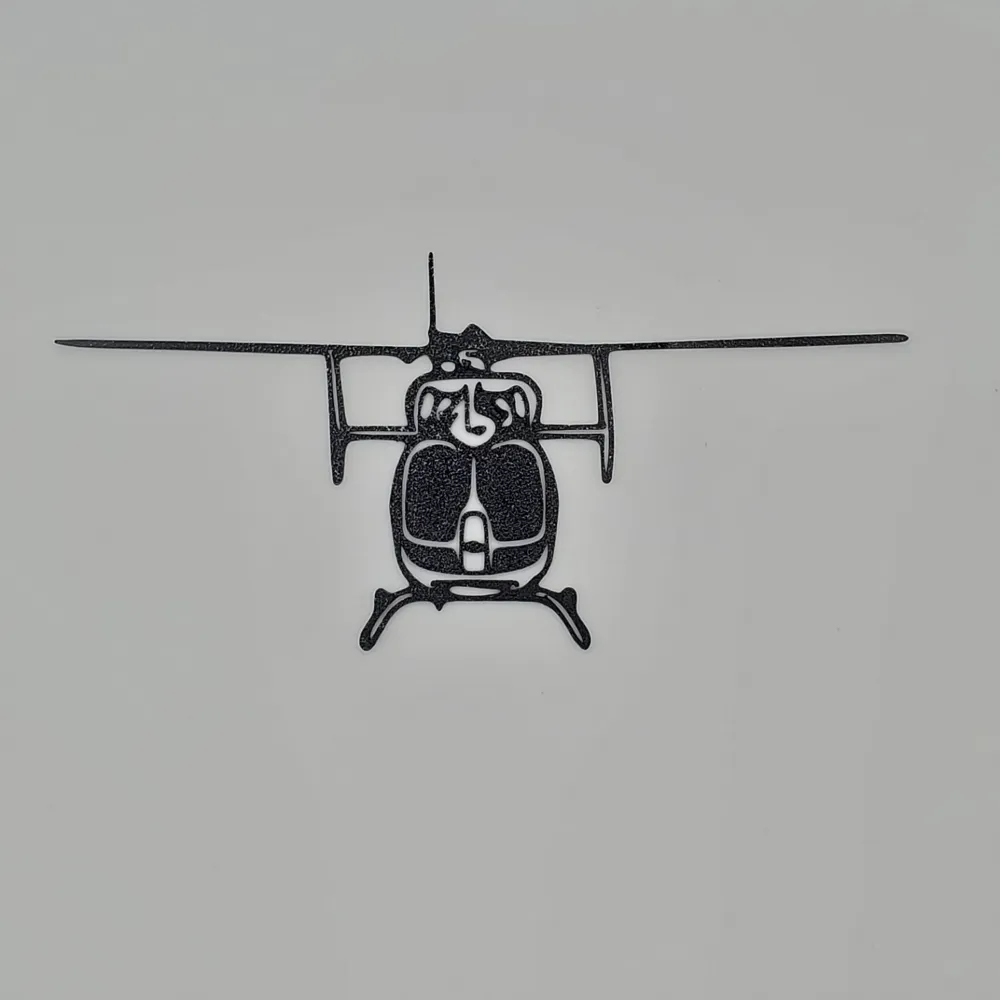

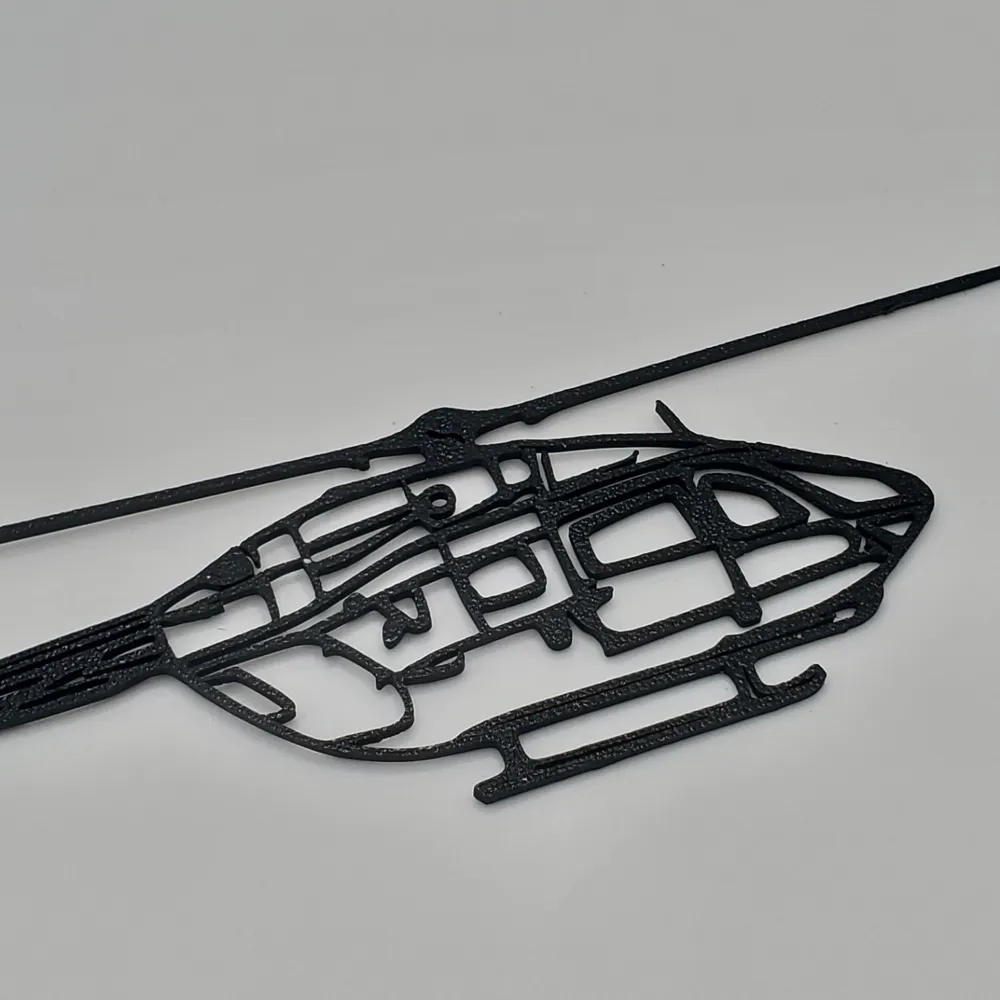

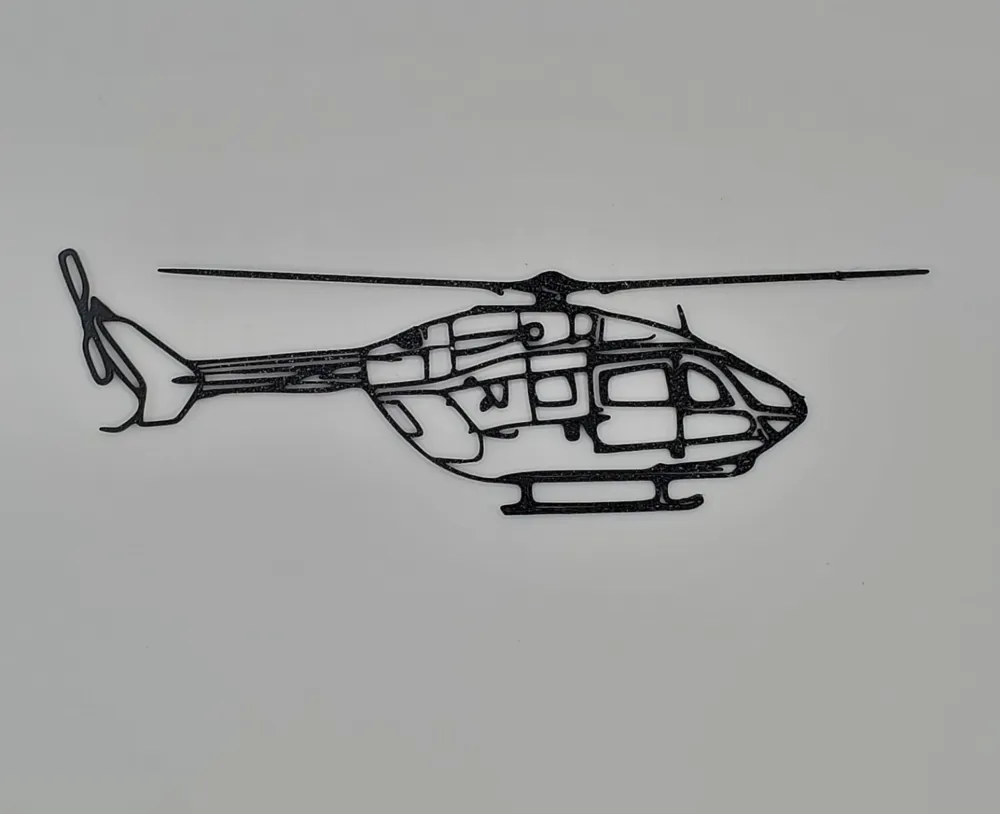

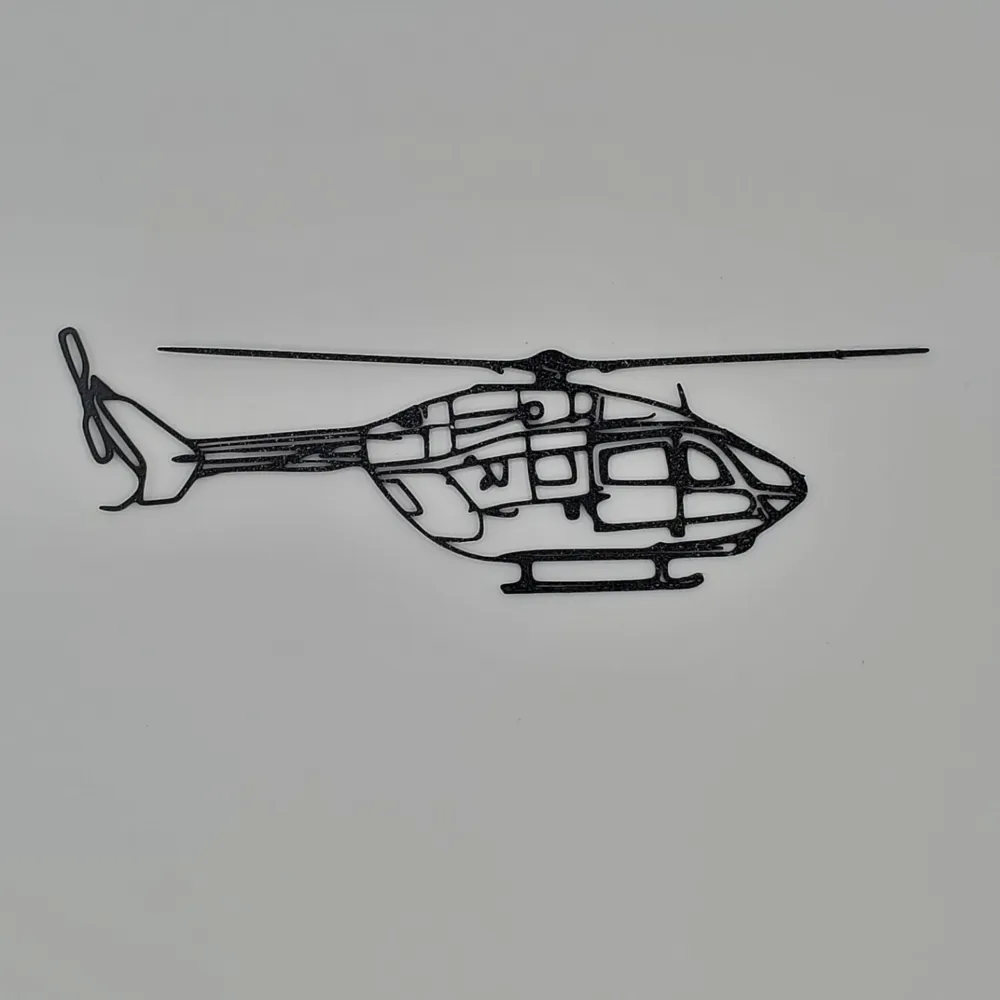

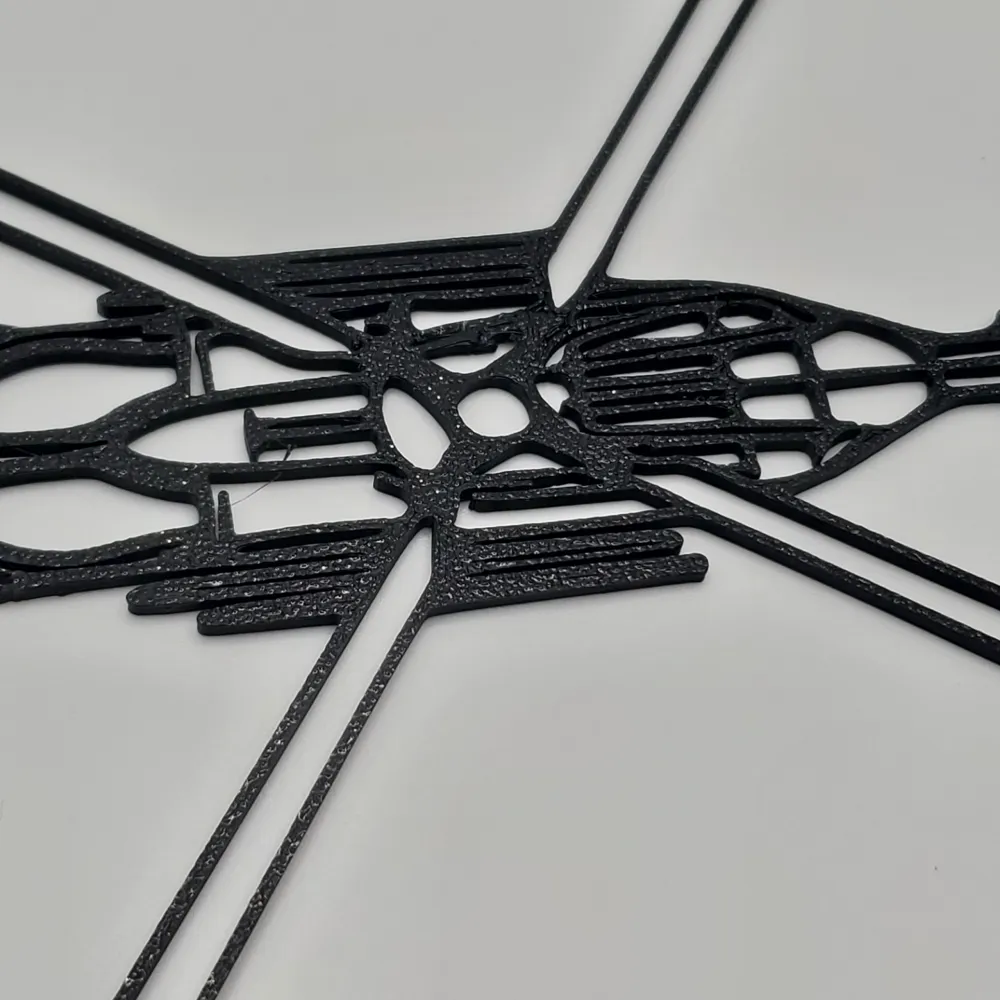

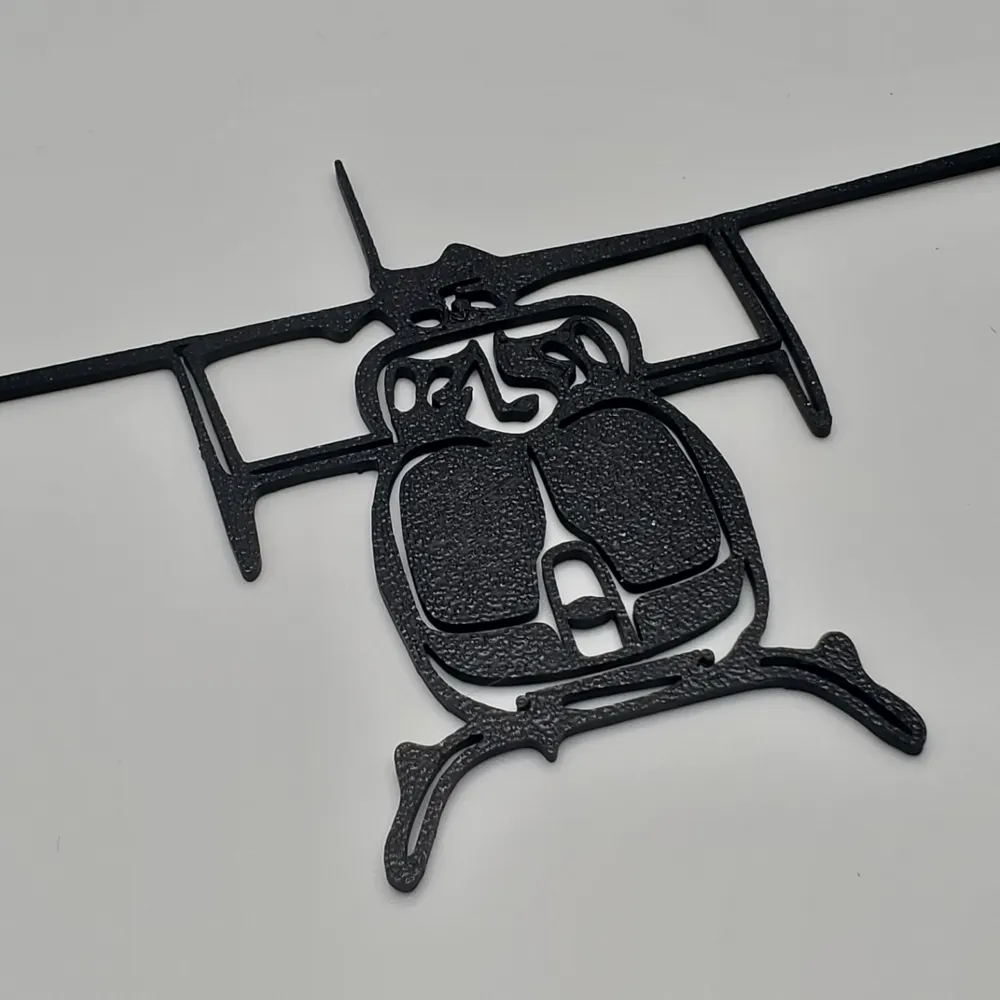

Here are 3 views of the Bell 412, one on each plate. You may resize as you see fit. You may enlarge it as much as you want using the built-in features of Bambu Studio.  I do not have the time to resize for every need, so check out any of the many videos on YouTube that walk you through the enlarging/cutting process.  If it prints great, upload a profile. :-)

Airbus EC145 (BK117 C2)

Development History and Significance:
The Airbus EC145, initially developed by Messerschmitt-Bölkow-Blohm (MBB) and Kawasaki as the BK117, was further advanced into the EC145 with enhanced aerodynamics, avionics, and cabin space. Introduced in 2002, it is widely used for SAR, emergency medical services (EMS), corporate transport, and military missions. The EC145 is particularly notable for its spacious cabin and rear clamshell doors, allowing for efficient loading and unloading.

Size and Capacity:

• Length: 42 ft 10 in (13.11 m)
• Rotor Diameter: 36 ft 1 in (11 m)
• Height: 13 ft 5 in (4.11 m)
• Cabin Capacity: Up to 9 passengers or 1,600 kg (3,527 lb) of internal cargo

Performance:

• Max Speed: 145 knots (268 km/h)
• Range: 370 nautical miles (685 km)
• Service Ceiling: 18,000 ft (5,486 m)
• Maximum Takeoff Weight: 8,157 lb (3,700 kg)

The EC145’s versatility and modern features have made it a favorite for EMS operations and demanding missions requiring advanced technology and reliability.
