Magnetic Pole Kit (Rapid Magnetic Pole Identifier)

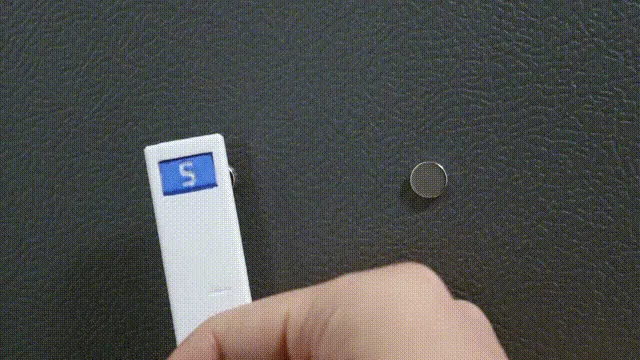

This is a magnetic pole indicator for quick identification of magnet polarities

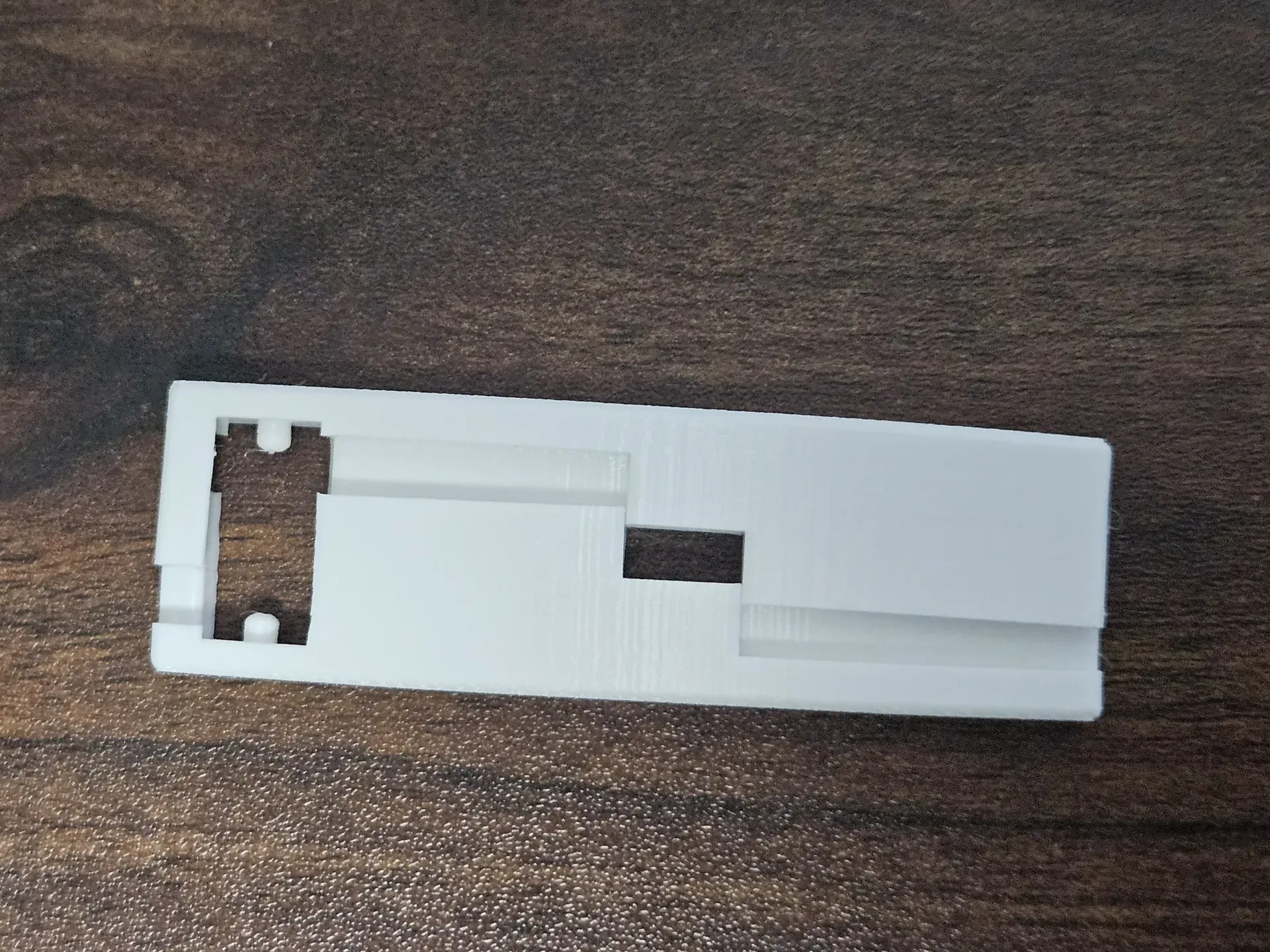

The entire tool comprises only two models, each printed in duplicate for pairing.

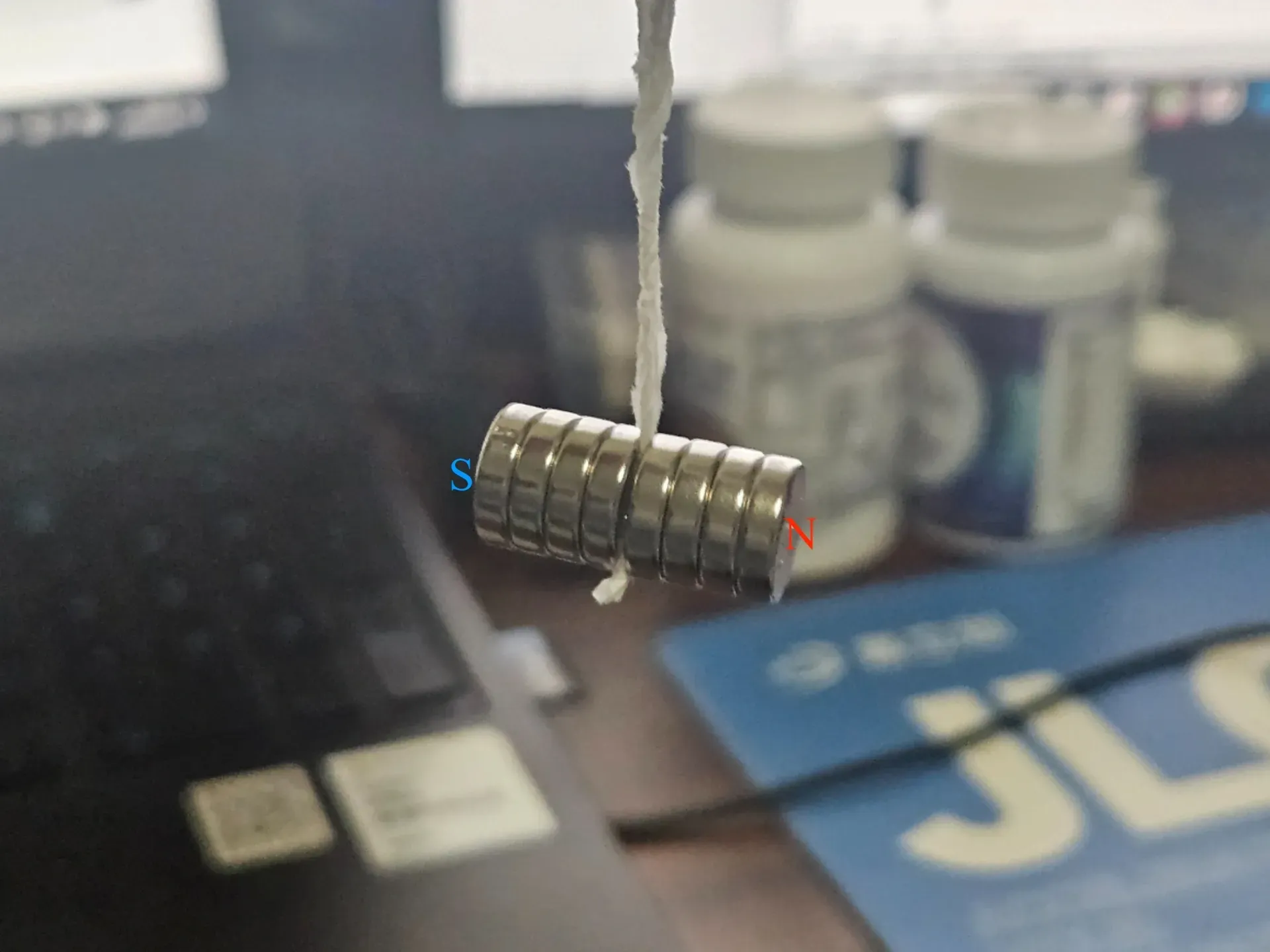

An 8x2mm strong magnet is required; I used two 8x1mm magnets stacked together. A quick method for determining polarity is shown in the image: the end pointing north is the N pole.

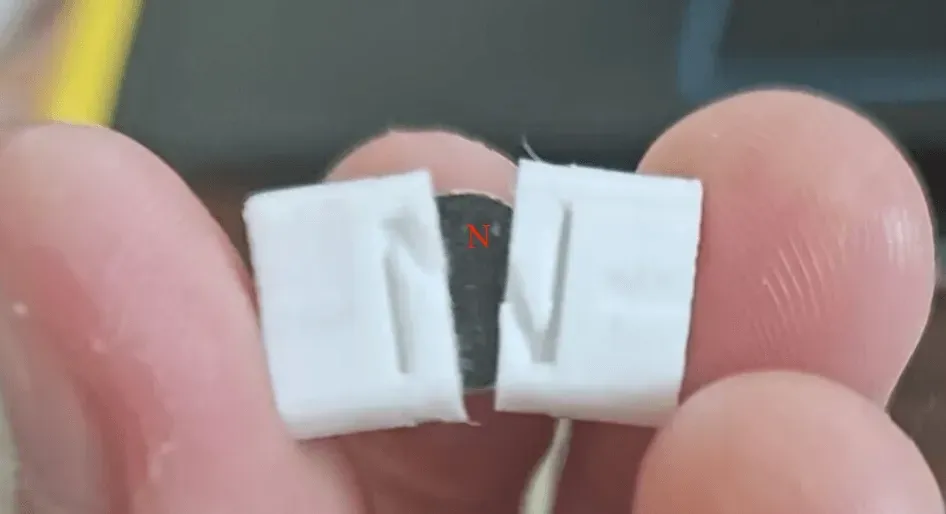

Insert the magnets correctly according to the recessed letter markings on the model. Snap them together firmly as shown; apply adhesive if insufficiently secure. I painted mine with acrylic markers for enhanced aesthetics, although the letters N and S remain clearly visible without paint.

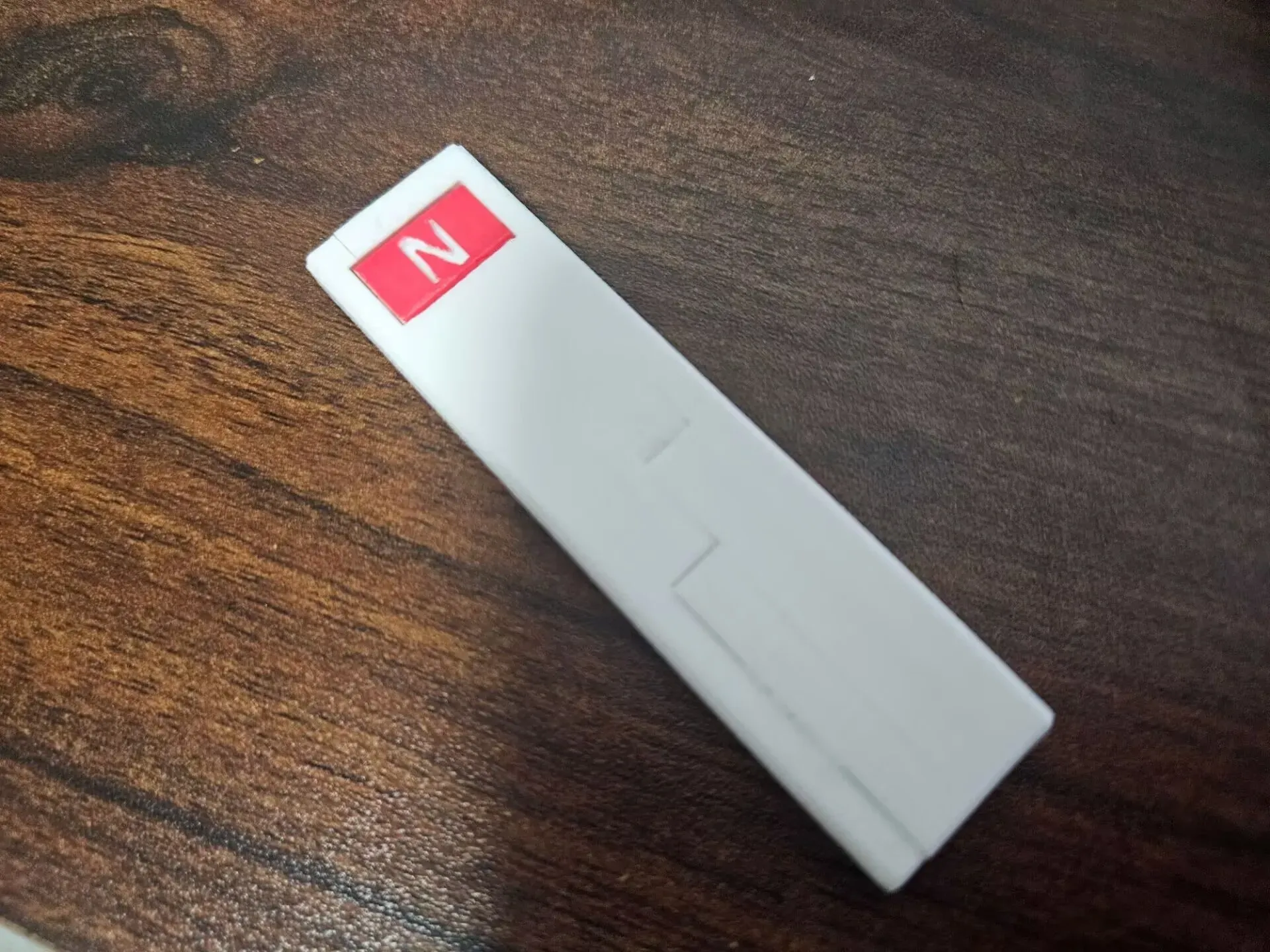

Place the magnet casing onto the shaft, then firmly snap on the handle as depicted. I used adhesive here for a secure bond.

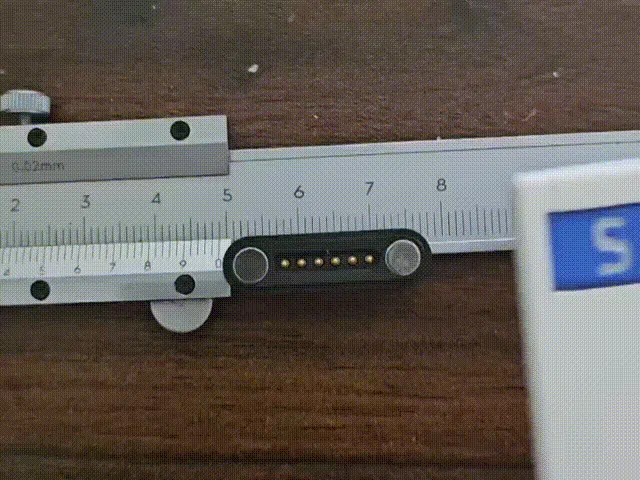

My primary use for this tool is identifying the polarity of foolproof magnetic terminals. Those who frequently work with magnets might find this quite handy. When in use, the side facing you indicates the polarity of the magnet's corresponding face.
