Description

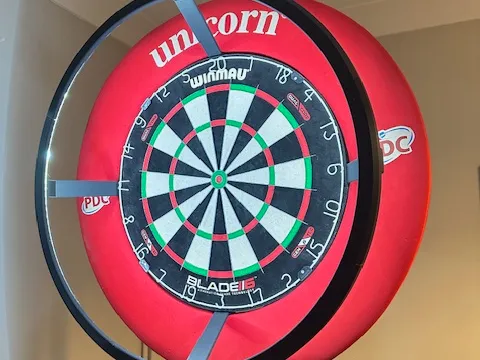

I wanted a light ring for my dartboard but did not want to spend the money as they can be quite expensive. I designed this one which came out surprisingly well. I have had it up on my board for a month now and it has been great.
It is a pretty easy print, it has been designed with low tolerances so the parts do take a bit of force to get them together but they also then stay together, nothing more than a sturdy grip and bit of brute force.
Some supports are needed but not many, they are already selected in the 3mf file ready.

I used 8x 10mm x 3mm Magnets in the arms to hold on to the side of my Dartboard, I did also use it without the magnets for some time, the dartboard surround holds it in place but it did move a little, with the magnets it does not move. Either way it still worked fine.
The holes for the magnets on the arms have also been made tight so the magnets hold, you can use glue but I have not and they have stayed in place, I did use a pair of grips to squeeze them in to the holes.

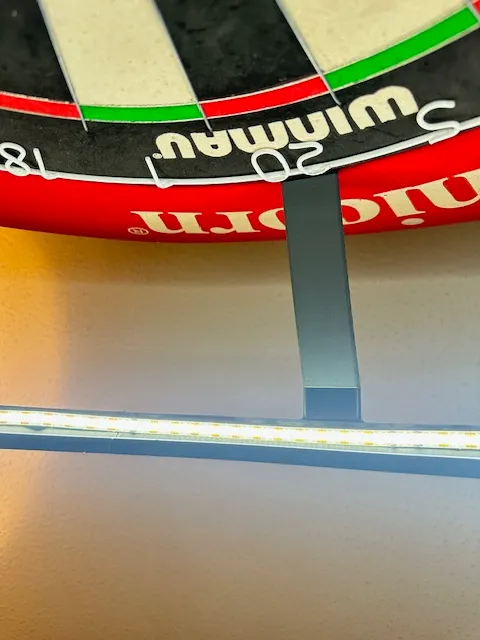

I used an LED strip 6500k from Bambu, can be bought from Makers Supply, it needs 2 metres so the one from Makers supply is 5m so you have enough to make 2x LED Light rings if you wanted.

I printed this in PLA, it has been fine, could print in other materials to increase strength.
