Watch Dog Vault
Print Profile(1)
Description

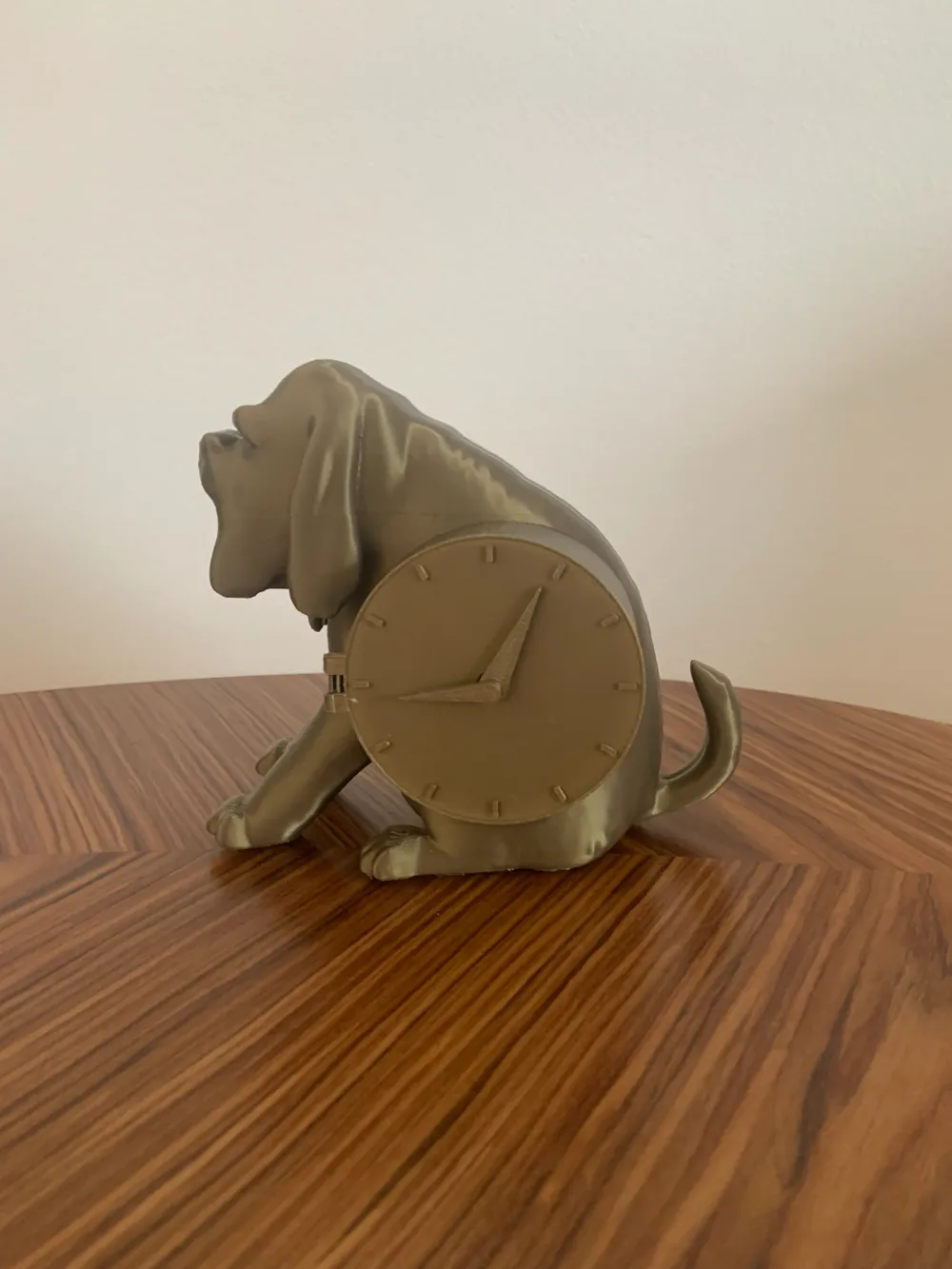

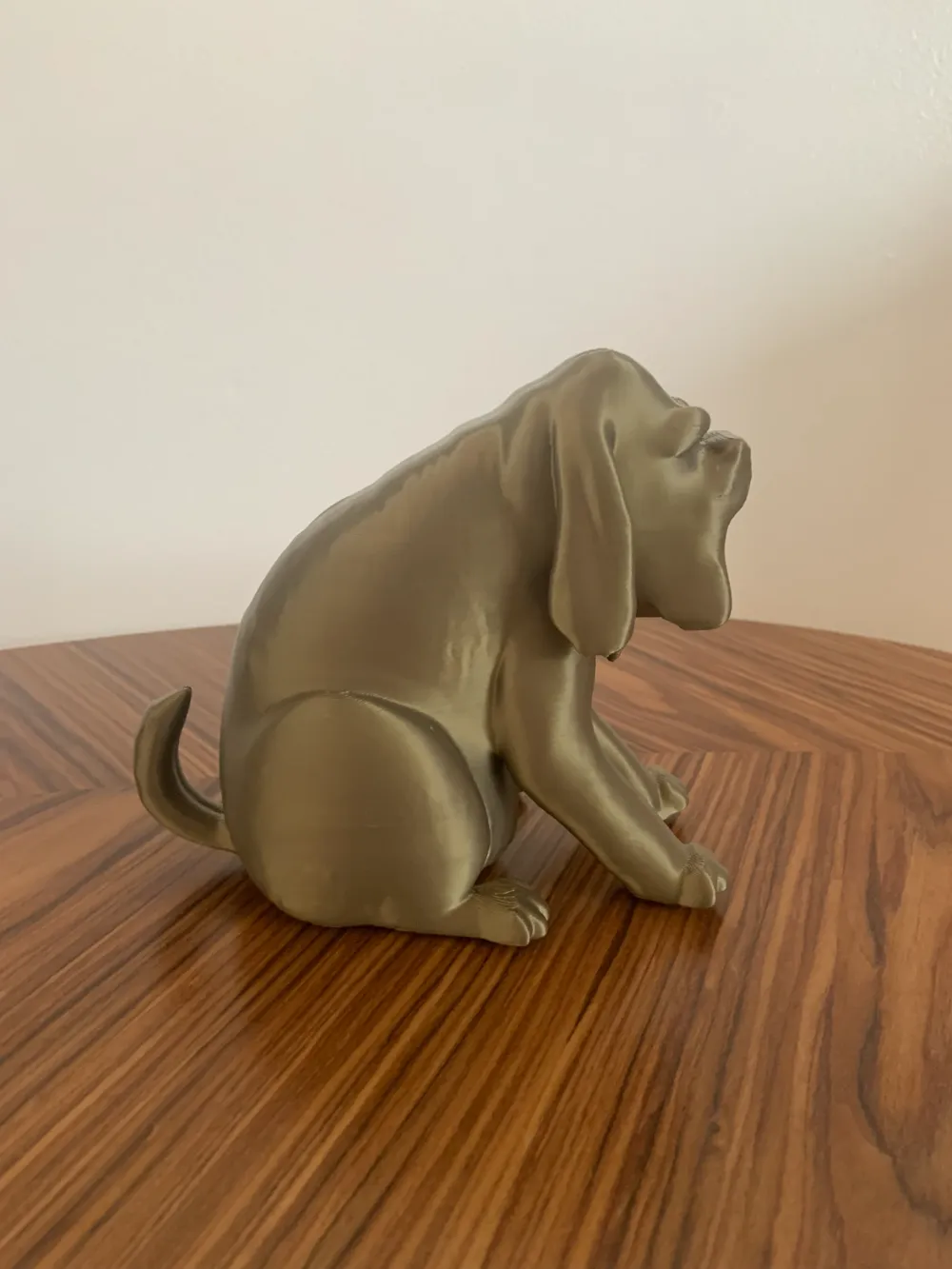

This is a Clock Vault design based off of a character from my childhood favorite book Phantom Tollbooth. The Watch Dog was always a favorite character to me, and I think it looks really inconspicuous, and just like a sculpture, or paperweight on my desk. I Hope you think the design is as sleek as I do.
For assembly :

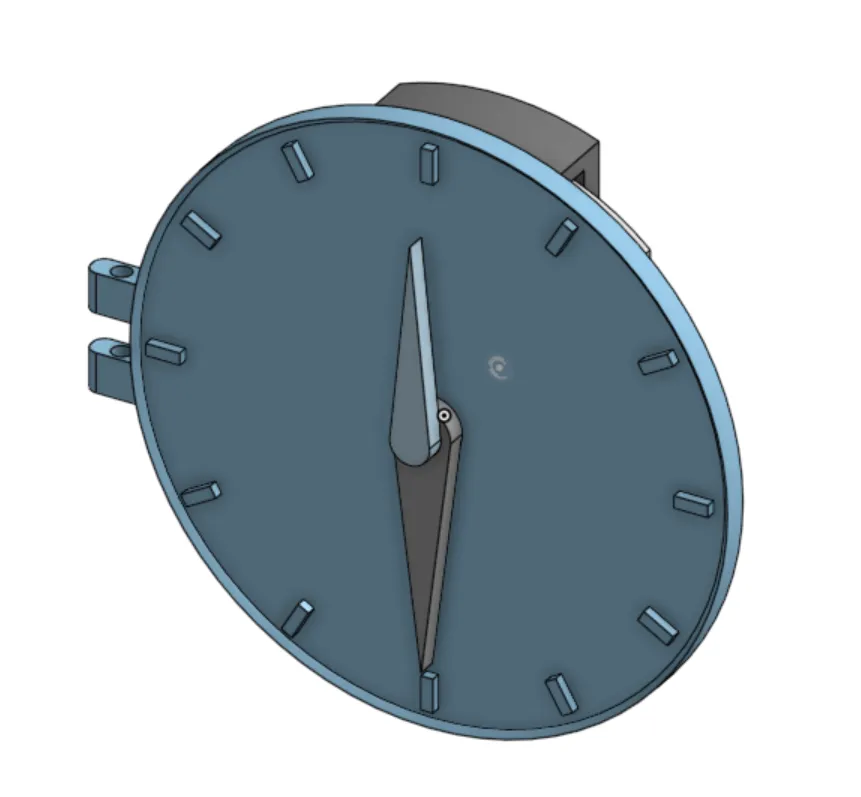

Press the Hour hand into the clock face, then push in the Spacer, then the Hour hand Lock Back onto the Back of the hand.
Then do the same for the Minute hand and hand Lock Back. (no spacer)

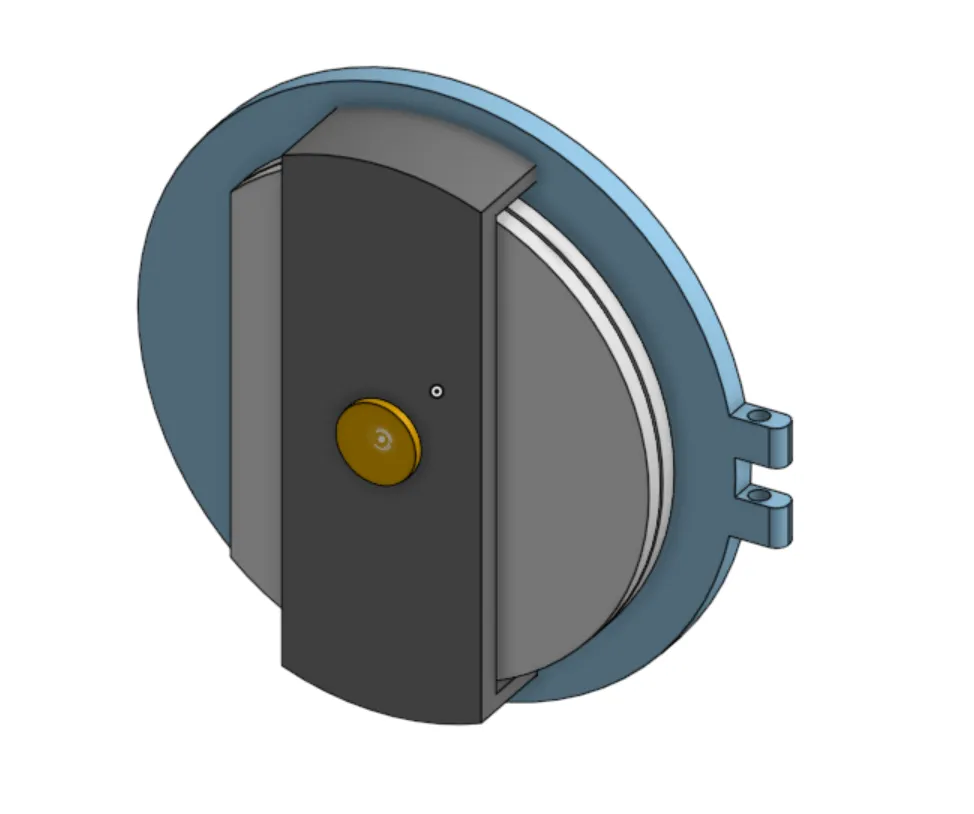

Then Attach the Lock Case using a little dab of super glue into the holes, lining it up the the Minute Hand.
Then with another Dap of super Glue insert the Pin for case into the hole in the back of the Minute Hand, Securing the Lock system into place.

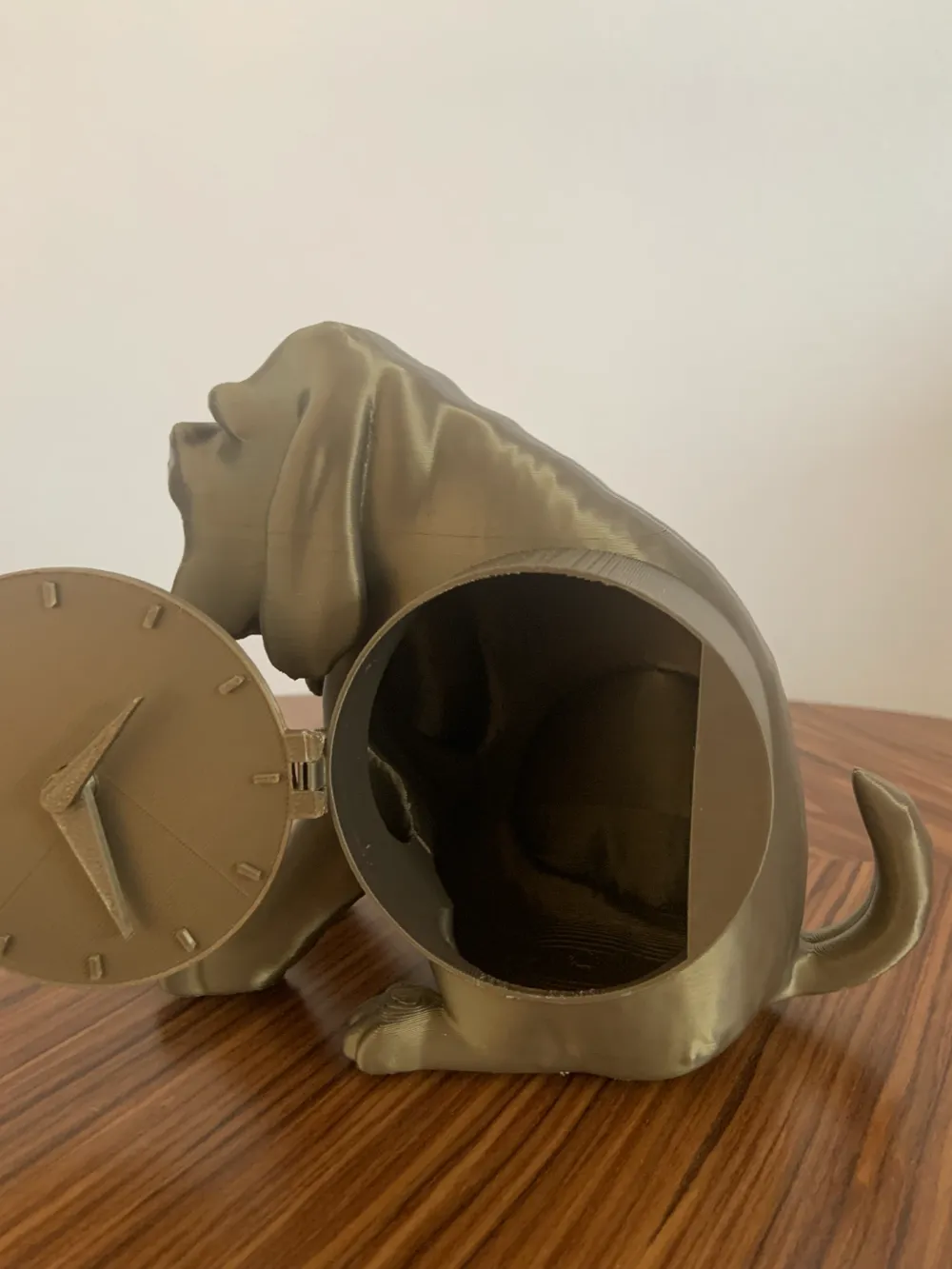

Put the Watch Door into place on the side of the Watchdogs, then slide short piece of 1.75mm Diameter
Filament into the hinge, then a Dap of super glue to keep it in place.
Boost Me (for free)
Please Boost this model, I worked very hard designing the dog in blender, and then the lock mechanism in Fusion 360. I would greatly appreciate it!
