Description

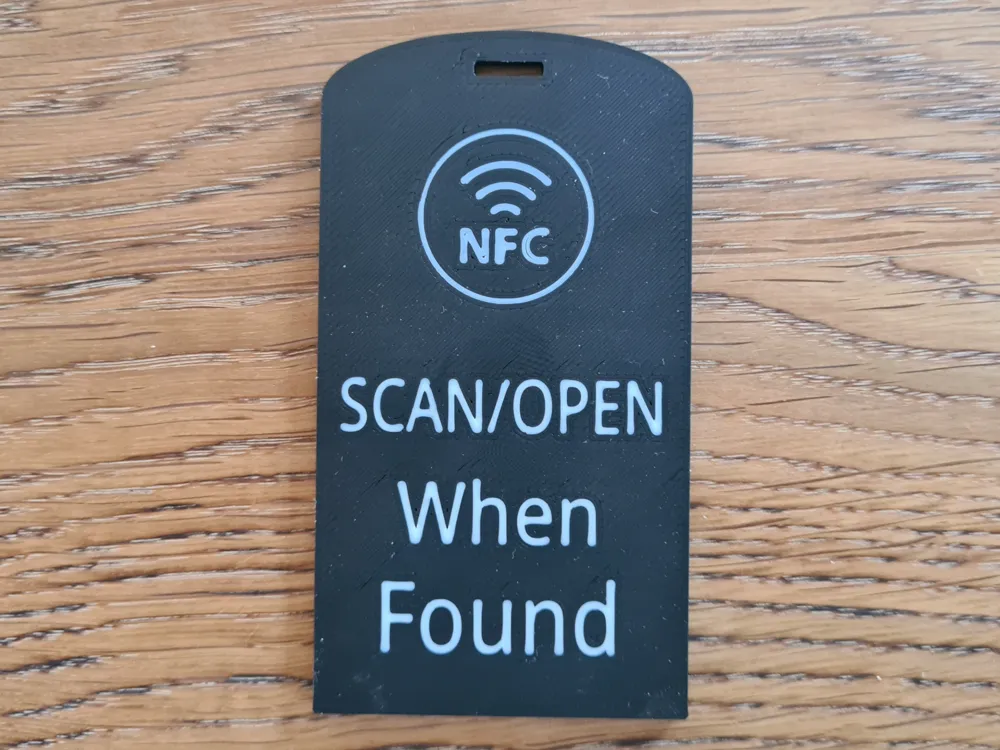

This luggage tag is designed to hold an NFC sticker (chip) where you can store your personal details. Any phone with NFC capabilities can scan the tag to retrieve the owner’s information, making it a smart electronic luggage label. Your details are also printed on the tag for added convenience.

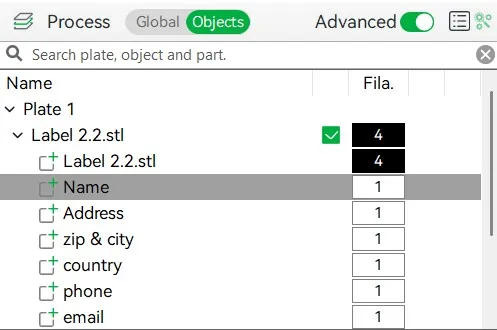

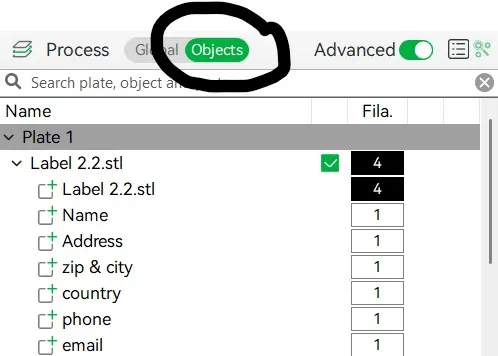

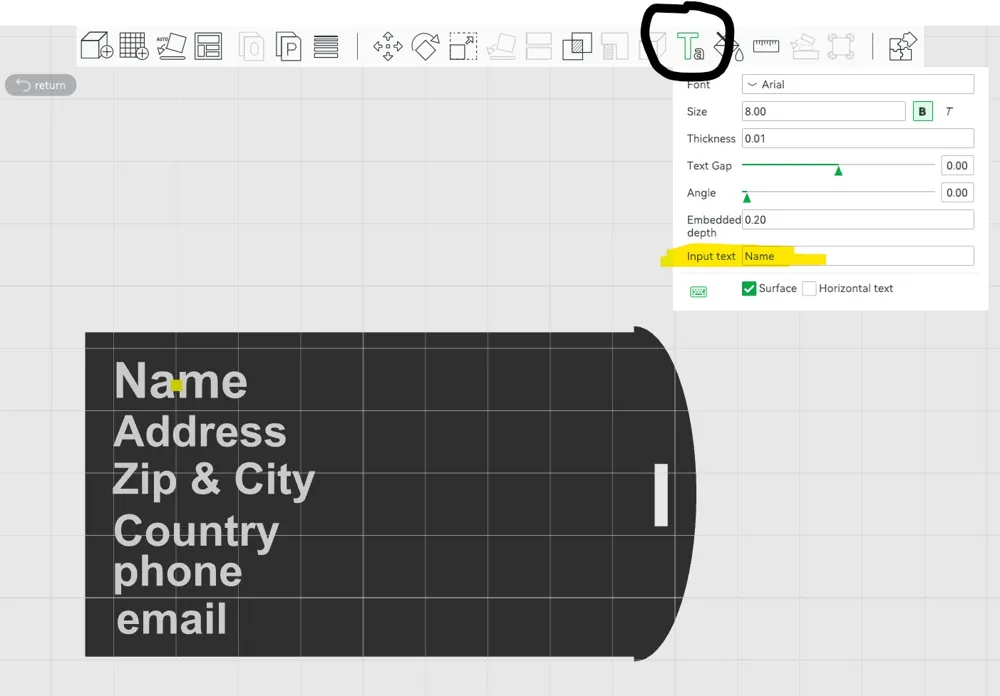

You can personalize the text in the Bambu Slicer software. To do this, go to "Process," select "Objects," and change the text as desired.

NFC stickers (max size 27 x 0.4 mm) can be purchased on Amazon and programmed using free NFC apps on your phone. The print will automatically pause when it’s time to insert the NFC tag.

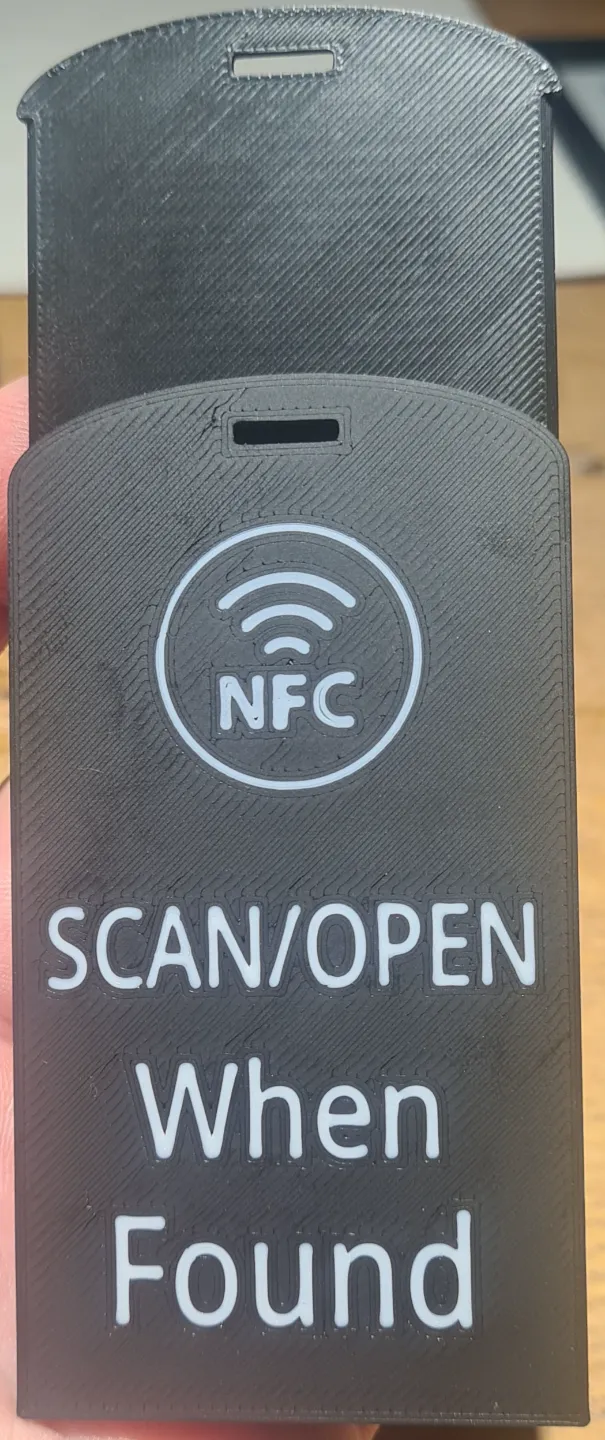

The label dimensions are 54 x 99 x 3.2 mm. It includes an exterior with an NFC logo and an interior section with spaces for your name, address, ZIP code, city, country, phone number, and email address.
