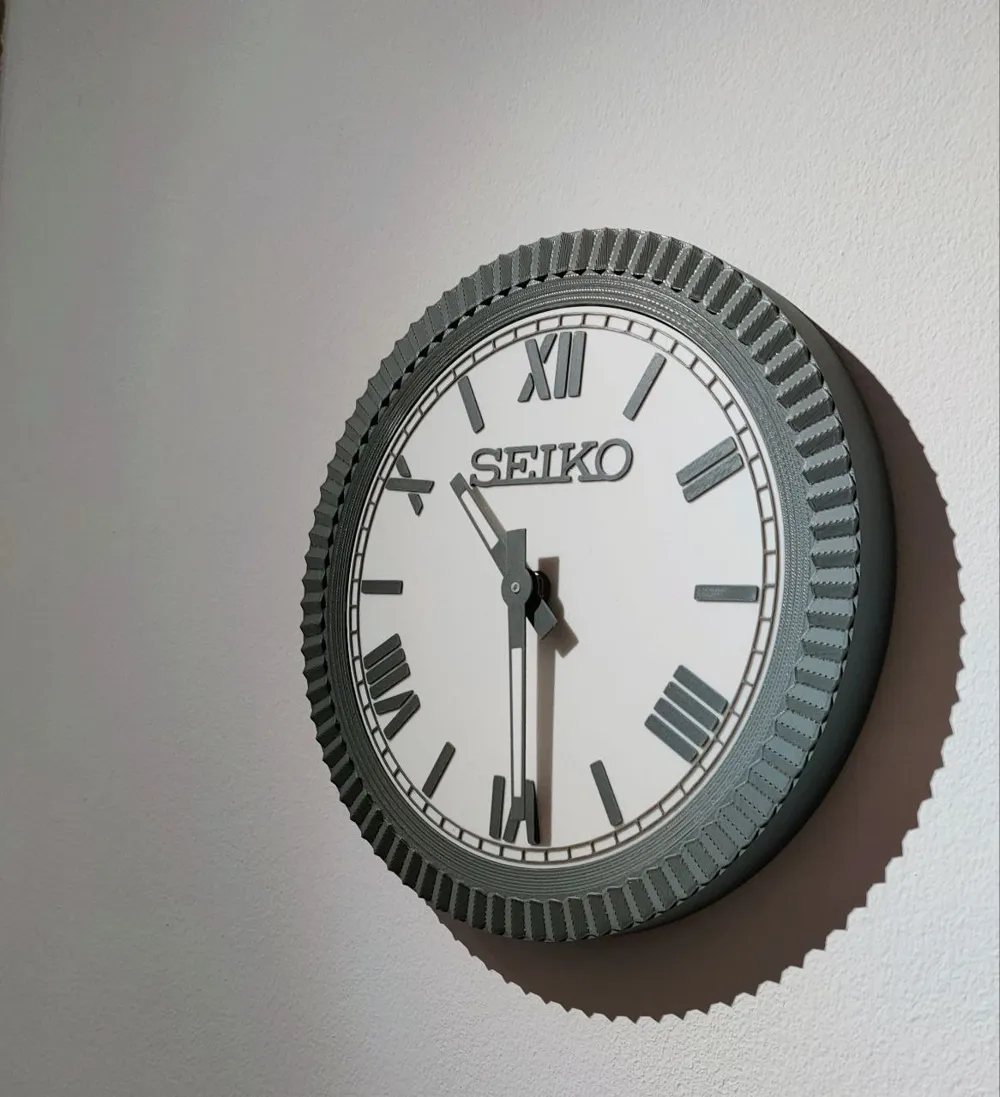

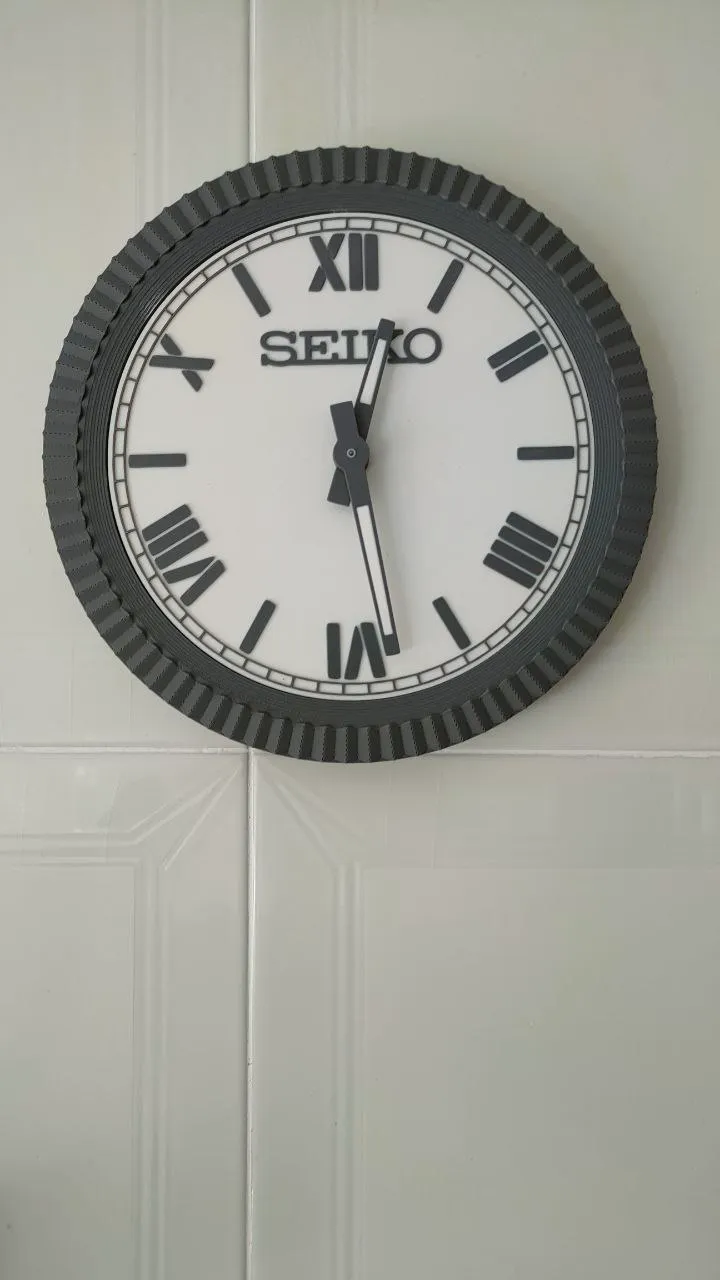

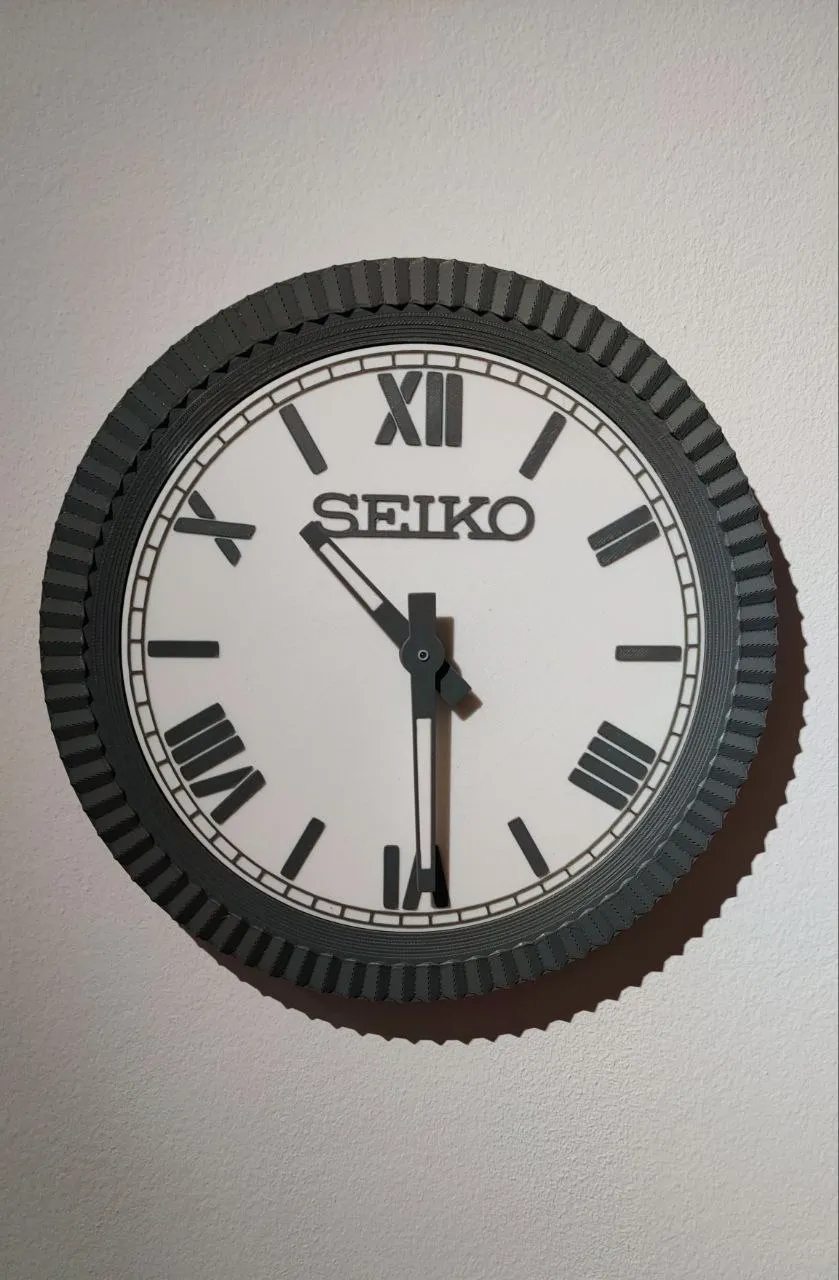

Functional Seiko Clock, for wall hanging

Hello friends, I present my interpretation of another clock model, suitable for both the A1 and P1S models

It is laminated in 3 plates, one for the outer crown, another for the base, and another plate for the minute and hour hands

To avoid potential filament tolerance issues, it is designed so that only 4 drops of adhesive are needed and the clock base is simply dropped onto the dial You can use the seams as a guide; they are painted on the top of the dial and align with the small hole on the back for wall mounting

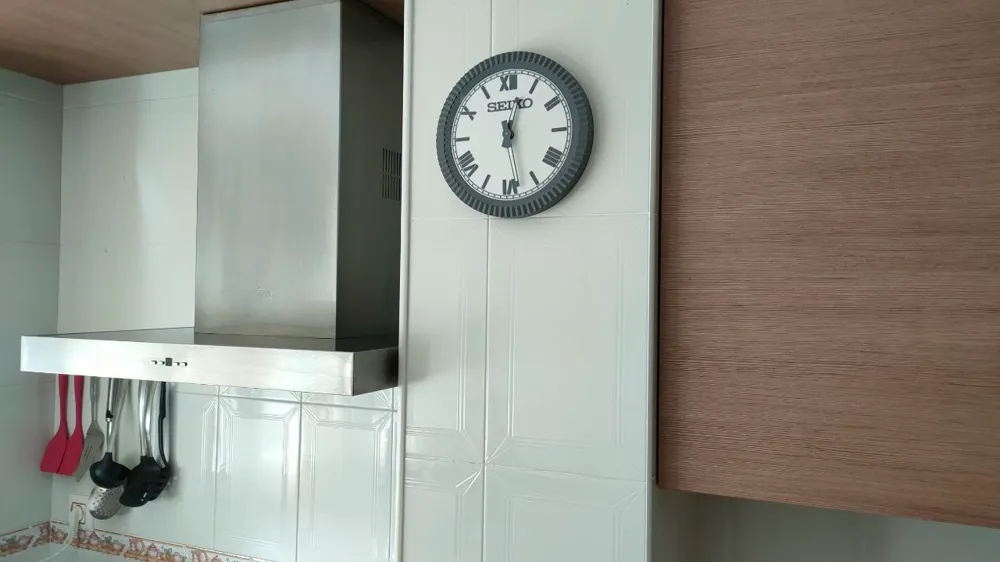

The wall mounting recess is designed for a simple screw

Filaments used:

Recycled Pla Smartfield (Gray)

Creality Pla Ender (white)

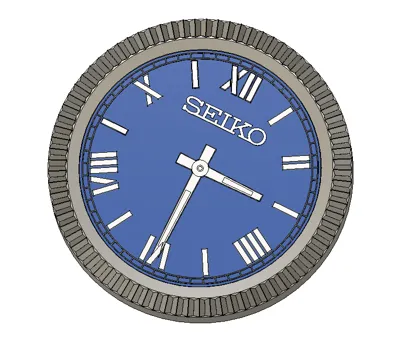

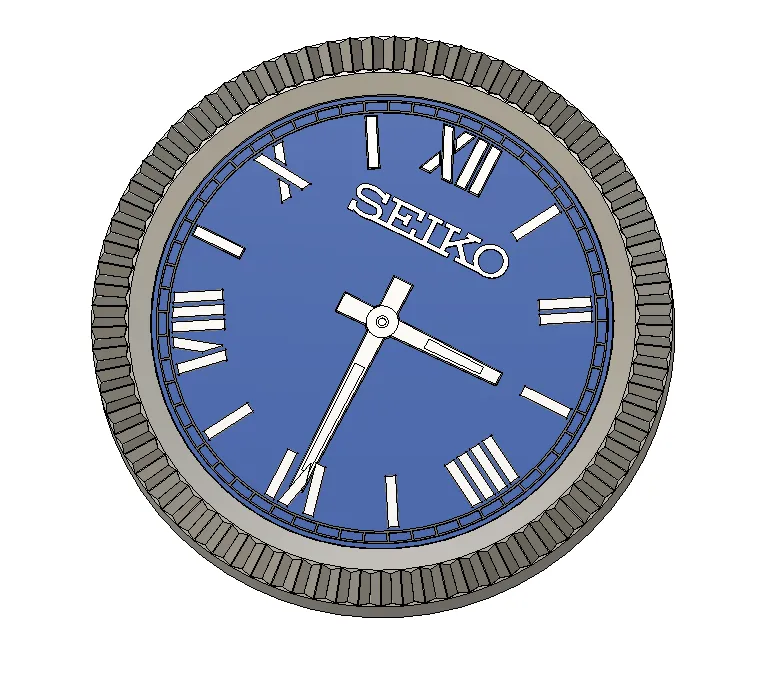

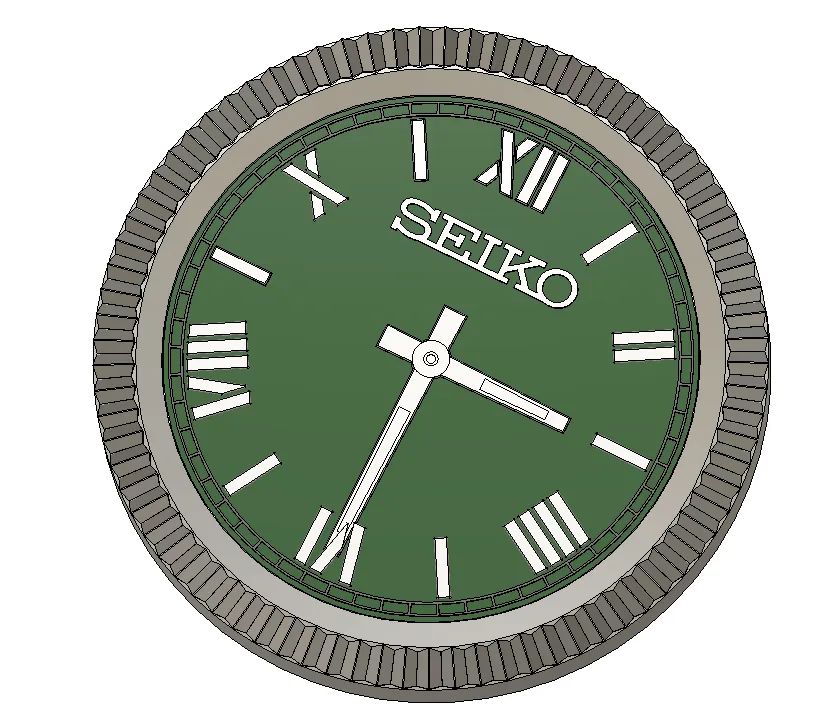

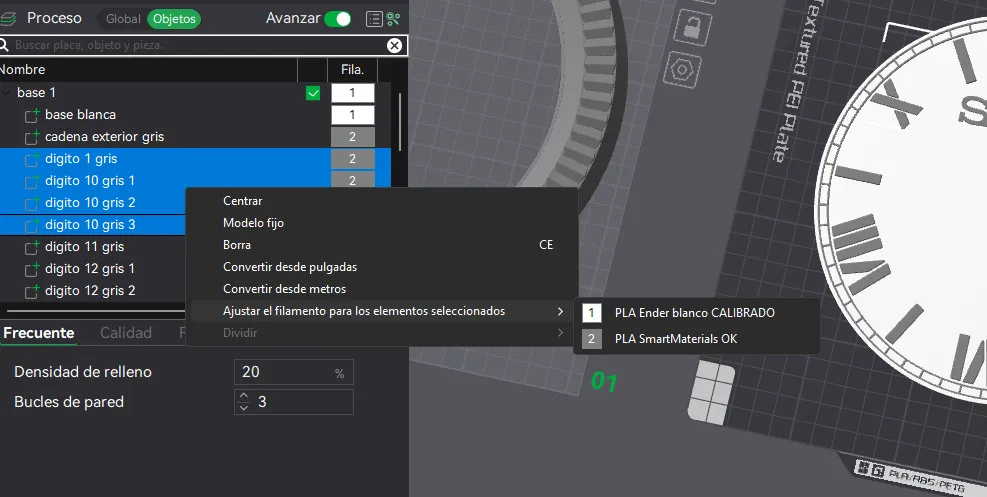

My design incorporates two colors, white and gray, but remember to unleash your imagination, as the files are designed to allow for complete color customization of the digits, crown, base, logo, and hands

IMPORTANT PRINTING NOTES: Please adjust your filament tolerances You shouldn't encounter issues with the base and crown, but you might with the hour and minute hands The dimensions for these hands are:

Hour hand hole diameter: 5mm

Minute hand hole diameter: 3.20mm

These dimensions ensure a perfect fit

If you require a different size and are unsure how to modify it in your slicer, PLEASE DO NOT HESITATE TO CONTACT ME, and I will gladly upload a profile with the diameter you need for your clock mechanism

Regarding INFALL, the design uses 25% I personally prefer this for its robust finish, but feel free to adjust this parameter to your liking I don't recommend going below 15%, as it might become too fragile In fact, I've used 30% in other models with excellent results

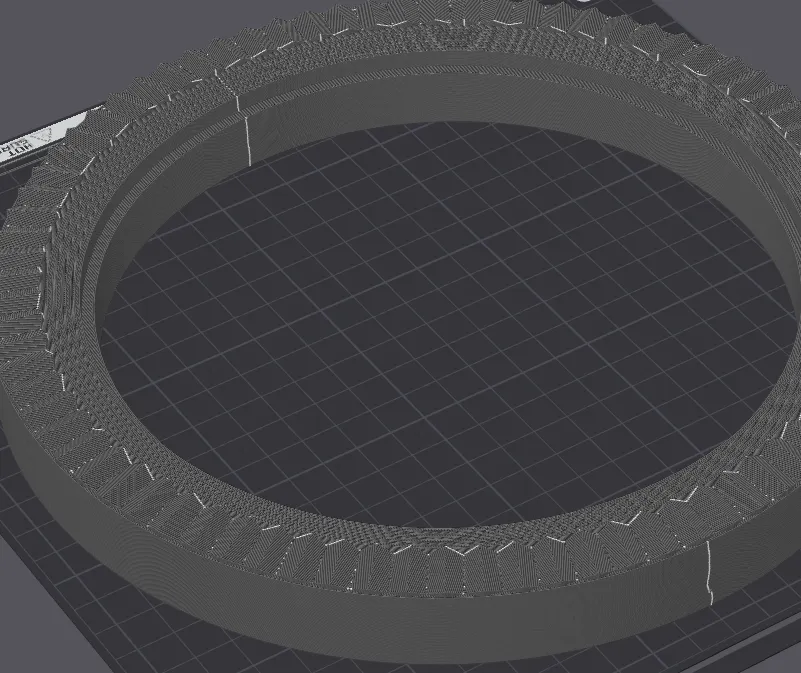

Smoothing: The Crown plate does not require this setting and should be disabled

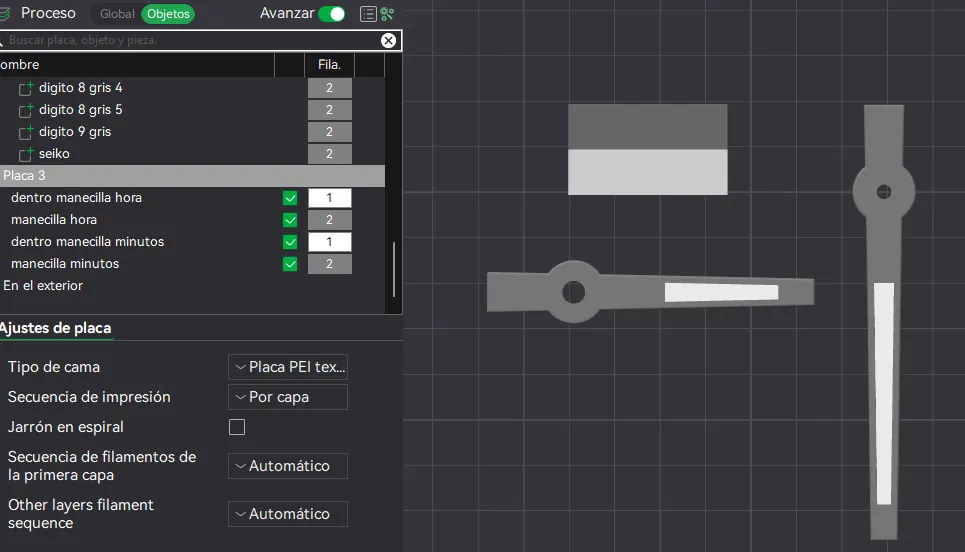

Purge tower: Only necessary for the hour and minute hand plate

The main file contains the three printing plates You also have 3 individual profiles, one for each plate

The crown is interchangeable with another of my models, which can be found at the following address:

https://makerworld.com/es/models/718524#profileId-649379
