Car Emergency Starter and Power Bank (Version 2)
Print Profile(1)
Description
This model's second version incorporates a voltmeter, details in the print profile

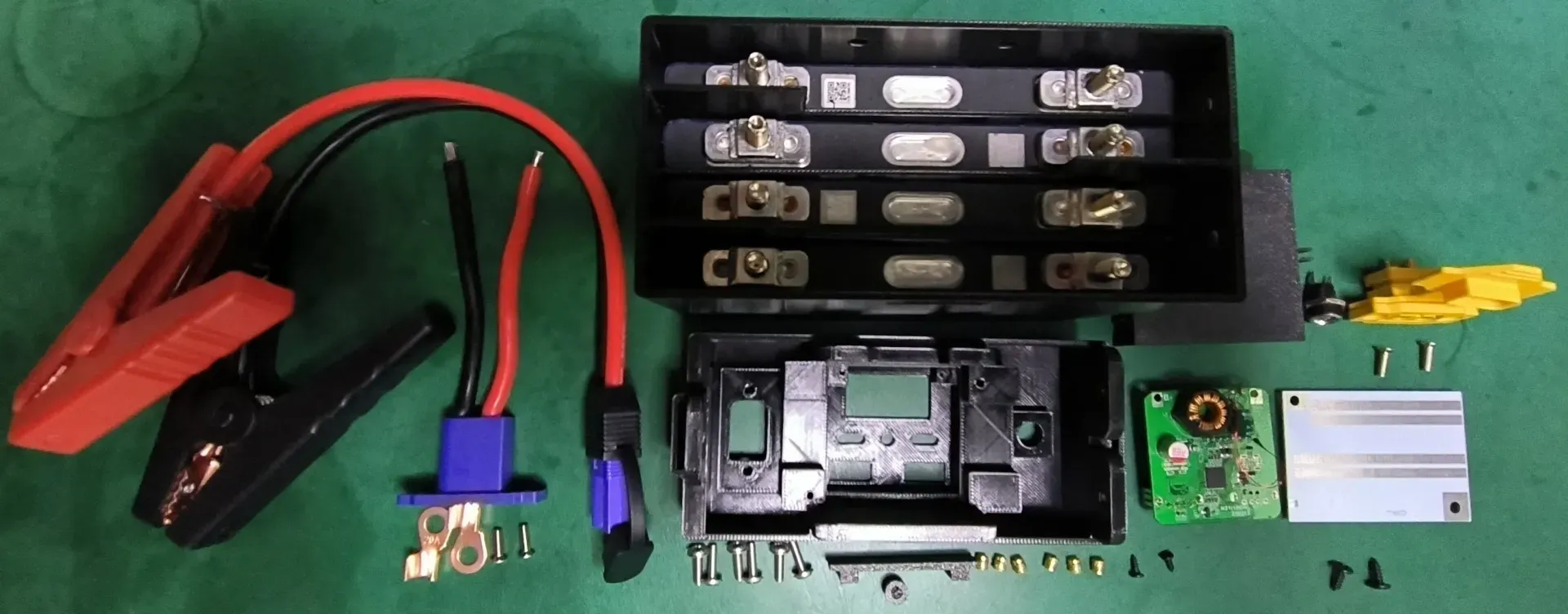

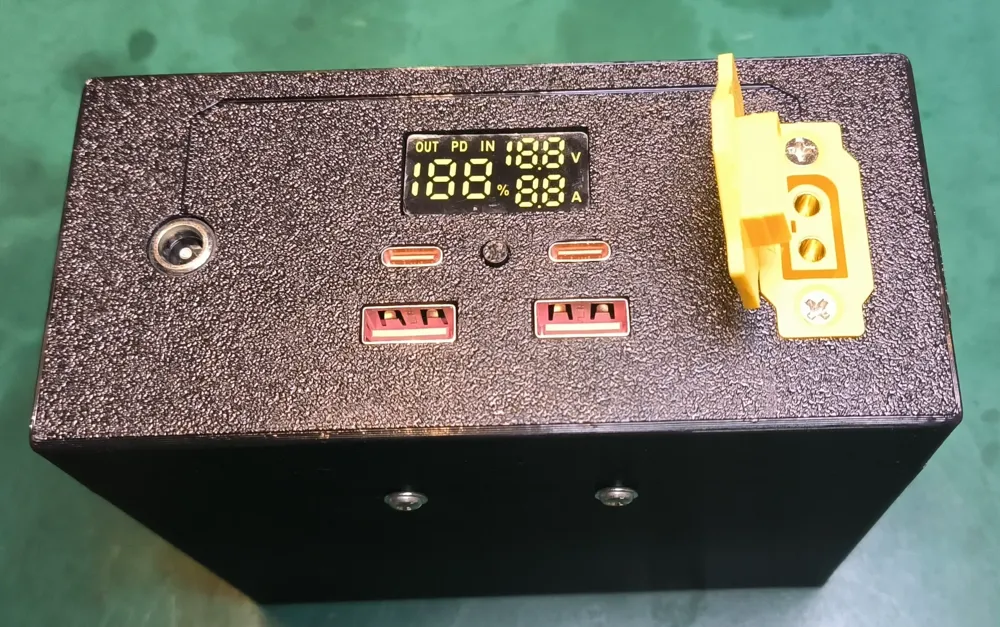

This model draws inspiration from XC小白's power bank model on MakerWorld, to whom I extend my sincere gratitude. First, a family photo:
Required materials for this model:
1: Four Xinwangda 6.2AH ternary lithium-ion cells
2: One 100W PD power bank module
3: One 100A charge-discharge protection board
4: One set of EC5 female connector with battery clip and EC5 male connector with mount, plus mounting screws (using 10AWG silicone wire)
5: One set of XT60E-F and mounting screws
6: One DC socket
7: Several copper wire terminals
8: Two M3*6 and two M2*6 black iron pan head self-tapping screws
7 M3*4*4 heat-shrinkable nuts
5 M3*5 stainless steel pan head screws with washers
Assembly instructions: See the attached document

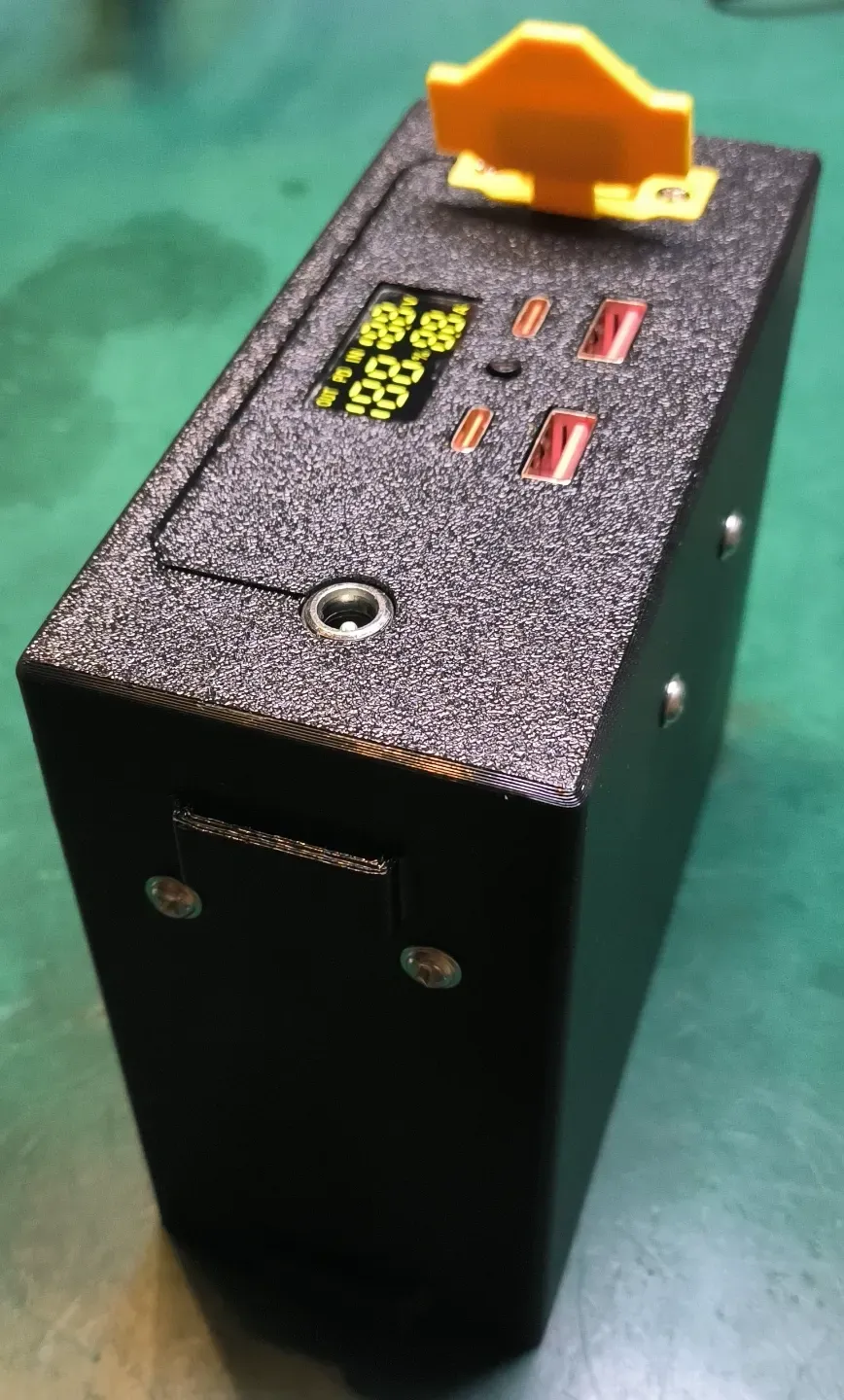

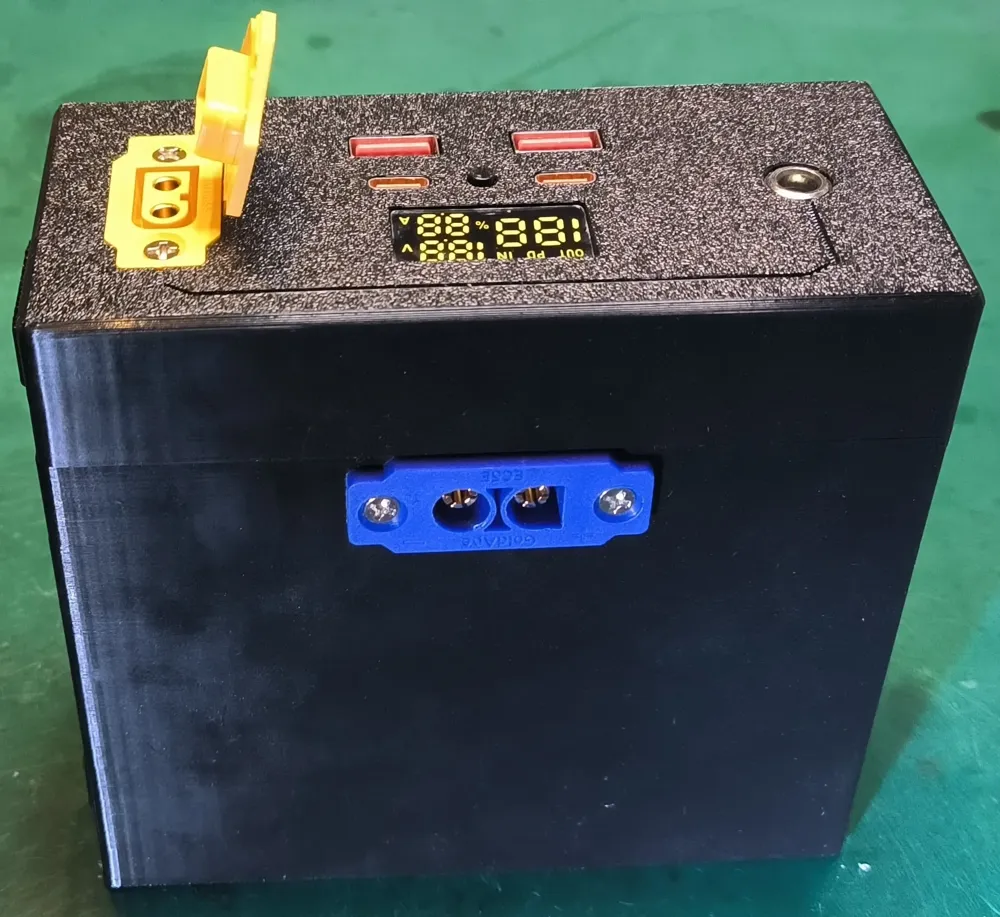

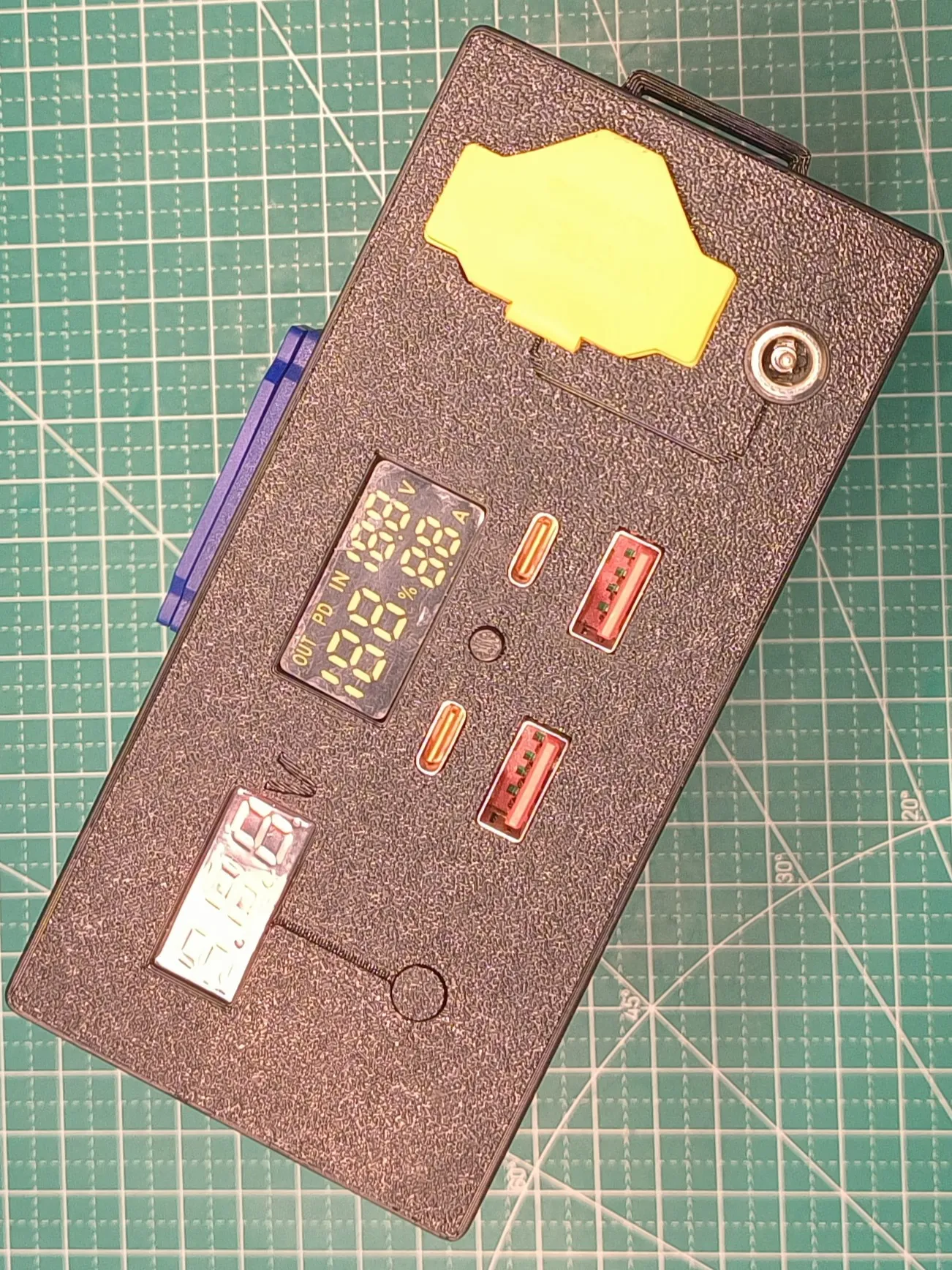

After assembly, see the image below:

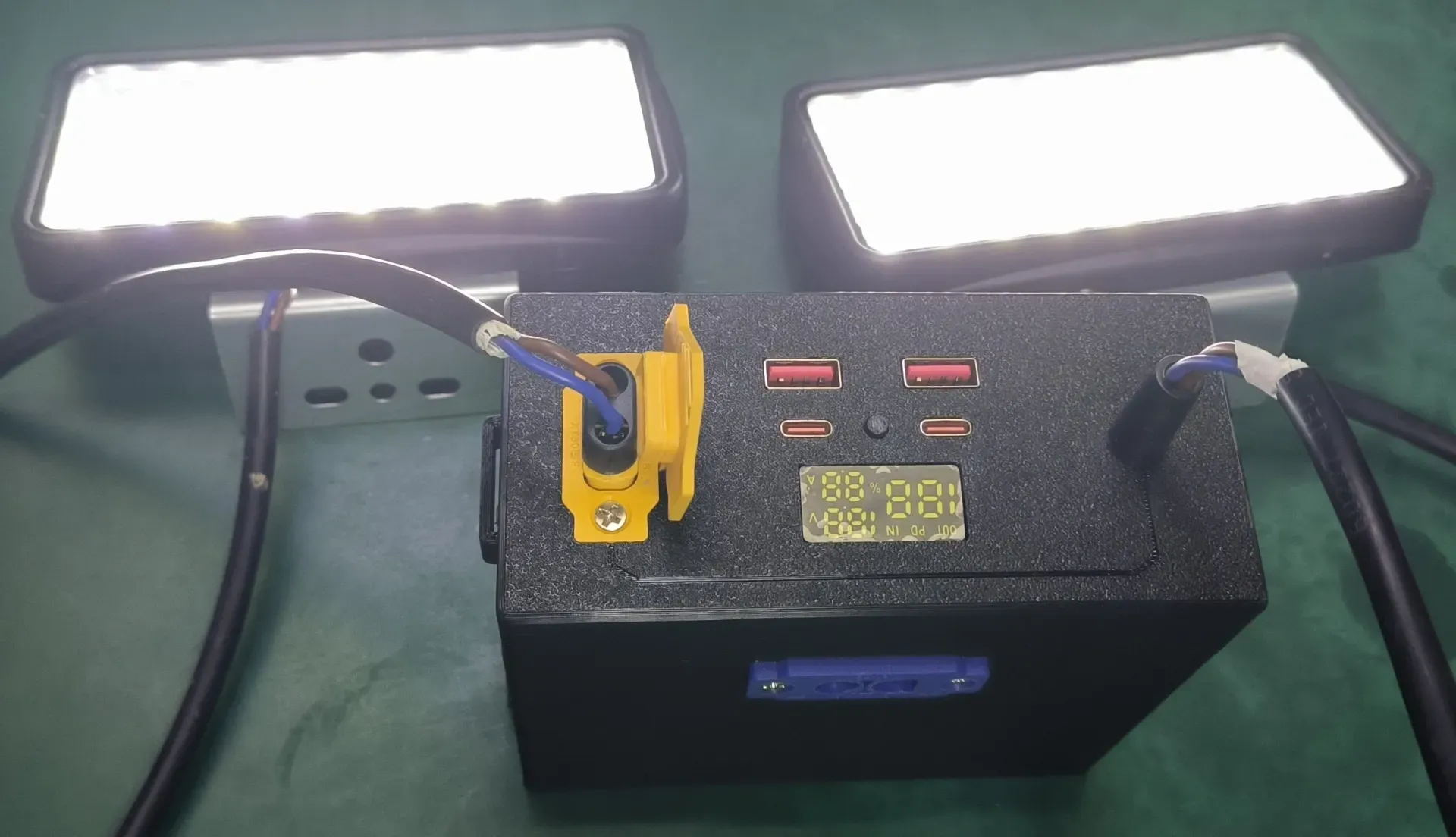

The following image depicts the connection to two work lights:

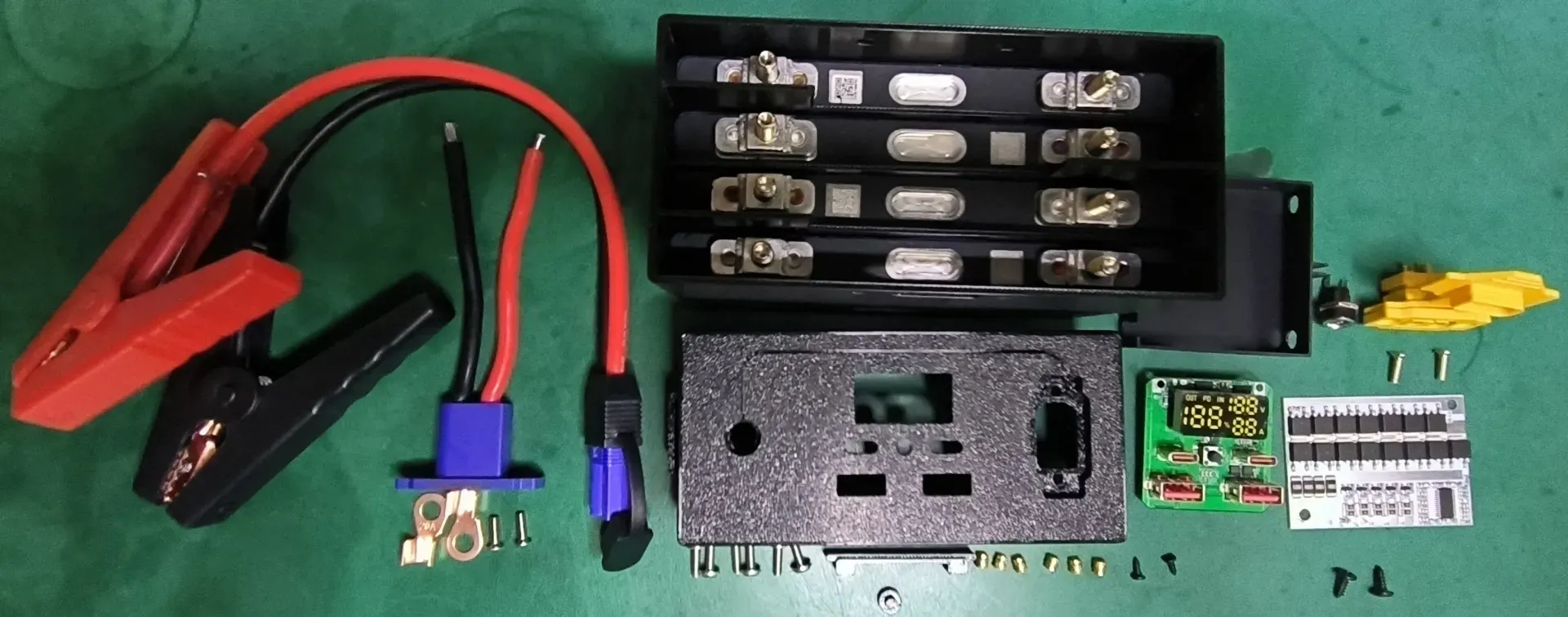

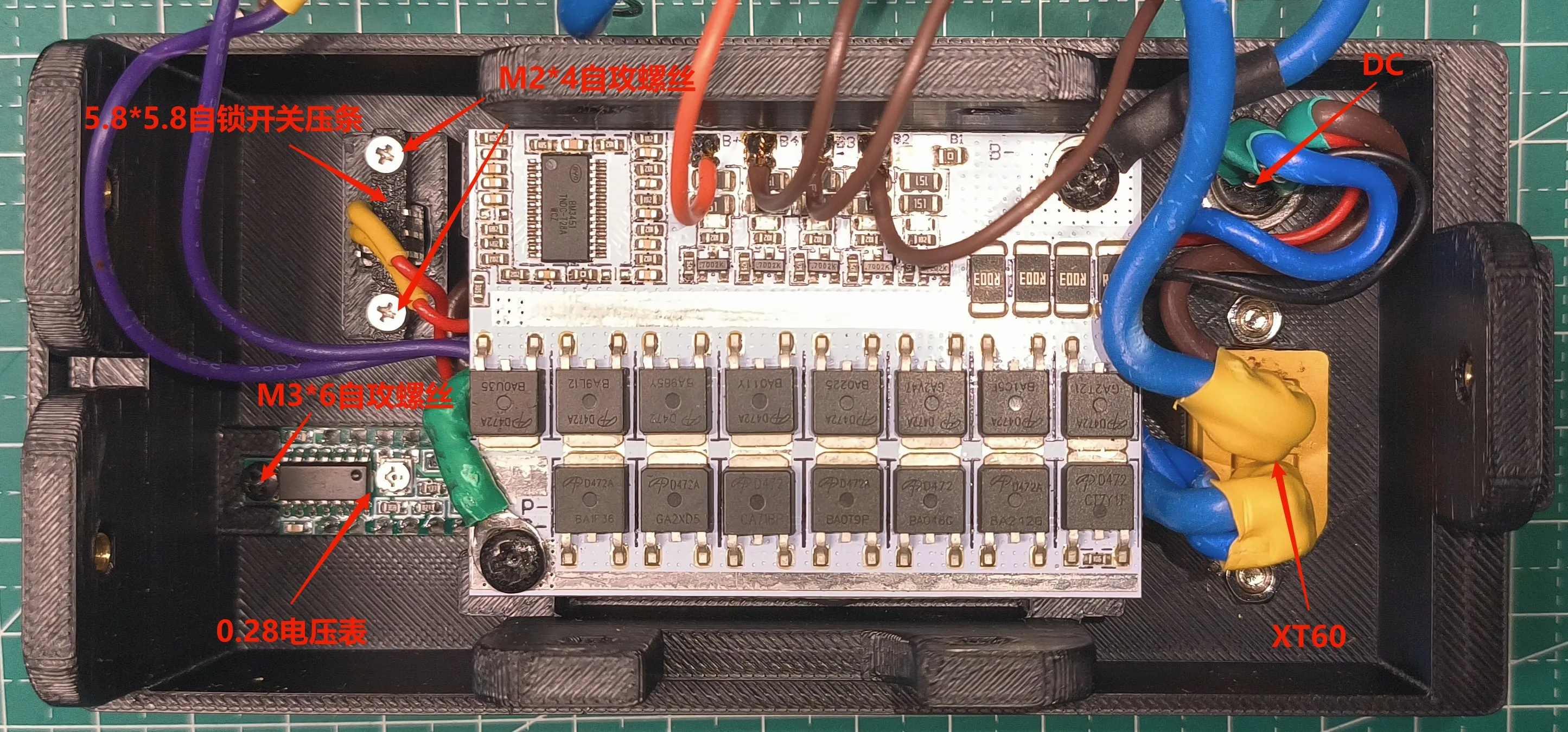

The second version of the model includes a voltmeter. Added components include a 0.28-inch voltmeter head, a 5.8*5.8 self-locking switch, and M2*4 and M2*6 self-tapping screws. Assembly instructions are shown below:

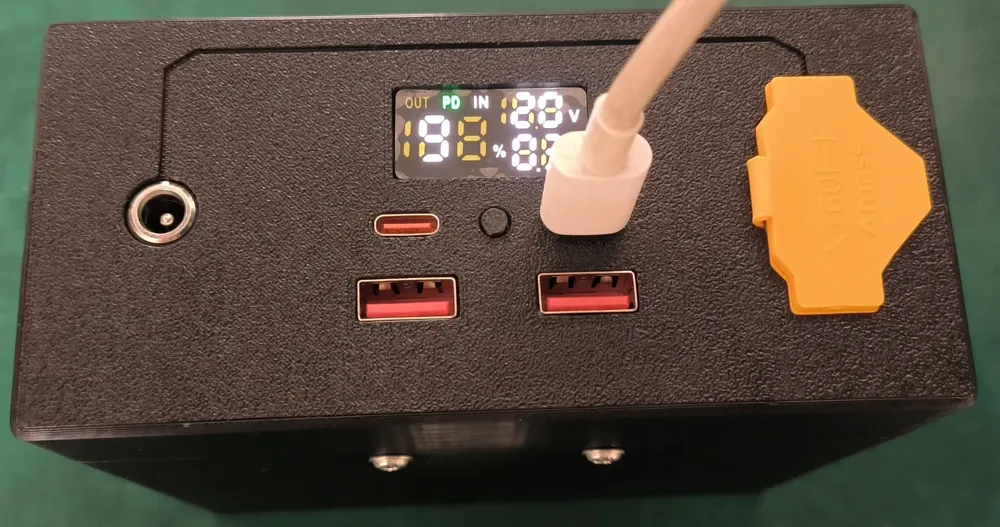

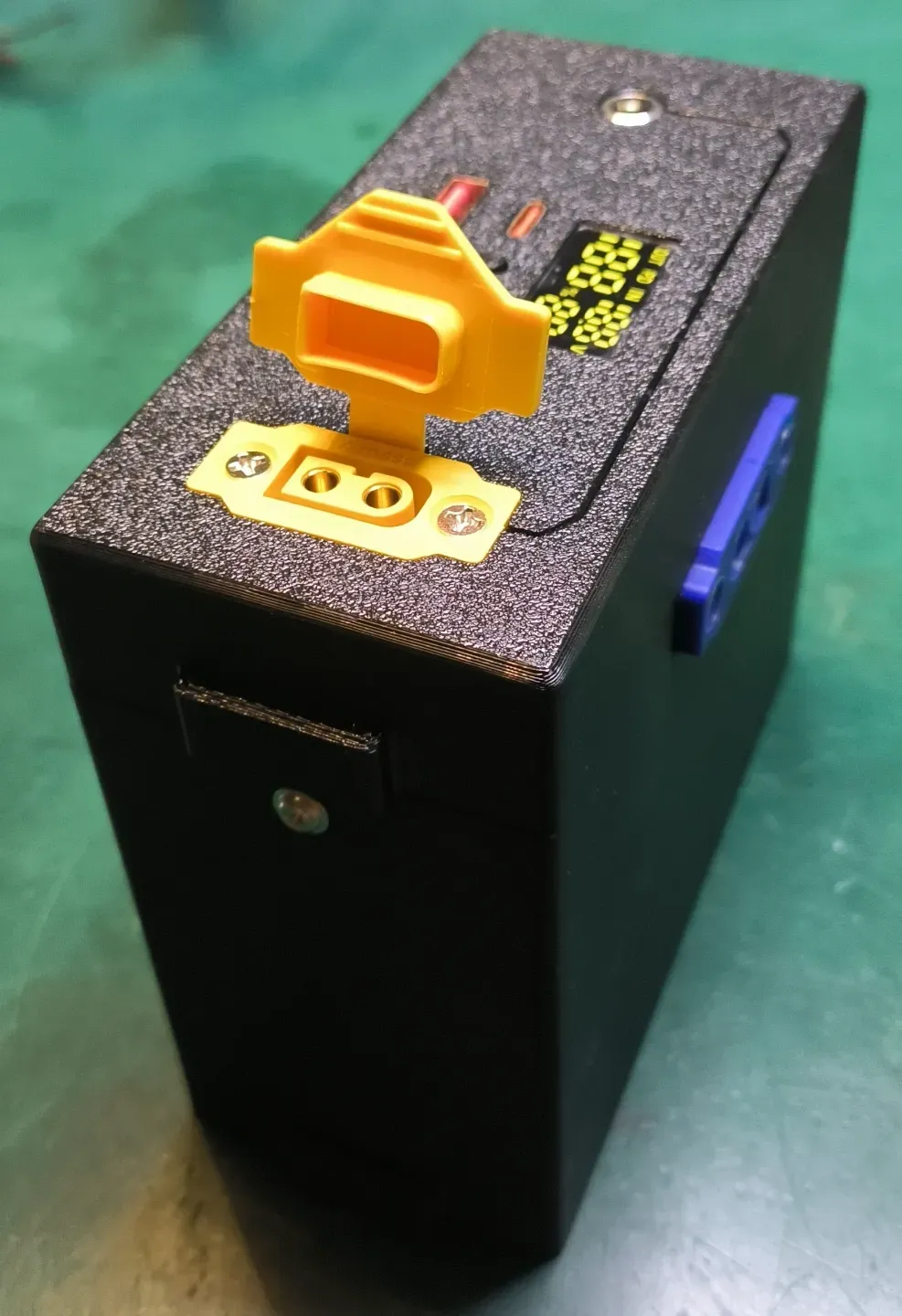

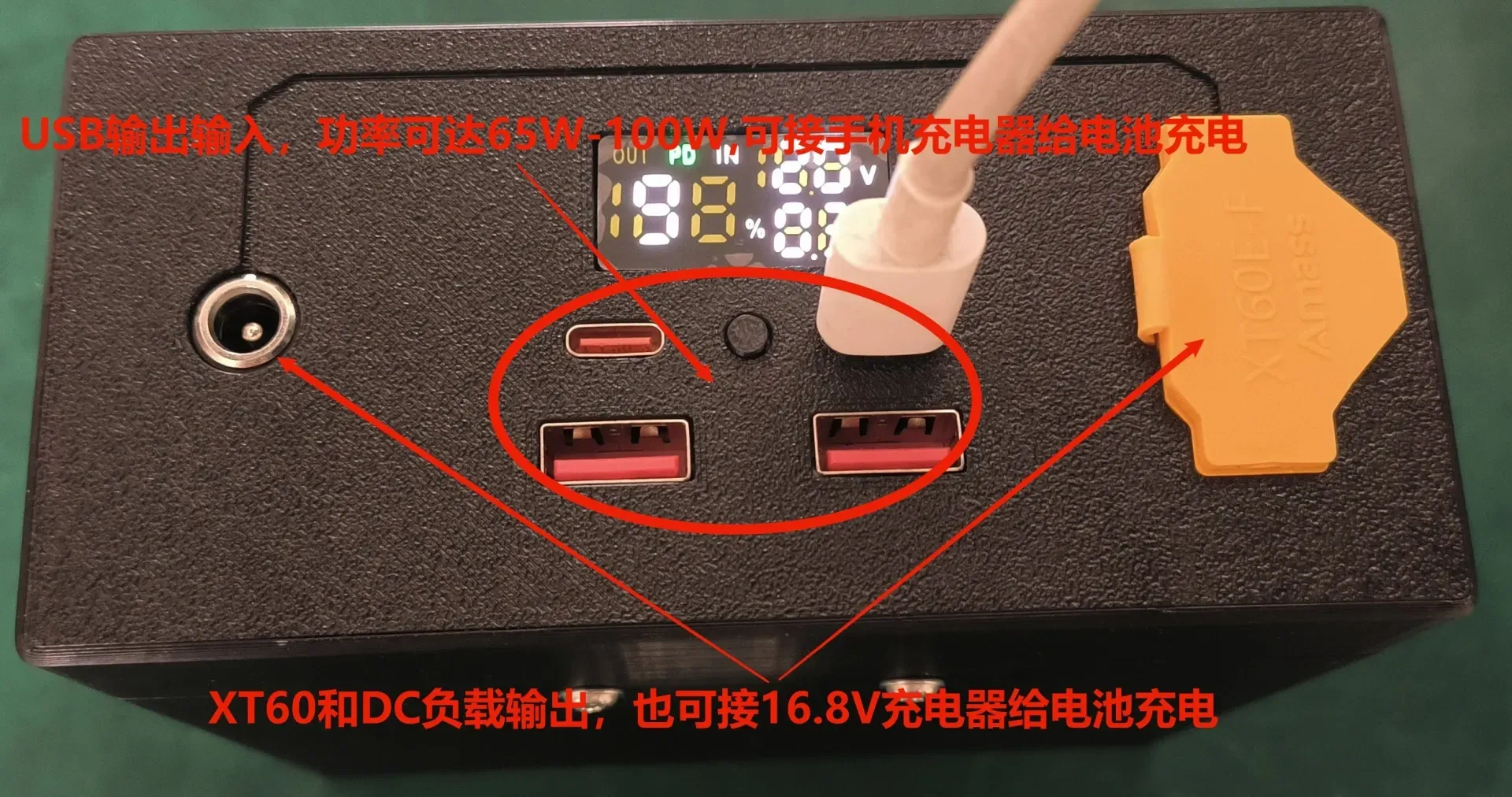

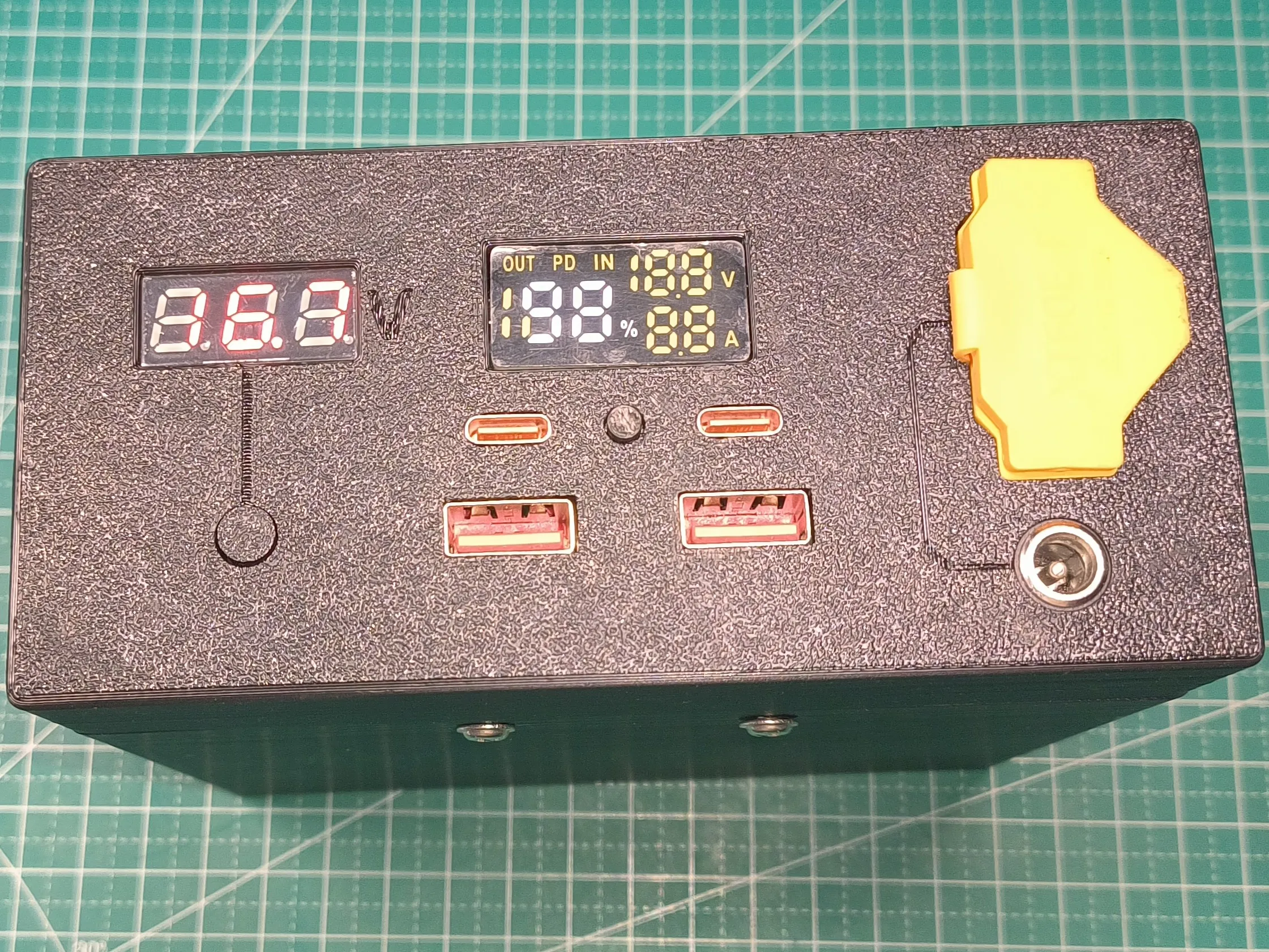

The self-locking switch button cap is quite tight; firm pressure is required for installation. See image after completion:
If you appreciate this model, please download and provide your support. Please feel free to point out any errors; your feedback is greatly appreciated!
