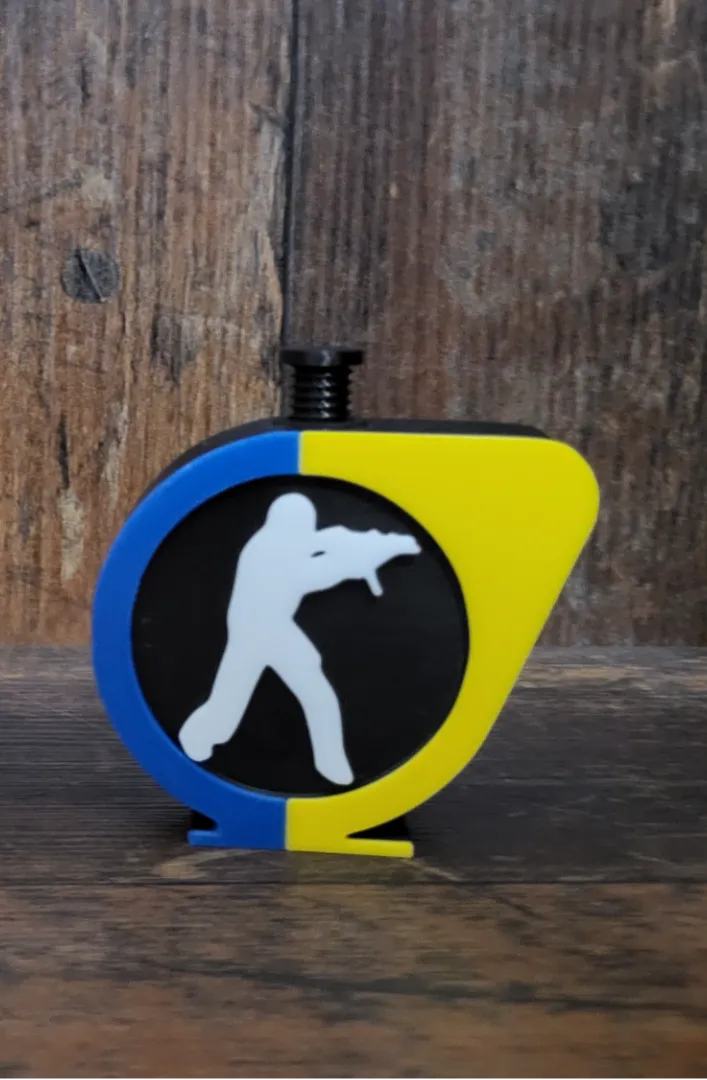

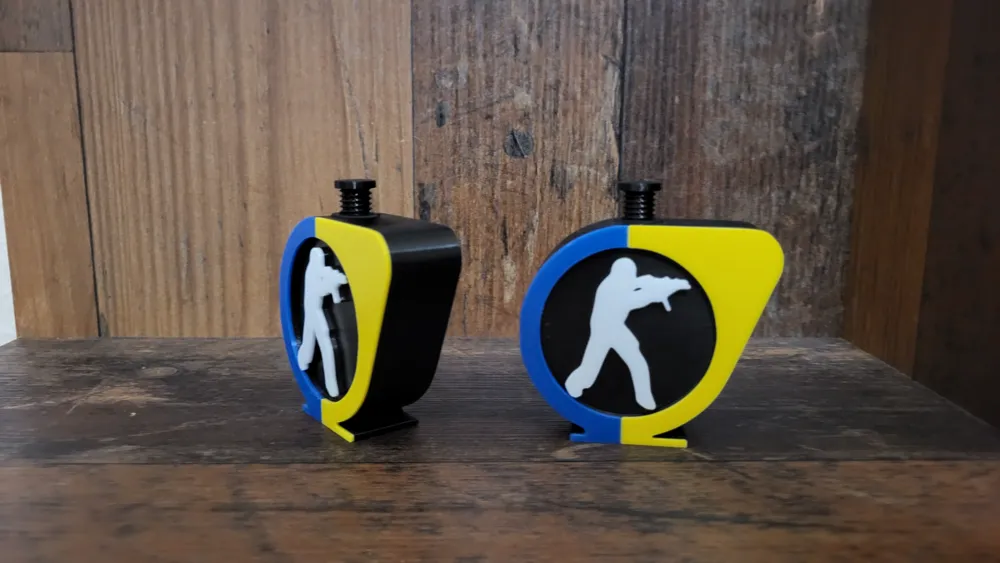

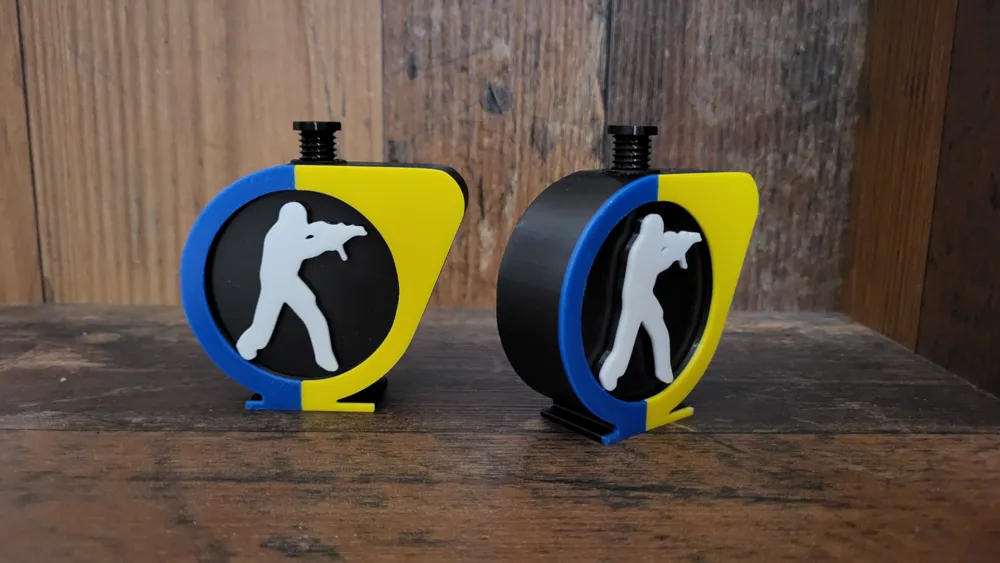

Adjustable graphic card holder - Counter strike
Print Profile(1)
Description
Min. height 66 mm
Max height 116 mm
No support required.
Brims turned off.
Boost Me (for free)
Boost me if you like it! Thank you very much! ;)
Instructions:
I set print by object method because different layer heights and ironing.
Main item (bulid plate 1)
0,2 mm layer height
Ironing on top surface (I set 35mm/s and 30% (I think the correct setting depends on the printer and the type of filament)
Inner rod (build plate 2)
0,12 mm layer height
no ironing
An 8x2 mm magnet can be placed in the bottom.
On a flat surface, push the magnet in to make it nice and flat. Minimal superglue can go into the hole.
If you spray a little PTFE or similar lubricant inside the thread, the rod will rotate much better.
High-speed printing is not recommended due to fine details, acceleration speed decelerated.
It probably won't work if resized.
Check out my other uploads and download and print them. RTX, Aorus, AMD, TUF, ROG, Minecraft, COD BO6.
!!! Make sure the print speed and temperature and cooling are set correctly for your printer and the filament you are using !!!
If the thread is tight, your filament settings are probably wrong, especially the cooling. Check that and make sure you printed your threaded rod with a layer height of 0.12.
I have already printed several pieces.
Have a nice day and have fun playing!
