Cabinet and door concealed euro hinge drilling jig
Print Profile(1)
Description

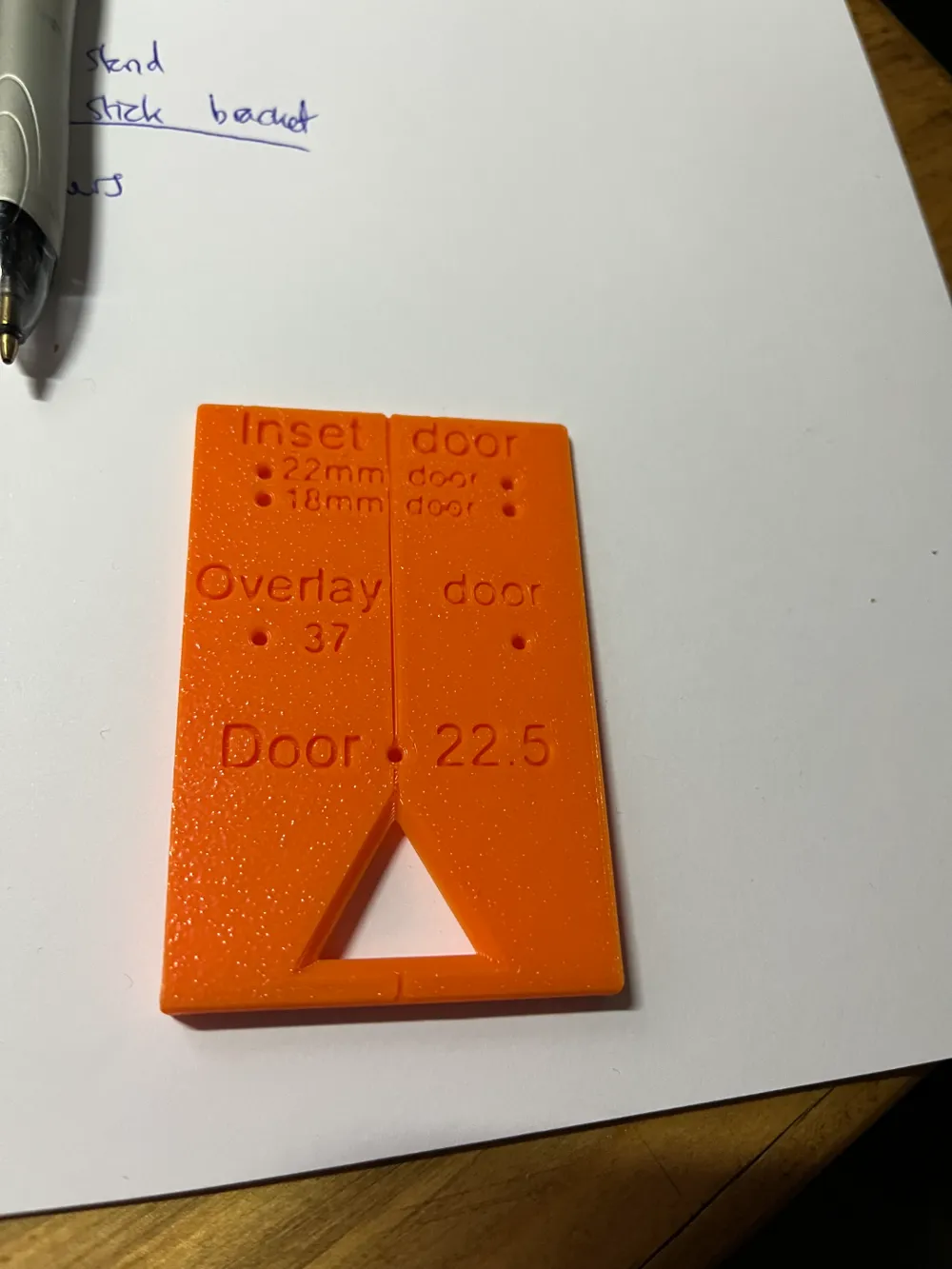

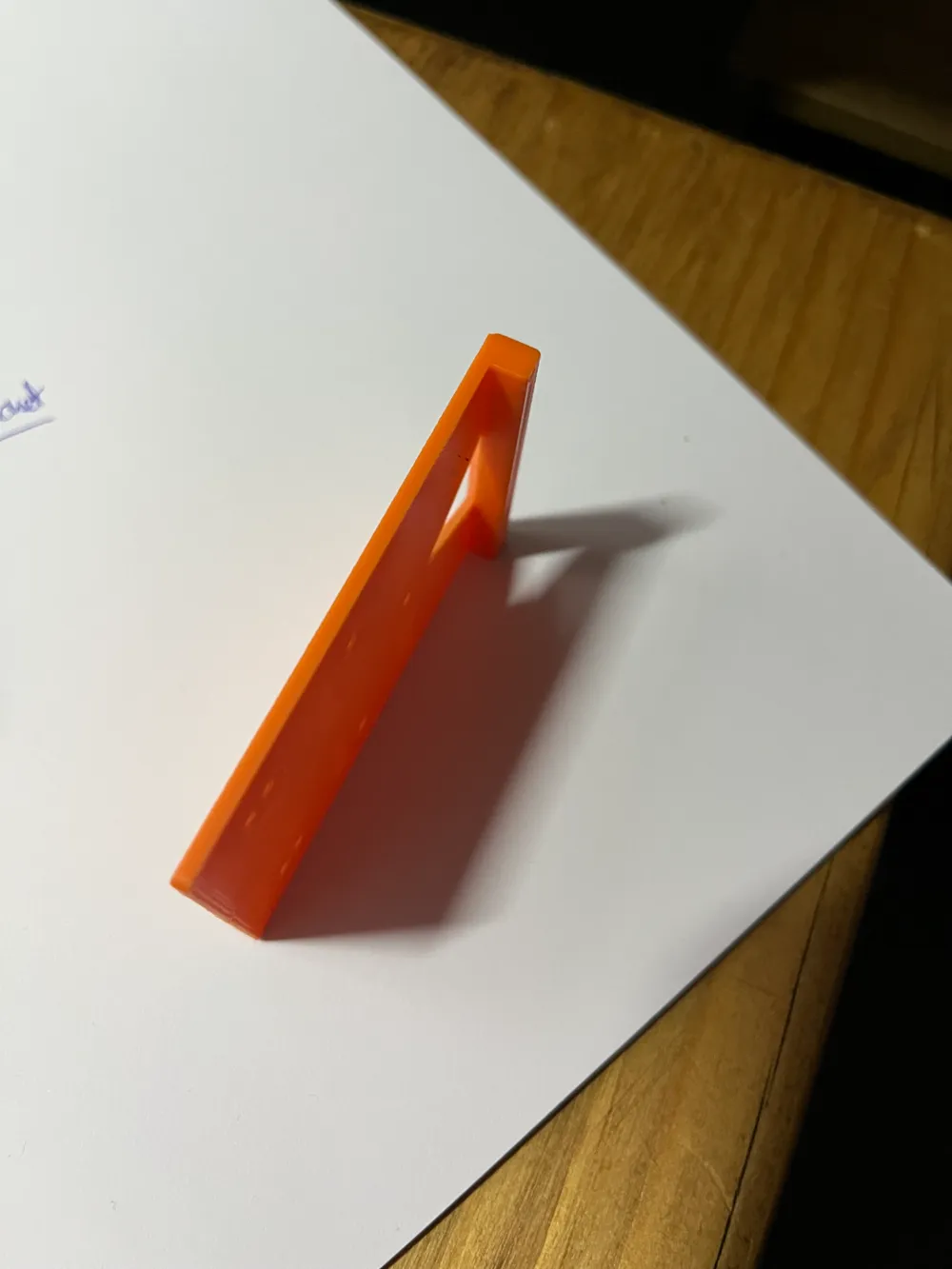

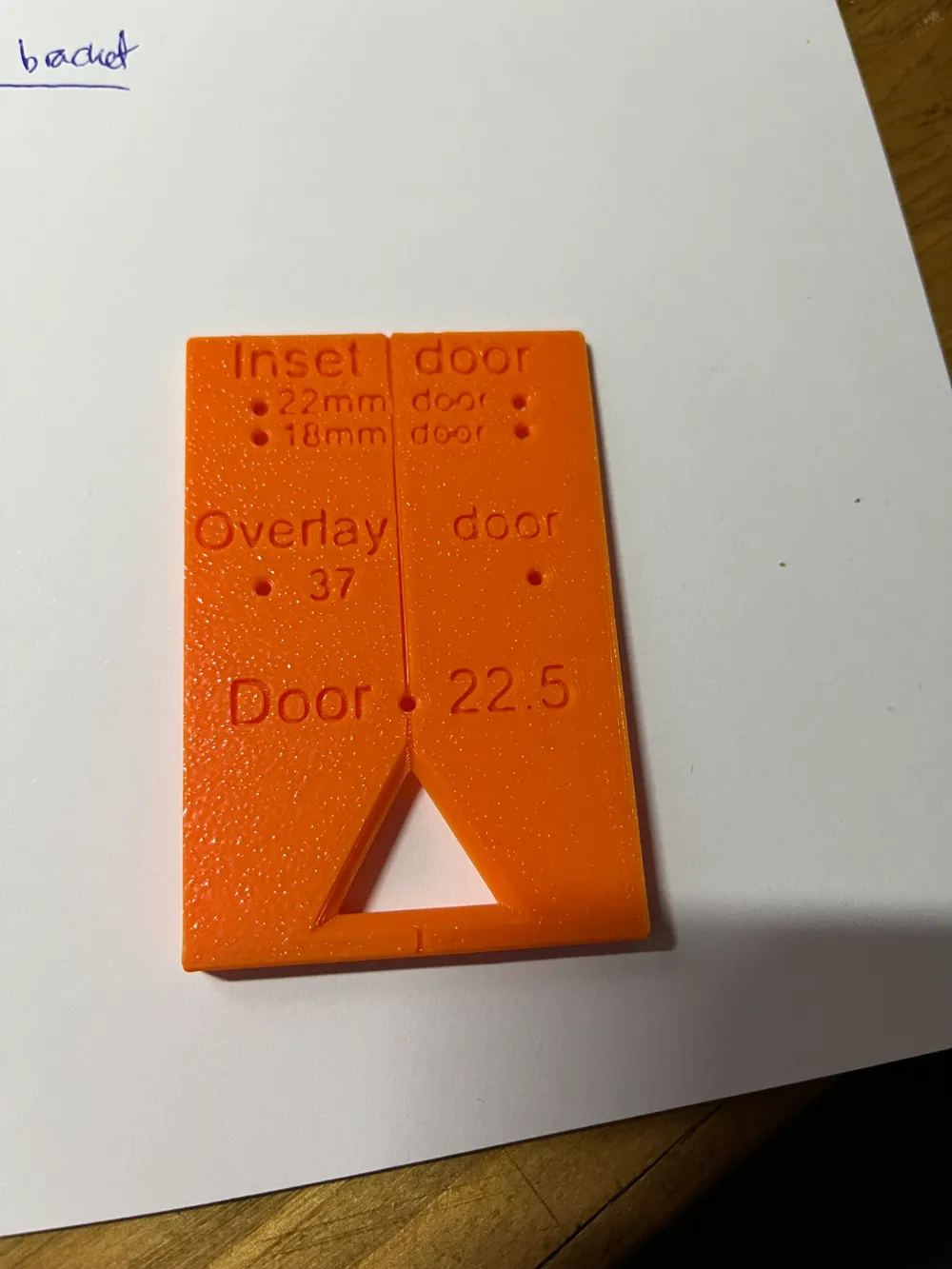

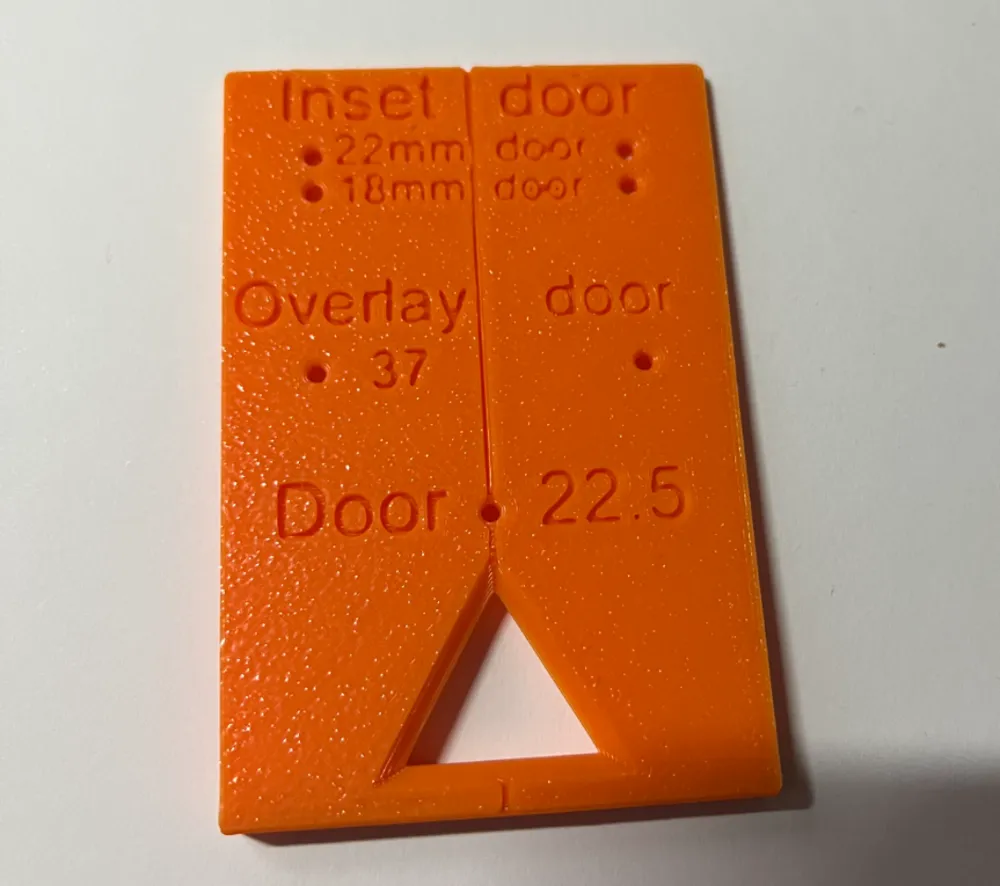

Marking and drilling jig for concealed euro style hinges. This gives marking positions for the hinge bracket for both inset and overlay doors at 18mm and 22mm thickness. Also give the marking point for the cup part of the hinge on the door at 22.5mm from the edge of the cabinet door.
